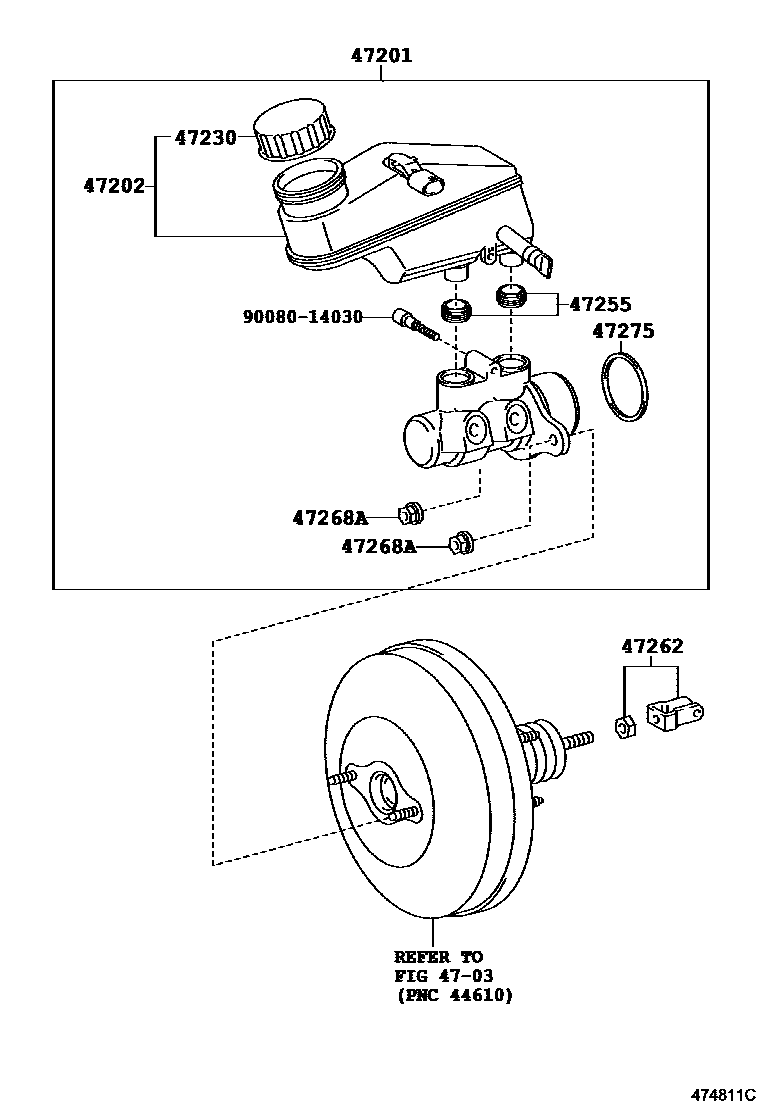

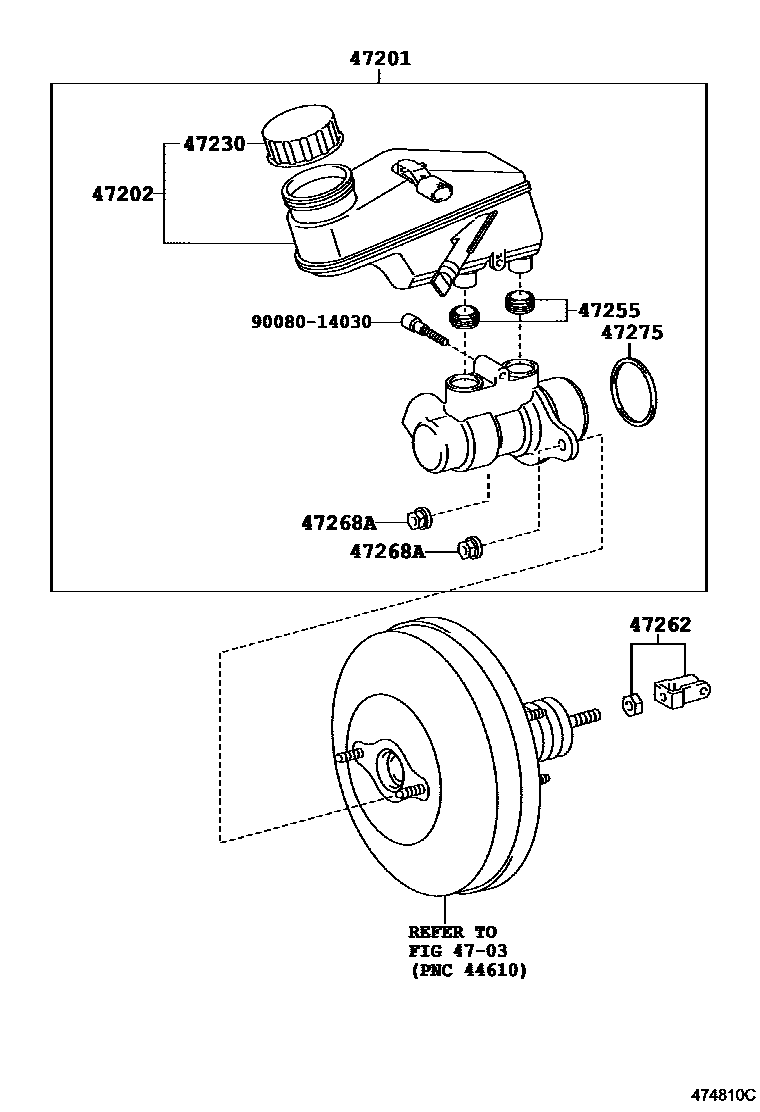

Toyota YARIS 制动总泵 — Figure 4702
Toyota YARIS EPC diagram 4702, 制动总泵, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-09160 · 47201-09161 · 47201-09170 · 47201-09171 · 47201-09180 · 47201-09181 · 47201-09190 · 47201-09191 · 47201-09490 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-0D060 · 47220-0D070 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0D060 |
| 47255 | Master pump reservoir seal | 47255-09030 |
| 47262 | master cylinder push rod nut | 47262-09010 |
| 47268A | brake master cylinder nut | 47268-05010 |
| 47275 | brake master cylinder gasket | 47275-0D020 |
