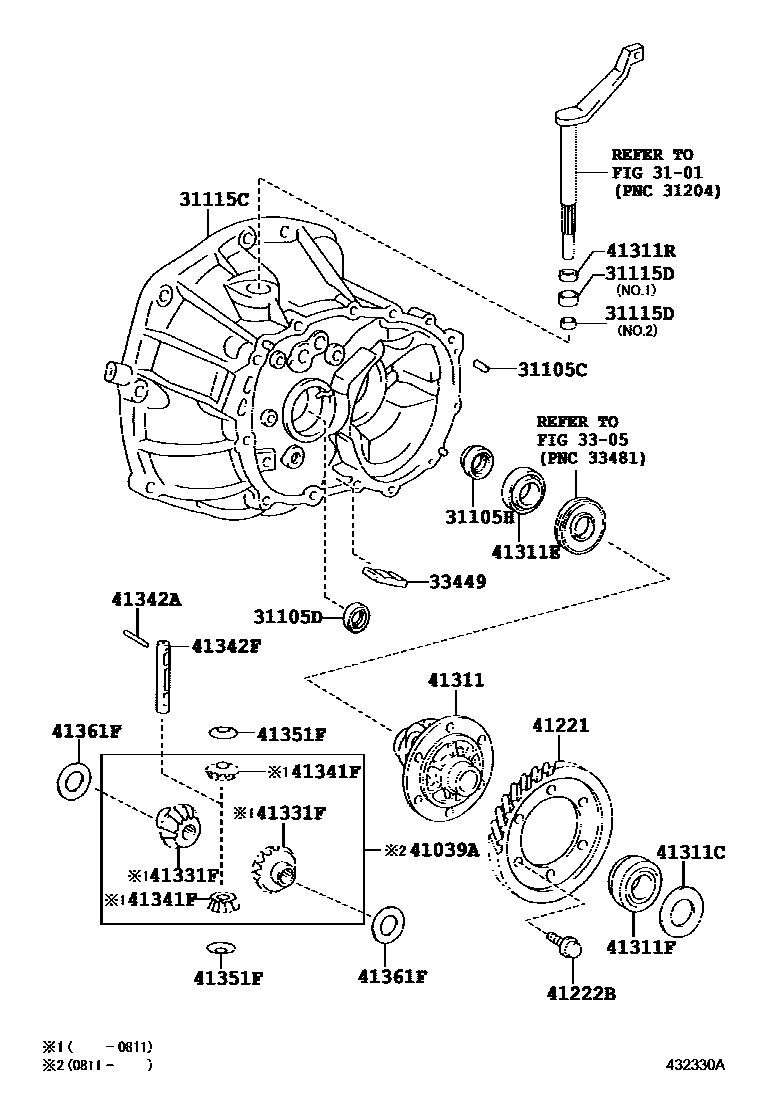

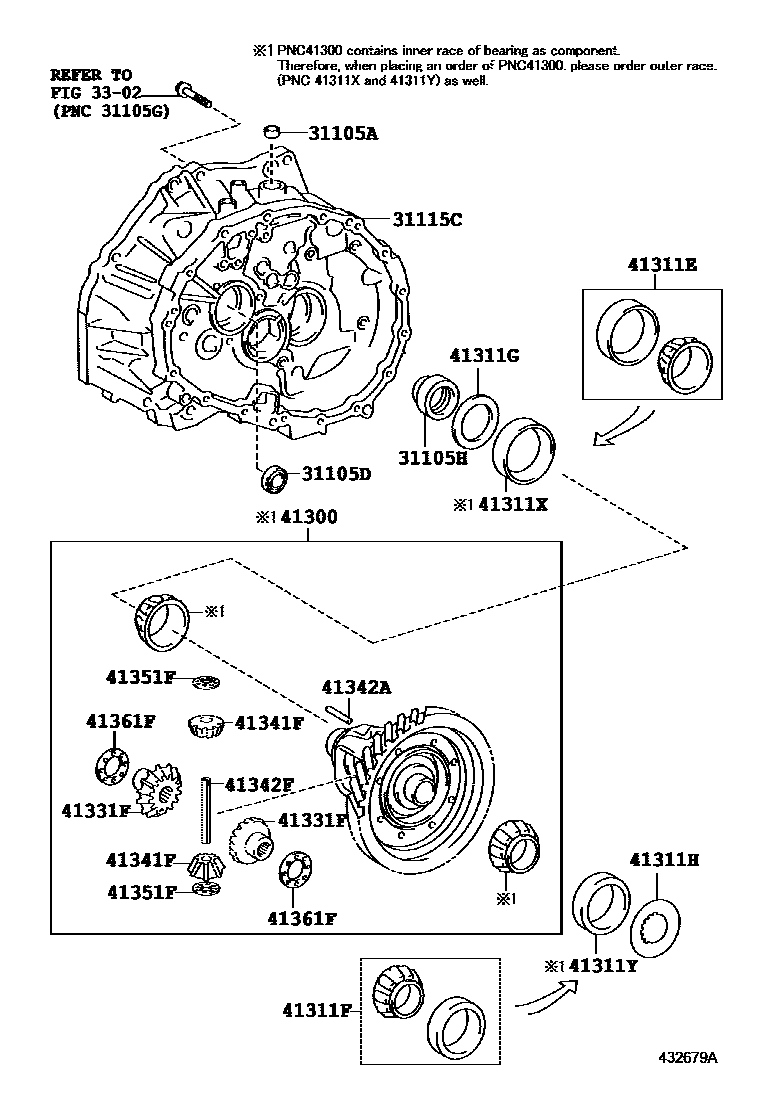

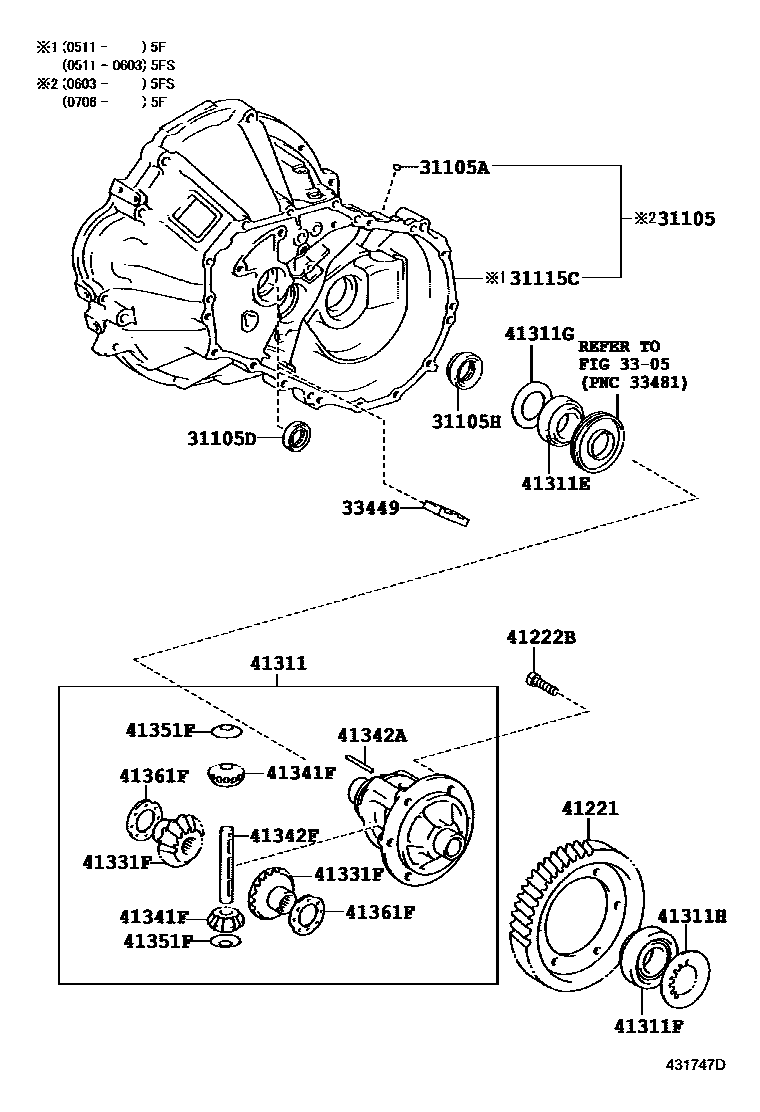

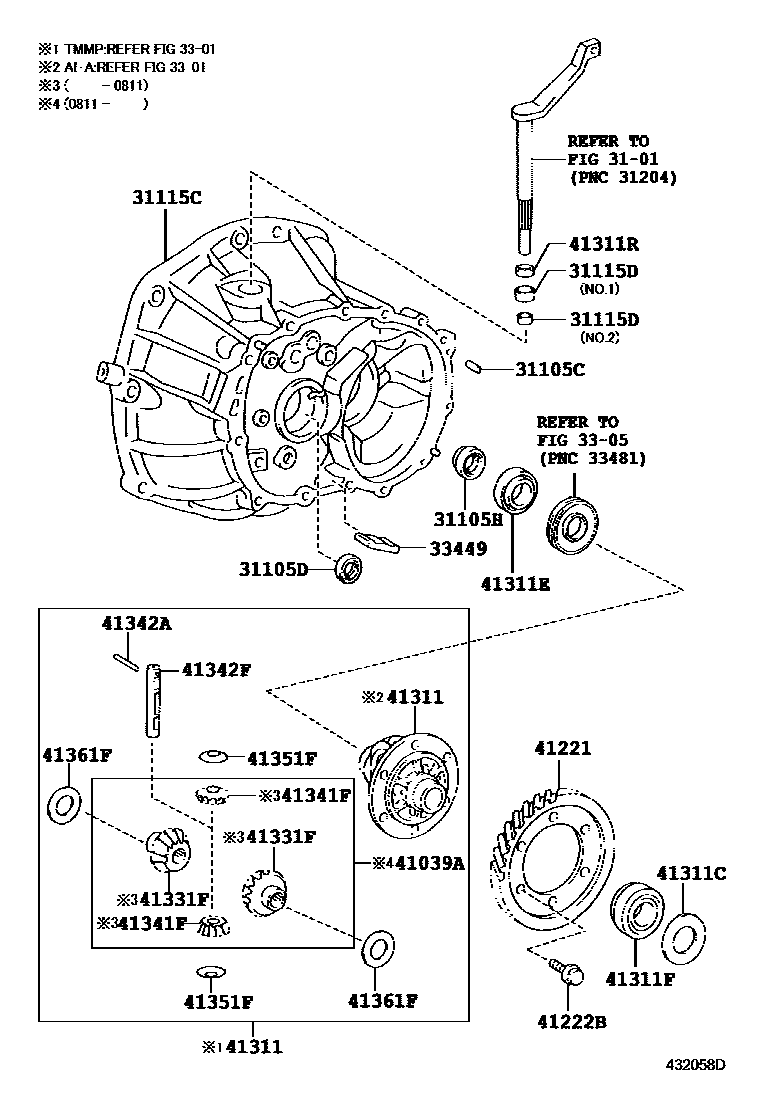

Toyota YARIS 前桥壳和差速器 — Figure 4301
Toyota YARIS EPC diagram 4301, 前桥壳和差速器, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105 | Transmission axle housing sub-assembly (MTM) | 31105-52050 · 31105-52060 |
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 · 90331-25005 |
| 31105C | Direct sales (for transmission axle housing) | 90250-08054 · 90250-W0001 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-23008 · 90311-23009 · 90311-25028 · 90311-25030 · 90311-W0001 |
| 31105H | No. 2 oil seal (for transmission axle housing) | 90311-34033 · 90311-34037 · 90311-34039 · 90311-34041 · 90311-35057 · 90311-35062 · 90311-35065 · 90311-W0003 |
| 31115C | Front transmission axle housing (MTM) | 31105-52050 · 31115-0D040 · 31115-0D110 · 31115-0D120 · 31115-0D140 · 31115-12160 · 31115-12170 · 31115-52050 · 31115-52070 · 31115-52090 · 31115-52100 · 31115-52140 |
| 31115D | Bimetallic bushing (for front transaxle housing) | 90384-15007 · 90384-20017 · 90384-W0004 · 90384-W0005 |
| 33449 | derailleur magnet | 33449-12020 · 33449-60010 |
| 41039A | Differential gear assembly | 41039-0D010 |
| 41221 | Front differential ring gear | 41221-0D070 · 41221-0D150 · 41221-52170 · 41221-52180 · 41221-52210 · 41221-52380 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-11040 · 90105-12313 |
| 41300 | Front differential case assembly with ring gear | 41300-0D010 · 41300-0D030 · 41300-52010 · 41300-52030 · 41300-52070 · 41300-52100 |
| 41311 | front differential case | 41301-32061 · 41311-0H901 · 41311-52120 |
| 41311C | Rear gasket (for front differential case) | 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 · 90564-41065 · 90564-41066 · 90564-41067 · 90564-41068 · 90564-41069 · 90564-41070 · 90564-41071 · 90564-41072 · 90564-41073 · 90564-41074 · 90564-41075 · 90564-41076 · 90564-41077 · 90564-41078 · 90564-41079 · 90564-41080 · 90564-41081 · 90564-41082 · 90564-41083 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90080-36143 · 90366-38045 · 90366-40097 · 90366-40129 · 90366-W0007 |
| 41311F | Rear tapered bearing (for front differential housing) | 90080-36166 · 90366-40094 · 90366-42009 · 90366-W0013 · 90368-38010 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 |
| 41311H | Rear flat washer (for front differential case) | 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 · 90564-44008 · 90564-44009 · 90564-44010 · 90564-44011 · 90564-44012 · 90564-44013 · 90564-44014 · 90564-44015 · 90564-44016 · 90564-44017 · 90564-44018 · 90564-44019 · 90564-44020 · 90564-44021 · 90564-44022 · 90564-44023 · 90564-44024 · 90564-44025 · 90564-44026 · 90564-44027 · 90564-44028 · 90564-44029 · 90564-44030 · 90564-44031 · 90564-44032 · 90564-44033 · 90564-44034 · 90564-44035 · 90564-44036 · 90564-44037 · 90564-44038 · 90564-44039 · 90564-44040 · 90564-44041 · 90564-44042 · 90564-44043 · 90564-44044 · 90564-44045 · 90564-44046 · 90564-44047 · 90564-44048 · 90564-44049 · 90564-44050 · 90564-44051 · 90564-44052 · 90564-44053 · 90564-44054 · 90564-44055 · 90564-44056 · 90564-44057 · 90564-44058 · 90564-44059 · 90564-44060 · 90564-44061 · 90564-44062 · 90564-44063 · 90564-44064 · 90564-44065 · 90564-44066 · 90564-44067 · 90564-44068 · 90564-44069 |
| 41311R | Oil seal (for front differential case) | 90310-W0002 · 90311-20006 |
| 41311X | Roller cone bearing outer race (for front differential) | 90366-40130 · 90366-W0014 |
| 41311Y | Roller cone bearing outer race (for rear differential) | 90080-36144 · 90366-42010 |
| 41331F | Front differential side gear | 41331-05030 · 41331-0D050 · 41331-0H010 · 41331-12011 · 41331-12150 · 41331-20130 · 41331-32010 · 41331-52050 |
| 41341F | Front differential planetary gear | 41341-05030 · 41341-0D030 · 41341-0D050 · 41341-12030 · 41341-12100 · 41341-20050 · 41341-30011 · 41341-52070 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-04053 · 90250-06058 · 90250-W0005 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-32020 · 41342-70030 |
| 41351F | Front differential planetary gear thrust washer | 41351-10030 · 41351-12020 · 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-22020 · 41361-22030 · 41361-22040 · 41361-22120 · 41361-22130 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-22170 · 41361-22180 · 41361-70010 · 41361-70020 · 41361-70030 · 41361-70040 · 41361-70050 · 41361-70060 · 41361-70070 · 41361-70080 · 41361-70090 · 41361-70100 |
