Toyota YARIS Shift Lever & Retainer — Figure 3312

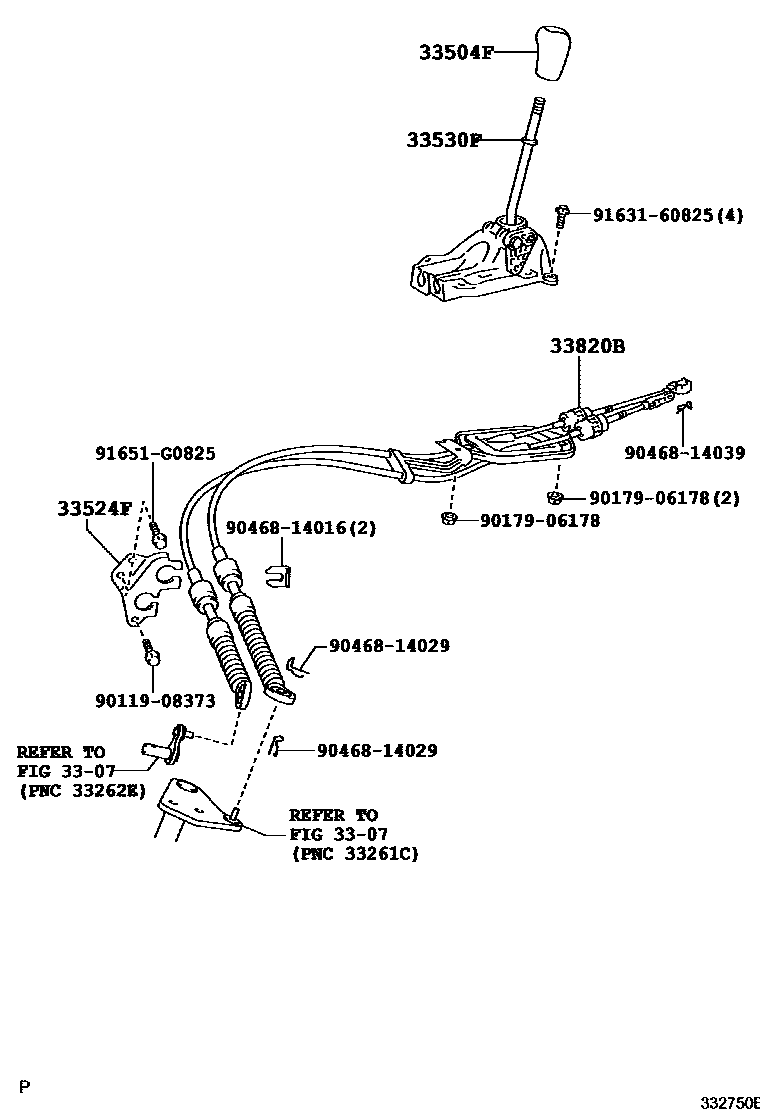

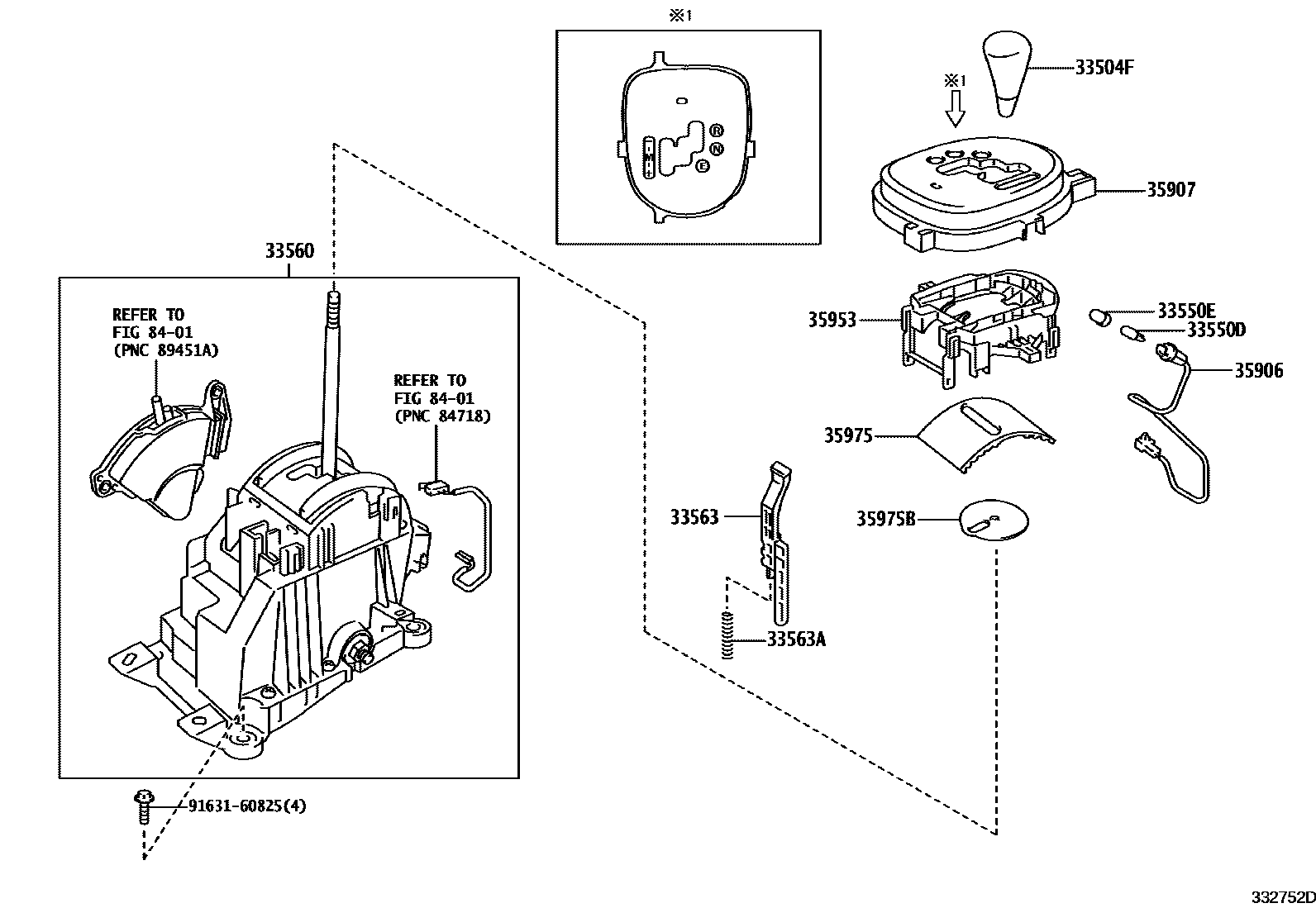

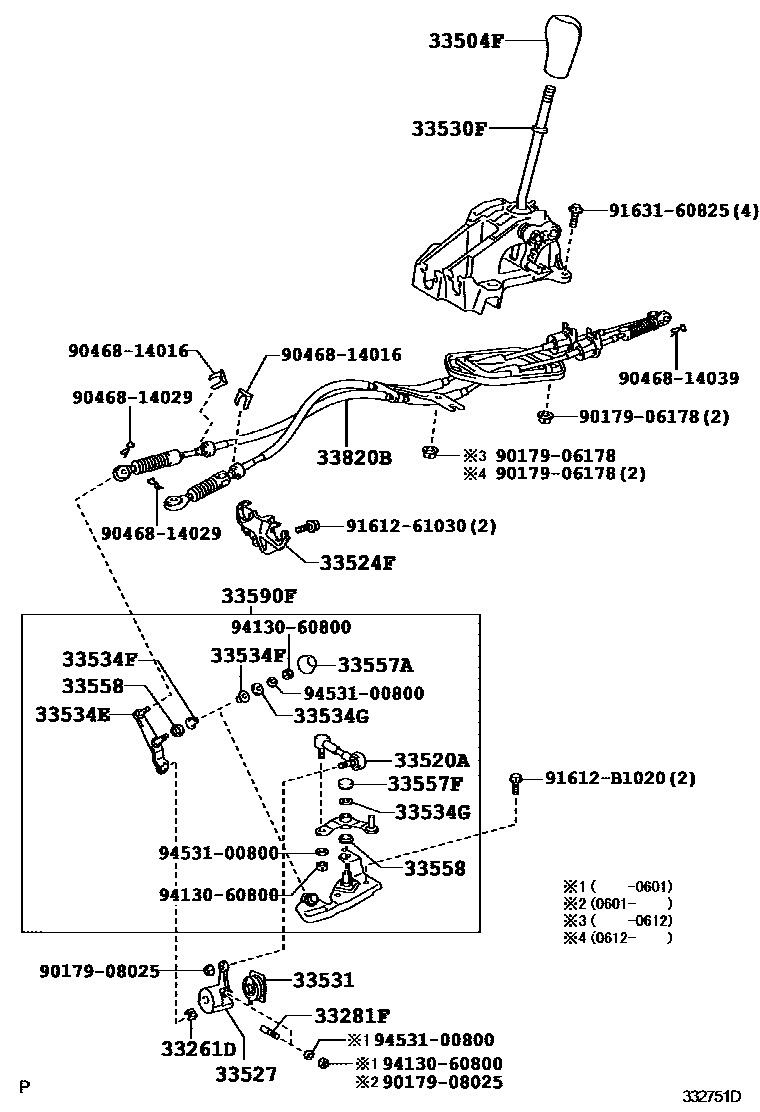

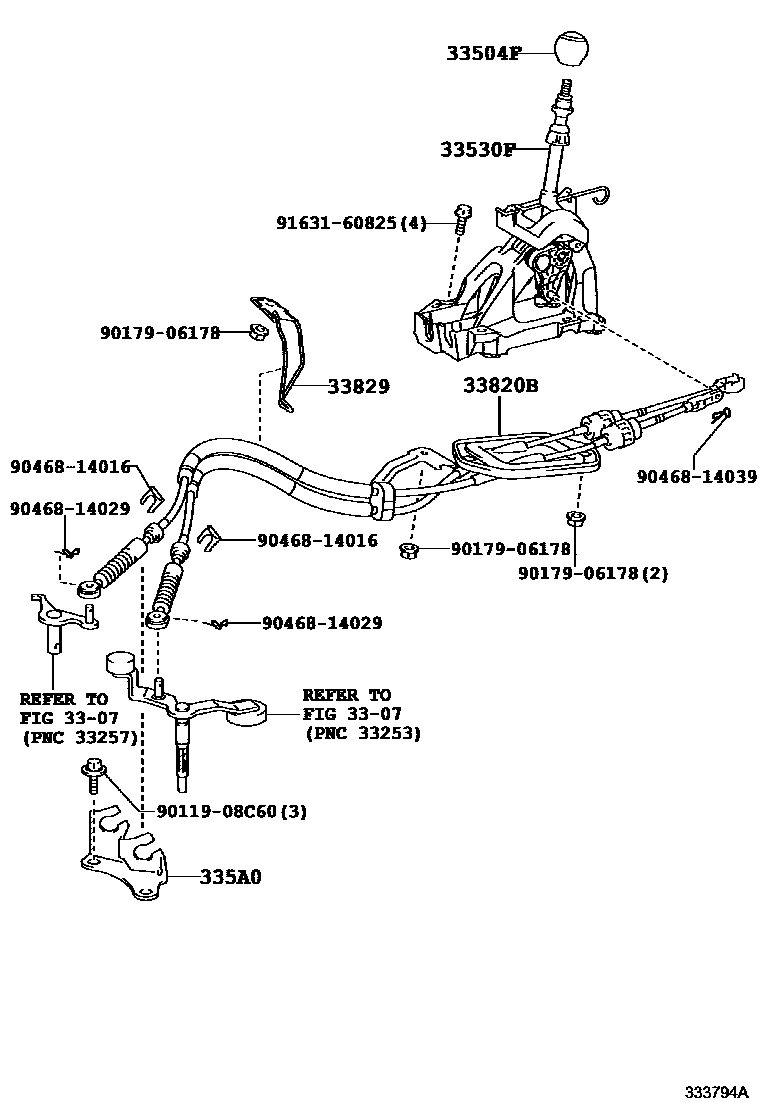

Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-33010 |
| 33281F | Shift lever locking pin (for floor shift) | 33281-16020 |
| 33520A | Floor type shift control shaft assembly | 33520-52050 |
| 33524F | Lever housing bracket (for floor shift) | 33524-52030 · 33524-52060 |
| 33527 | Gear shift lever (for floor shift) | 33527-52010 · 33527-52011 |
| 33530F | Shift lever assembly (for floor shift) | 33530-0D040 · 33530-0D070 |
| 33531 | Dust boot (for shift lever) | 33531-17010 |
| 33534E | No. 2 gear selection right-angle lever | 33534-52030 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550D | position indicator light bulb | 90981-11040 |
| 33550E | position indicator cover | 90339-04049 · 90339-04074 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33557F | Control right-angle lever dust cover (for floor-mounted shifting) | 33557-20010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-52120 · 33560-52130 |
| 33563 | Shift lock release button | 33563-52070 · 33563-52150 |
| 33563A | Compression spring (for shift lock release button) | 90501-07087 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-52041 |
| 335A0 | Control cable bracket assembly | 335A0-0D030 · 335A0-0D040 · 335A0-52010 · 335A0-52020 |
| 33820B | Transmission control cable assembly | 33820-0D090 · 33820-0D120 · 33820-0D130 · 33820-0D370 · 33820-0D371 · 33820-0D380 · 33820-0D381 · 33820-0D410 · 33820-0D420 · 33820-52540 · 33820-52541 · 33820-52680 · 33820-52681 |
| 33829 | Transmission control cable bracket | 33829-52150 · 33829-52151 · 33829-52160 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-12180 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-52100 · 35907-52130 · 35907-52140 · 35907-52210 · 35907-52230 |
| 35953 | Position indicator light guide | 35953-52060 |
| 35975 | Slide cover (for position indicator light) | 35975-52050 |
| 35975B | Slide No. 2 (for position indicator light) | 35975-52060 |
