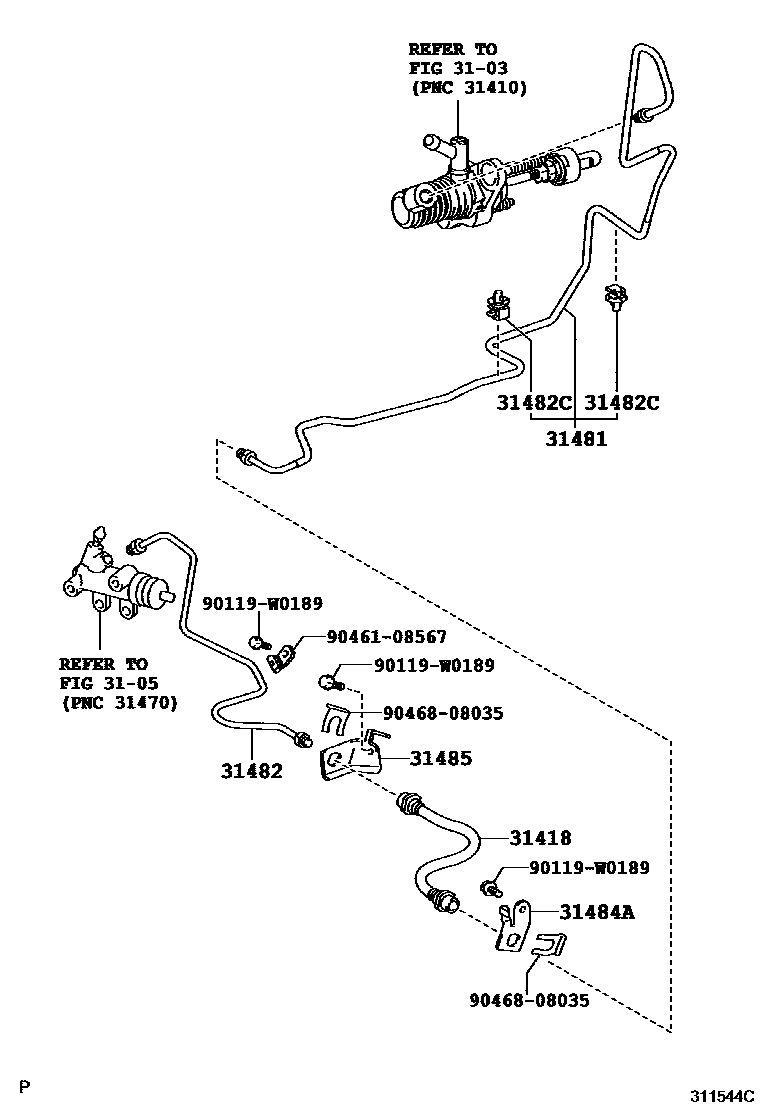

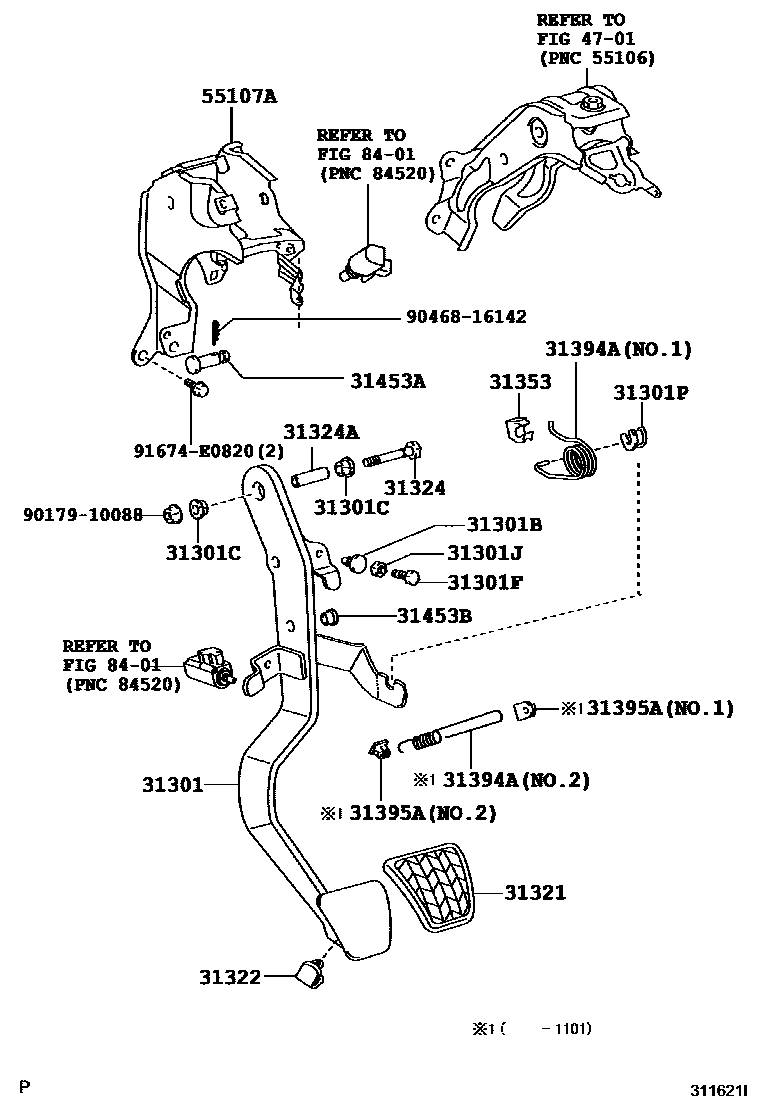

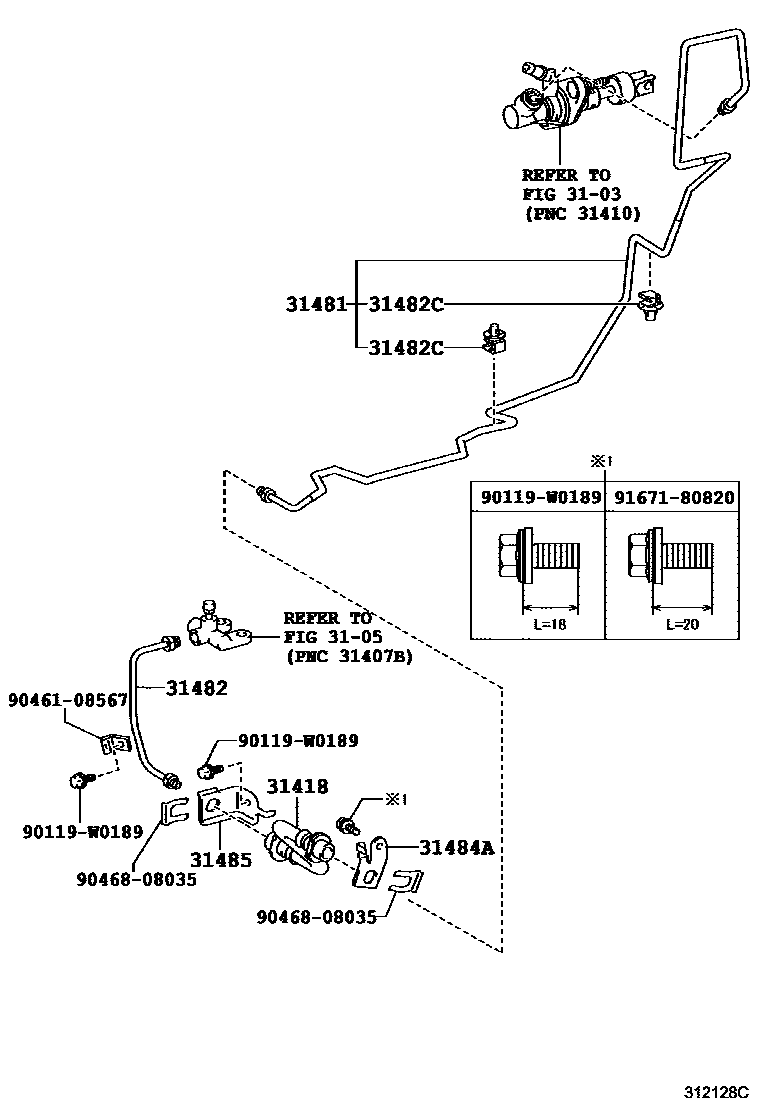

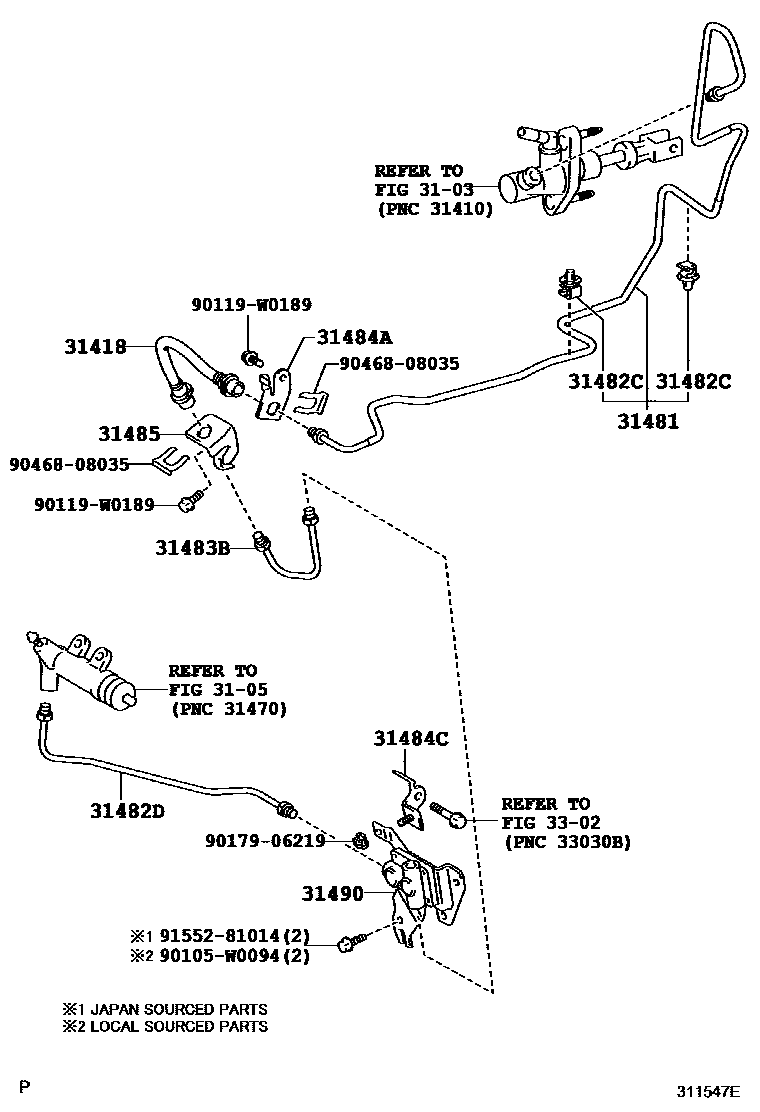

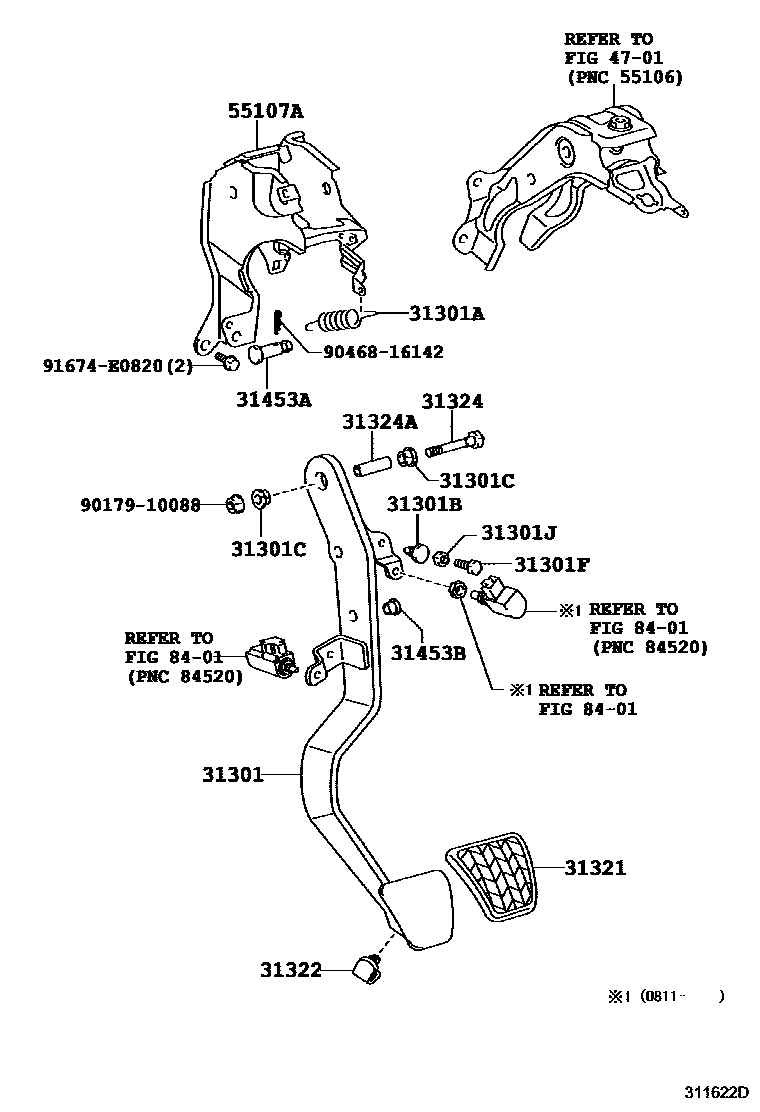

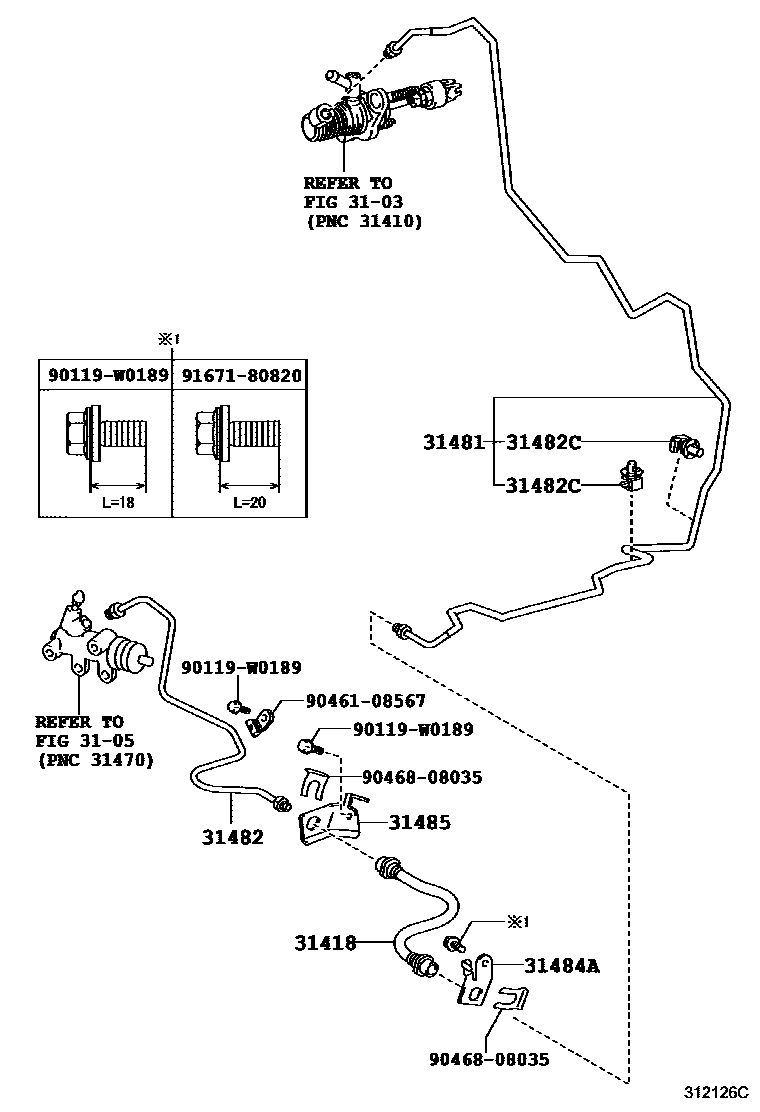

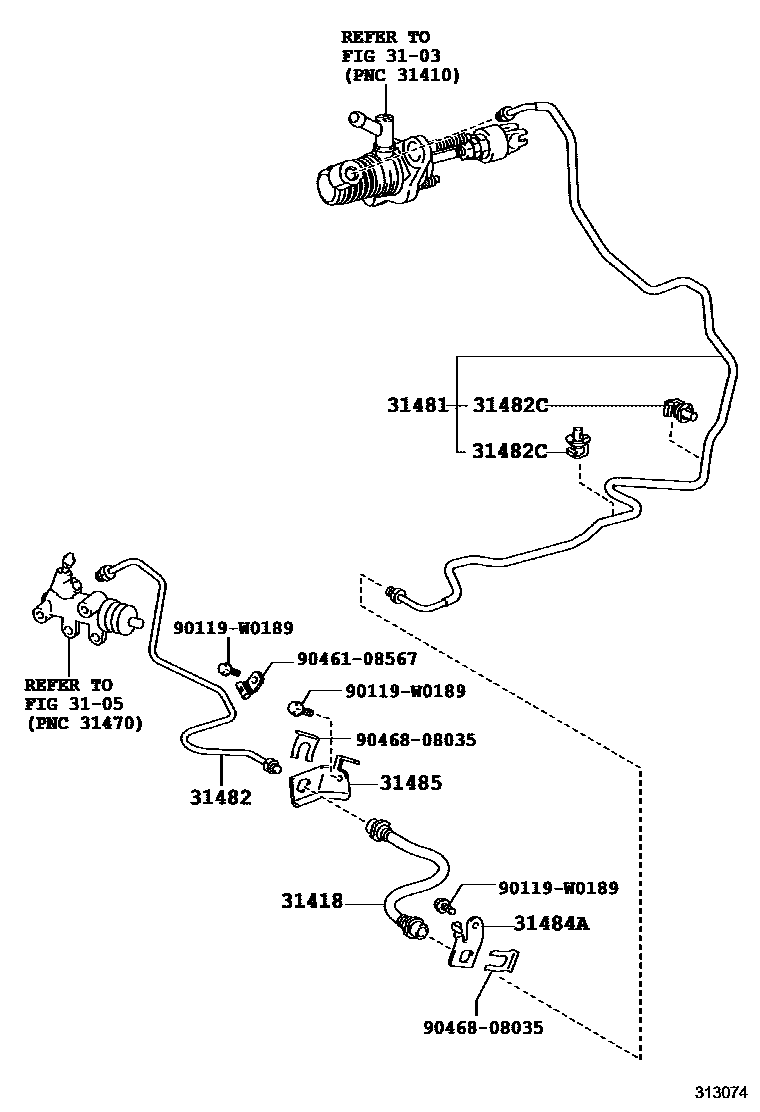

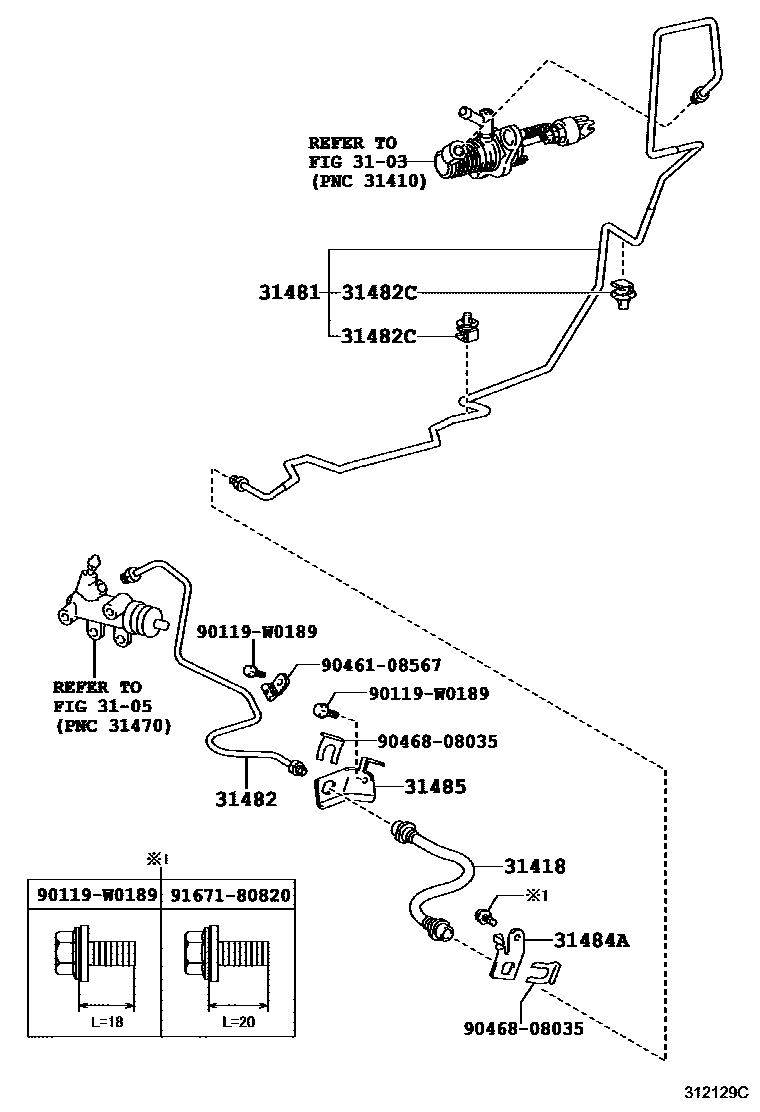

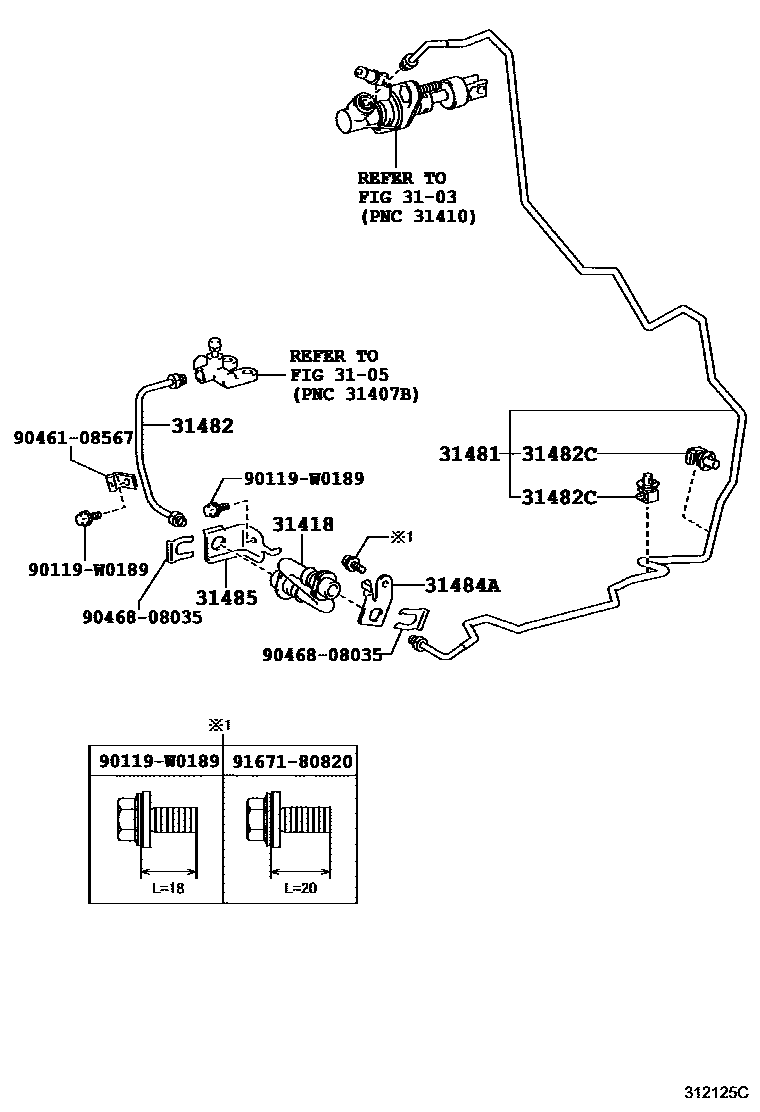

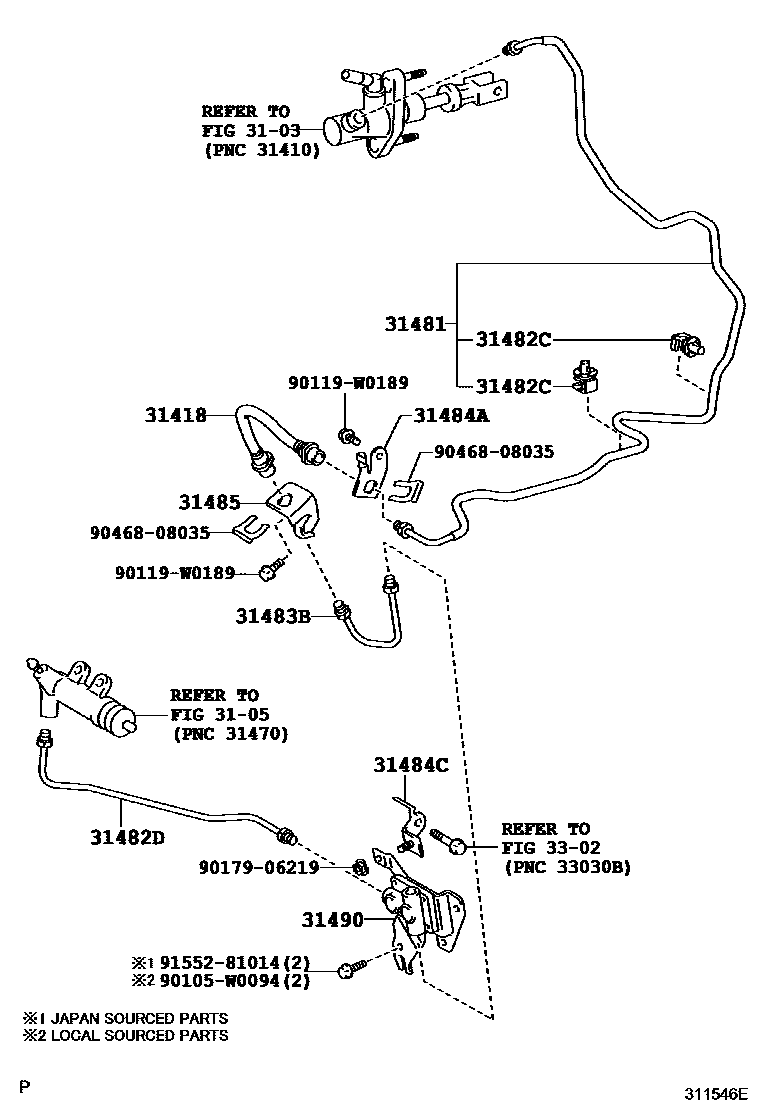

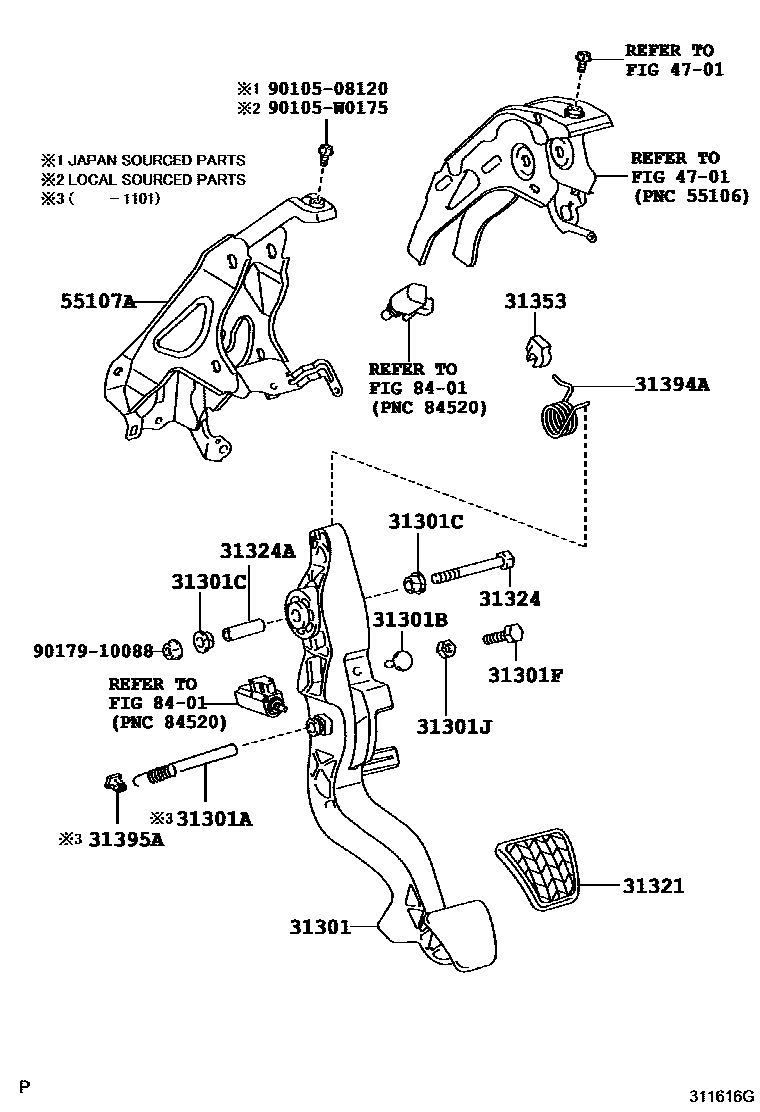

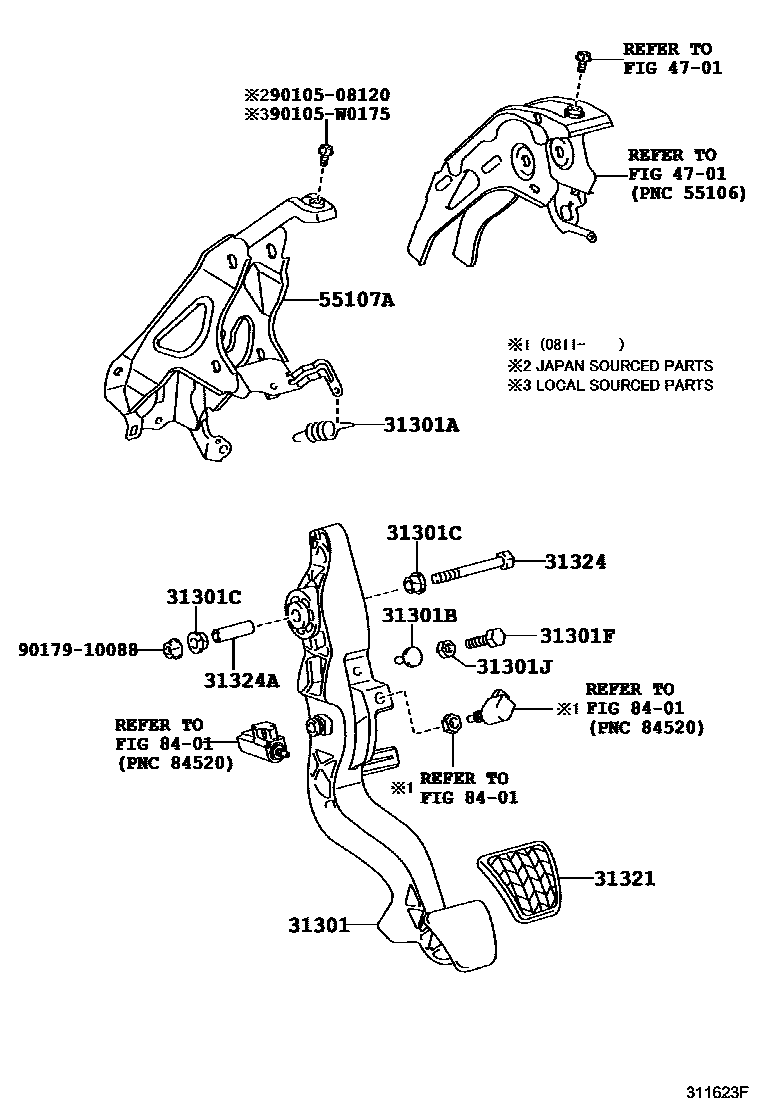

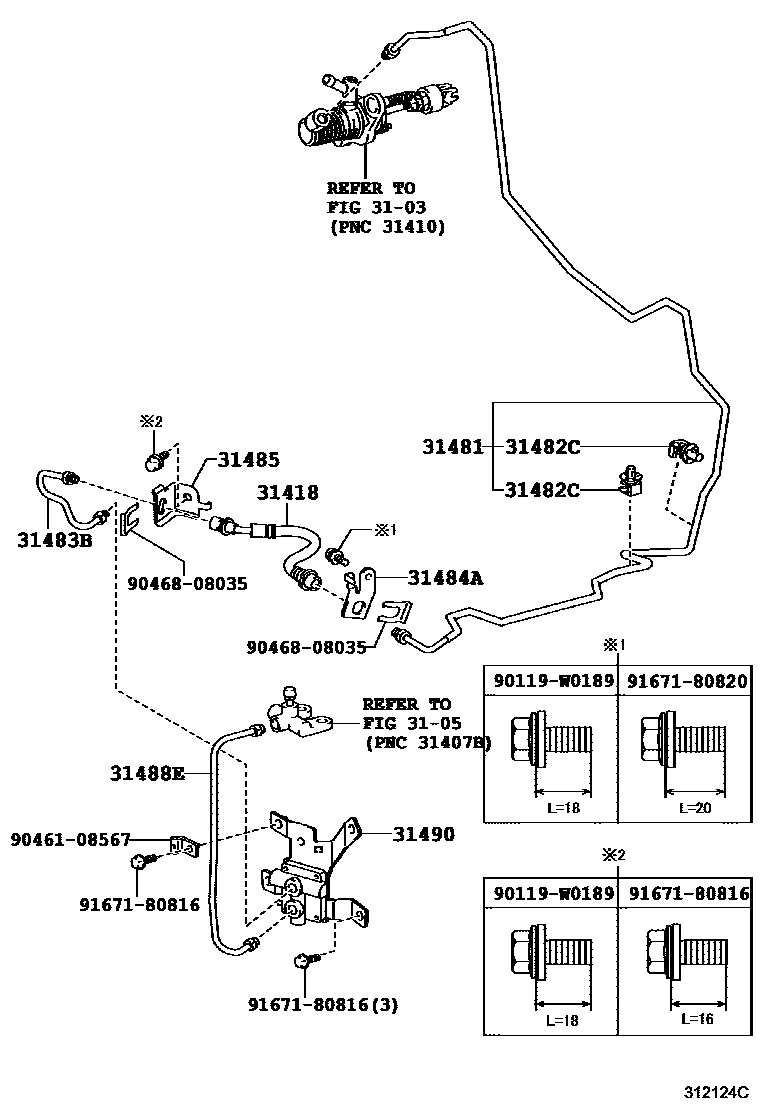

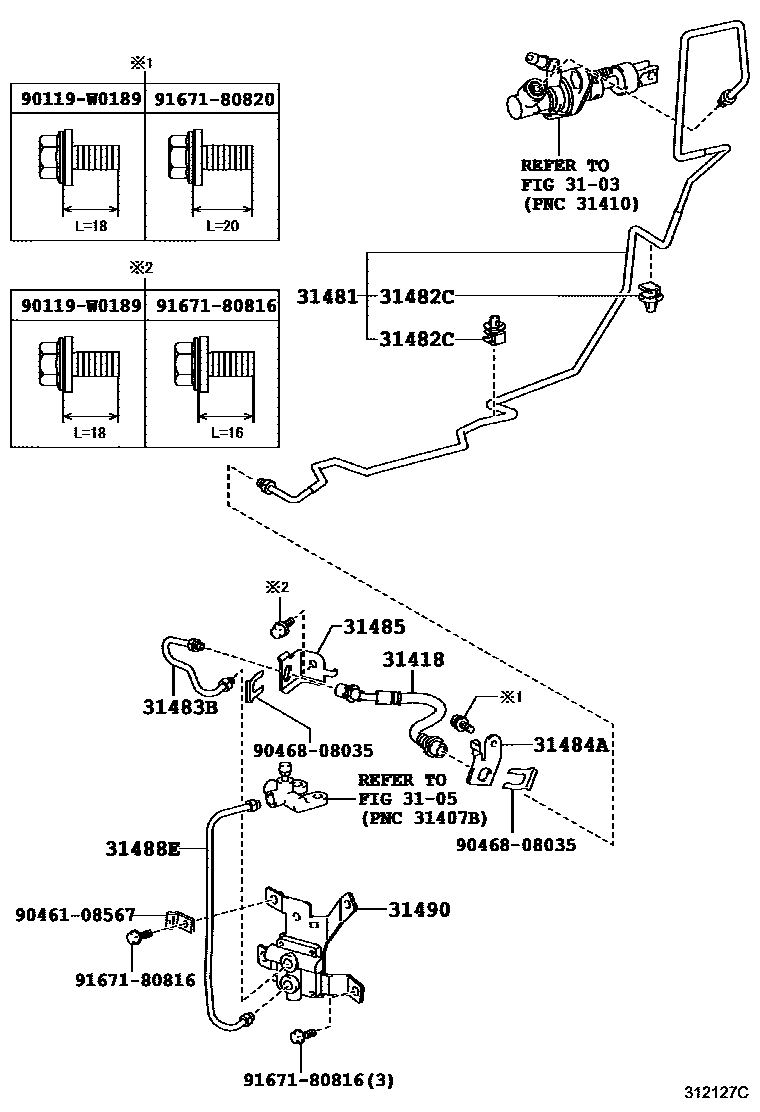

Toyota YARIS 离合器踏板和挠性软管 — Figure 3102
Toyota YARIS EPC diagram 3102, 离合器踏板和挠性软管, with 14 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-0D060 · 31301-0D061 · 31301-0D070 · 31311-0D030 |
| 31301A | Spring (for clutch pedal) | 90507-14047 · 90905-06079 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 91112-61025 |
| 31301J | Nut (for clutch pedal stop) | 90170-W0002 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-06055 |
| 31321 | clutch pedal pad | 31321-52010 |
| 31322 | clutch pedal block | 31322-52010 |
| 31324 | clutch pedal shaft | 90101-10015 · 90101-10081 |
| 31324A | clutch pedal collar | 90387-10003 · 90387-10004 |
| 31353 | Clutch pedal spring retainer | 31353-26010 |
| 31394A | Pedal spring with hook | 31394-0D010 · 31394-0D020 · 31394-0D030 · 31394-0D060 · 31394-0D070 |
| 31395A | Pedal spring hook No. 1 | 31395-33010 · 31395-33020 |
| 31418 | clutch hose | 90947-02G12 · 90947-W2005 · 90947-W2006 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08051 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 · 90386-08033 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-0D030 · 31481-0D090 · 31481-0D170 · 31481-0D180 · 31481-0D190 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-0D060 · 31482-0D070 |
| 31482C | Clamp (for clutch tube) | 90949-01D17 |
| 31482D | Pipe from clutch release cylinder to pressure accumulator | 31482-0D080 |
| 31483B | Accumulator to flexible hose pipe | 31483-0D030 · 31483-0D040 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-52090 |
| 31484C | No. 1 clutch tube bracket | 31484-12530 · 31484-12531 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-0D050 · 31484-52080 · 31484-52100 |
| 31488E | Pipe from bleeder to accumulator | 31488-0D010 |
| 31490 | Clutch pressure accumulator assembly | 31490-52033 · 31490-52040 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-0D040 · 55107-0D050 · 55107-0D070 · 55107-0D080 · 55107-0D130 · 55107-0D140 |
