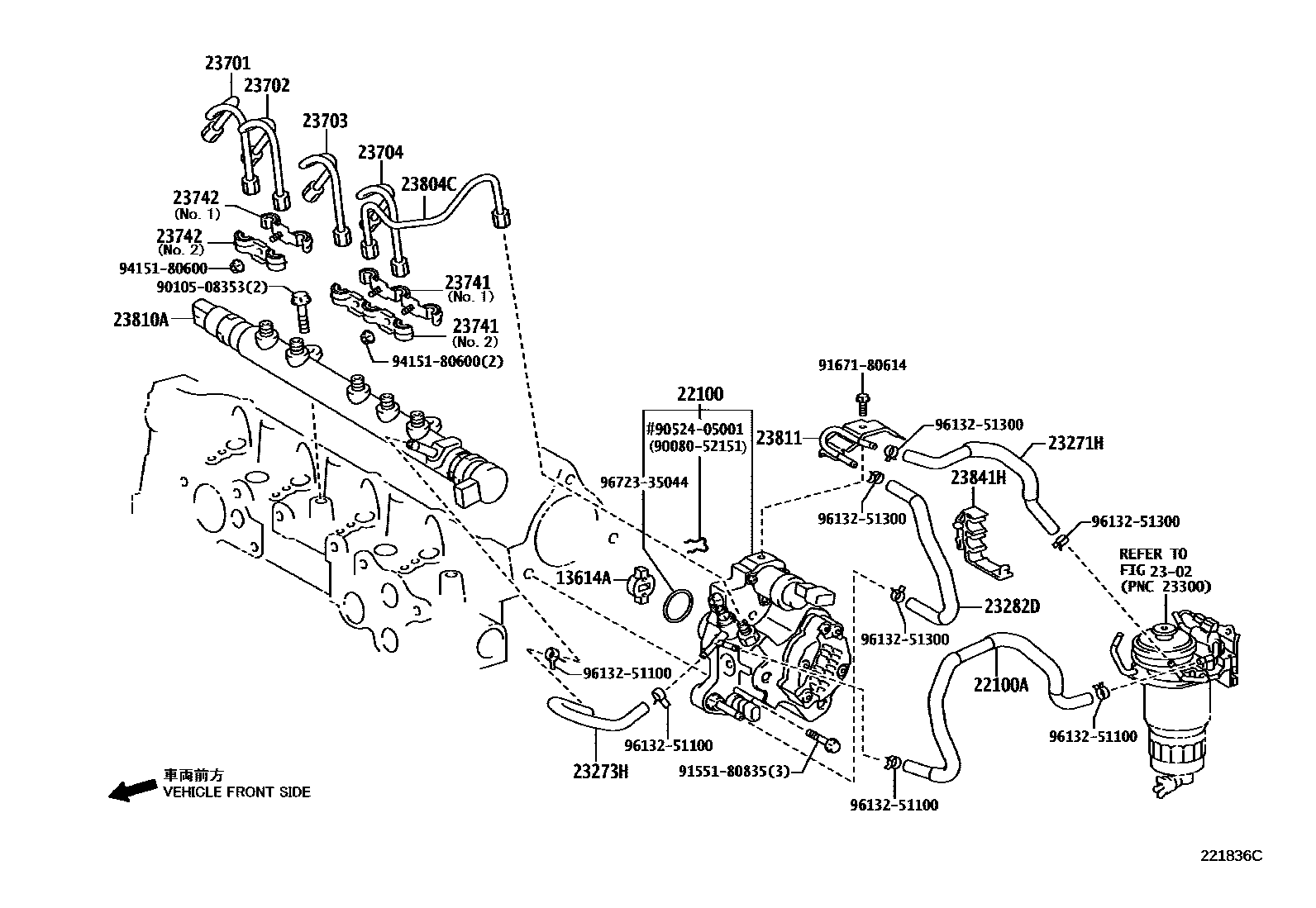

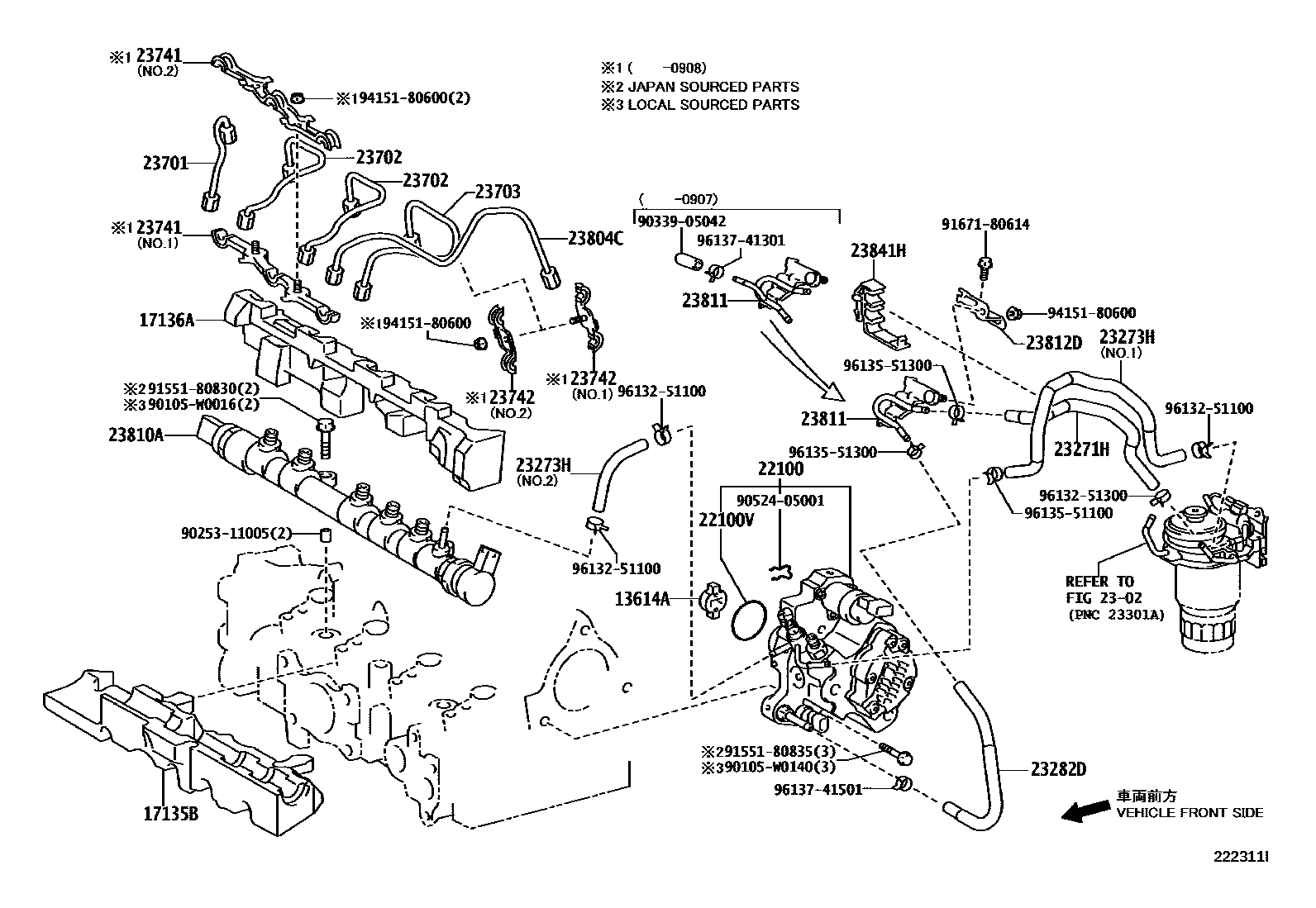

Toyota YARIS 喷油泵总成 — Figure 2202
Toyota YARIS EPC diagram 2202, 喷油泵总成, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13614A | No. 1 oil supply pump active coupling | 13614-0N010 · 13614-33010 |
| 17135B | Intake manifold No. 1 heat shield | 17135-33010 · 17135-33011 |
| 17136A | Intake manifold No. 2 heat shield | 17136-33010 |
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-0N020 · 22100-0W010 · 22100-33040 · 22100-33050 |
| 22100A | Fuel hose or fuel line (for injection pump to fuel filter) | 23273-33070 |
| 22100V | O-ring (for fuel injection pump) | 96723-35044 |
| 23271H | No. 1 fuel hose | 23271-0N040 · 23271-33040 |
| 23273H | No. 2 fuel hose | 23273-0N040 · 23273-33060 · 23273-33090 |
| 23282D | No. 4 fuel hose | 23282-0N010 · 23282-33010 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-0N010 · 23701-33010 · 23701-33040 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23701-0N020 · 23701-33020 · 23702-33010 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23701-0N020 · 23701-33020 · 23703-33010 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23701-0N020 · 23701-33020 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-33010 · 23741-33020 · 23741-33030 · 23741-33040 |
| 23742 | No. 2 fuel injection pipe clamp | 23742-33010 · 23742-33020 · 23742-33030 · 23742-33040 |
| 23804C | Fuel inlet pipe sub-assembly | 23804-0N010 · 23804-33010 · 23804-33020 |
| 23810A | Common rail assembly | 23810-0N020 · 23810-0N021 · 23810-33020 · 23810-33021 · 23810-33030 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-33070 · 23811-33090 · 23811-33110 |
| 23812D | No. 2 fuel pipe | 23812-33020 |
| 23841H | fuel hose clamp | 23841-0N010 |
