Toyota YARIS Manifold — Figure 1701

Toyota YARIS EPC diagram 1701, Manifold, with 9 images and 46 PNC and OE references.

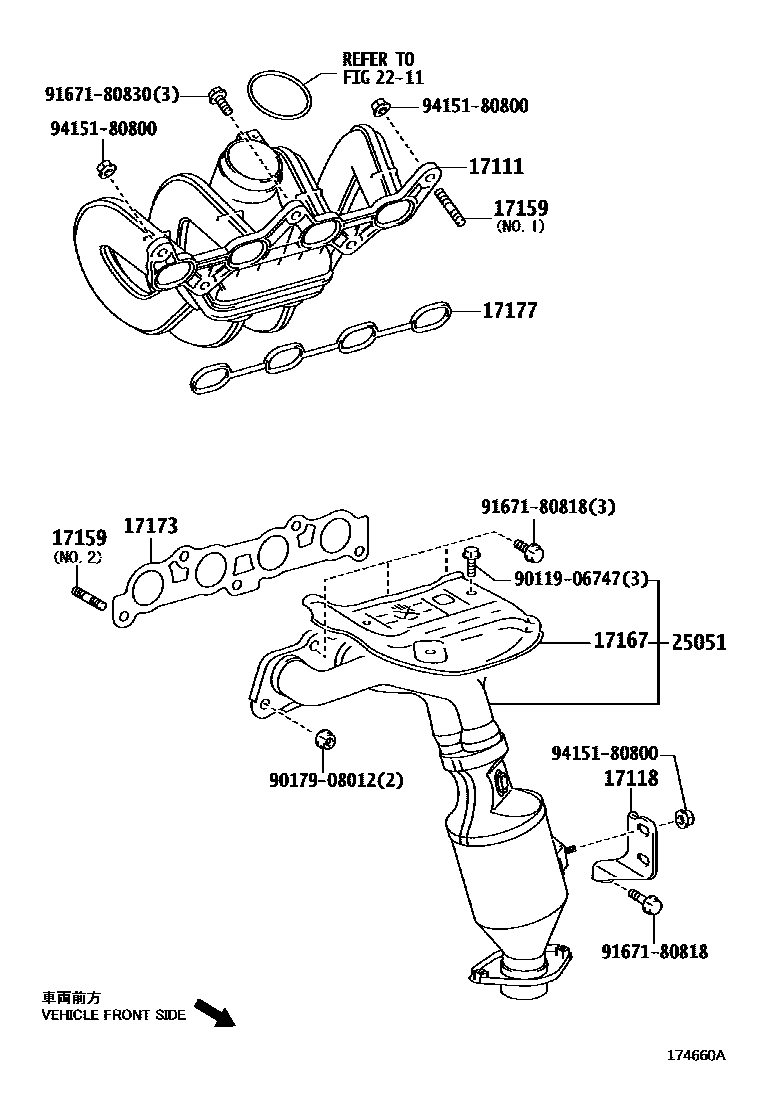

Toyota YARIS Manifold EPC diagram — 174660A
Manifold — 174660A (200511 – 999999)

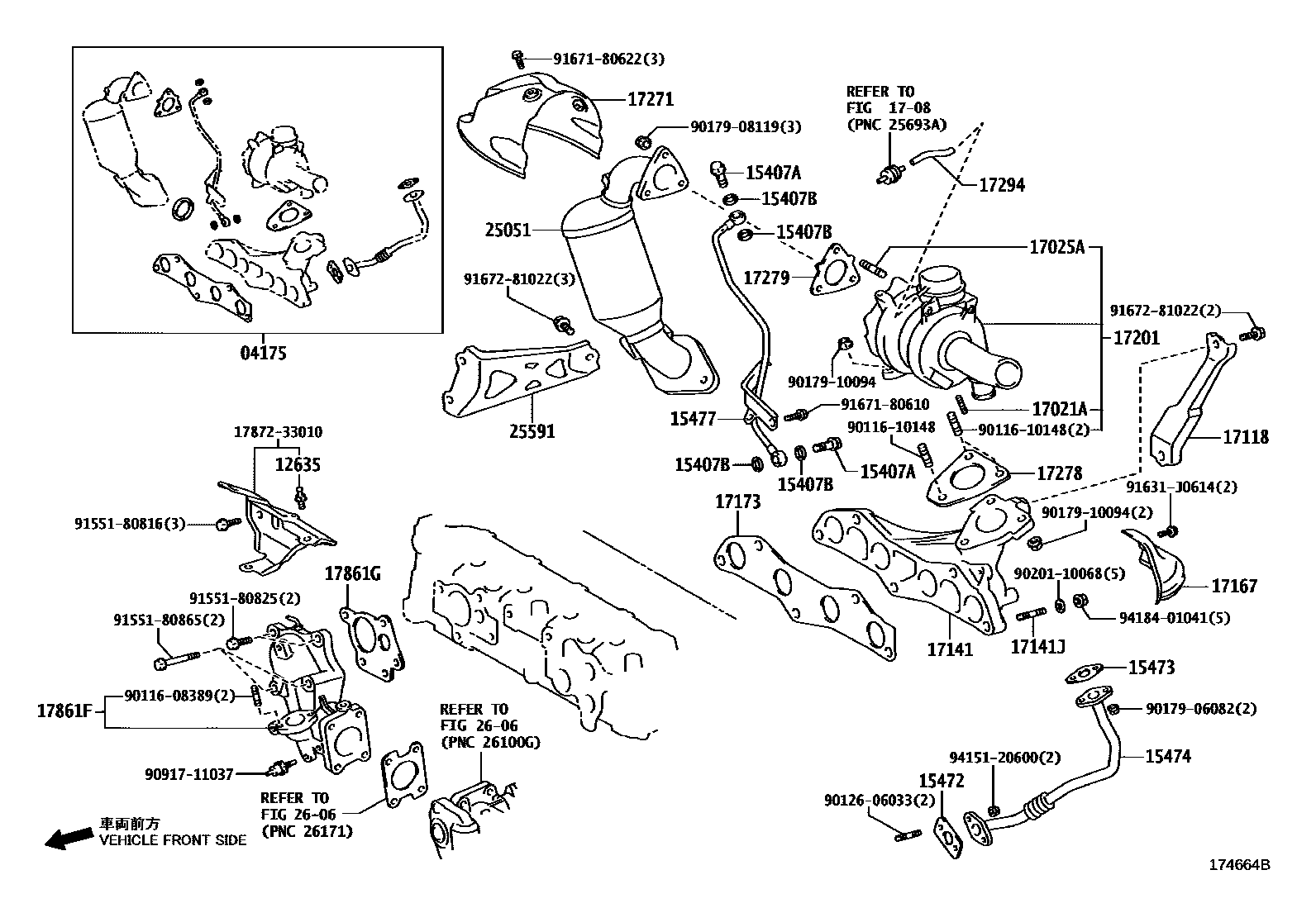

Toyota YARIS Manifold EPC diagram — 174664B
Manifold — 174664B (200511 – 200811)

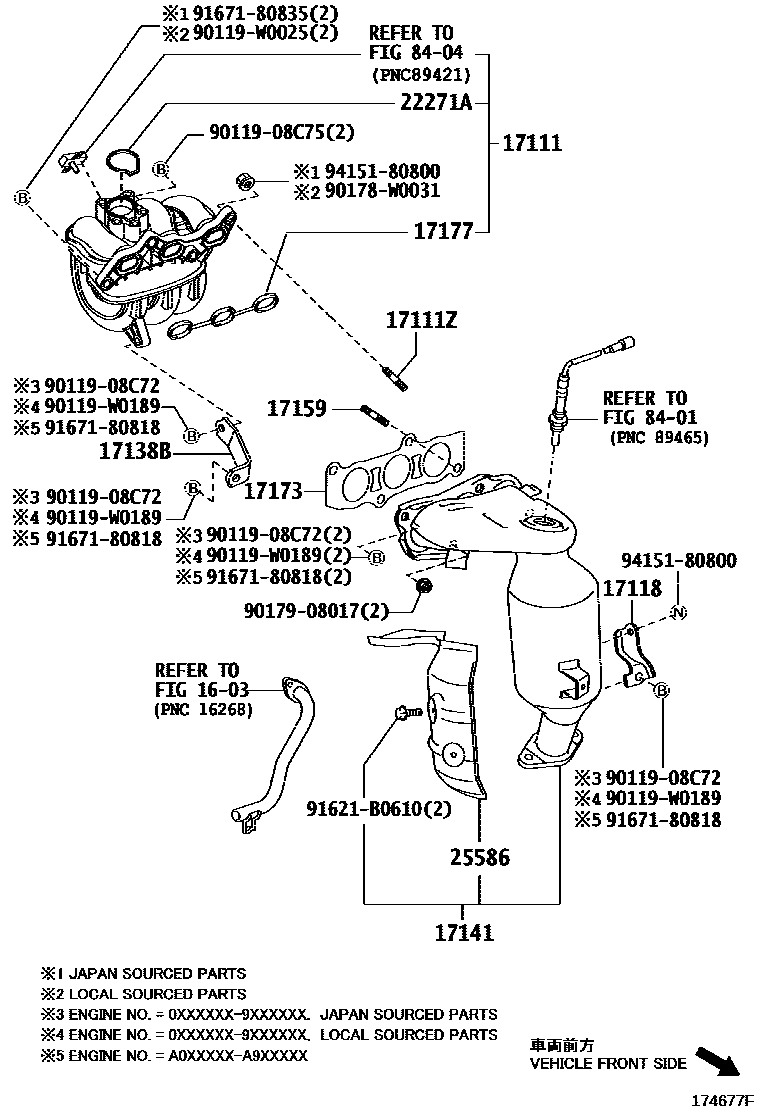

Toyota YARIS Manifold EPC diagram — 174677F
Manifold — 174677F (200511 – 200811)

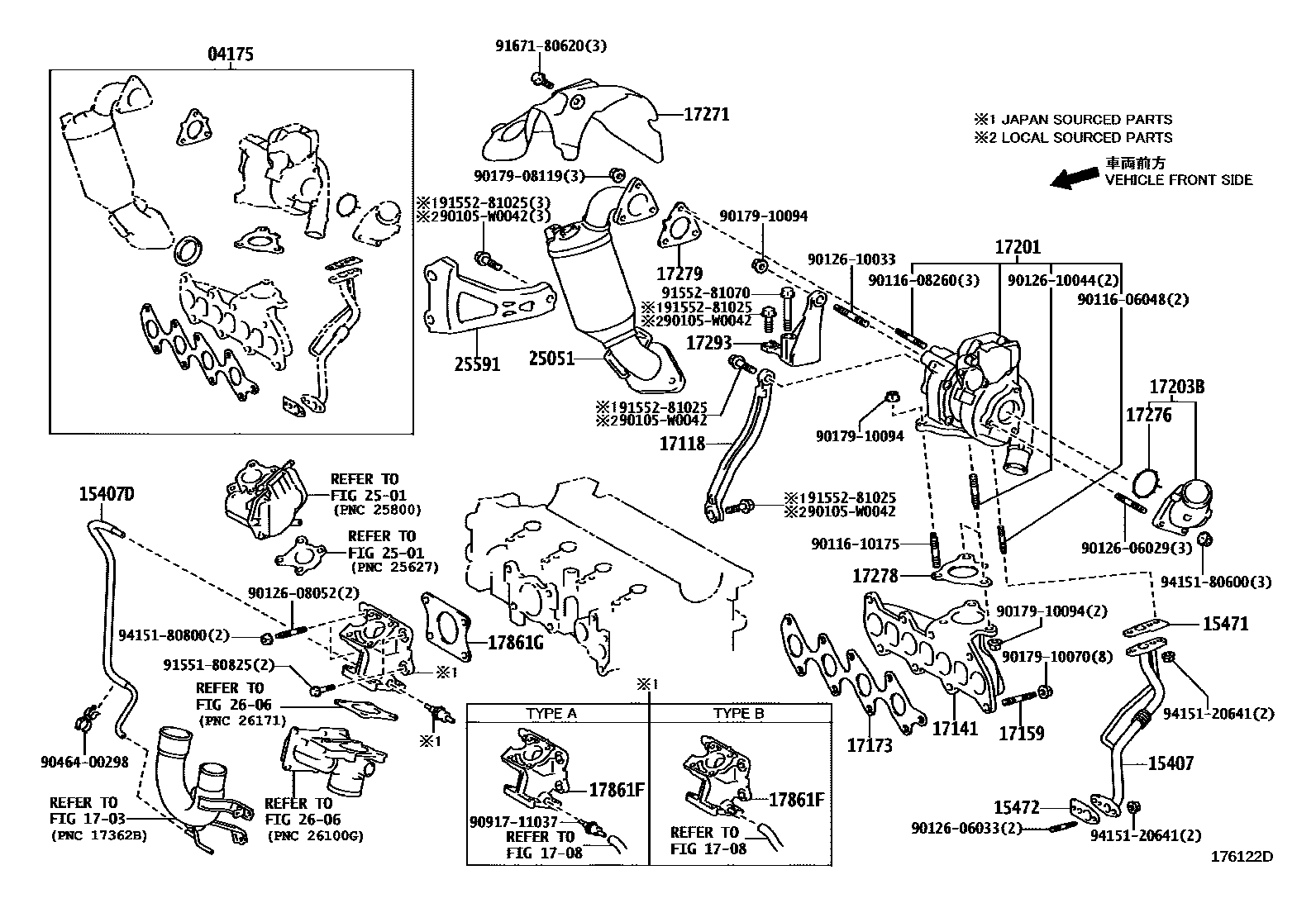

Toyota YARIS Manifold EPC diagram — 176122D
Manifold — 176122D (200811 – 999999)

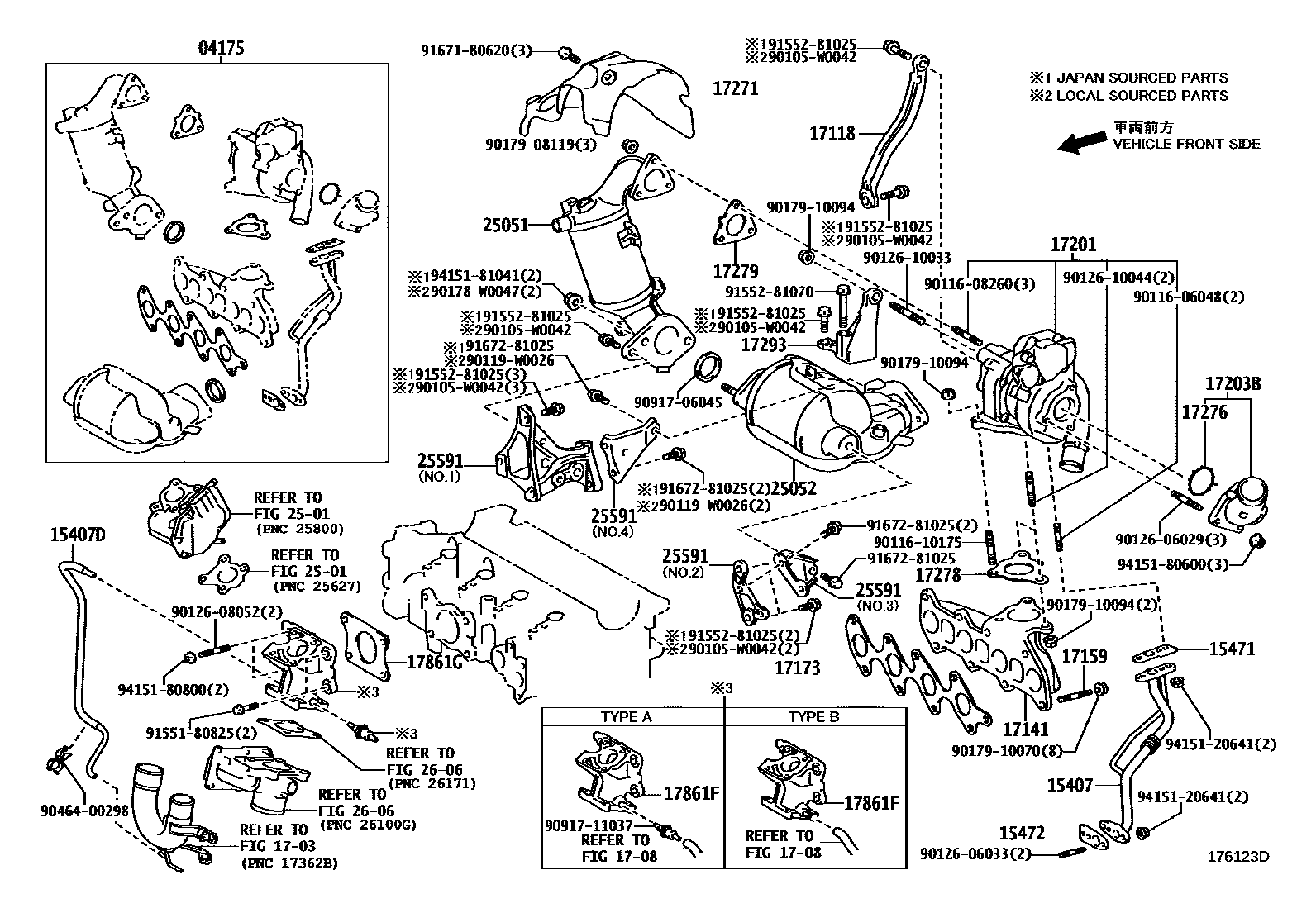

Toyota YARIS Manifold EPC diagram — 176123D
Manifold — 176123D (200811 – 999999)

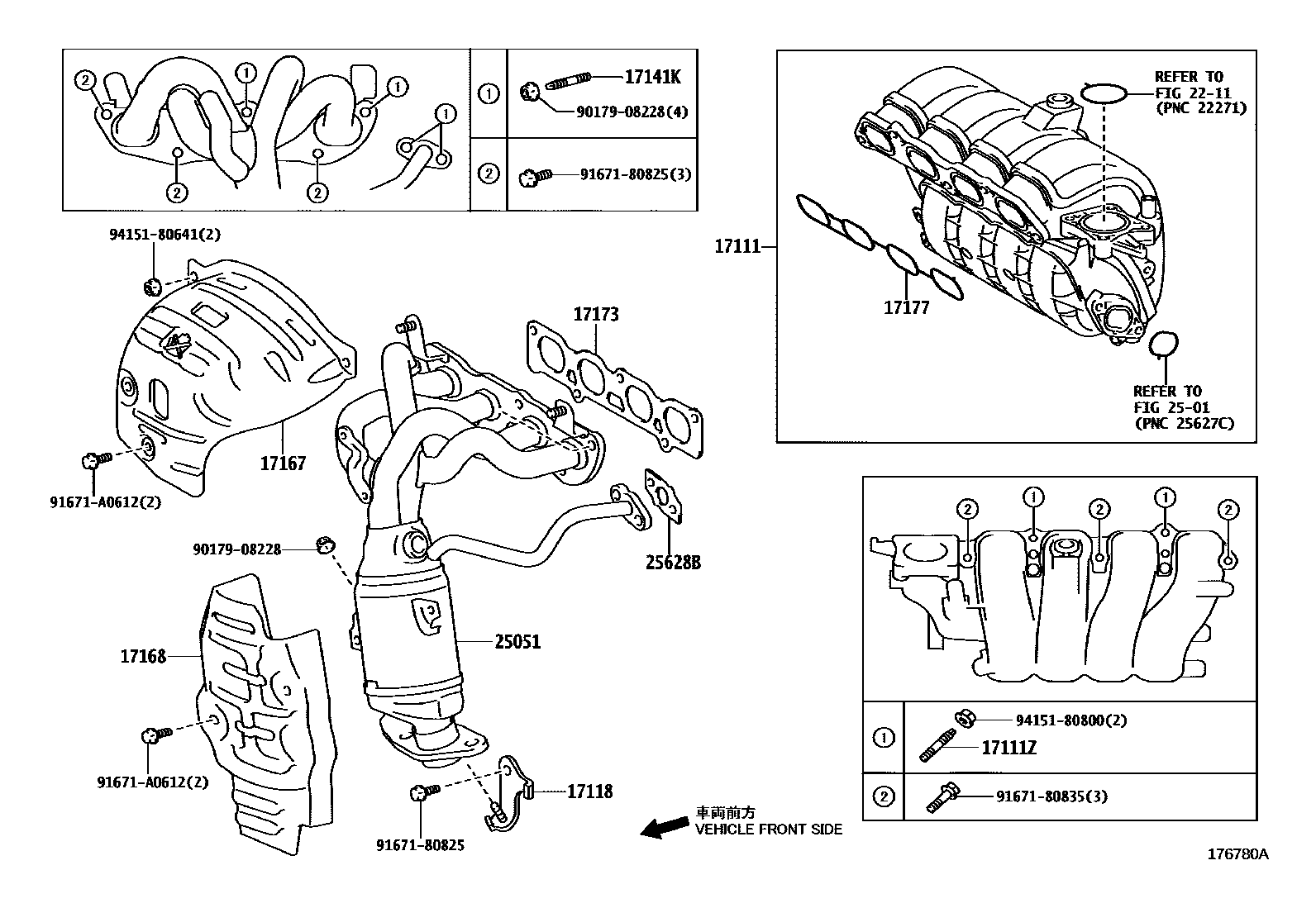

Toyota YARIS Manifold EPC diagram — 176780A
Manifold — 176780A (200811 – 201001)

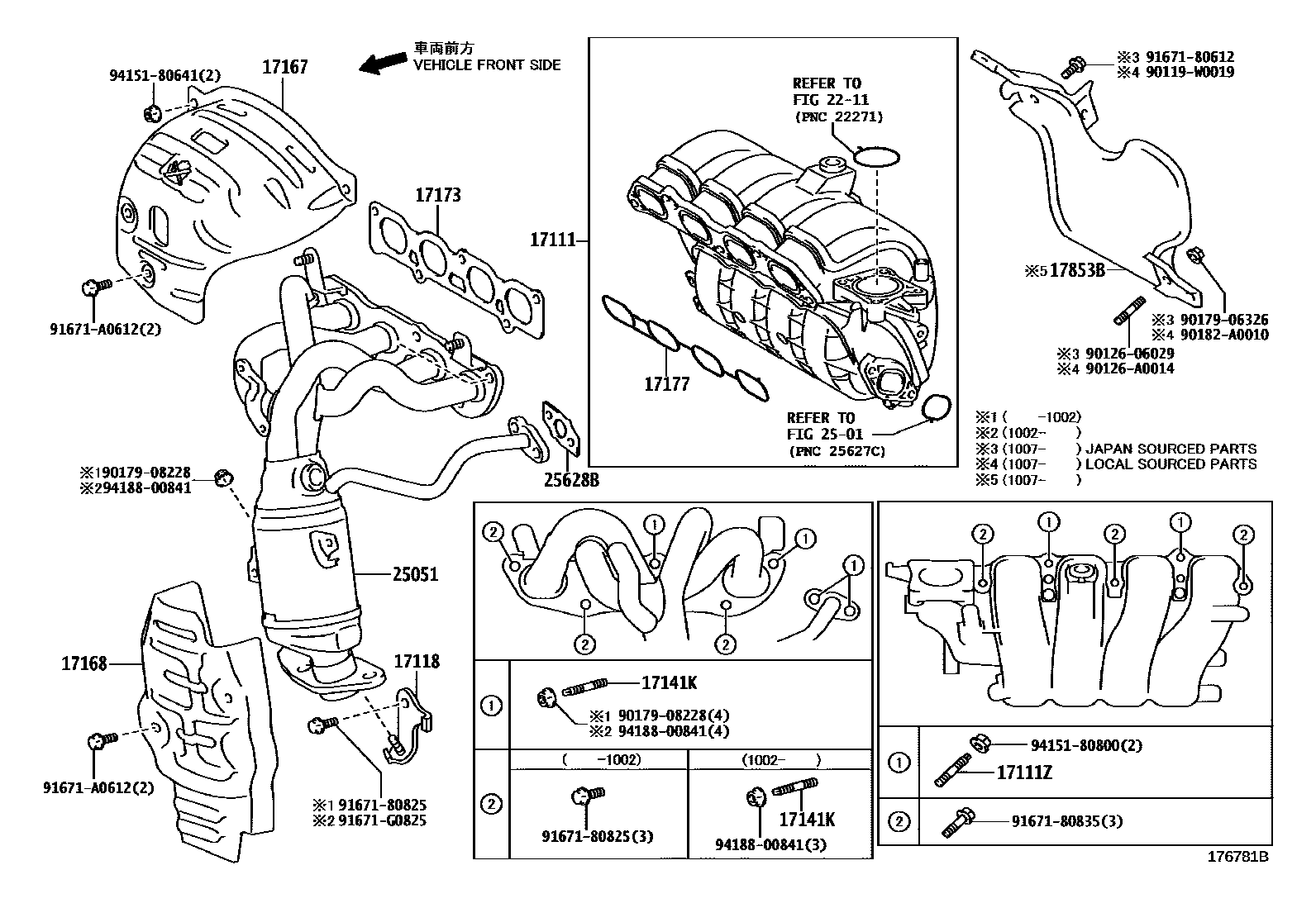

Toyota YARIS Manifold EPC diagram — 176781B
Manifold — 176781B (201001 – 999999)

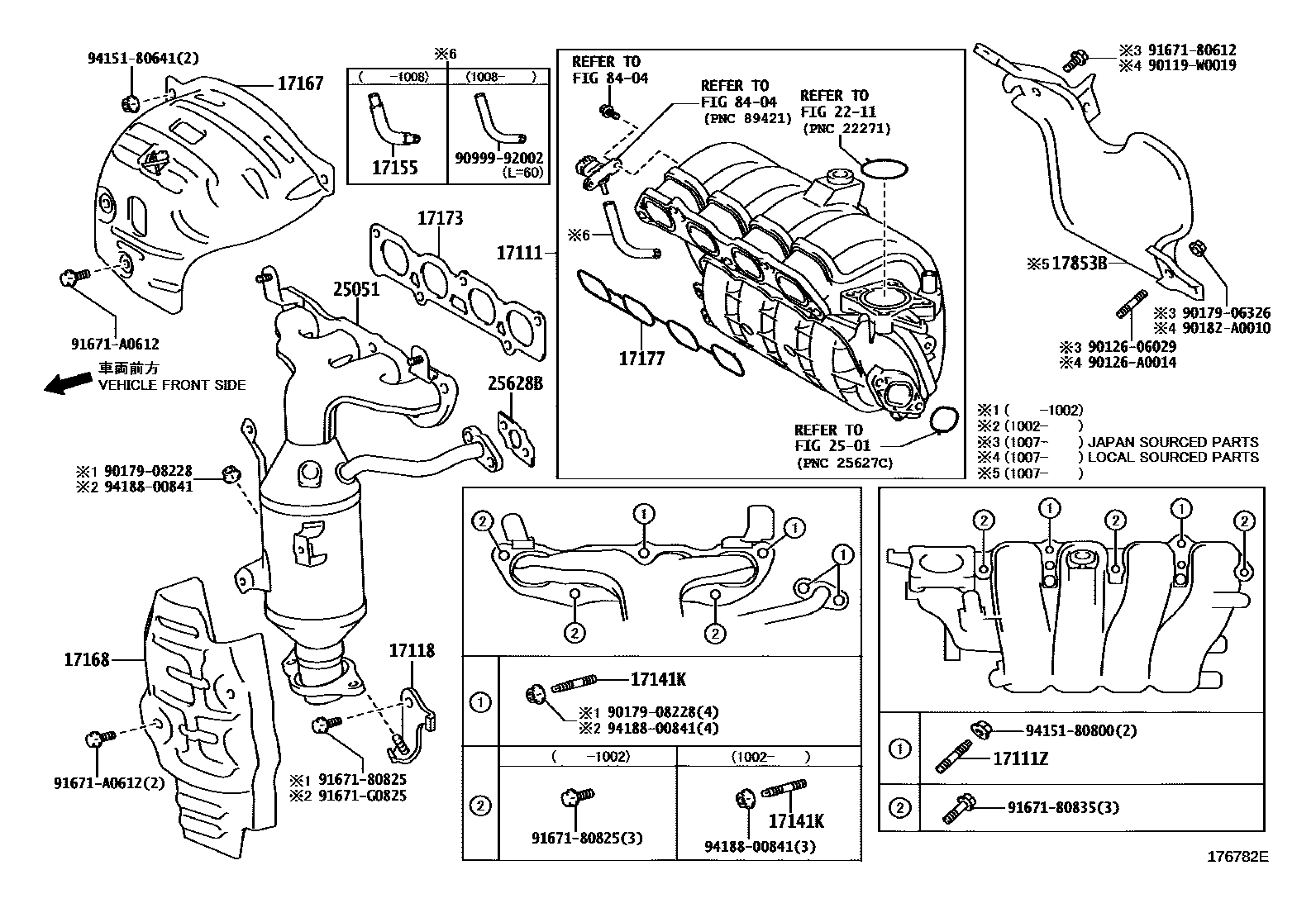

Toyota YARIS Manifold EPC diagram — 176782E
Manifold — 176782E (201001 – 999999)

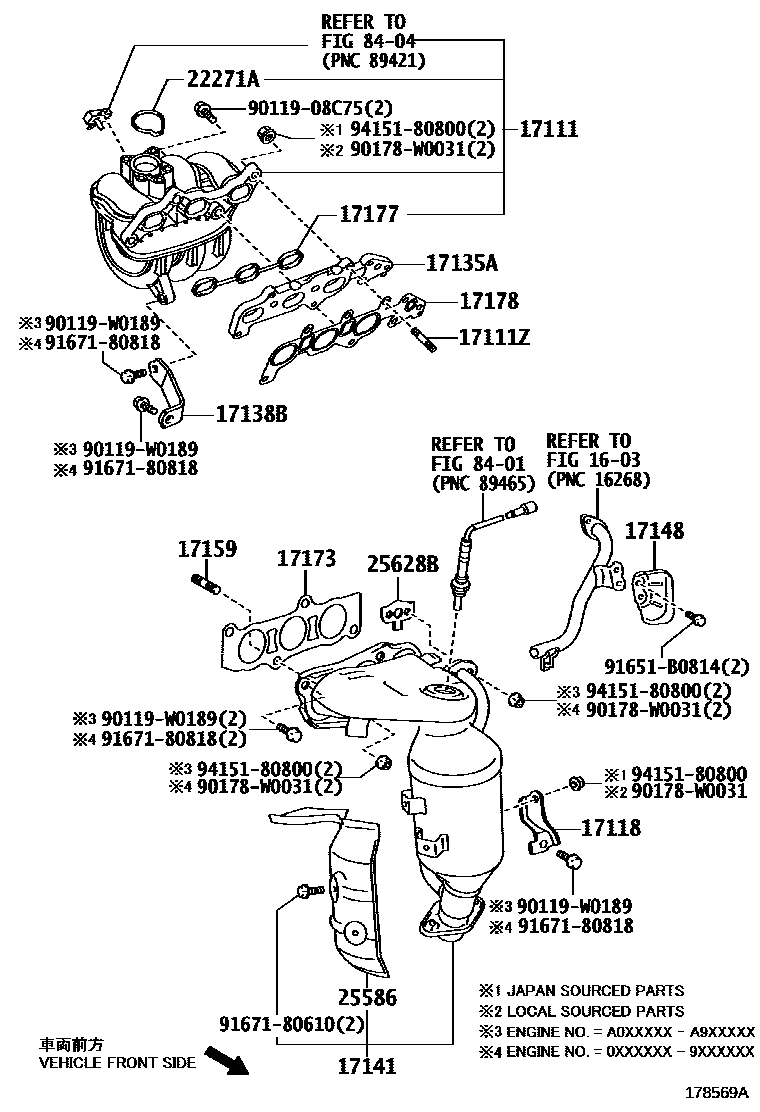

Toyota YARIS Manifold EPC diagram — 178569A
Manifold — 178569A (200811 – 999999)

PNC and OE references

PNCPart nameOE numbers
04175Turbocharger gasket assembly04175-0N040 · 04175-33070
12635hood connector12635-33010
15407Turbine oil inlet pipe sub-assembly15407-33020
15407AConnector bolt (for turbine oil inlet pipe)90401-10065
15407BGasket (for turbine oil inlet pipe)90430-10027
15407DNo. 1 oil hose12109-33020
15471Turbine oil inlet pipe gasket15471-33010
15472No. 1 turbine oil outlet pipe gasket15472-33010 · 15472-33020
15473No. 2 turbine oil outlet pipe gasket15473-33010
15474Turbine oil outlet pipe15474-33010 · 15474-33020
15477Turbine oil inlet pipe15477-33010
17021AStud bolts (for bearing housing)90116-06048
17025AStud bolts (for turbine housing)90116-08260
17111Intake Manifold17101-23011 · 17120-0Q020 · 17120-0Q030 · 17120-47010 · 17120-47030 · 17120-47031
17111ZStud bolts (for intake manifold to cylinder head)90126-08060 · 92122-80828 · 92122-80845
17118Manifold stays17118-0Q010 · 17118-23030 · 17118-33030 · 17118-33040 · 17118-40010 · 17118-47010
17135AIntake manifold No. 1 heat shield17135-40020
17138BIntake manifold stay17138-0Q010 · 17138-40040
17141exhaust manifold17140-0Q020 · 17140-0Q030 · 17140-0Q070 · 17140-40040 · 17140-40070 · 17141-0N010 · 17141-33040 · 17141-33050
17141JStuds (for right exhaust manifold)90126-10018
17141KStud bolts (for exhaust manifold to cylinder head)90126-08052 · 90126-08063
17148Exhaust manifold plate (for EGR intake)17148-40020
17155Hoses (for manifolds)17308-47010
17159Studs (for manifold to cylinder head)90116-08395 · 90126-08055 · 90126-10033 · 92122-80825
17167Exhaust manifold No. 1 heat shield17167-23030 · 17167-33010 · 17167-47010 · 17167-47011
17168Exhaust manifold No.2 insulation pad17168-47010
17173Gasket (exhaust manifold to cylinder head)17173-0J010 · 17173-0N010 · 17173-0Q010 · 17173-33010 · 17173-33030 · 17173-40020 · 17173-47020 · 17173-47021
17177No. 1 gasket (intake manifold to cylinder head)17177-0Q010 · 17177-0Q020 · 17177-23020 · 17177-40020 · 17177-47010
17178No. 2 gasket (intake manifold to cylinder head)17178-40020
17201Turbocharger sub-assembly17201-0N030 · 17201-0N041 · 17201-0N042
17203BCompressor oil inlet elbow sub-assembly17203-33010
17271No. 1 turbine vibration isolation pad17271-33030 · 17271-33060 · 17271-33090
17276Compressor oil inlet gasket17276-33010
17278Gasket (turbo to exhaust manifold)17278-27010 · 17278-33010
17279Turbine outlet elbow gasket17279-27020
17293Turbocharger stay17293-33010
17294Actuator hose17294-33030
17853BIntake manifold heat shield17853-47010
17861FIntake connecting pipe17861-33020 · 17861-33040 · 17861-33060
17861GIntake connecting pipe gasket26171-33011 · 26171-33050
22271AThrottle body gasket22271-40010
25051Exhaust manifold three-way catalytic converter sub-assembly25051-0J020 · 25051-0N020 · 25051-33060 · 25051-33090 · 25051-47010 · 25051-47040
25052No. 2 exhaust manifold three-way catalytic converter sub-assembly25052-33020 · 25052-33040
25586No. 1 manifold three-way catalytic converter vibration isolation pad25586-0Q020 · 25586-40040
25591Manifold bracket25591-33020 · 25591-33030 · 25591-33050 · 25592-33020 · 25593-33010 · 25594-33010
25628BEGR air intake gasket25628-0Q010 · 25628-40020 · 25628-47010
