Toyota YARIS V-Belt — Figure 1605

Toyota YARIS EPC diagram 1605, V-Belt, with 2 images and 1 PNC and OE references.

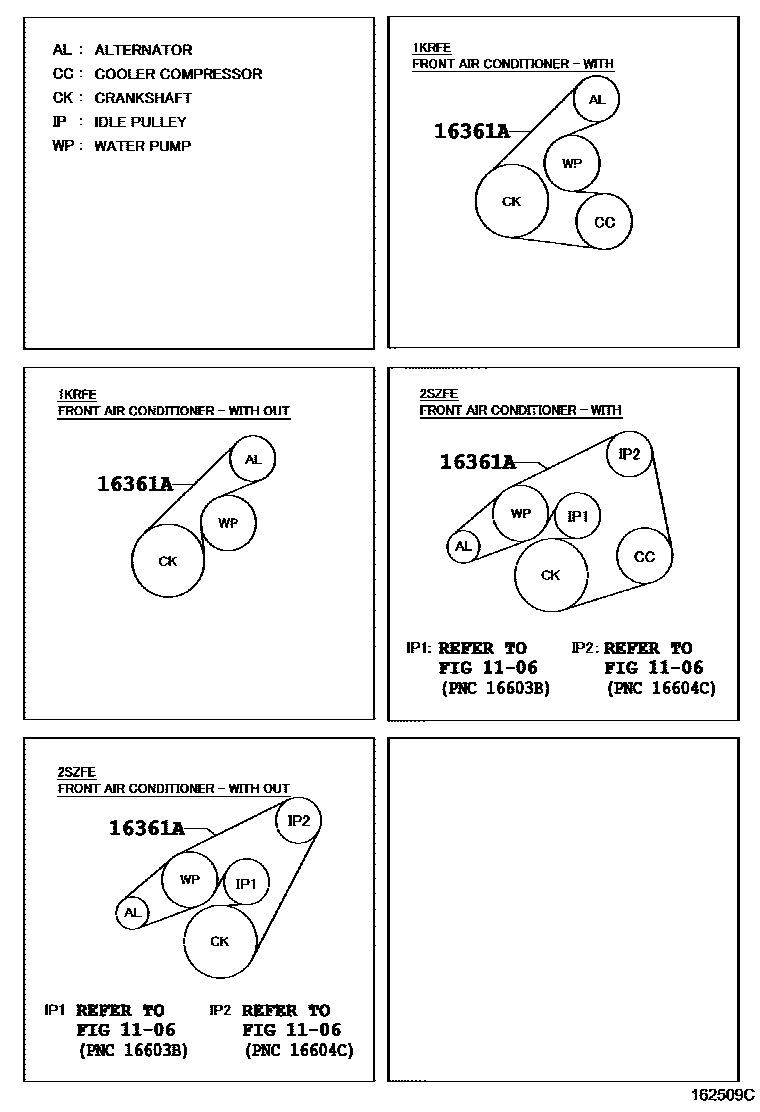

Toyota YARIS V-Belt EPC diagram — 162509C
V-Belt — 162509C (200511 – 999999)

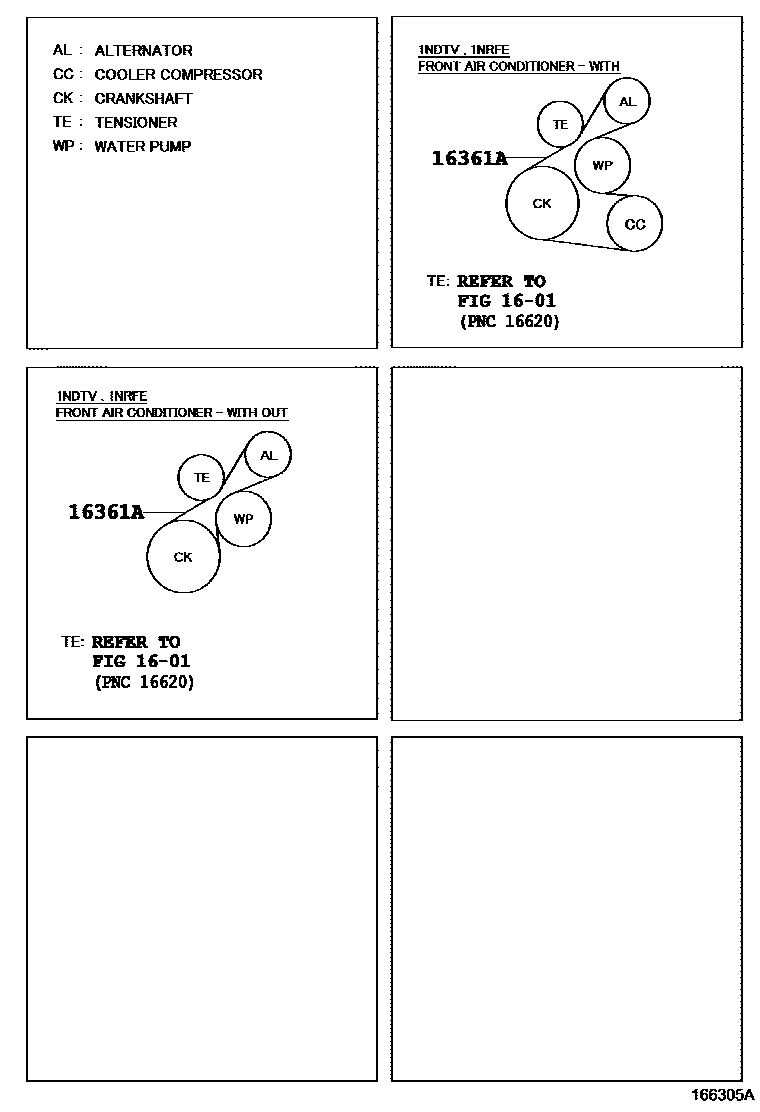

Toyota YARIS V-Belt EPC diagram — 166305A
V-Belt — 166305A (200501 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90080-91198 · 90916-02673 · 90916-02674 · 90916-W2001 · 90916-W2002 · 90916-W2003 · 90916-W2011 · 90916-W2015 · 90916-W2017 · 90916-W2019 · 90916-W2020 · 90916-W2021 · 90916-W2022 · 90916-W2023 · 90916-W2024
