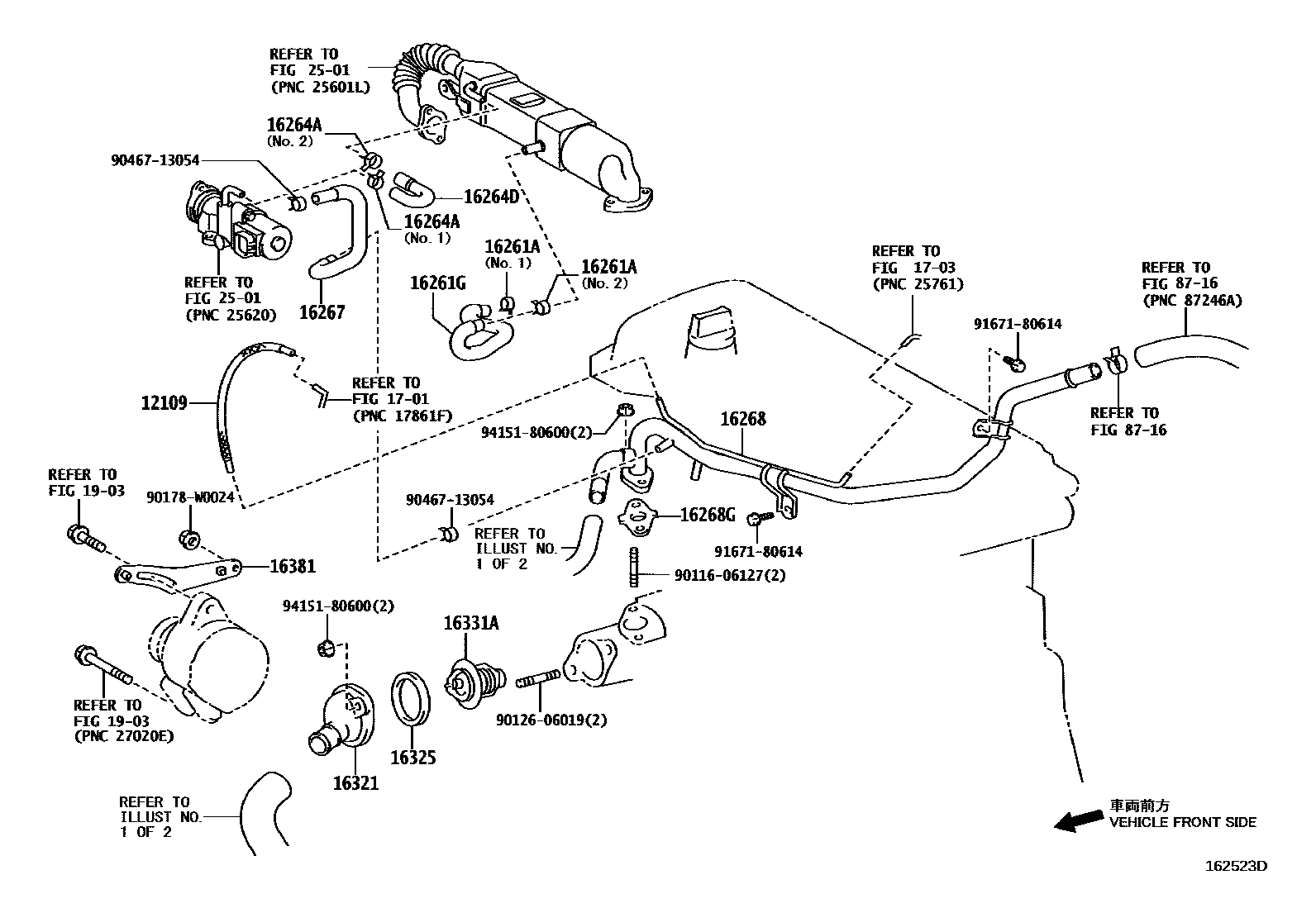

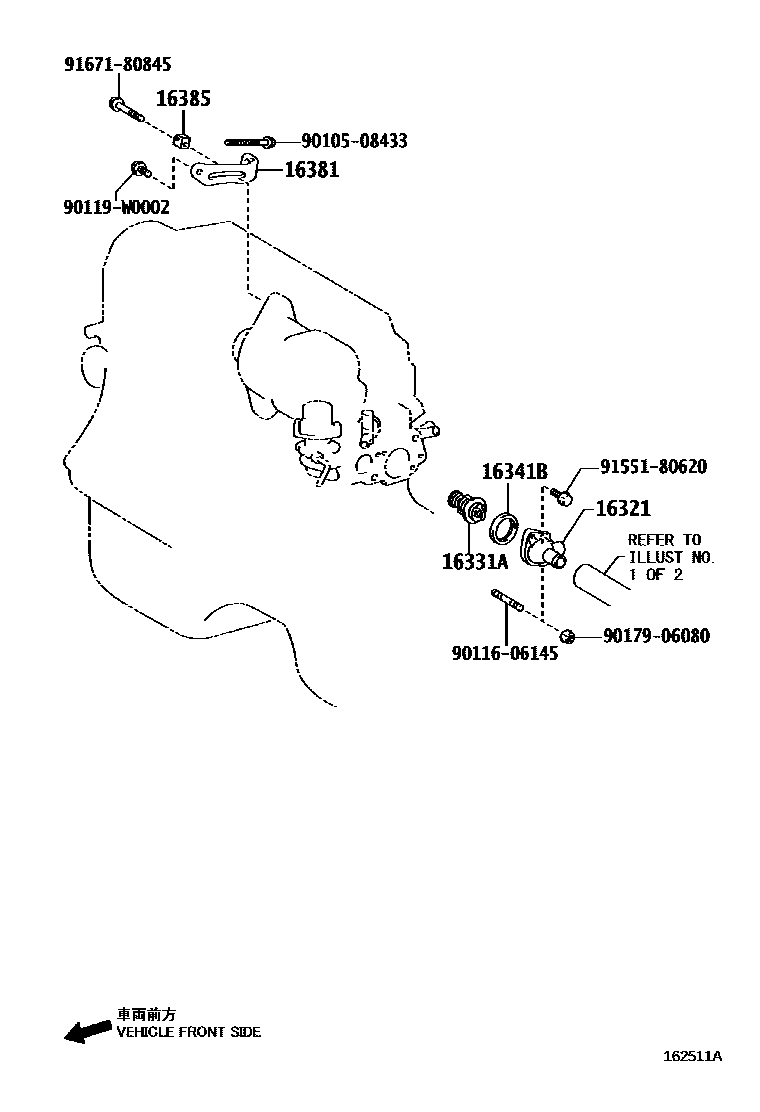

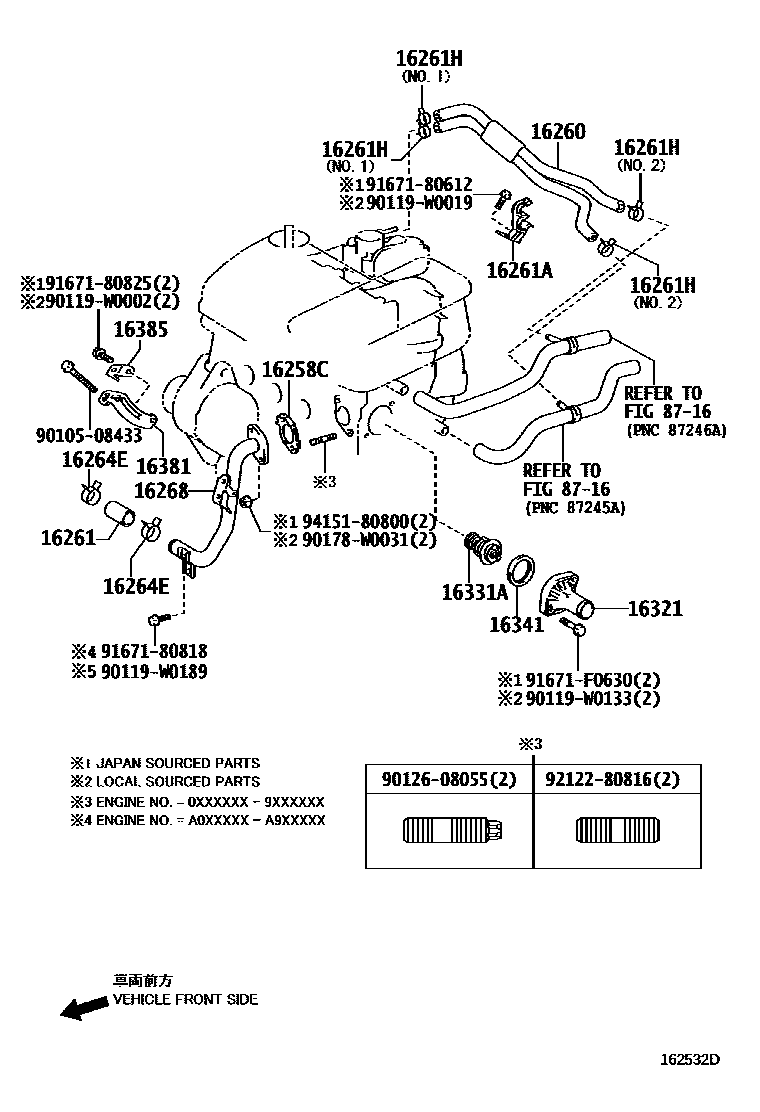

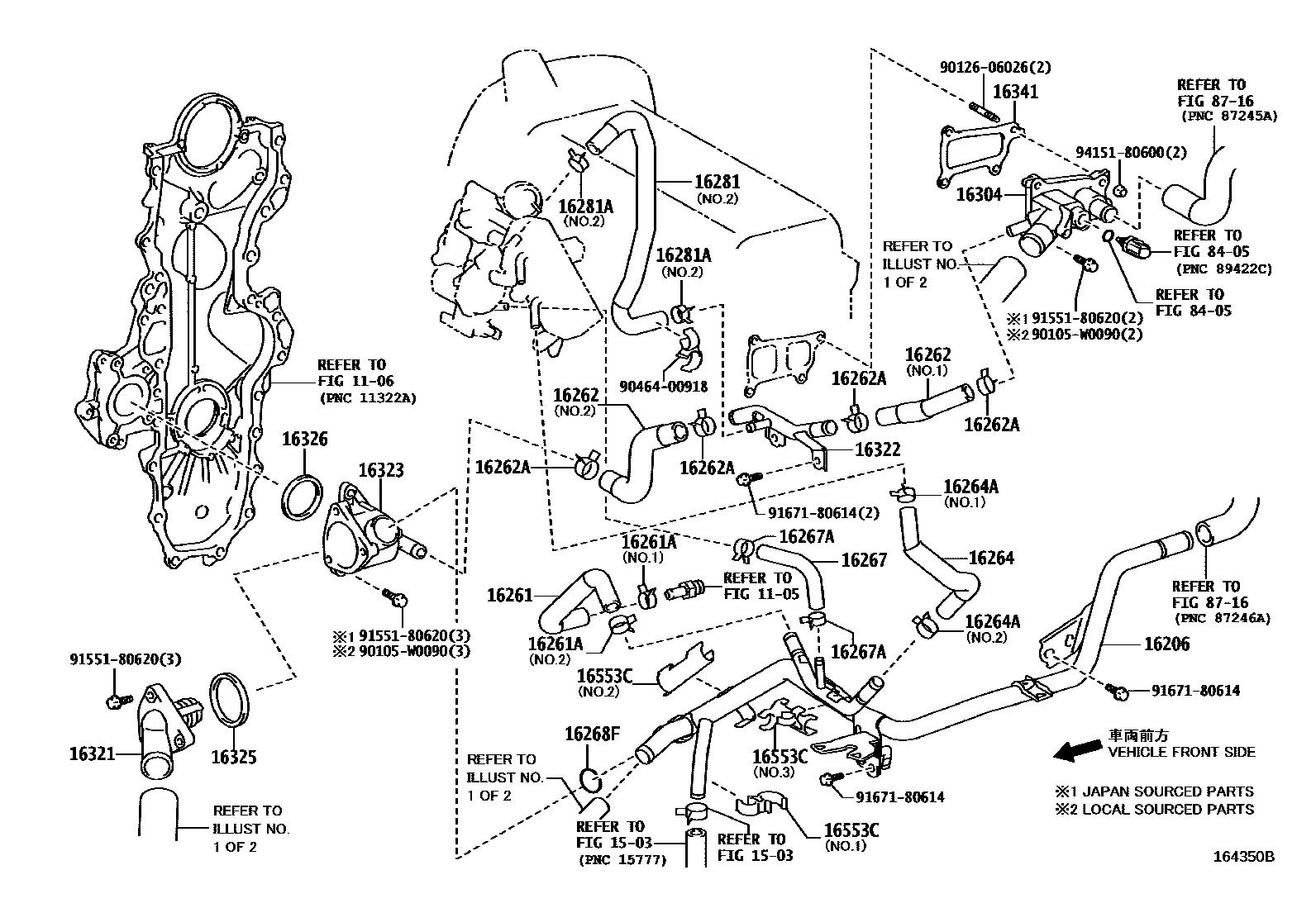

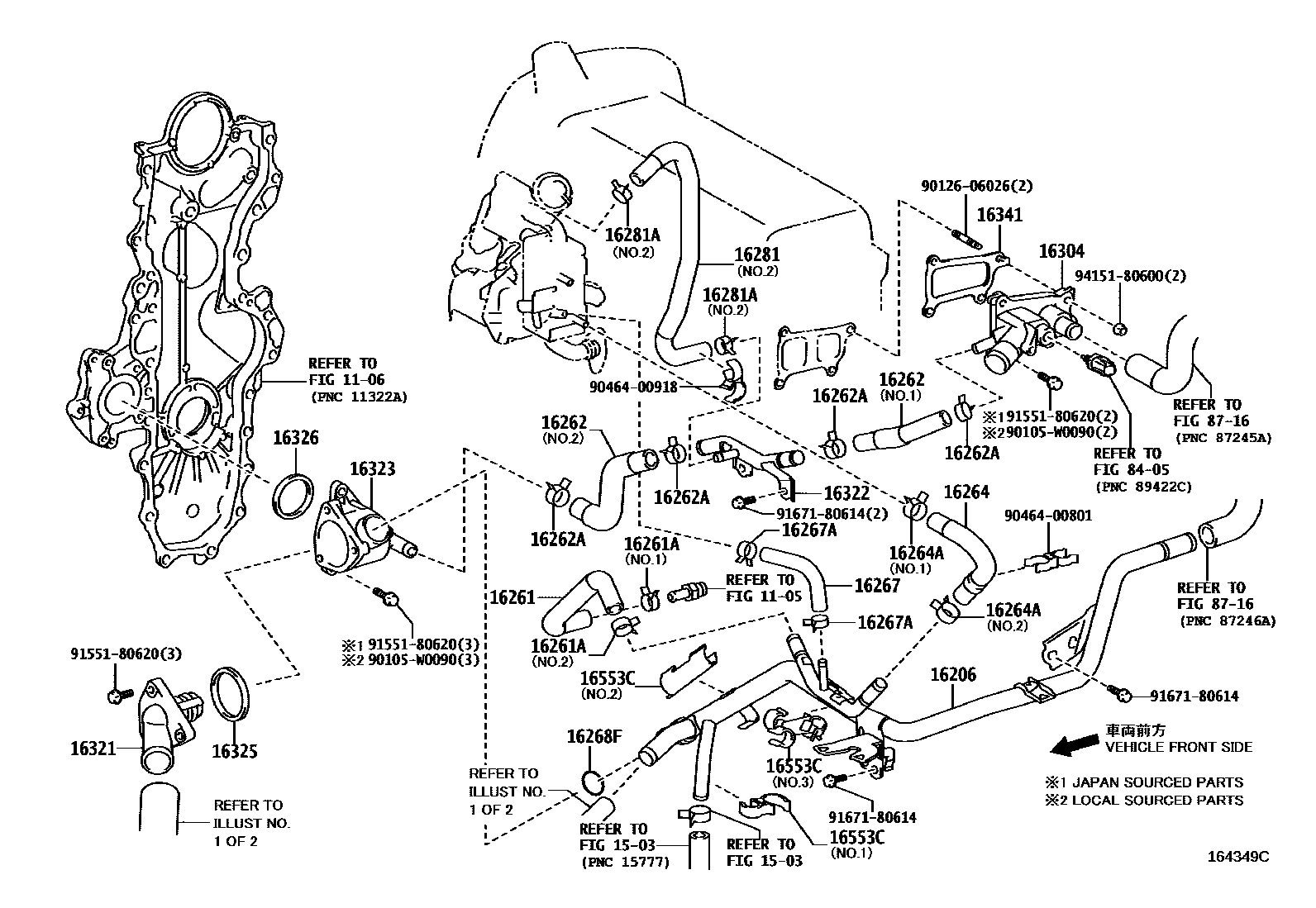

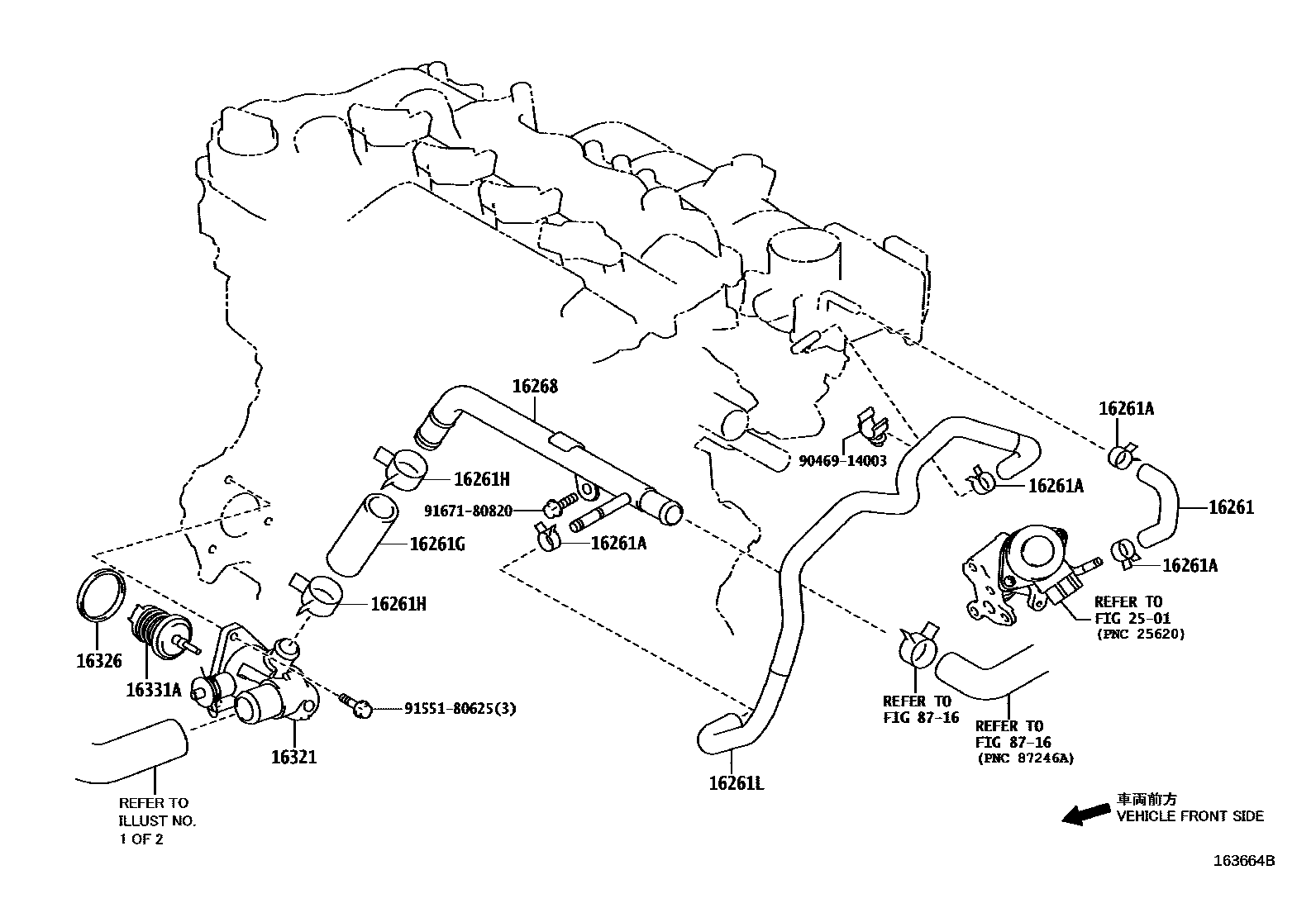

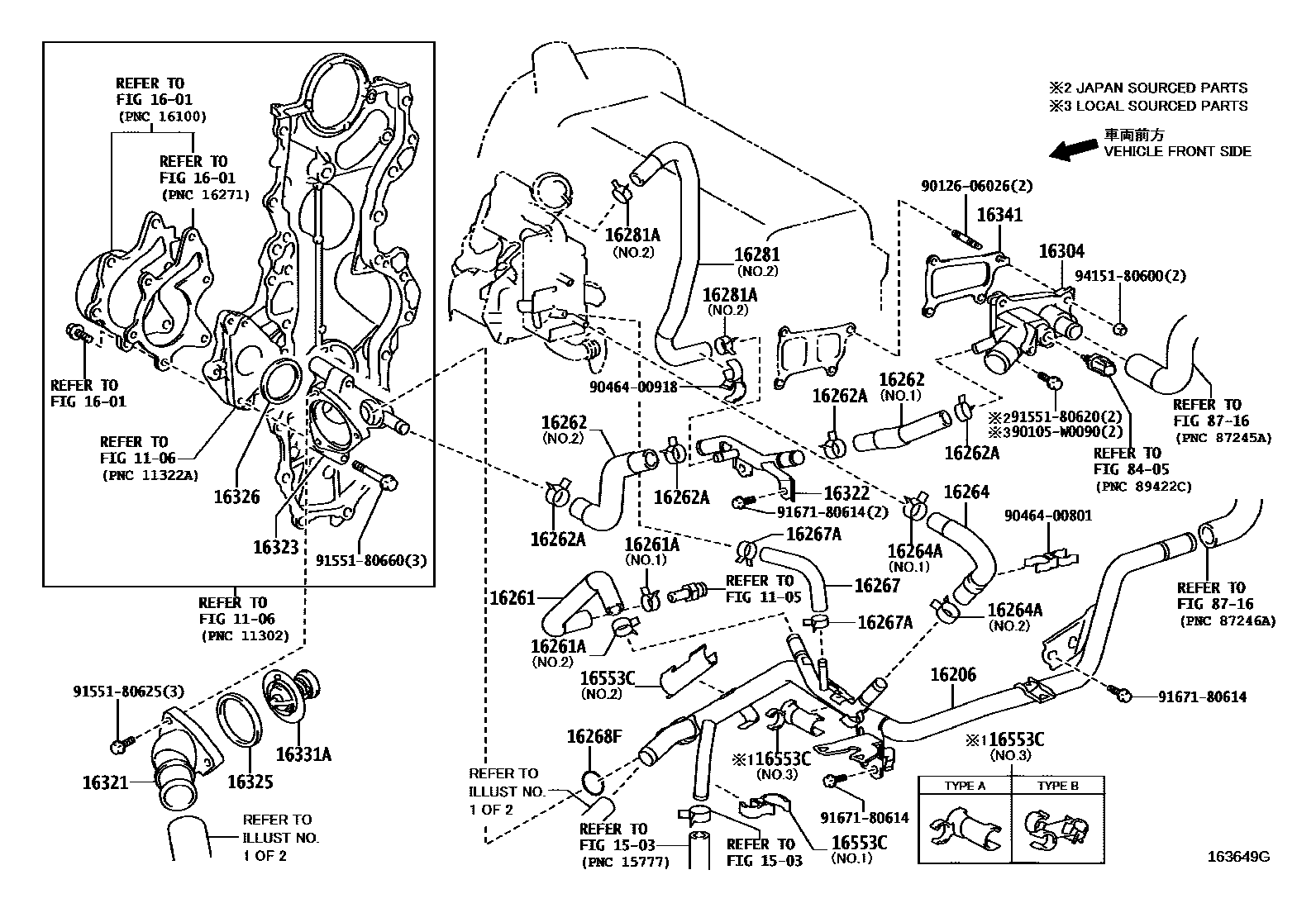

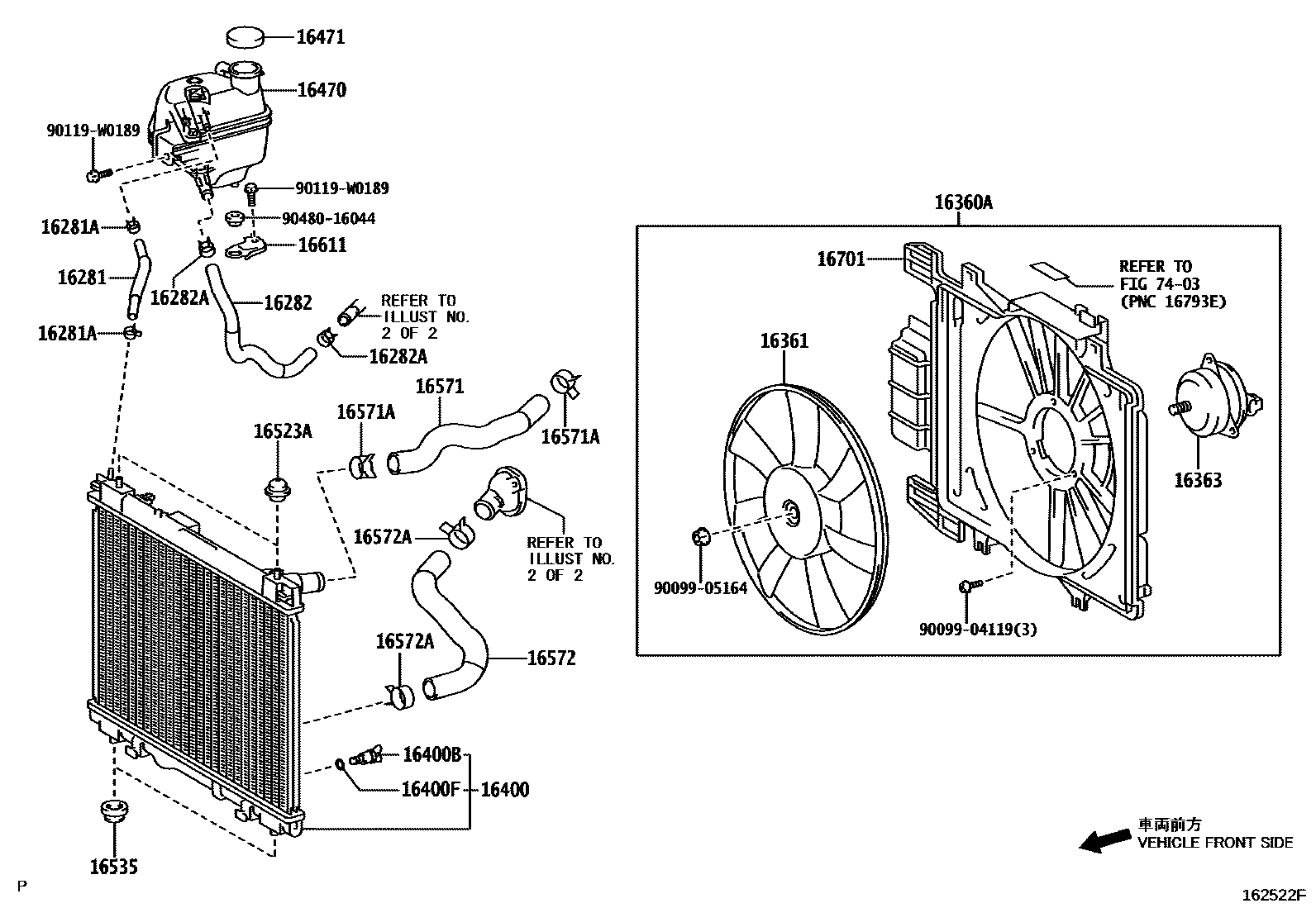

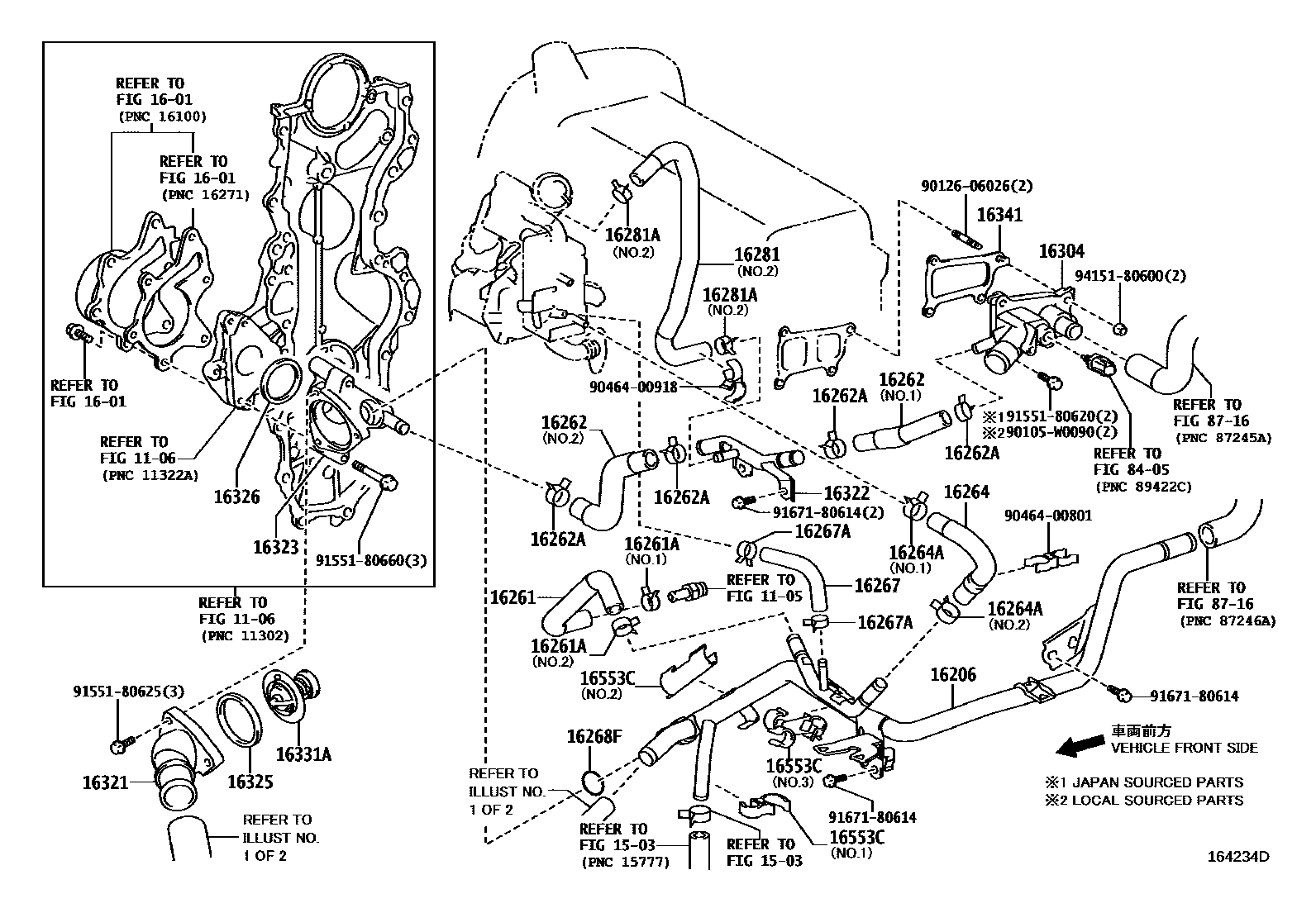

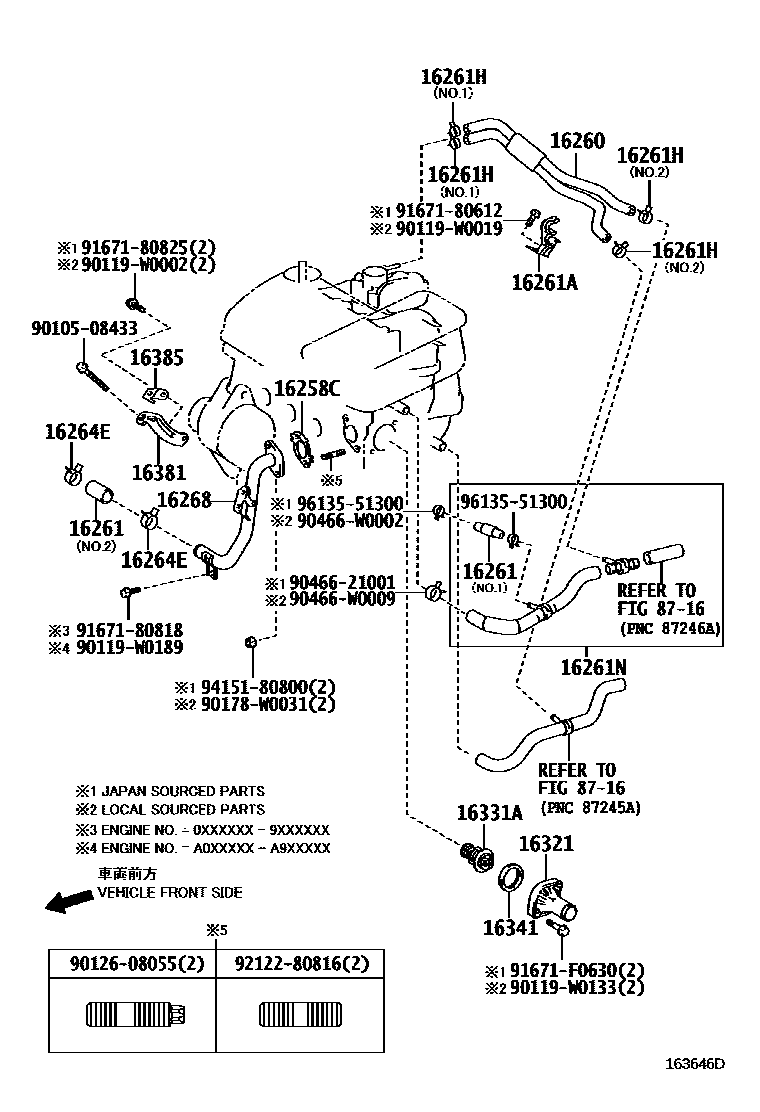

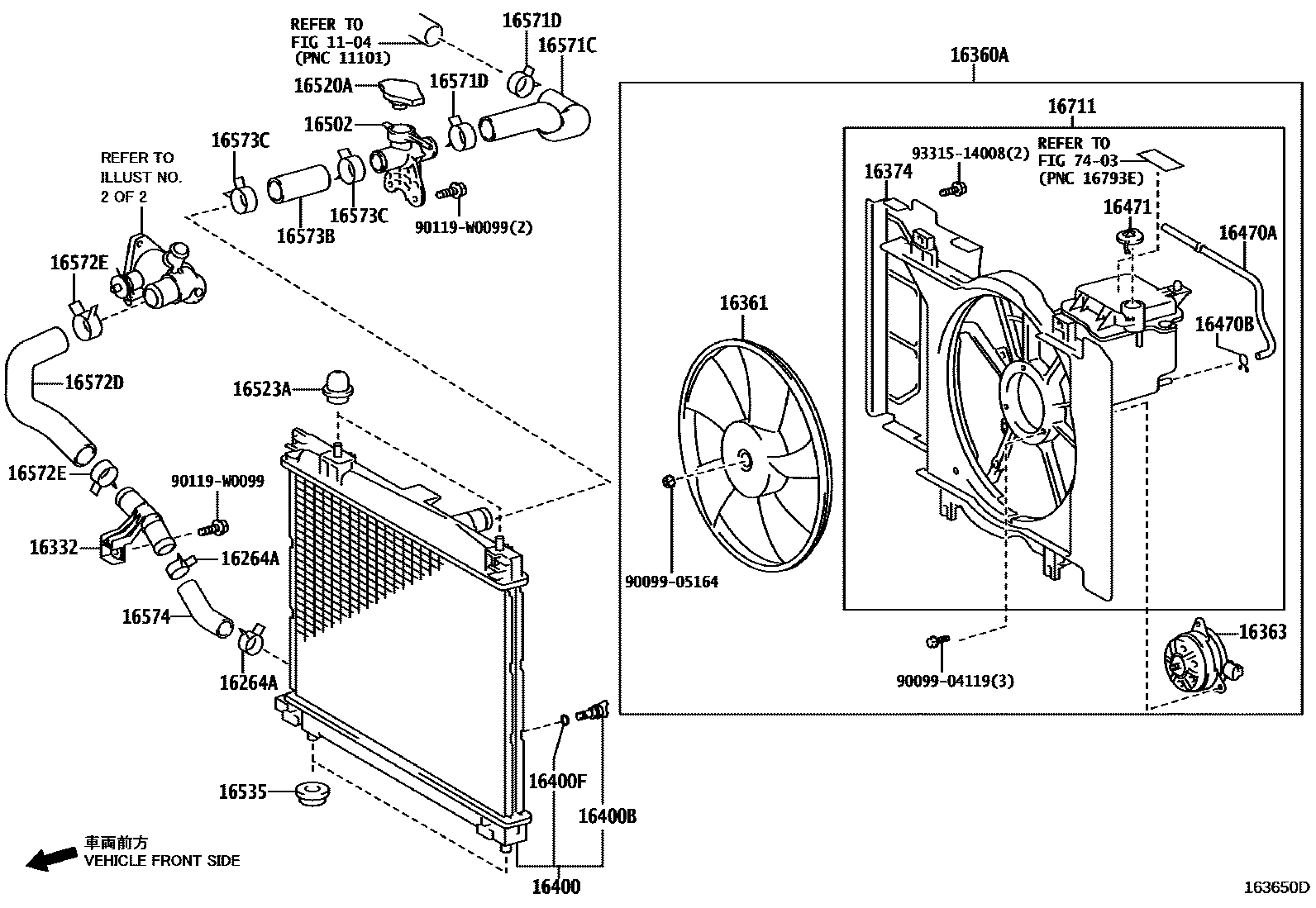

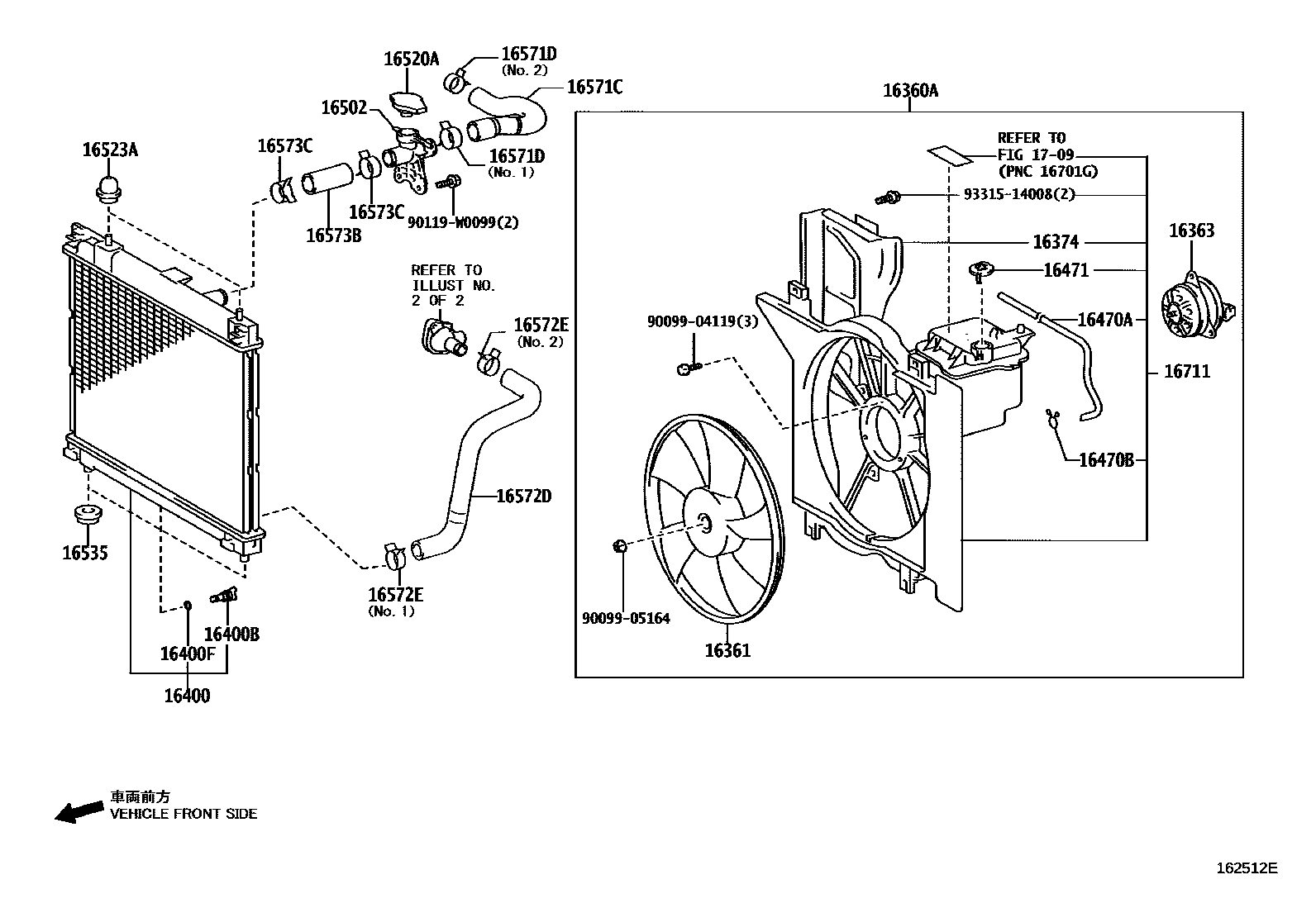

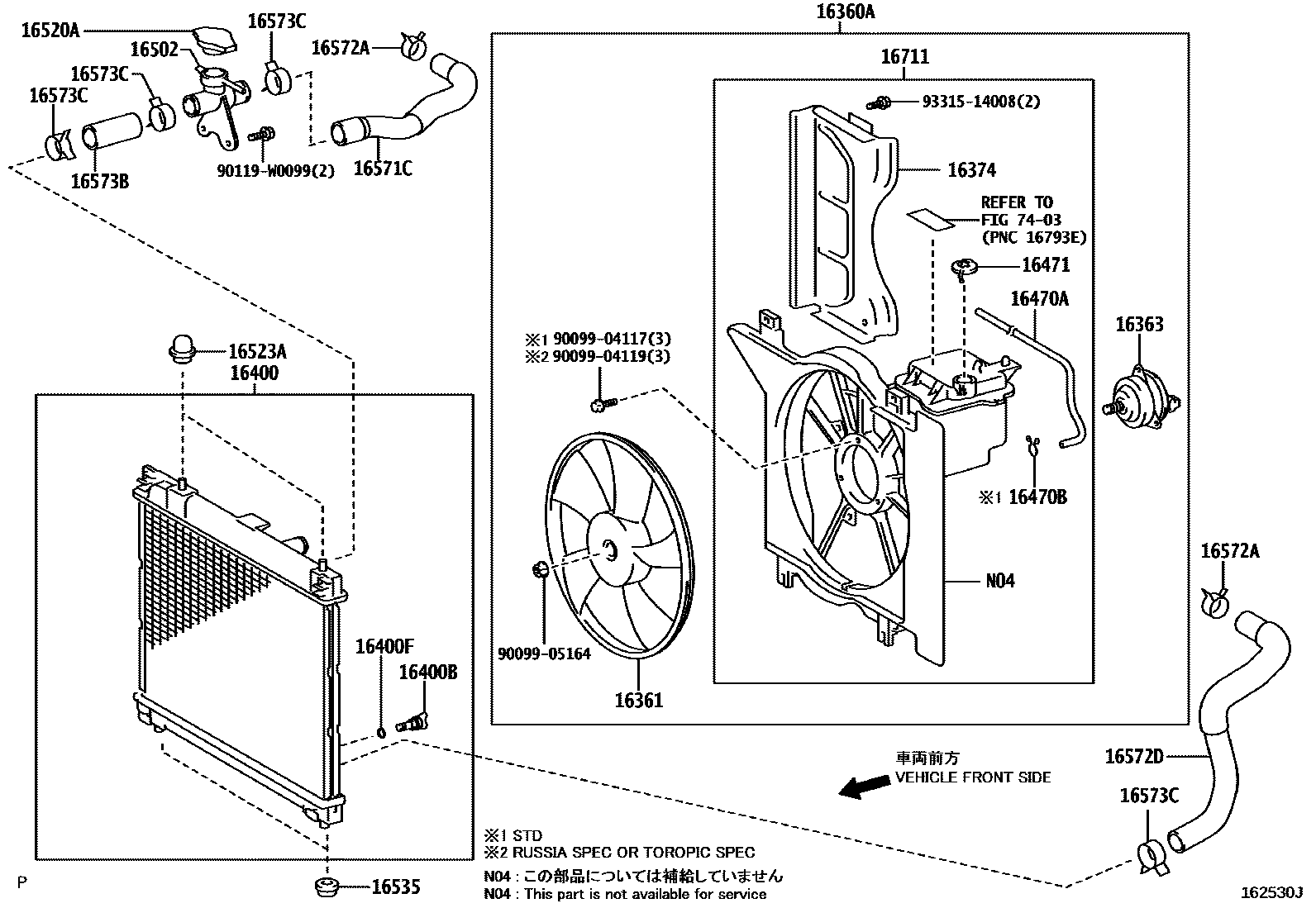

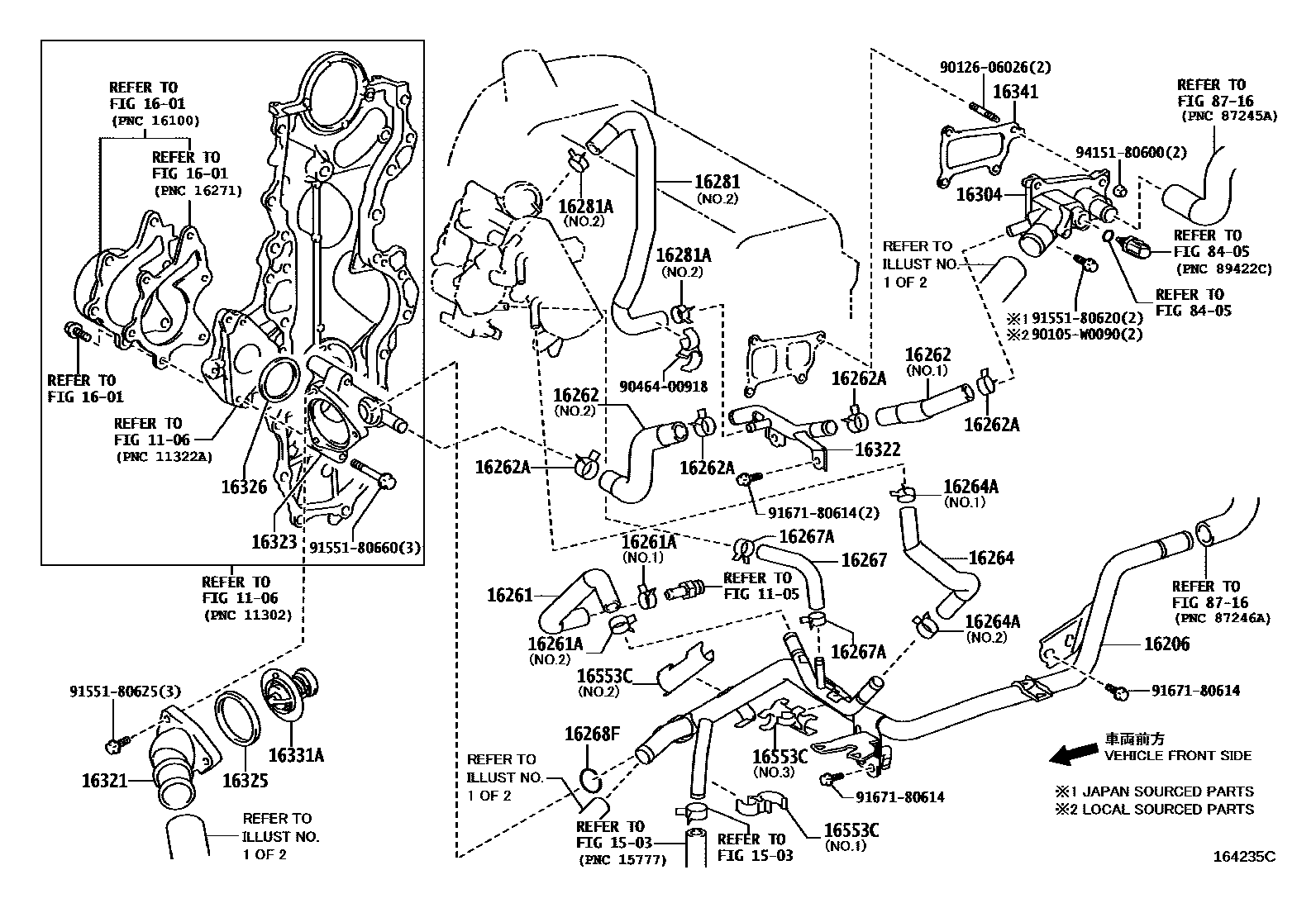

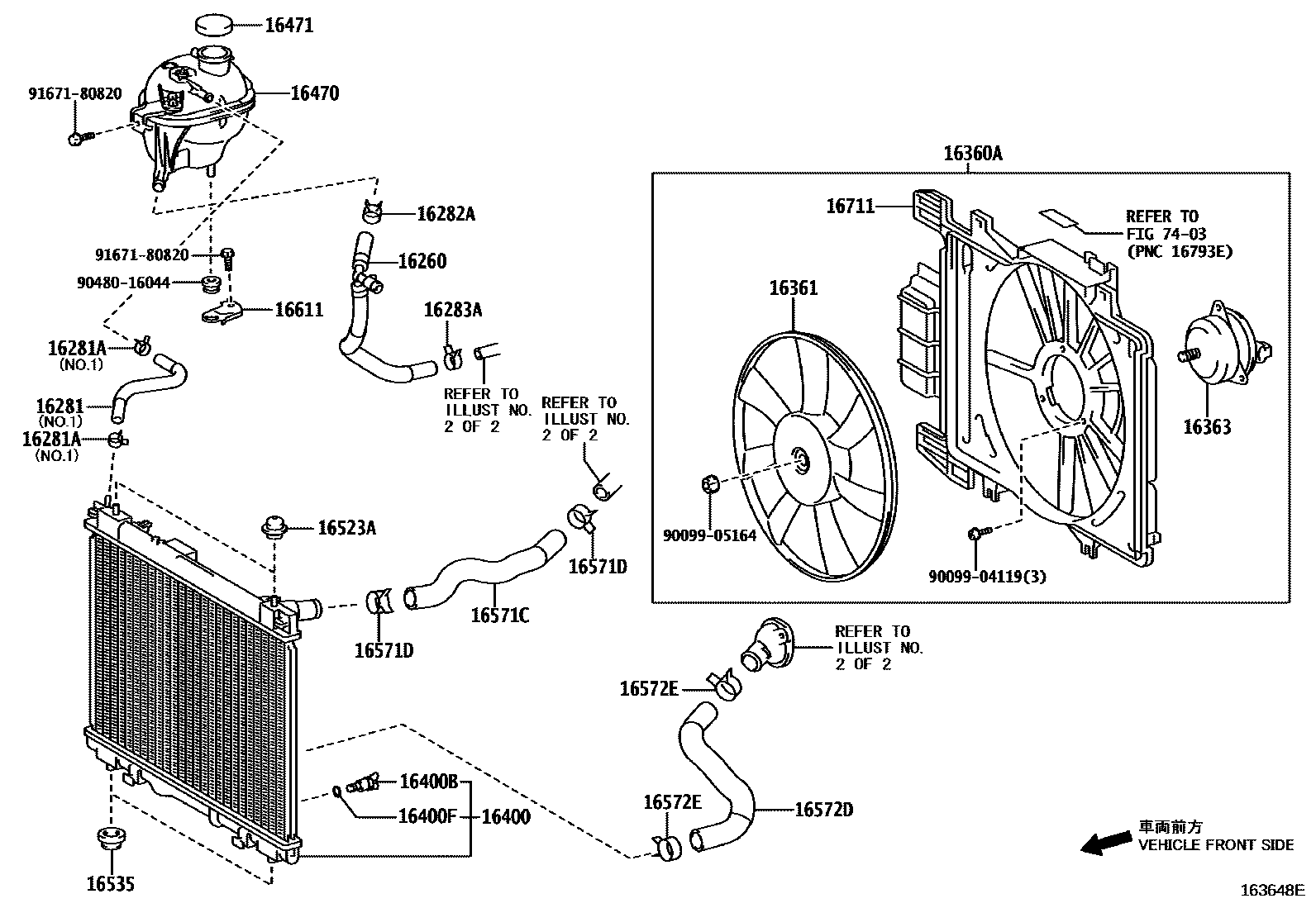

Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603
Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 15 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12109 | drain hose | 12109-33010 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-33010 · 16206-33050 · 16206-33051 |
| 16258C | Gasket (for water bypass pipe) | 16258-40010 · 16258-40020 |
| 16260 | Water bypass hose assembly | 16260-0Q040 · 16260-0Q050 · 16260-0Q080 · 16260-33070 · 16260-40070 |
| 16261 | HOSE, WATER BY-PASS | 16261-0N050 · 16261-33050 · 16261-40061 · 16261-40111 · 16261-47010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 16581-40010 · 90467-13054 · 90467-15022 · 96136-41501 · 96137-41701 · 96137-41901 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0N040 · 16261-33030 · 16261-47020 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-W0002 · 90466-W0003 · 96135-51300 · 96136-42901 · 96137-41501 · 96137-51501 |
| 16261L | HOSE, WATER BY-PASS | 16261-47030 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16260-40012 |
| 16262 | water inlet hose | 16262-0N010 · 16262-33010 · 16263-0N010 · 16263-33010 · 16263-33030 |
| 16262A | Clamp (for water inlet hose) | 96136-42101 · 96136-52201 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0N030 · 16264-33030 · 16264-33040 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-W0015 · 90467-13054 · 90467-15022 · 96137-41701 · 96137-41901 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-33020 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90466-30001 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0N020 · 16267-0N050 · 16267-33010 · 16267-33030 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96136-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-33050 · 16268-40040 · 16268-40050 · 16268-47030 |
| 16268F | O-ring (for water bypass pipe) | 90301-20016 · 96761-24021 |
| 16268G | Gasket (for water bypass pipe) | 16258-21020 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0N010 · 16281-0N070 · 16281-33030 · 16281-33060 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96136-41501 · 96136-52101 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-0N010 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96136-42501 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96136-42501 |
| 16304 | Water outlet sub-assembly | 16304-33010 |
| 16321 | water inlet | 16321-0J010 · 16321-0Q010 · 16321-33010 · 16321-33020 · 16321-33050 · 16321-40010 · 16321-47010 · 16321-47011 |
| 16322 | PIPE, WATER INLET | 16322-33010 |
| 16323 | HOUSING, WATER INLET | 16323-33010 · 16323-33030 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0D010 · 16325-33010 · 16325-62010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-33010 · 16326-33030 · 16326-47010 |
| 16331A | thermostat | 90916-03093 · 90916-03122 · 90916-03134 · 90916-03143 · 90916-03147 |
| 16332 | No. 1 outlet pipe | 16332-0Y010 |
| 16341 | GASKET, WATER OUTLET | 16341-33010 · 16341-35010 |
| 16341B | water inlet gasket | 16341-35010 |
| 16360A | Fan assembly with motor | 16360-0N050 · 16360-0N051 · 16360-0Q030 · 16360-0Q031 · 16360-0Q040 |
| 16361 | Fan | 16361-0N030 · 16361-0Q030 · 16361-0Q040 |
| 16363 | cooling fan motor | 16363-0D090 · 16363-0G050 · 16363-0H030 · 16363-23010 |
| 16374 | Cooling fan motor vibration isolation pad | 16366-0Q030 |
| 16381 | Fan belt adjustment lever | 16381-0Q011 · 16381-23060 · 16381-33040 · 16381-40041 · 16381-40070 |
| 16385 | Fan belt adjustment slider | 16385-23030 · 16385-40011 |
| 16400 | Radiator assembly | 16400-0N050 · 16400-0Q040 · 16400-0Q060 · 16400-0Y010 · 16400-0Y020 |
| 16400B | Radiator drain switch screw plug | 16417-0Q040 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16470 | Radiator reservoir assembly | 16480-0N020 · 16480-0N030 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16401-53010 · 16471-23030 · 16475-51010 |
| 16502 | Water injection port sub-assembly | 16502-0Q010 |
| 16520A | Water injection port cover sub-assembly | 16401-31480 · 16401-31520 · 16401-62100 |
| 16523A | Radiator bracket cushion | 16523-0Q020 |
| 16535 | Radiator lower support | 90480-W0005 |
| 16553C | hose clamp | 16581-33040 · 16581-33050 · 16581-33060 · 16581-33120 · 16581-33130 |
| 16571 | Radiator water inlet hose | 16571-0N030 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-W0011 · 90467-33006 |
| 16571C | Radiator hose No. 1 | 16571-0J020 · 16571-0N060 · 16571-0Q020 · 16571-0Q021 · 16571-0Y010 |
| 16571D | No. 1 radiator hose clip | 90466-W0011 · 90466-W0015 · 90467-33006 |
| 16572 | Radiator outlet hose | 16572-0N030 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-W0011 · 90466-W0015 · 90467-33006 |
| 16572D | Radiator hose No. 2 | 16572-0J020 · 16572-0Q020 · 16572-0Y010 · 16572-33080 |
| 16572E | No. 2 radiator hose clip | 90466-W0011 · 90466-W0015 · 90467-33006 |
| 16573B | Radiator hose No. 3 | 16573-0Q010 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-W0011 · 90467-33006 |
| 16574 | Radiator hose No. 4 | 16574-47010 |
| 16611 | Radiator reservoir bracket | 16611-0N010 |
| 16701 | Fan cover sub-assembly | 16711-0N030 |
| 16711 | fan cover | 16711-0N030 · 16711-0N031 · 16711-0Q030 · 16711-0Q040 |
