Toyota YARIS Oil Filter — Figure 1502

Toyota YARIS EPC diagram 1502, Oil Filter, with 5 images and 13 PNC and OE references.

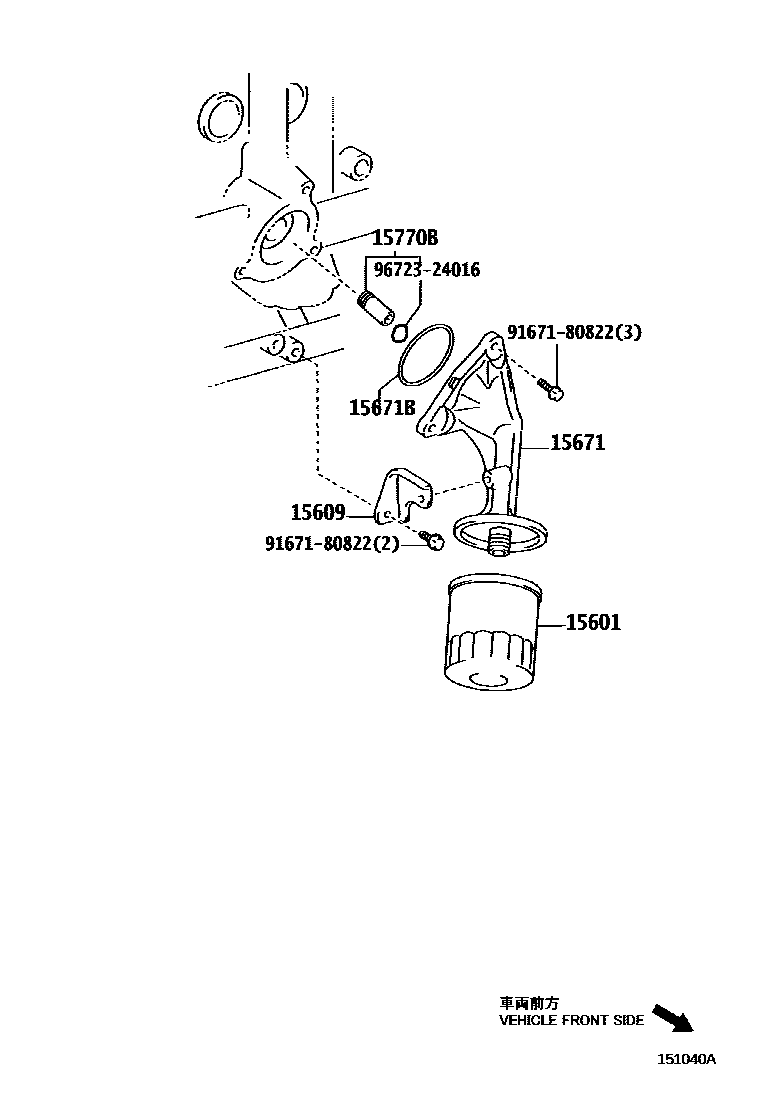

Toyota YARIS Oil Filter EPC diagram — 151040A
Oil Filter — 151040A (200511 – 999999)

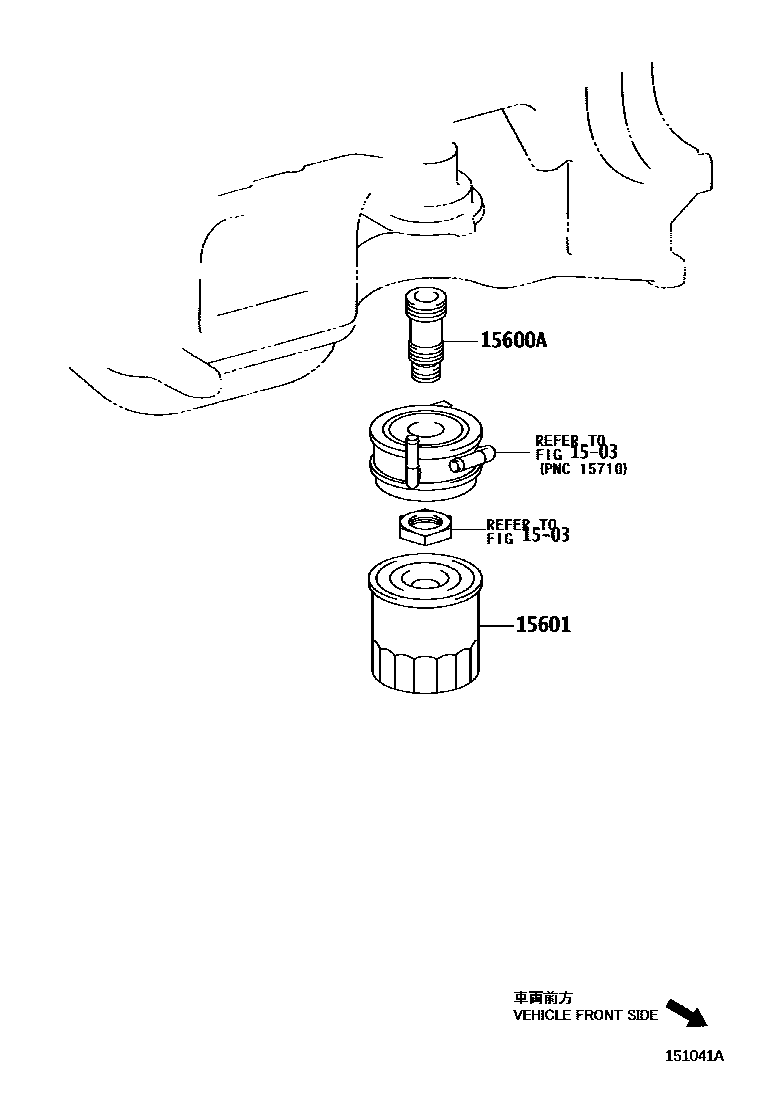

Toyota YARIS Oil Filter EPC diagram — 151041A
Oil Filter — 151041A (200511 – 200811)

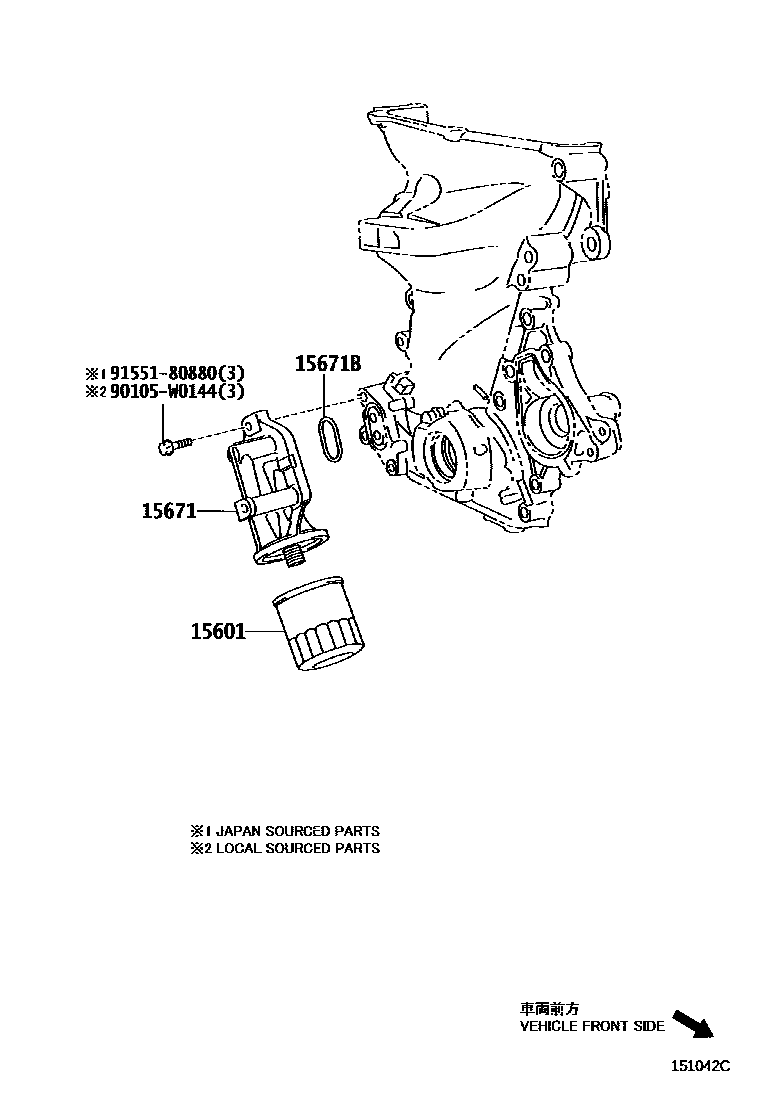

Toyota YARIS Oil Filter EPC diagram — 151042C
Oil Filter — 151042C (200511 – 999999)
Toyota YARIS Oil Filter EPC diagram — 151519C
Oil Filter — 151519C (200811 – 999999)

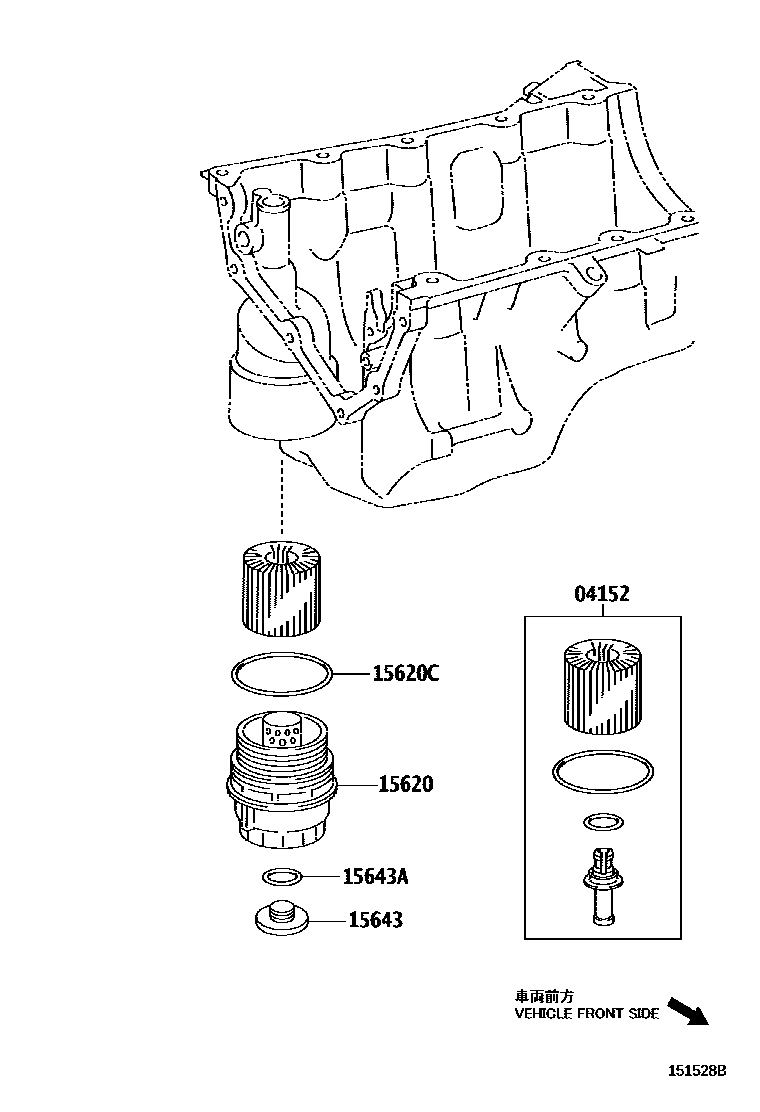

Toyota YARIS Oil Filter EPC diagram — 151528B
Oil Filter — 151528B (200811 – 999999)

PNC and OE references

PNCPart nameOE numbers
04152Oil Filter Element Kit04152-31110 · 04152-40060
15600AConnector (for oil filter)90904-04008
15601Oil filter sub-assembly90915-10001 · 90915-10003 · 90915-20003 · 90915-CA003 · 90915-TA001
15609Oil filter bracket sub-assembly15609-33030 · 15671-0J010
15620Oil filter cover assembly15620-40030
15620CGasket (for oil filter cover)90301-69011 · 90301-79006
15643Oil filter drain plug15643-31050
15643AO-ring (for oil filter drain plug)96723-35028
15650Oil filter cover assembly with filter element15650-33010
15671Oil filter bracket15671-0Q010 · 15677-23010
15671BOil filter holder gasket15691-40020 · 90301-58004
15692Oil filter holder gasket15692-33010
15770BOil pipe assembly15770-23010
