Toyota YARIS Engine Oil Pump — Figure 1501

Toyota YARIS EPC diagram 1501, Engine Oil Pump, with 5 images and 18 PNC and OE references.

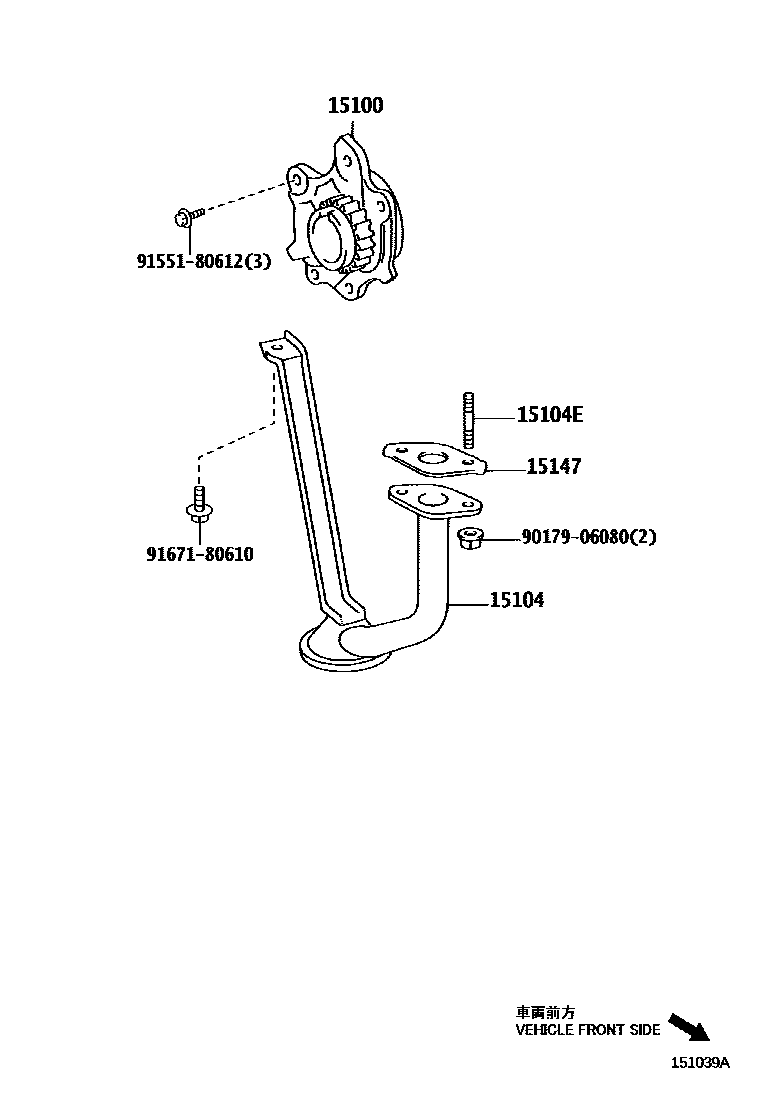

Toyota YARIS Engine Oil Pump EPC diagram — 151039A
Engine Oil Pump — 151039A (200511 – 999999)

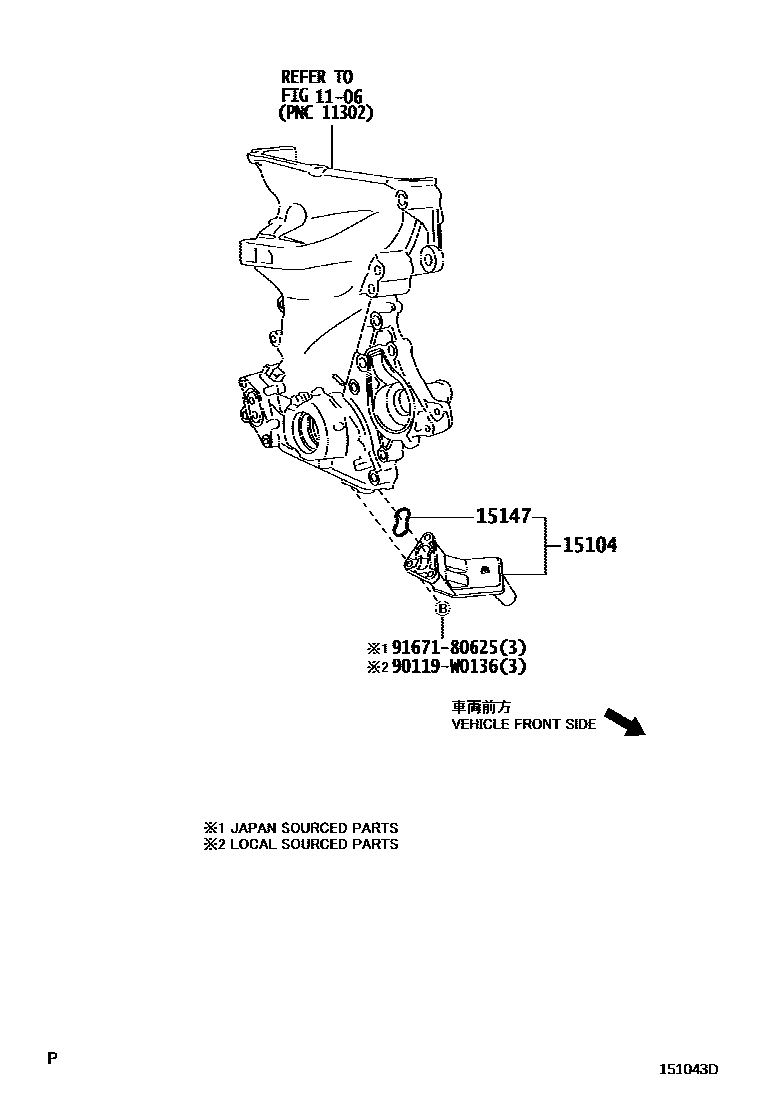

Toyota YARIS Engine Oil Pump EPC diagram — 151043D
Engine Oil Pump — 151043D (200511 – 999999)

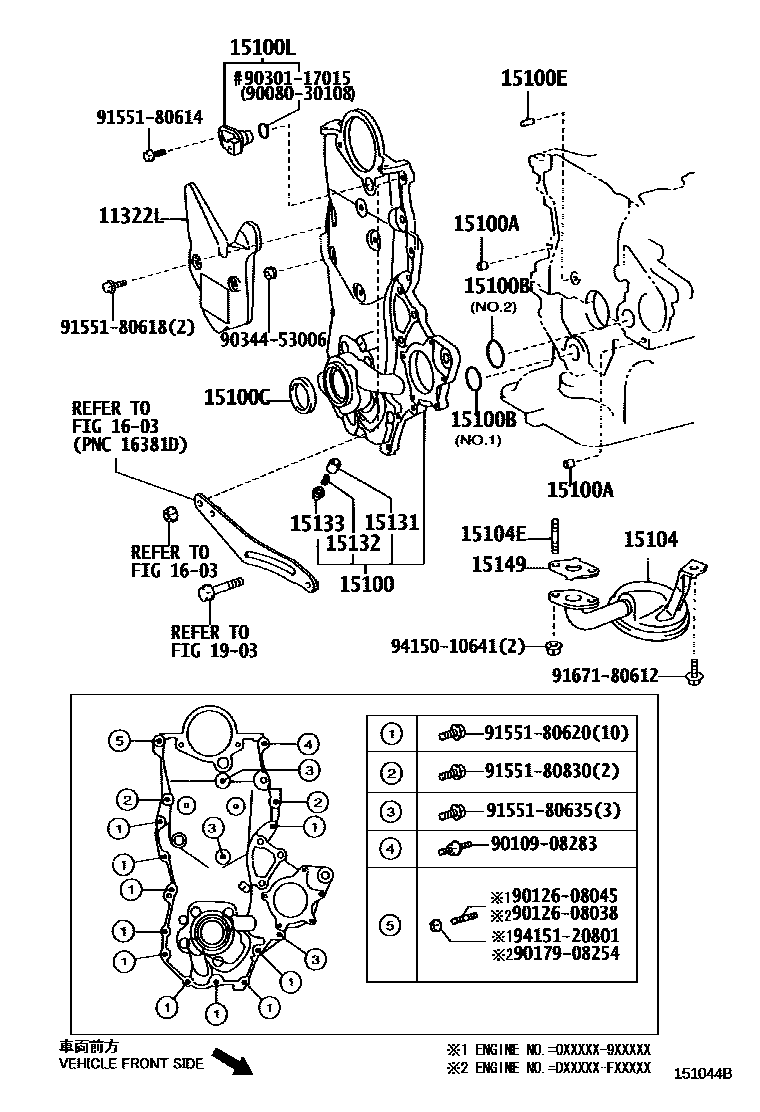

Toyota YARIS Engine Oil Pump EPC diagram — 151044B
Engine Oil Pump — 151044B (200511 – 200811)

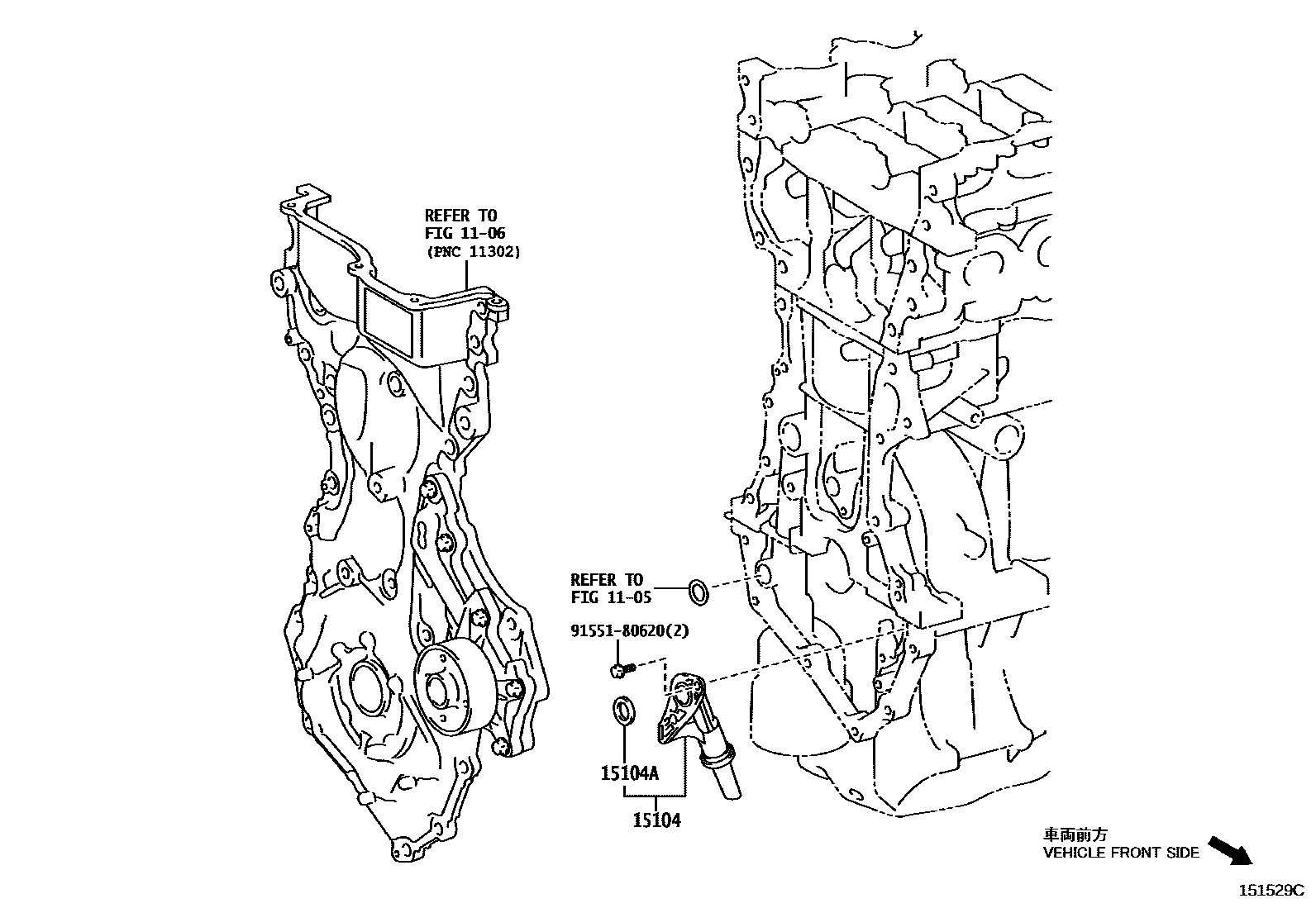

Toyota YARIS Engine Oil Pump EPC diagram — 151529C
Engine Oil Pump — 151529C (200811 – 999999)

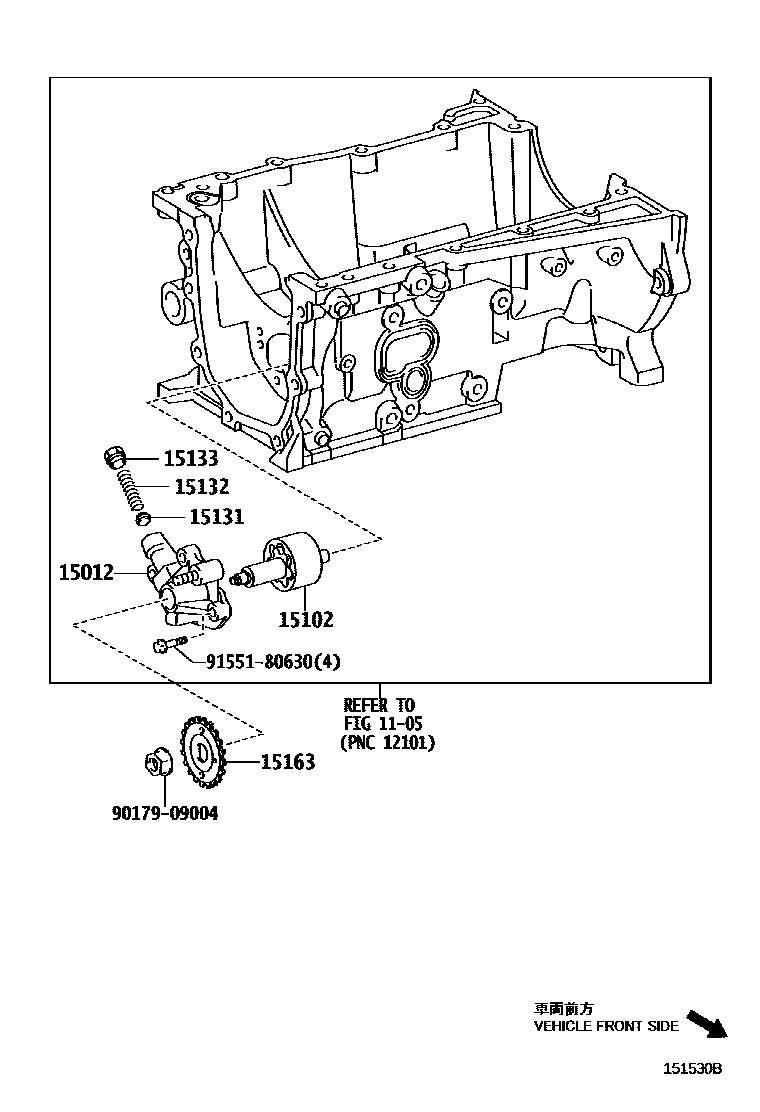

Toyota YARIS Engine Oil Pump EPC diagram — 151530B
Engine Oil Pump — 151530B (200811 – 999999)

PNC and OE references

PNCPart nameOE numbers
11322LNo. 2 timing chain cover11322-0N010 · 11322-33010
15012Oil pump cover sub-assembly15012-33060
15100Oil pump assembly15100-23020 · 15100-33040
15100ARing pin (for oil pump assembly)90253-08003
15100BO-ring (for oil pump)90301-31012 · 90301-42006
15100CSeals (for oil pump)90080-31093 · 90311-38084
15100EDirect sales (for oil pump components)90250-10030
15100LCam position sensor90080-19026 · 90919-05055
15102Oil pump rotor assembly15102-33060
15104Oil filter sub-assembly15104-0Q010 · 15104-23070 · 15104-33030 · 15104-40030 · 15104-47040
15104AO-ring (for oil filter)90301-22018
15104EStud bolts (for oil filter)90126-06021 · 92122-60614
15131Oil pump pressure reducing valve15131-0A040 · 15131-38010
15132Oil pump pressure reducing valve spring15132-33020 · 15132-33040
15133PLUG, OIL PUMP RELIEF VALVE15133-20010 · 15133-33040
15147Oil filter gasket15147-23020 · 15147-40030 · 15147-40040
15149Oil filter flange gasket16258-21030
15163Oil pump drive shaft gear15163-33010
