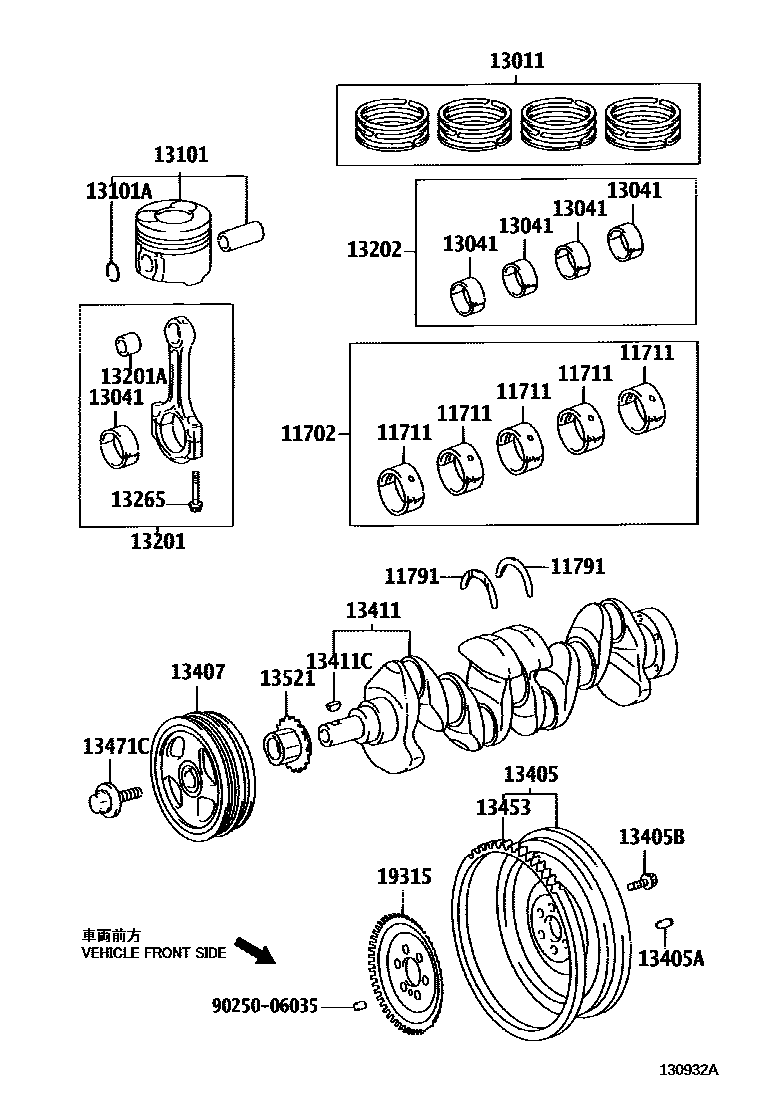

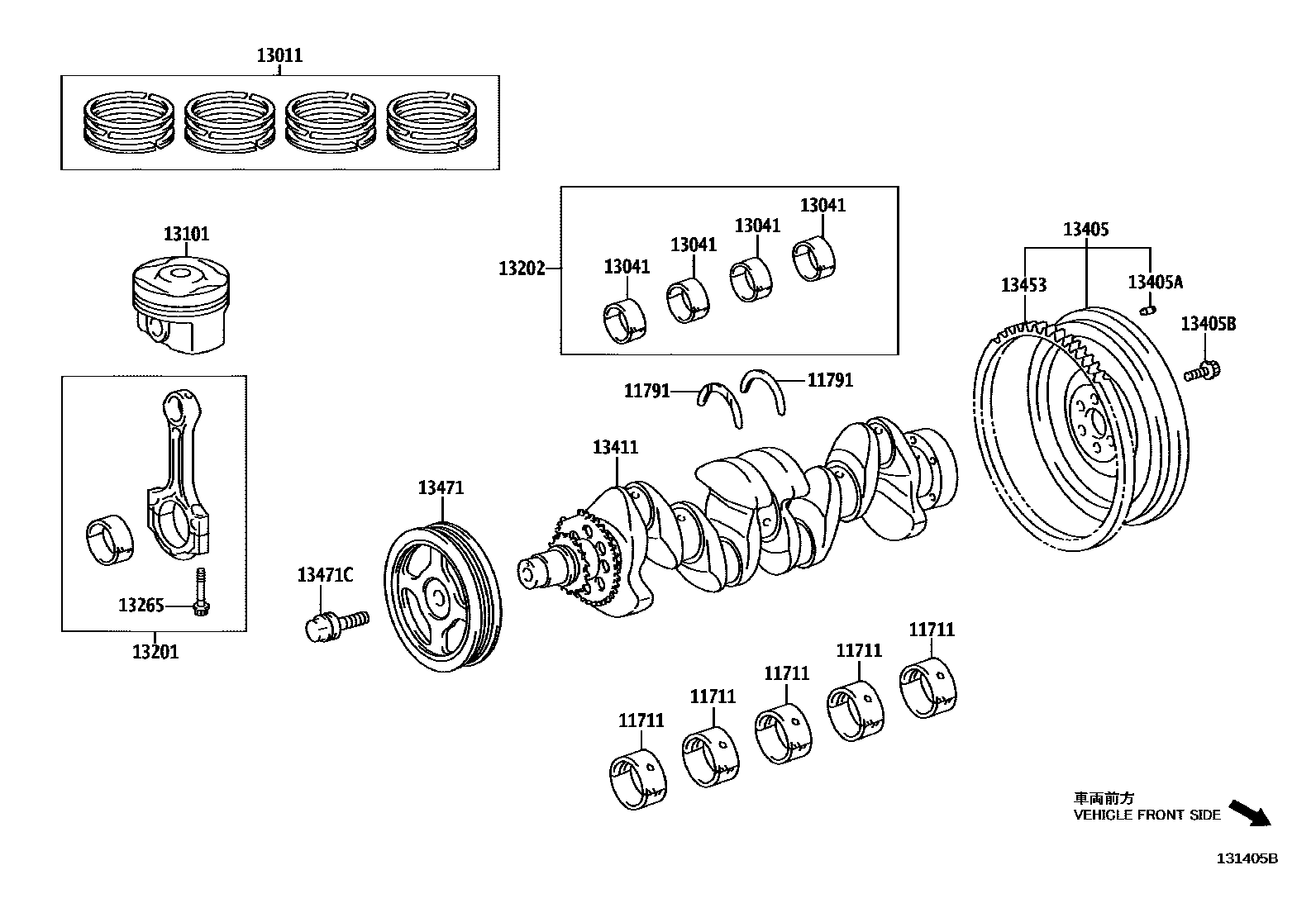

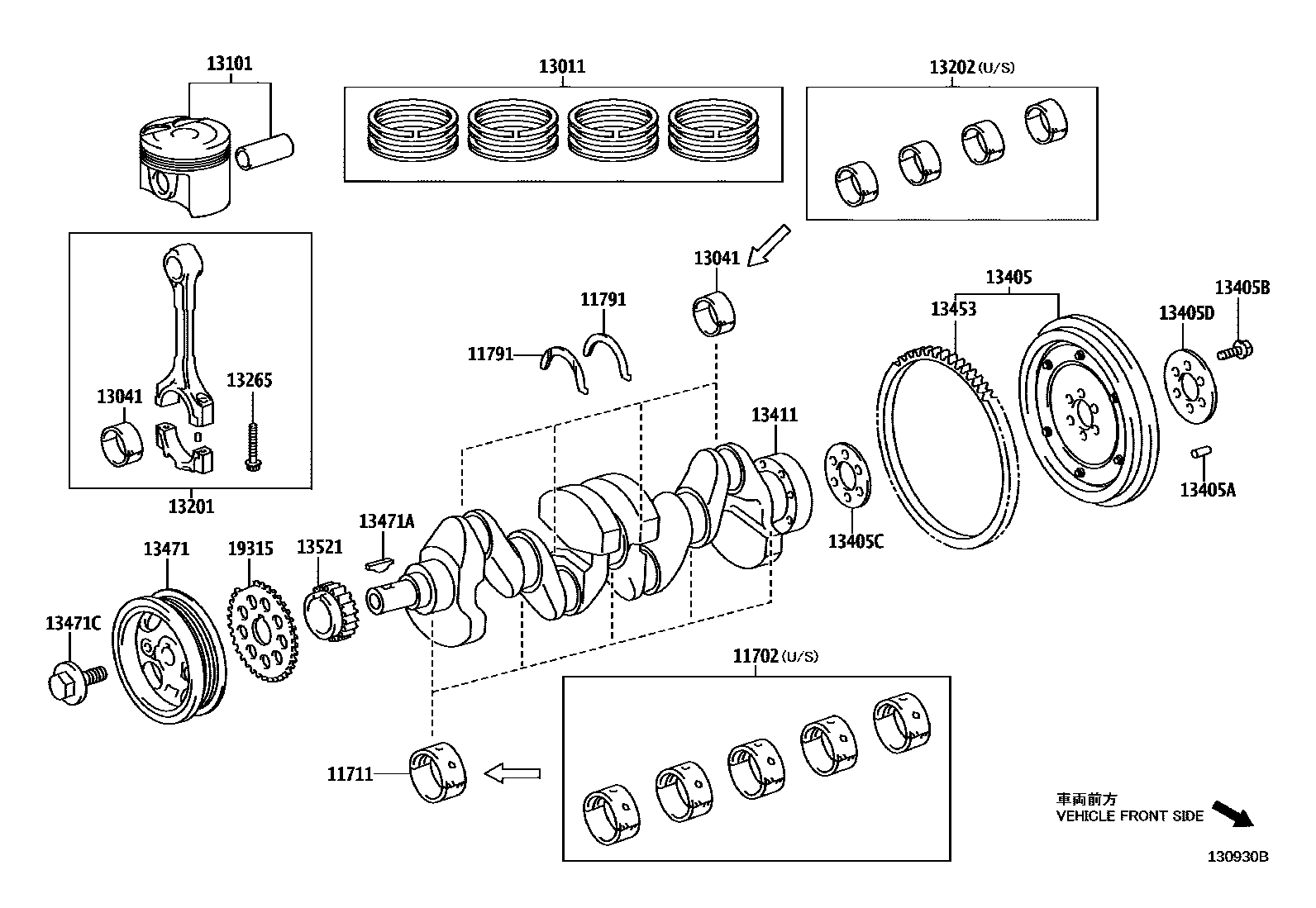

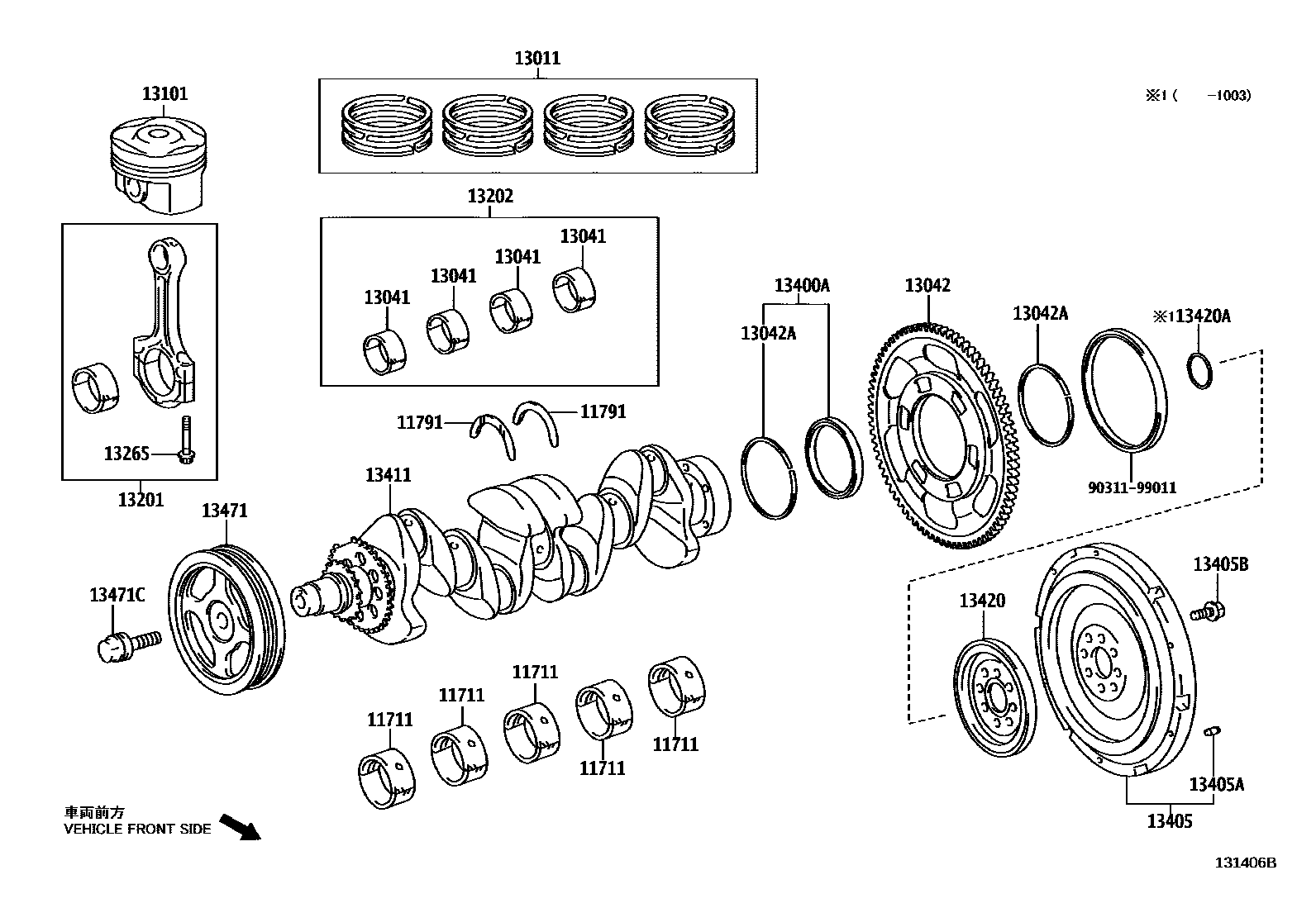

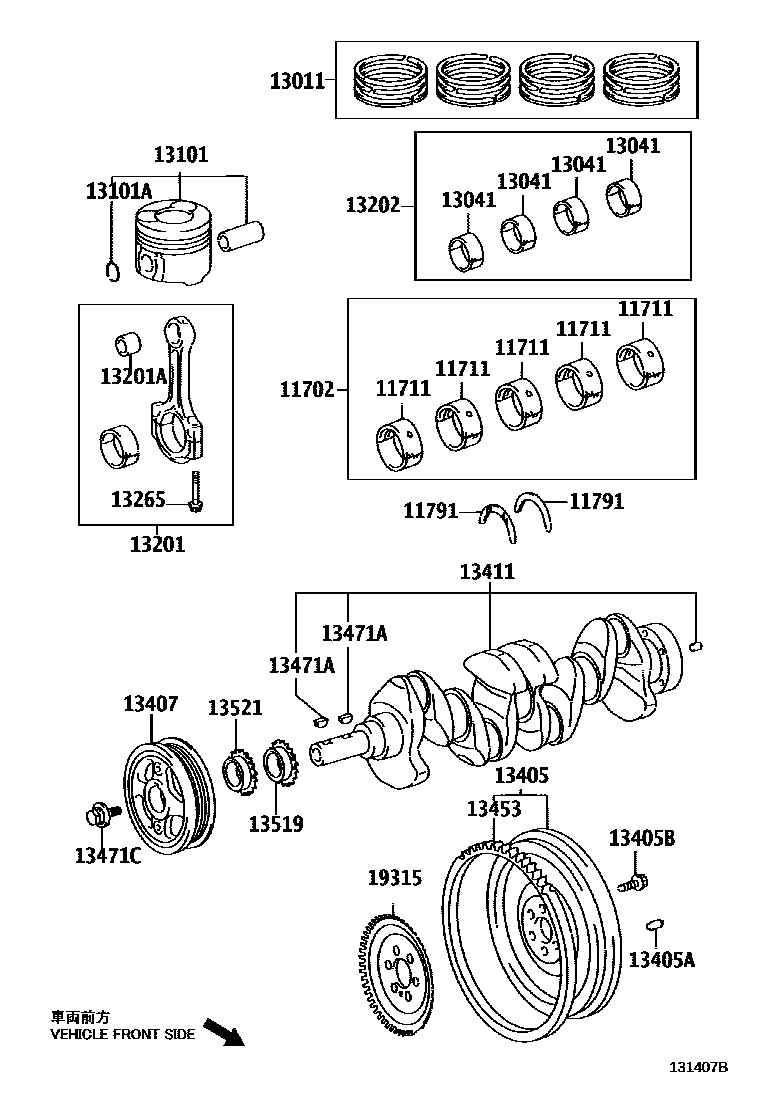

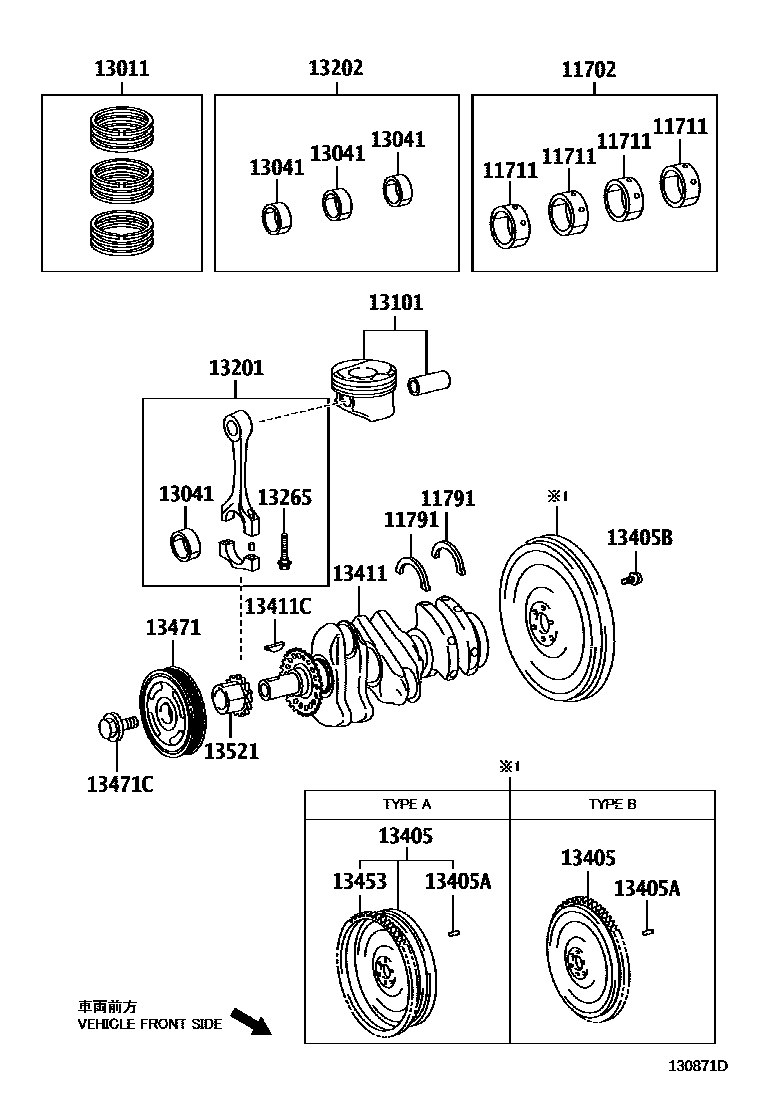

Toyota YARIS Crankshaft & Piston — Figure 1301
Toyota YARIS EPC diagram 1301, Crankshaft & Piston, with 6 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11702 | crankshaft bearing assembly | 11704-0N011 · 11704-21031 · 11704-23021 · 11704-40040 |
| 11791 | Thrust washer on crankshaft | 11791-0J010 · 11791-0Q010 · 11791-23020 · 11791-23030 · 11791-33030 · 11791-40020 · 11791-47010 · 11792-23020 · 11792-23030 · 11792-33030 · 11792-40020 · 11793-23020 · 11793-23030 · 11793-33030 · 11793-40020 |
| 13011 | Piston ring assembly | 13011-0Q010 · 13011-0Q030 · 13011-0Q031 · 13011-23060 · 13011-33050 · 13011-33051 · 13011-33052 · 13011-33060 · 13011-33070 · 13011-40030 · 13011-40050 · 13011-40051 · 13011-40052 · 13011-47030 · 13013-23060 |
| 13042 | ERS ring gear sub-assembly | 13042-47010 · 13042-47011 |
| 13042A | Snap ring (for ring gear) | 90520-95001 |
| 13101 | Piston sub-assembly with pin | 13101-0J020 · 13101-40021 · 13101-40030 · 13101-47020 · 13103-0J020 |
| 13101A | Bore snap ring (for piston pin) | 90080-52139 |
| 13201 | Connecting rod sub-assembly | 13201-09296 · 13201-09651 · 13201-39055 · 13201-49076 · 13201-49077 · 13201-49085 |
| 13201A | Bushing (for connecting rod small end) | 90999-73147 |
| 13202 | Connecting rod bearing assembly | 13204-21022 · 13204-33041 · 13204-40030 · 13204-40031 |
| 13265 | Connecting rod bolts | 13265-21020 |
| 13400A | Bearings (for crankshaft) | 90369-78001 |
| 13405 | Flywheel sub-assembly | 13405-0N010 · 13405-0Q010 · 13405-33020 · 13405-33030 · 13405-40070 · 13405-47020 · 13405-47030 · 13450-23010 |
| 13405A | Direct sales (for flywheel) | 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10463 · 90913-01024 · 90913-01029 |
| 13405C | Spacer No. 1 (for flywheel) | 90560-36004 |
| 13405D | Spacer No. 2 (for flywheel) | 90560-36003 |
| 13407 | Crankshaft damper sub-assembly | 13407-0N010 · 13407-33030 · 13407-33050 |
| 13411 | crankshaft | 13401-0Q010 · 13401-33011 · 13401-33020 · 13401-40030 · 13401-47010 · 13401-47011 · 13411-0J020 |
| 13411C | Direct sales (for crankshaft) | 90280-04001 · 95161-30416 |
| 13420 | ERS one-way clutch assembly | 13420-47010 · 13420-47011 |
| 13420A | O-ring (for one-way clutch) | 90301-36013 |
| 13453 | flywheel ring gear | 13453-0N010 · 13453-10010 · 13453-23020 · 13453-55010 |
| 13471 | crankshaft pulley | 13470-0J010 · 13470-0Q010 · 13470-23020 · 13470-40010 · 13470-40040 · 13470-47050 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-04001 · 95161-30416 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-12308 · 90119-12345 · 90119-14106 · 90119-16004 |
| 13519 | Oil pump driving gear | 13519-33010 |
| 13521 | Crankshaft timing gear or sprocket | 13521-23020 · 13521-33020 · 13521-33030 · 13521-40020 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-23010 · 19315-33010 · 19315-33020 · 19315-33021 |
