Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 5 images and 9 PNC and OE references.

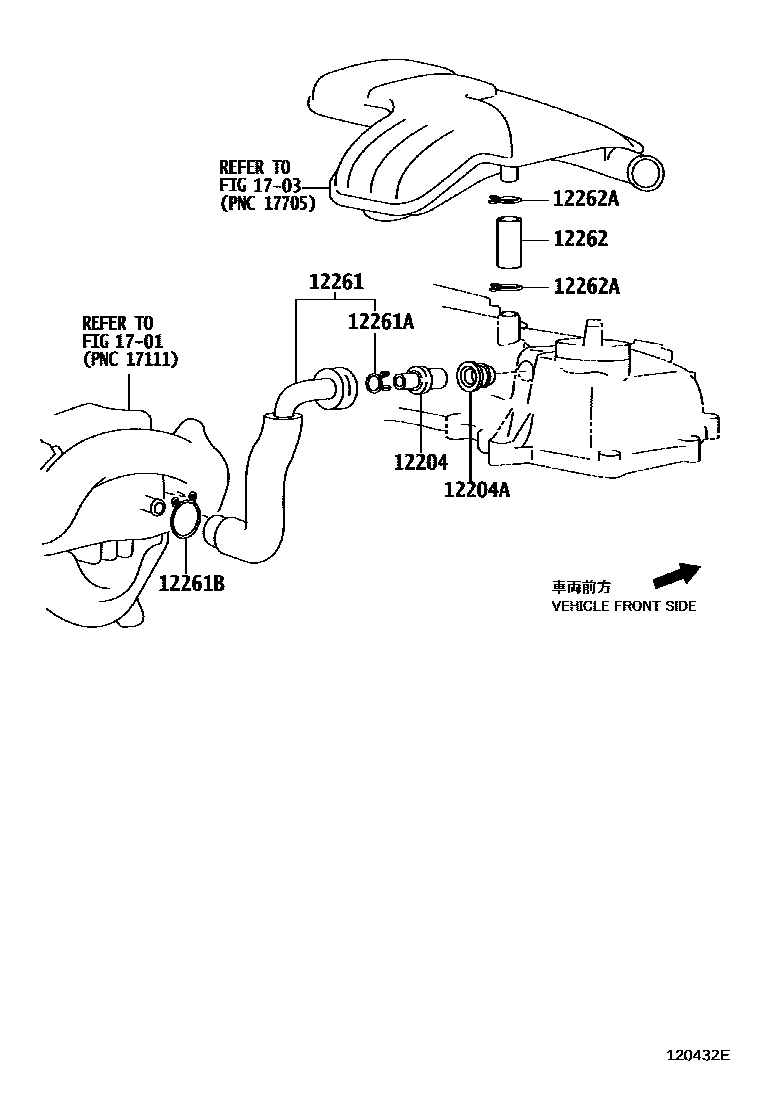

Toyota YARIS Ventilation Hose EPC diagram — 120432E
Ventilation Hose — 120432E (200511 – 999999)

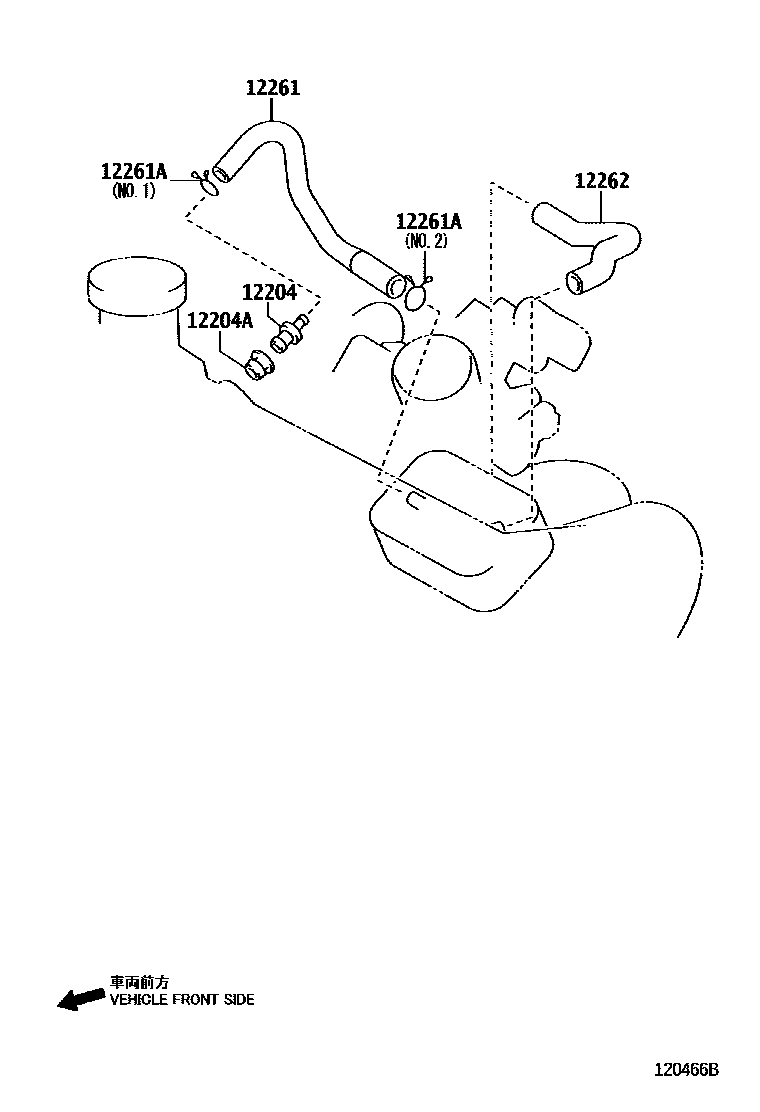

Toyota YARIS Ventilation Hose EPC diagram — 120466B
Ventilation Hose — 120466B (200511 – 999999)

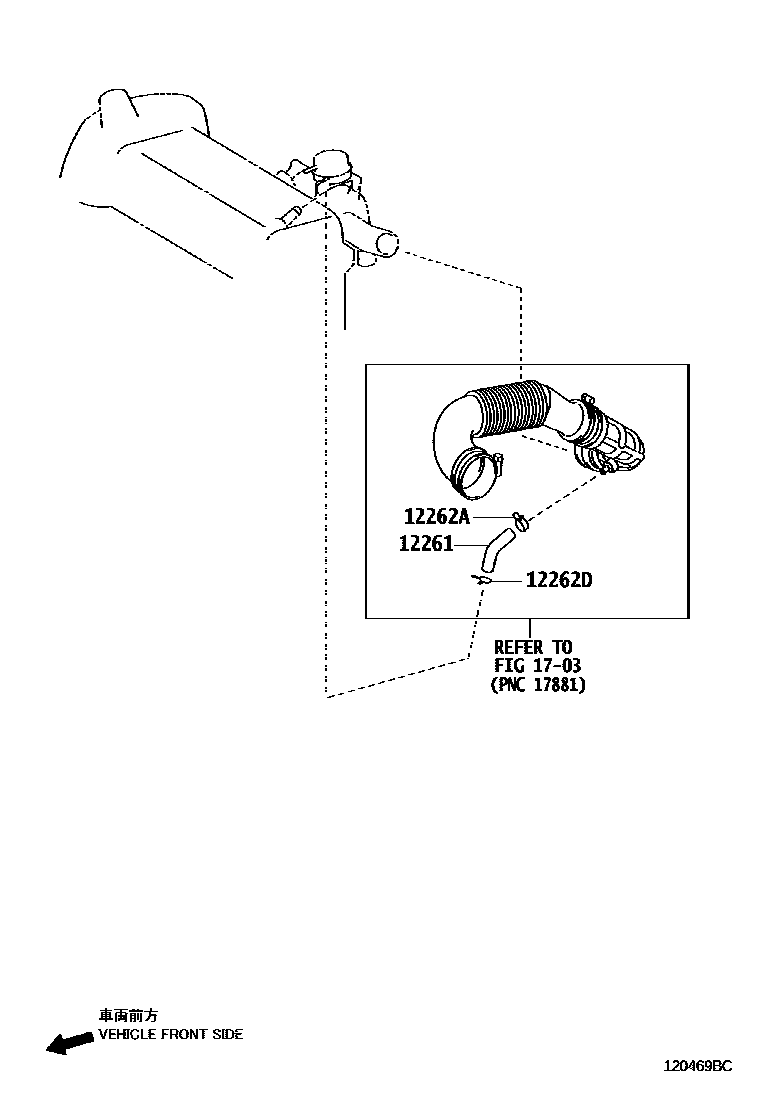

Toyota YARIS Ventilation Hose EPC diagram — 120469C
Ventilation Hose — 120469C (200511 – 200811)

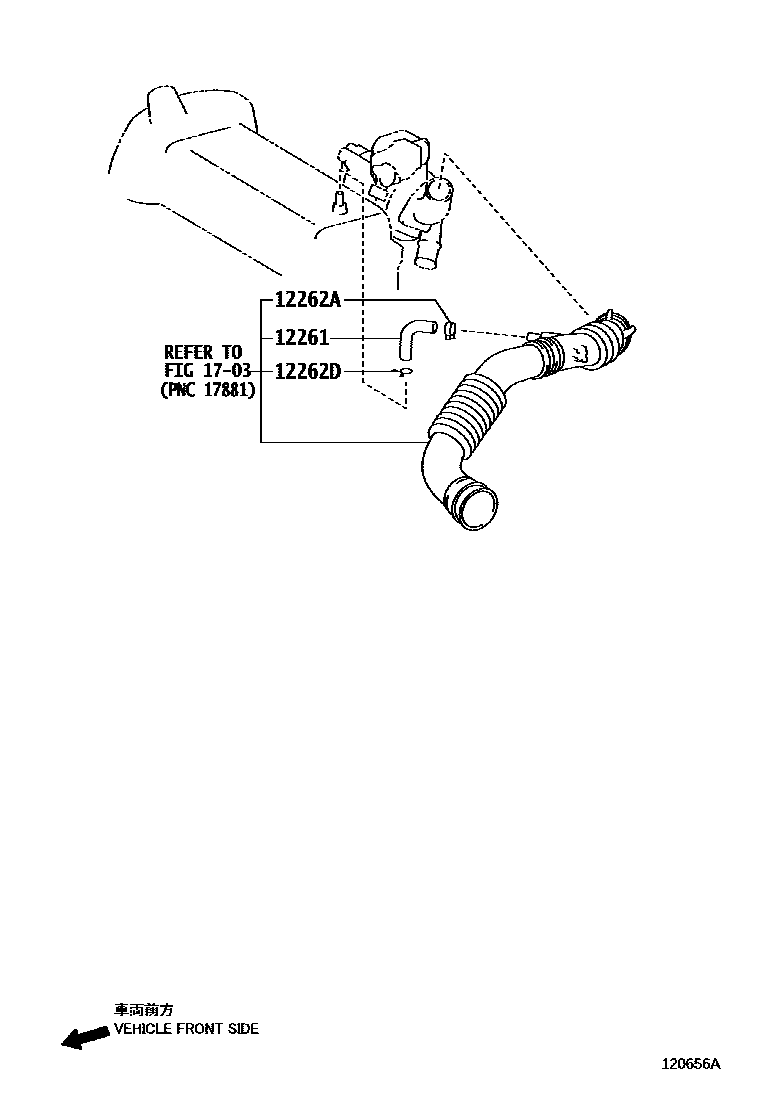

Toyota YARIS Ventilation Hose EPC diagram — 120656A
Ventilation Hose — 120656A (200811 – 999999)

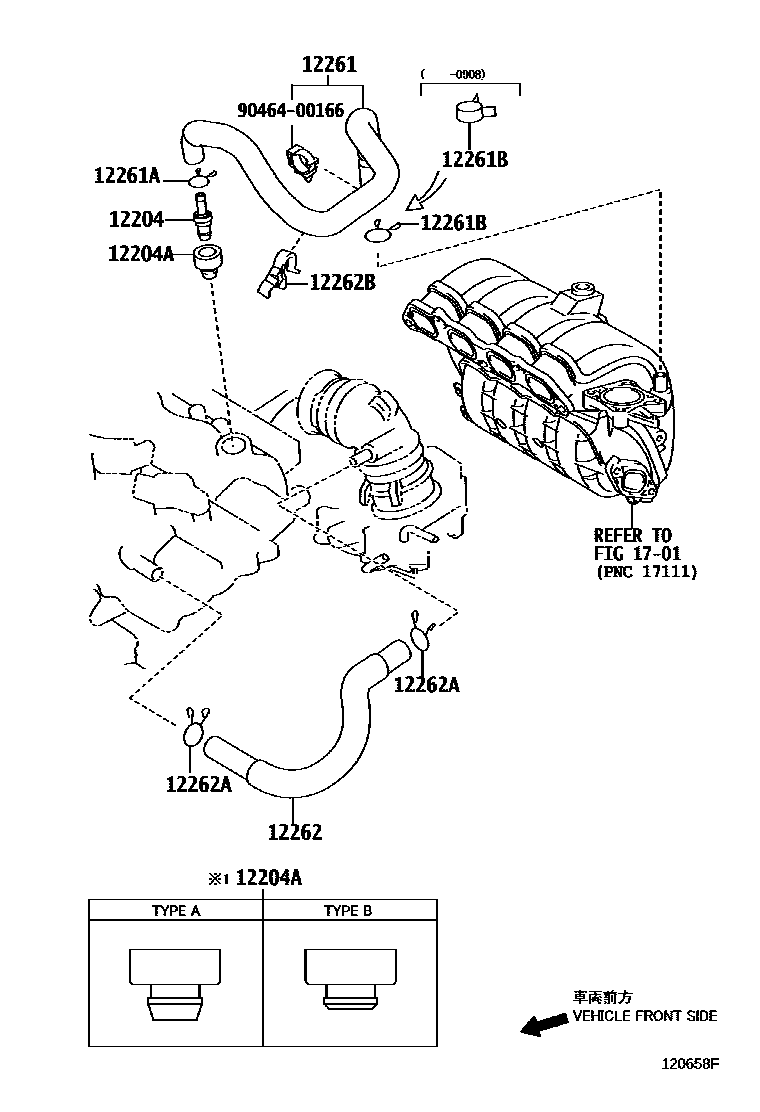

Toyota YARIS Ventilation Hose EPC diagram — 120658F
Ventilation Hose — 120658F (200811 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-23011 · 12204-40030 · 12204-47010
12204AGasket (for ventilation system)90480-18001 · 90480-18014 · 90480-18016
12261Ventilation Hose12261-23020 · 12261-33080 · 12261-33100 · 12261-40020 · 12261-47010
12261AClip or clip (for vent hose)90467-14001 · 90467-15120 · 90467-16035 · 90467-18003
12261BClip or clip (for vent hose)90467-22010 · 96137-52501
12262Ventilation hose No. 212262-40020 · 12262-47010 · 90910-05224
12262AClamp (for vent hose No. 2)90467-20009 · 90467-21004 · 90467-21010 · 90467-23002
12262BClamp (for ventilation hose)16581-47020
12262DClamp (for vent hose No. 2)90467-21004
