Toyota YARIS Engine Mounting — Figure 1107

Toyota YARIS EPC diagram 1107, Engine Mounting, with 5 images and 12 PNC and OE references.

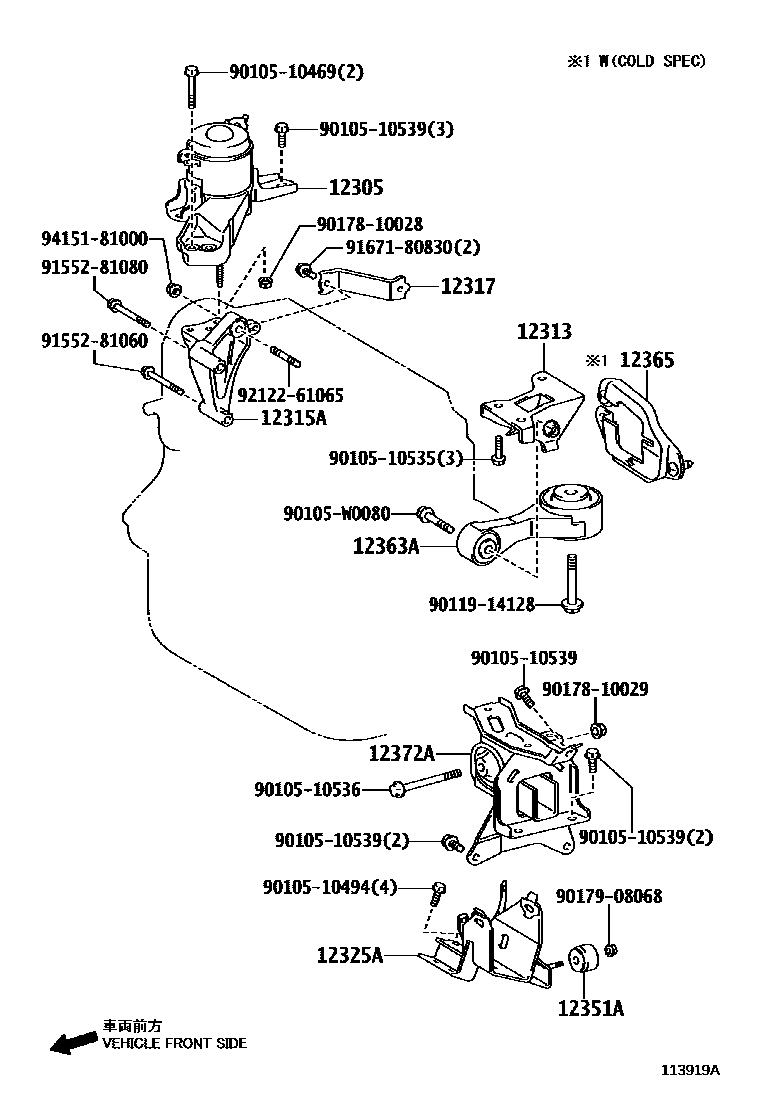

Toyota YARIS Engine Mounting EPC diagram — 113919A
Engine Mounting — 113919A (200511 – 999999)

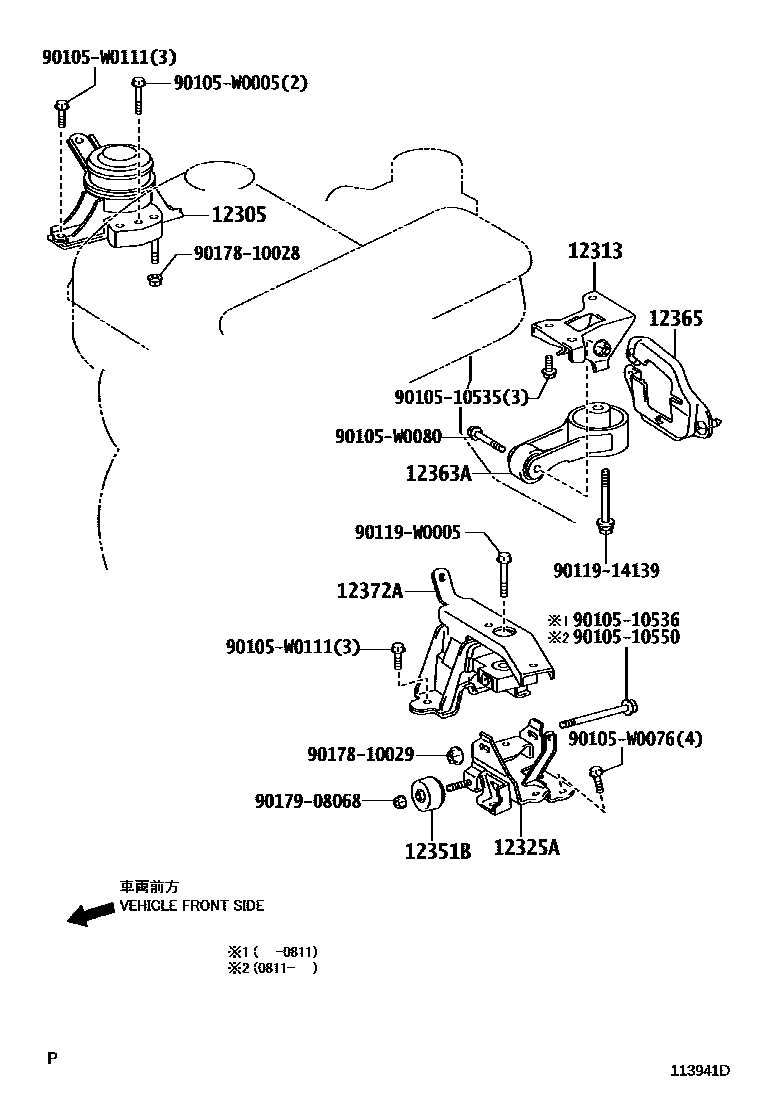

Toyota YARIS Engine Mounting EPC diagram — 113941D
Engine Mounting — 113941D (200511 – 999999)

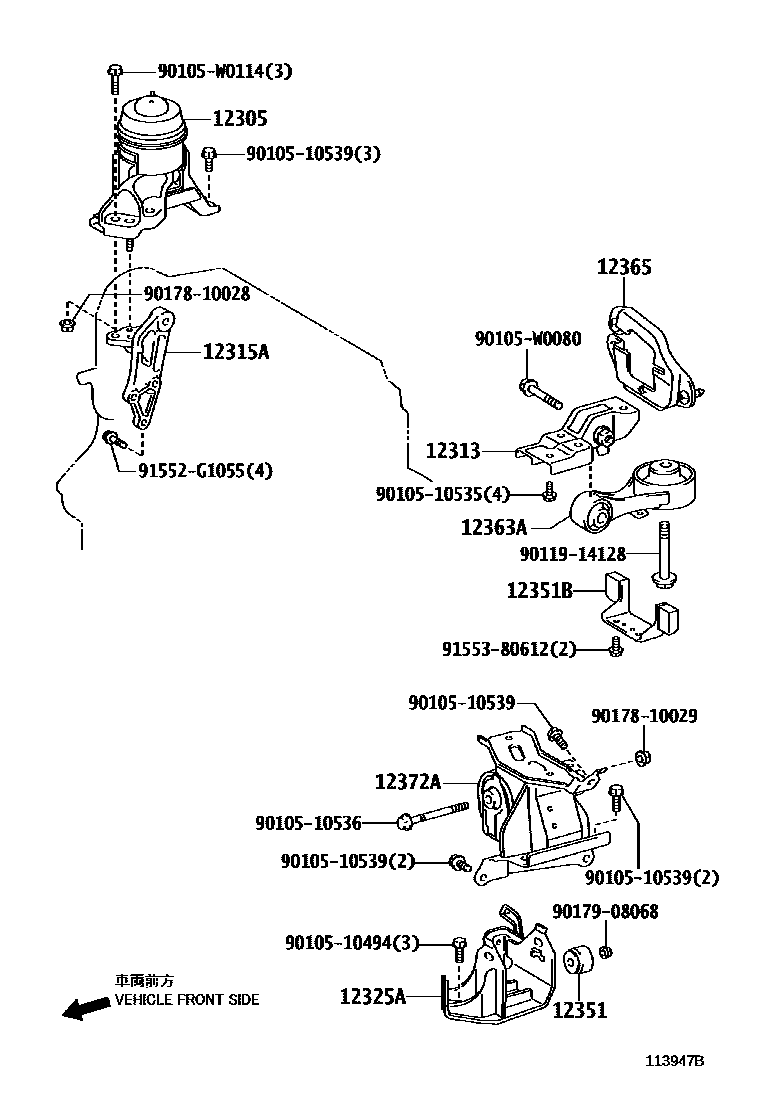

Toyota YARIS Engine Mounting EPC diagram — 113947B
Engine Mounting — 113947B (200511 – 200811)

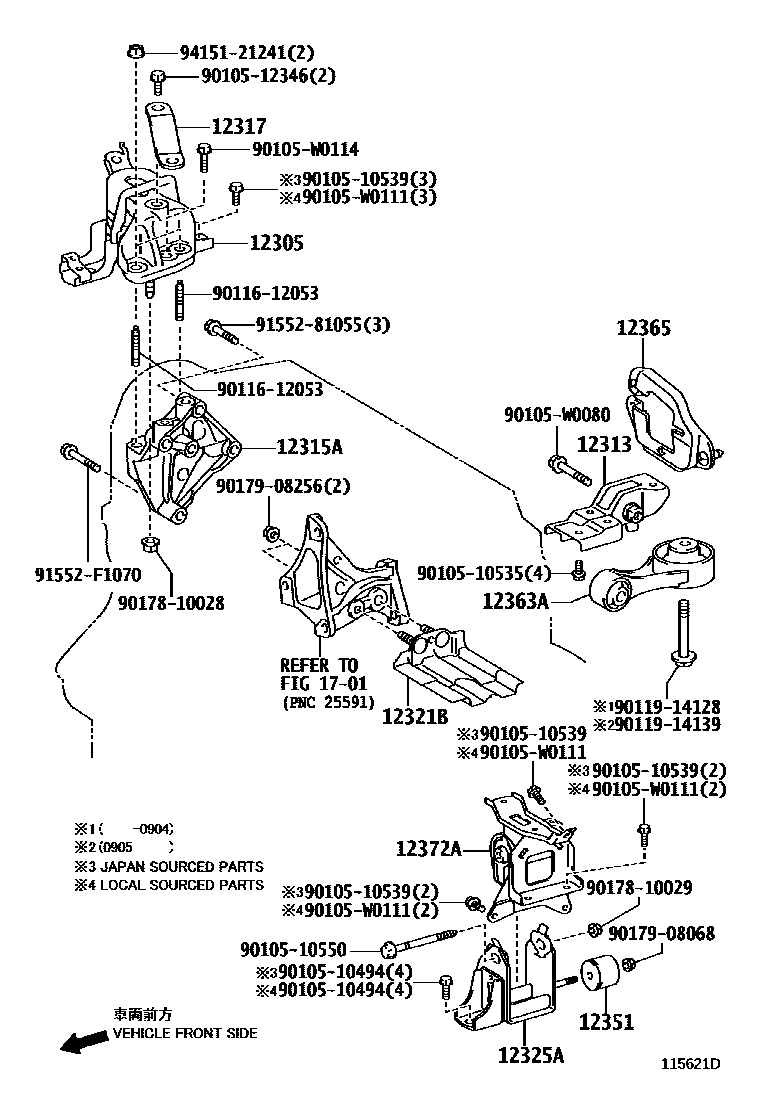

Toyota YARIS Engine Mounting EPC diagram — 115621D
Engine Mounting — 115621D (200811 – 999999)

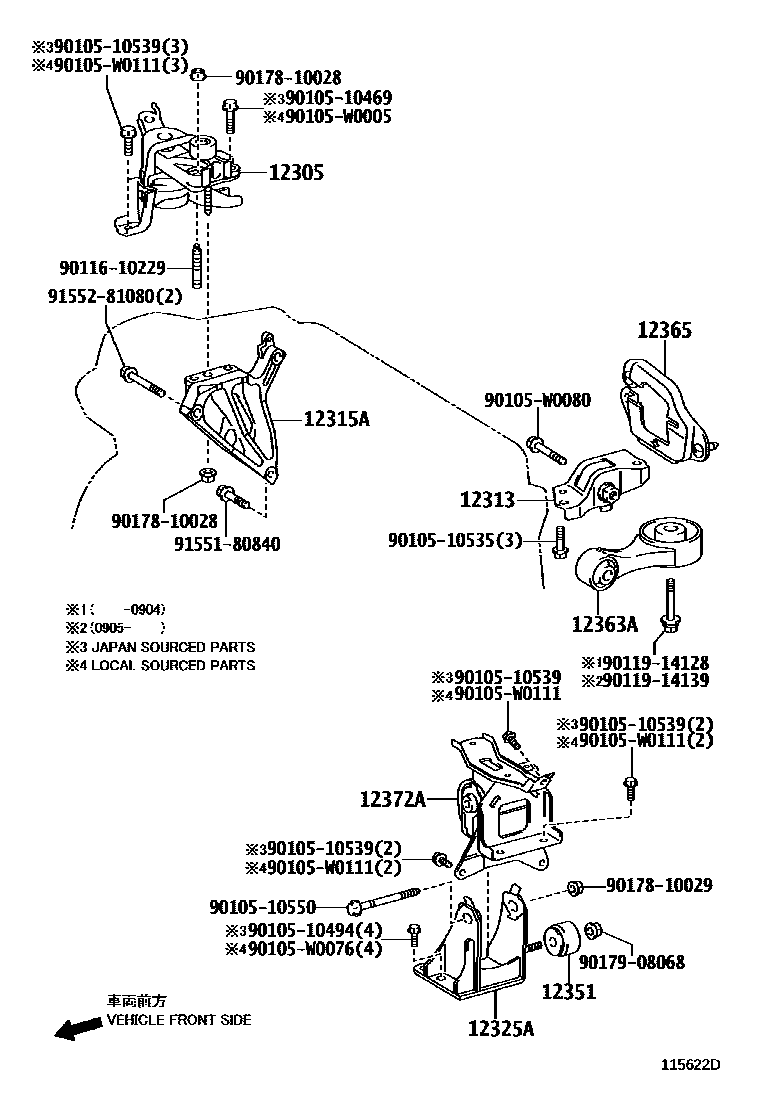

Toyota YARIS Engine Mounting EPC diagram — 115622D
Engine Mounting — 115622D (200811 – 999999)

PNC and OE references

PNCPart nameOE numbers
12305Engine right side mounting vibration isolation pad sub-assembly12305-0J030 · 12305-0J031 · 12305-0J032 · 12305-0N020 · 12305-0N021 · 12305-0N040 · 12305-0Q020 · 12305-0Q021 · 12305-0Y010 · 12305-0Y011
12313Engine mount control bracket (for transversely mounted engines)12313-0N010 · 12313-0Q020 · 12313-0Y010
12315AEngine right side mounting bracket (for transversely mounted engine)12315-23030 · 12315-33050 · 12315-33060 · 12315-33061 · 12315-47040
12317Engine right mounting bracket12317-0J010 · 12317-0N010
12321BDrive shaft heat insulation pad sub-assembly43409-52040
12325AEngine left side mounting bracket (for transversely mounted engine)12325-0J040 · 12325-0N020 · 12325-0N040 · 12325-0Q020 · 12325-0Y010
12351engine mount shock absorber12351-0N040 · 12351-0Q010 · 12351-0Y010
12351AEngine mount shock absorber (for vibration isolation pad)12351-0Q010
12351Bengine mount shock absorber12351-0N030 · 12351-0Q010
12363AEngine movement control lever12363-0J010 · 12363-0N010 · 12363-0N011 · 12363-0Y010 · 12363-40010
12365Engine motion control lever cover12365-40010
12372AEngine left-side mounting vibration isolation pad (for transversely mounted engines)12372-0J040 · 12372-0J041 · 12372-0N010 · 12372-0N030 · 12372-0Q020 · 12372-0Y010
