Toyota YARIS Short Block Assembly — Figure 1102

Toyota YARIS EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

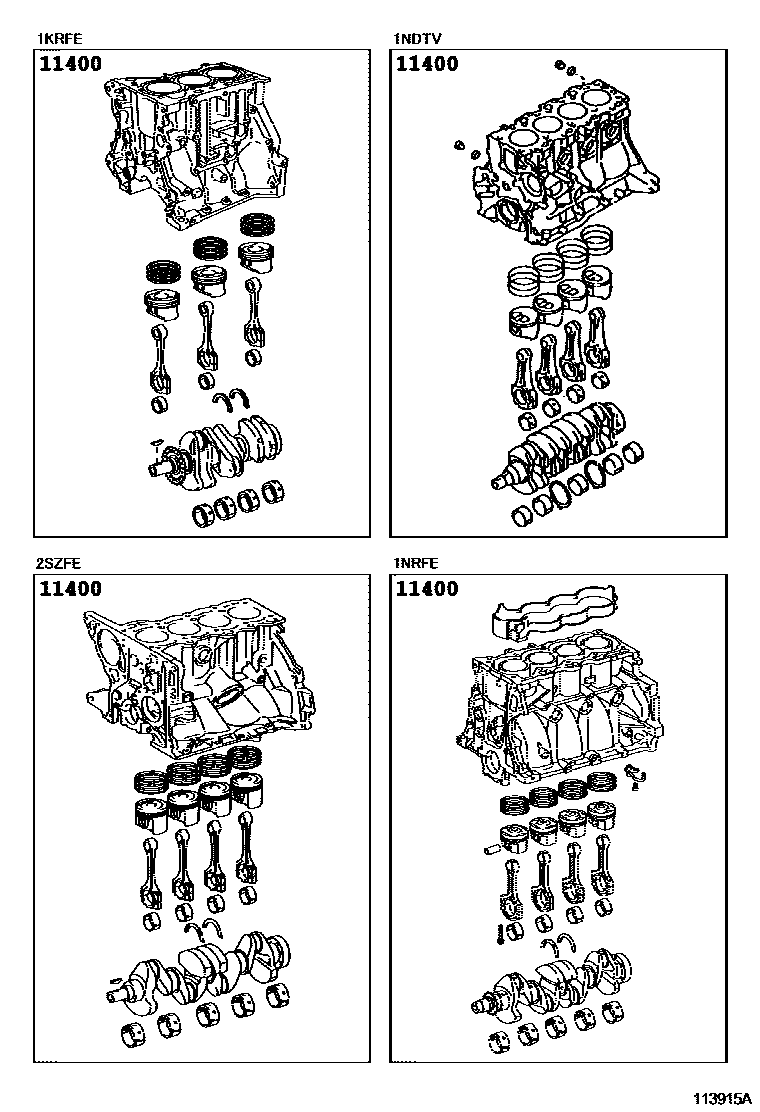

Toyota YARIS Short Block Assembly EPC diagram — 113915A
Short Block Assembly — 113915A (200511 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0J040 · 11400-0J041 · 11400-0N021 · 11400-0N030 · 11400-0N040 · 11400-0Q011 · 11400-0Q020 · 11400-33090 · 11400-33140 · 11400-33160 · 11400-40080 · 11400-40081 · 11400-40110 · 11400-47020 · 11400-47030
