Toyota YARIS Heating & Air Conditioning - Compressor — Figure 8719

Toyota YARIS EPC diagram 8719, Heating & Air Conditioning - Compressor, with 1 images and 1 PNC and OE references.

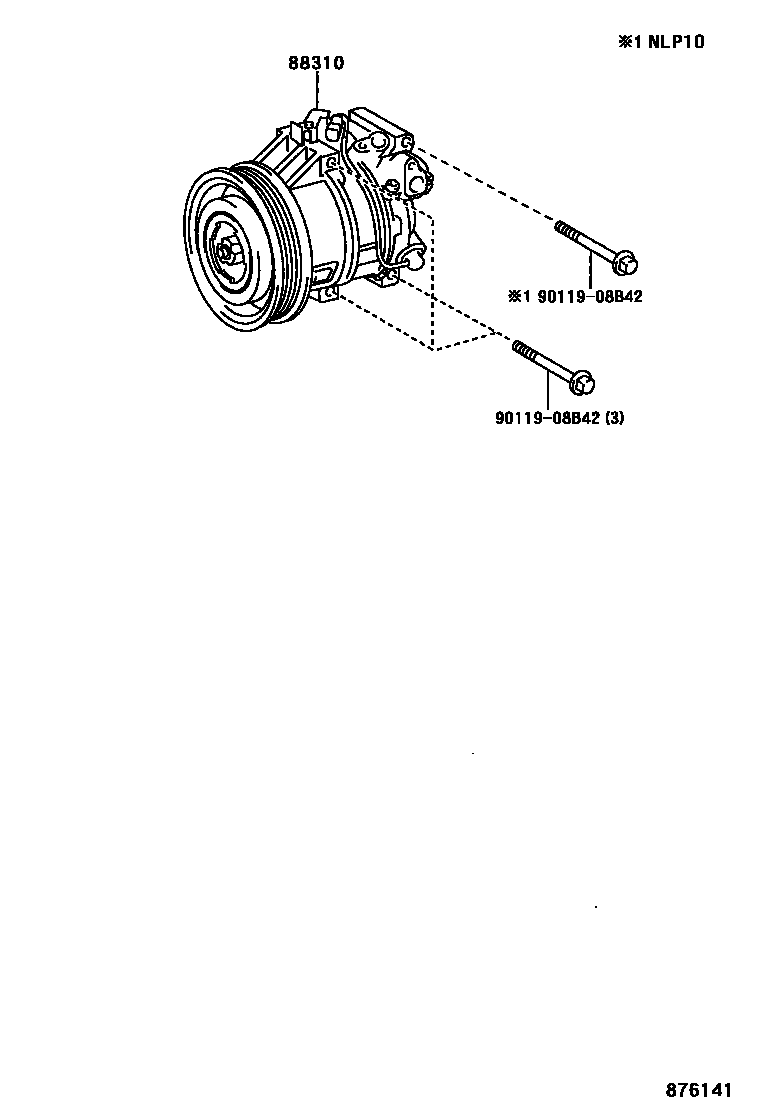

Toyota YARIS Heating & Air Conditioning - Compressor EPC diagram — 876141
Heating & Air Conditioning - Compressor — 876141 (200101 – 999999)

PNC and OE references

PNCPart nameOE numbers
88310Compressor assembly with pulley88310-0D010 · 88310-0D020 · 88310-0D070 · 88310-0D090 · 88310-0D091 · 88310-0D140 · 88310-0D160
