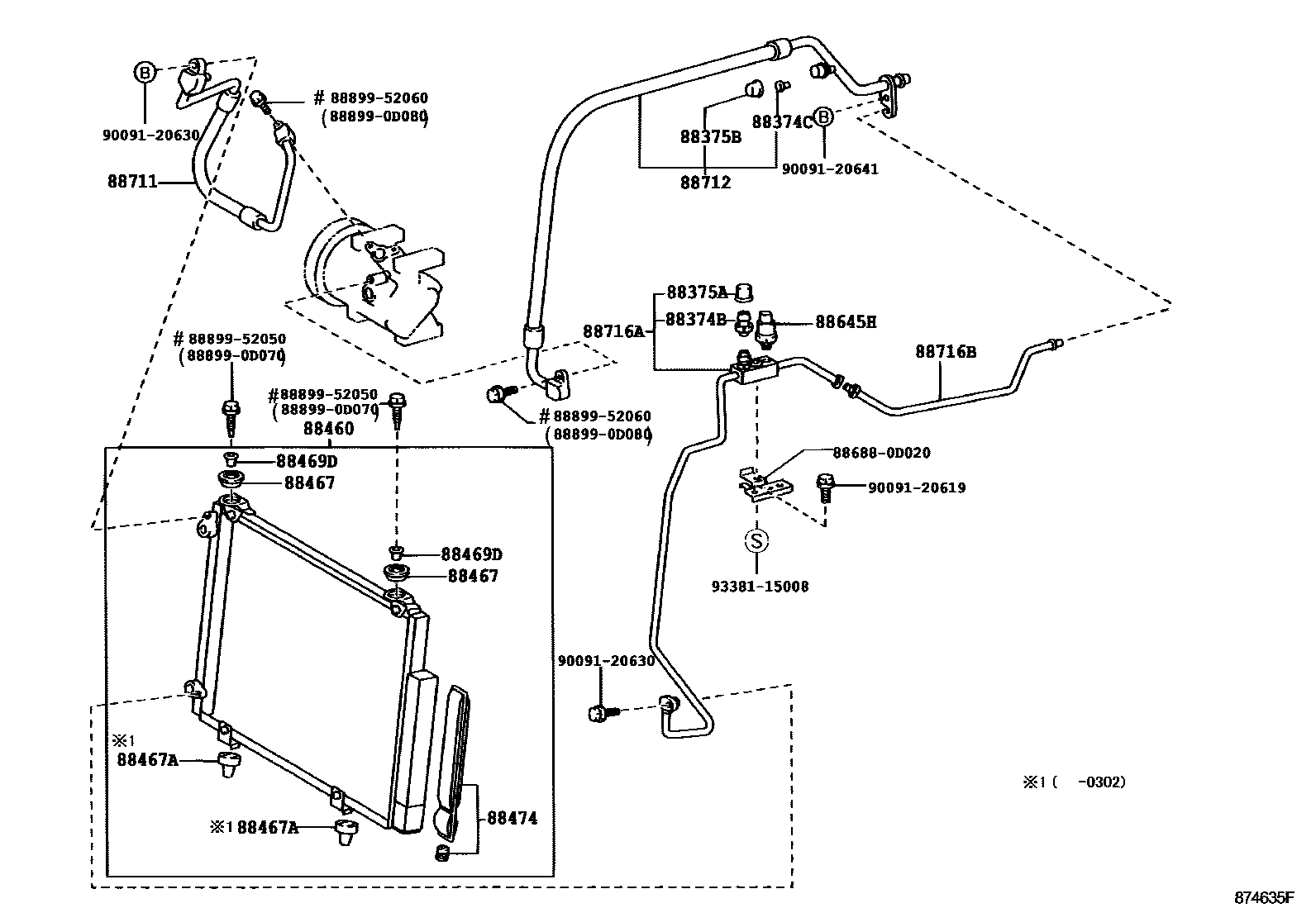

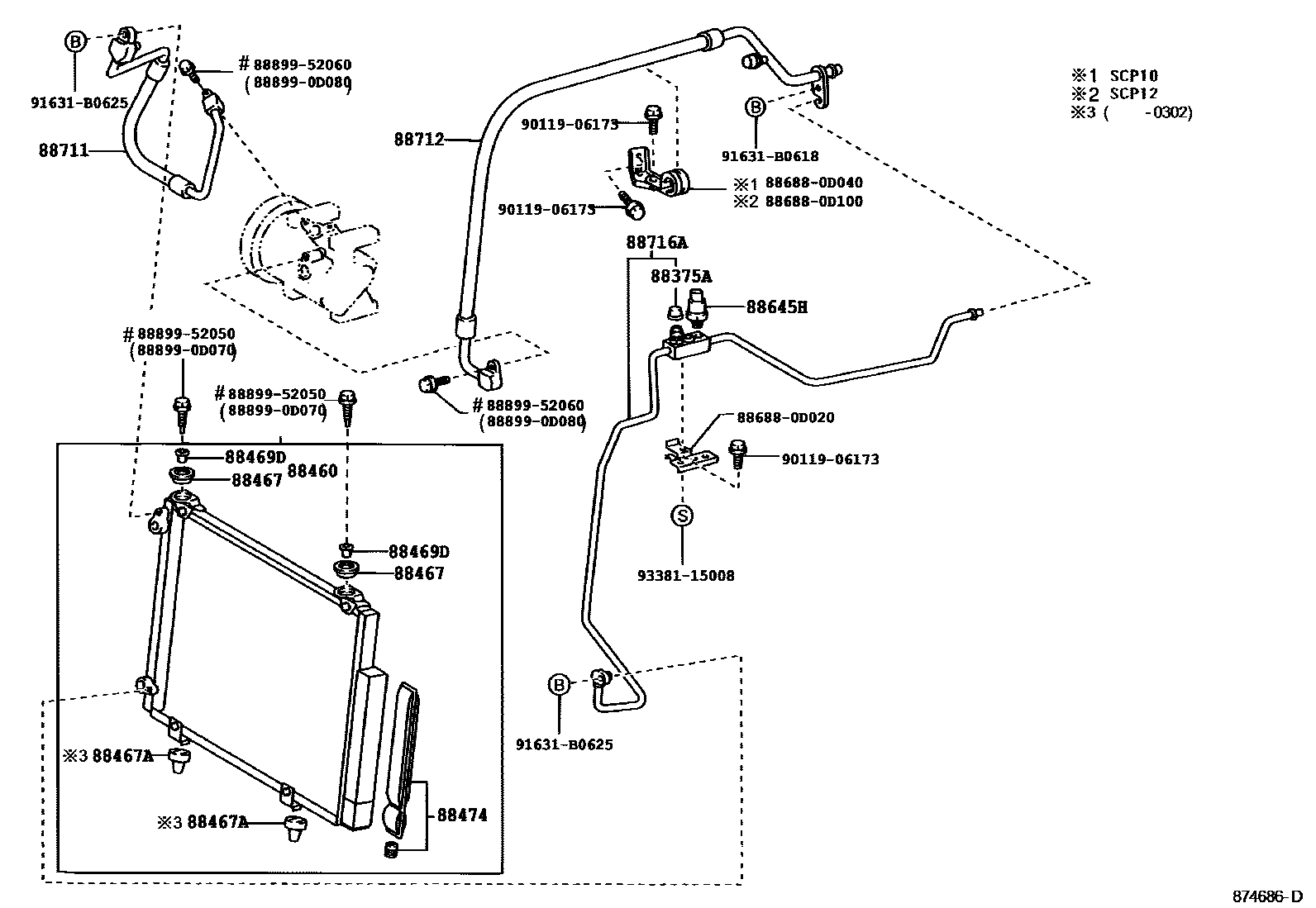

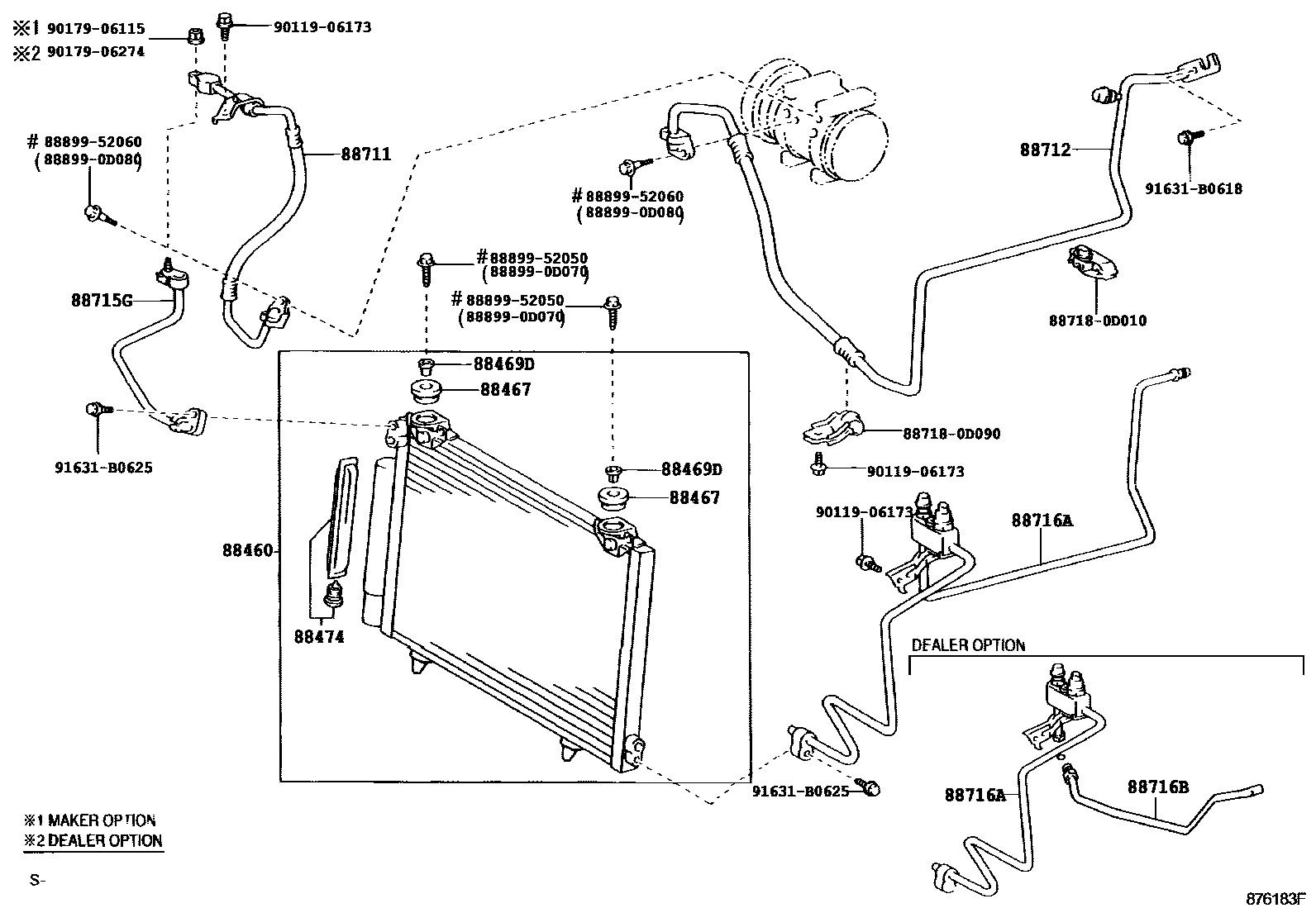

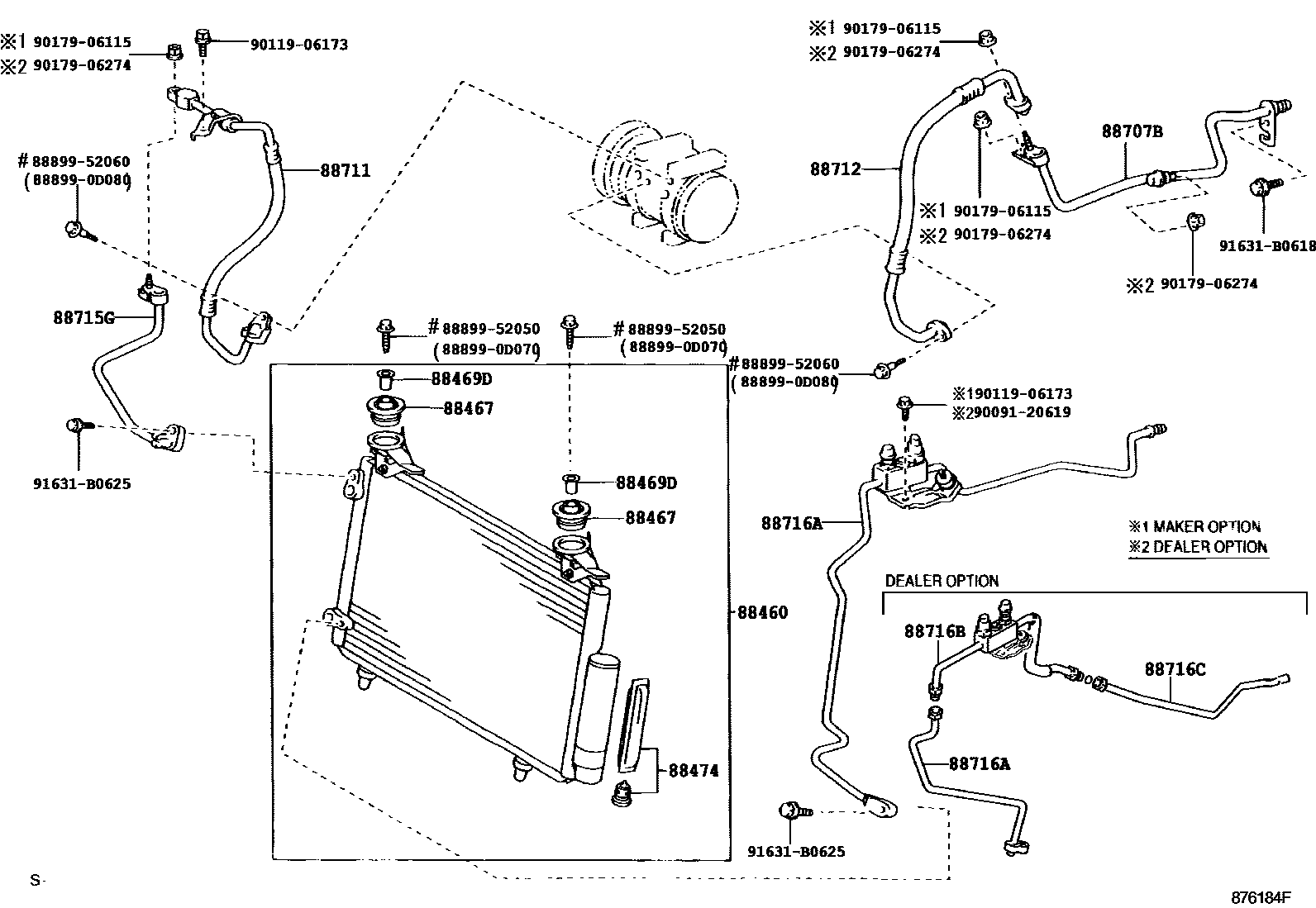

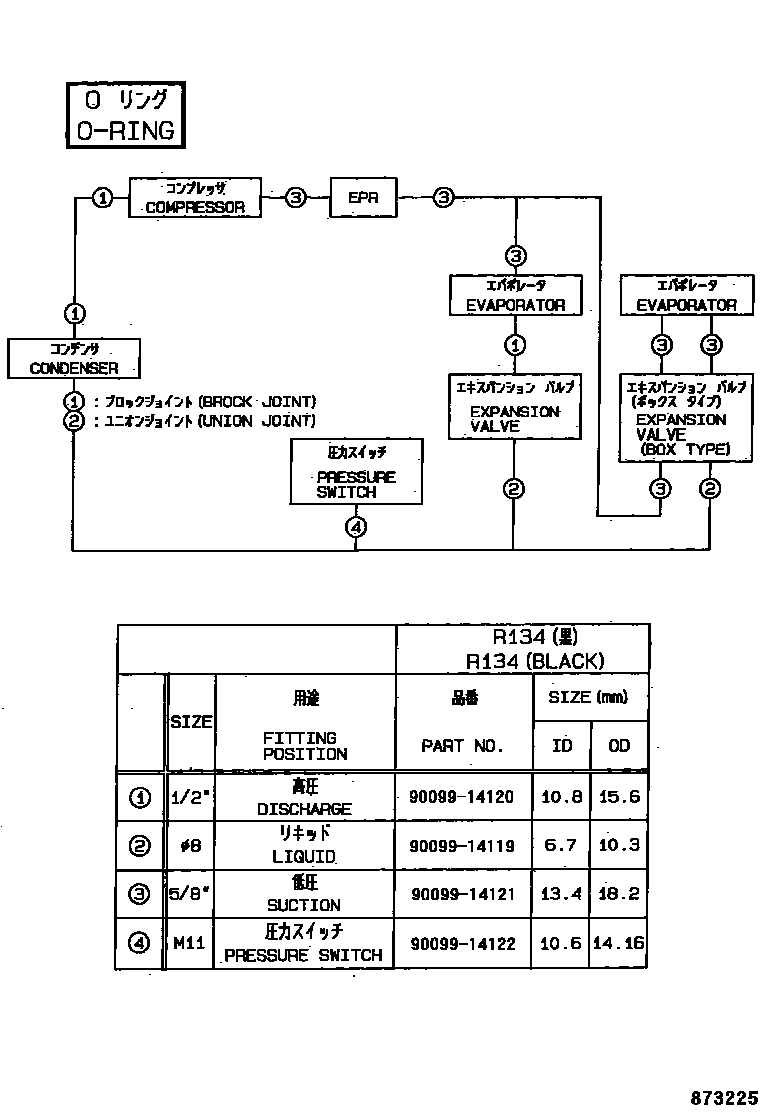

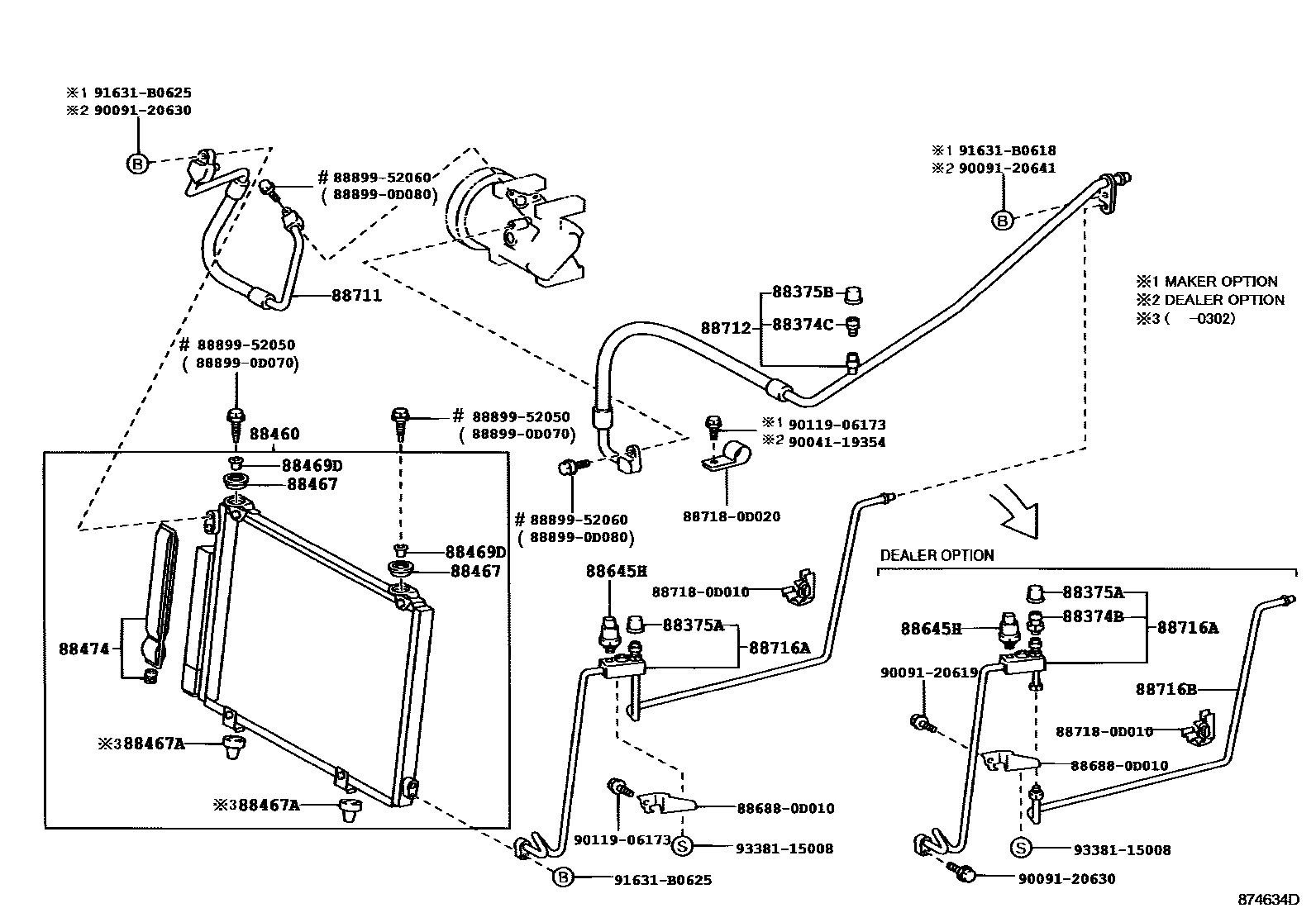

Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 6 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375A | Repair valve cover (for cooler tube) | 88375-30280 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88460 | Air conditioning condenser assembly | 88450-0D010 · 88450-0D011 · 88450-0D020 · 88450-0D021 · 88450-0D120 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12180 · 88467-52010 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-52020 |
| 88469D | No. 1 condenser bracket collar | 88469-52010 |
| 88474 | cooler dryer | 88474-17010 · 88474-47010 |
| 88645H | No. 1 pressure switch | 88645-60030 |
| 88707B | Suction pipe B sub-assembly | 88707-0D030 · 88707-0D050 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88703-0D020 · 88711-0D010 · 88711-0D011 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-0D010 · 88712-0D011 · 88712-0D020 · 88712-0D021 · 88712-0D080 · 88712-0D081 · 88712-0D090 · 88712-0D092 · 88712-0D100 · 88712-0D110 |
| 88715G | Discharge pipe G | 88715-0D020 |
| 88716A | Cooler refrigerant liquid pipe A | 88706-0D011 · 88706-0D021 · 88706-0D071 · 88706-0D081 · 88706-0D140 · 88706-0D150 · 88706-0D160 · 88716-0D010 · 88716-0D020 · 88716-0D040 · 88716-0D060 · 88716-0D150 |
| 88716B | Cooler refrigerant liquid pipe B | 88706-0D170 · 88716-0D030 · 88716-0D050 · 88716-0D130 |
| 88716C | Cooler refrigerant liquid pipe C | 88716-0D160 |
