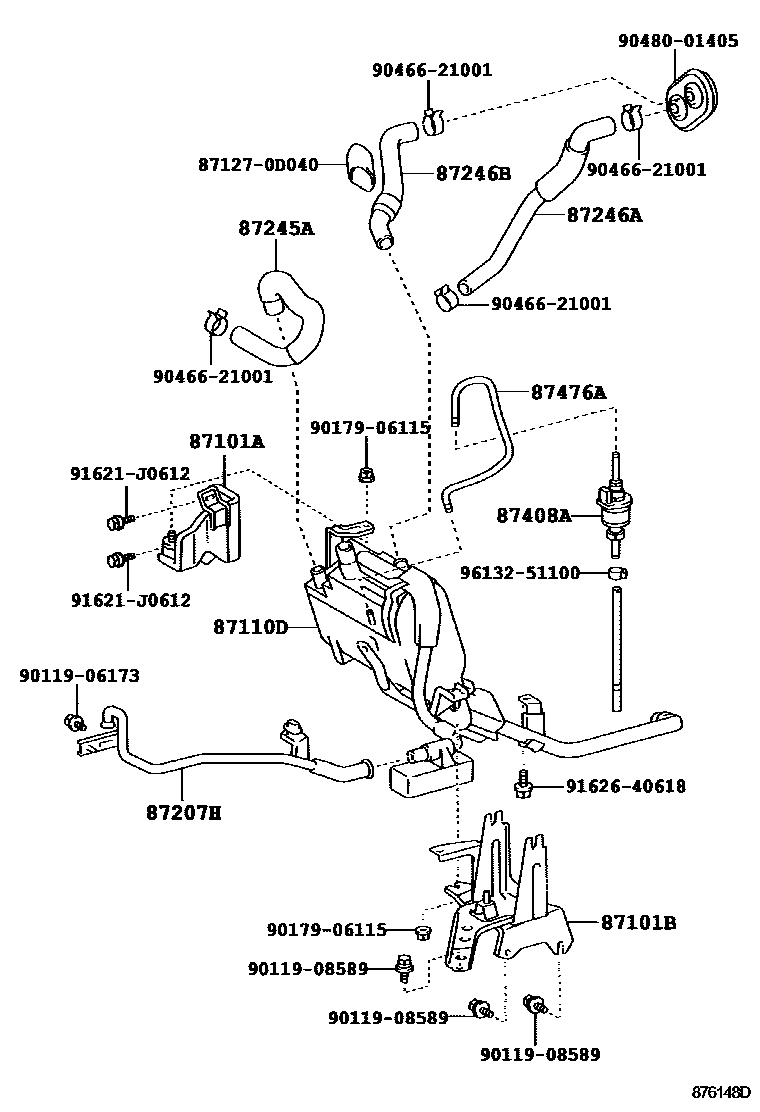

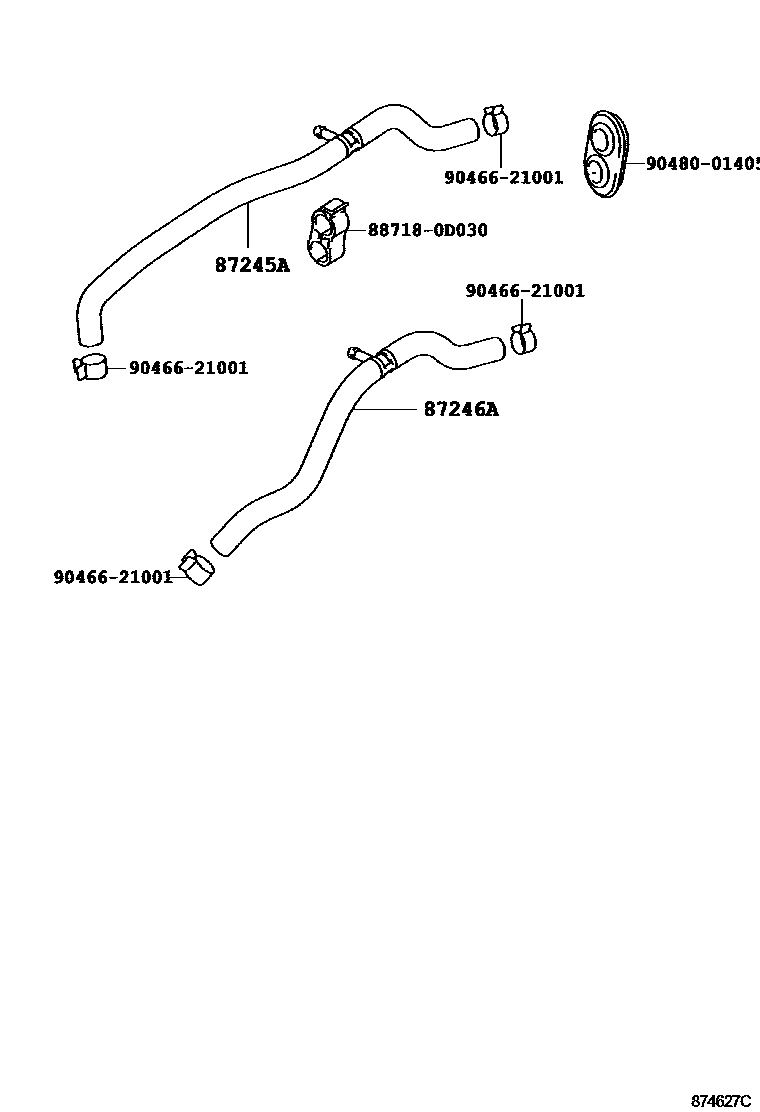

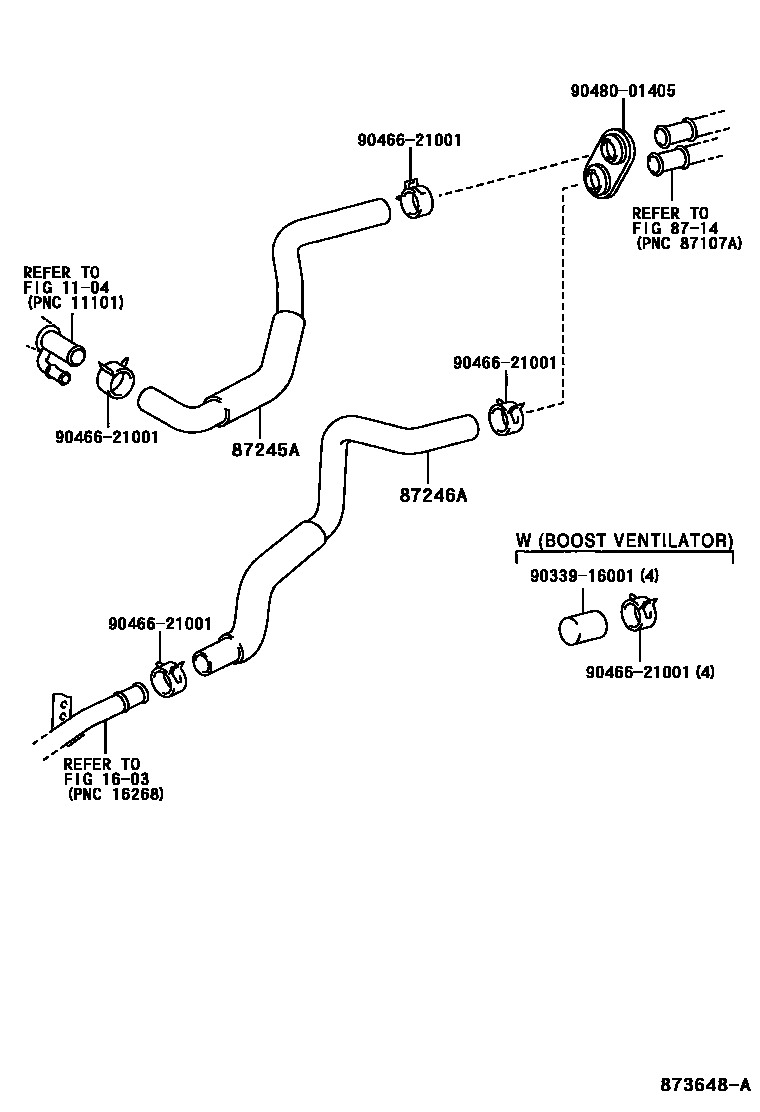

Toyota YARIS 暖风和空调系统 - 水管 — Figure 8716
Toyota YARIS EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87101A | No. 1 heater bracket sub-assembly | 87101-0D010 |
| 87101B | No. 2 heater bracket sub-assembly | 87101-0D020 |
| 87110D | heater assembly | 87110-0D010 · 87110-0D011 |
| 87207H | Vacuum tube sub-assembly | 87207-0D010 |
| 87245A | Heater water inlet hose A | 87209-0D010 · 87245-0D050 · 87245-0D360 |
| 87246A | Heater outlet hose A | 87209-0D020 · 87209-0D030 · 87245-0D060 |
| 87246B | Heater outlet hose B | 87245-0D370 |
| 87408A | Fuel pump sub-assembly | 87408-0D010 · 87408-0D011 |
| 87476A | Heater No. 1 fuel hose | 87476-0D010 |
