Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715

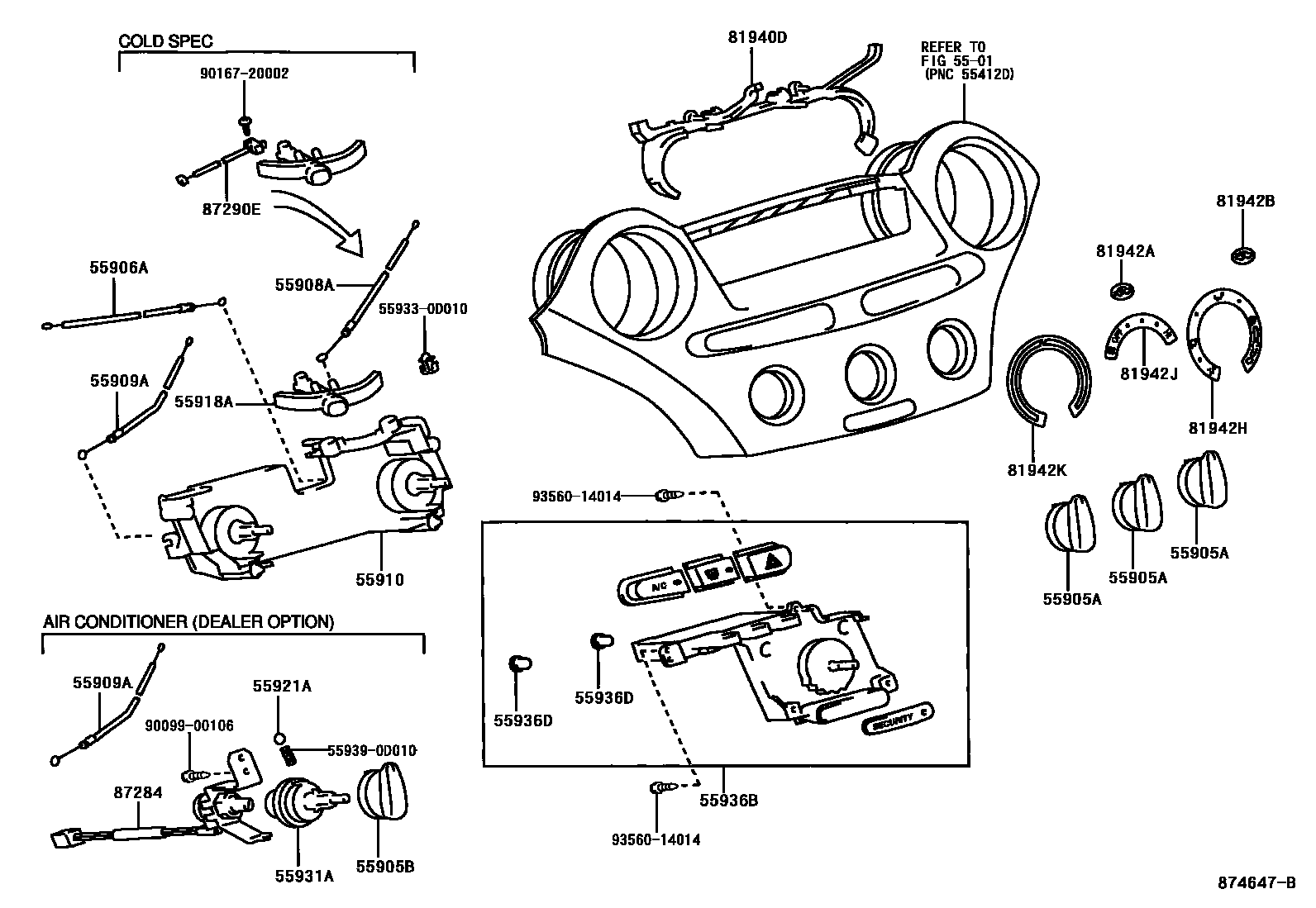

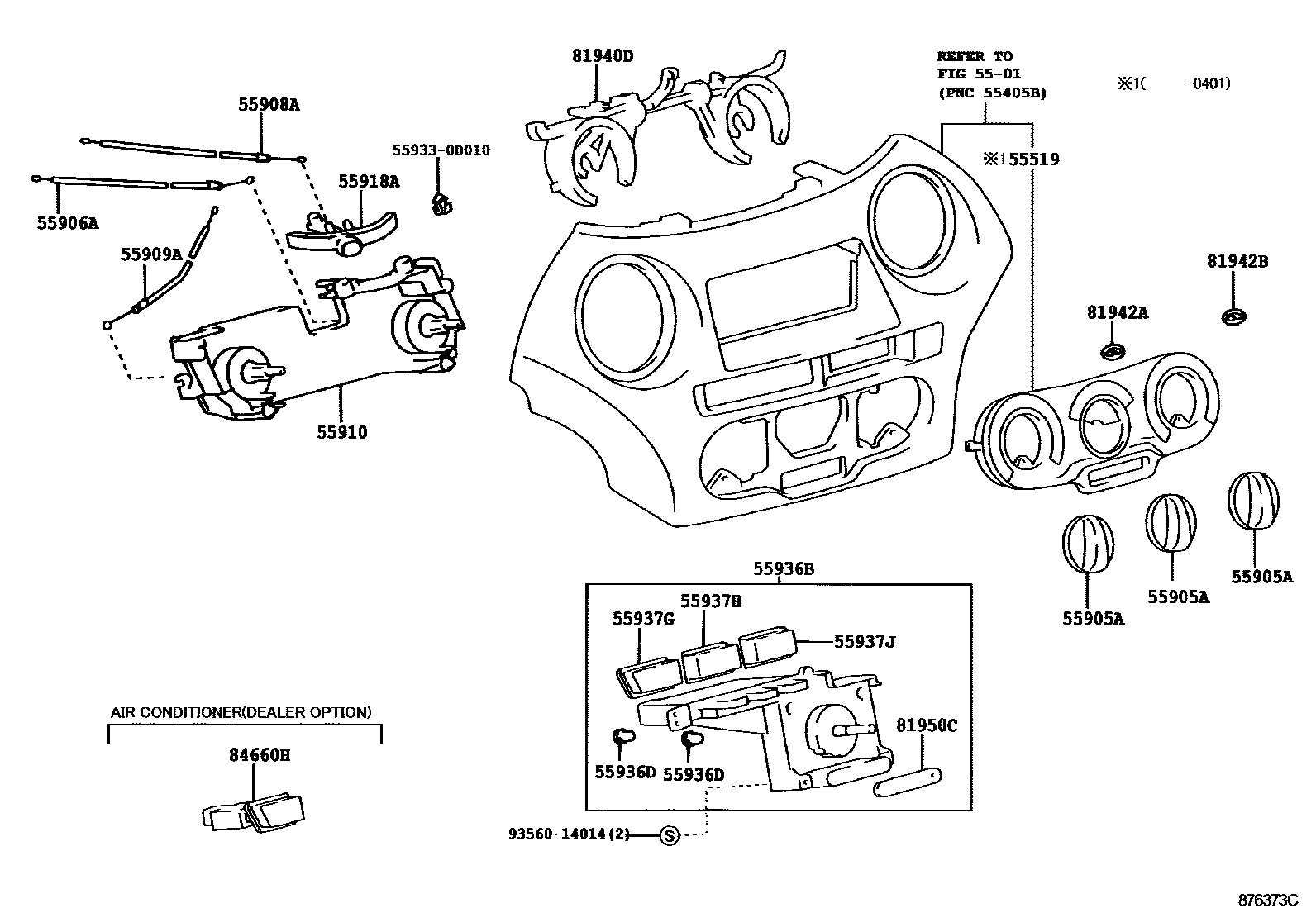

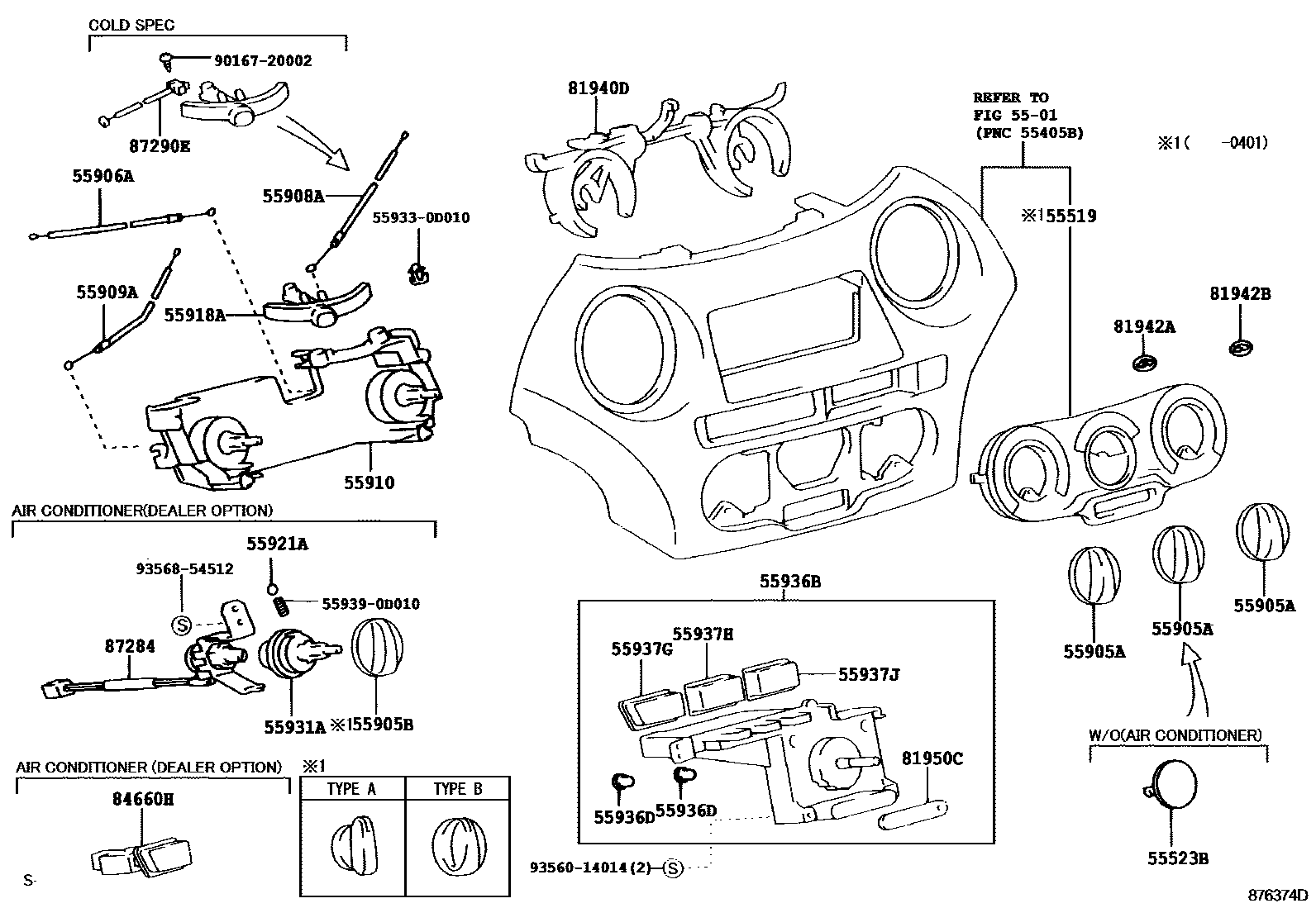

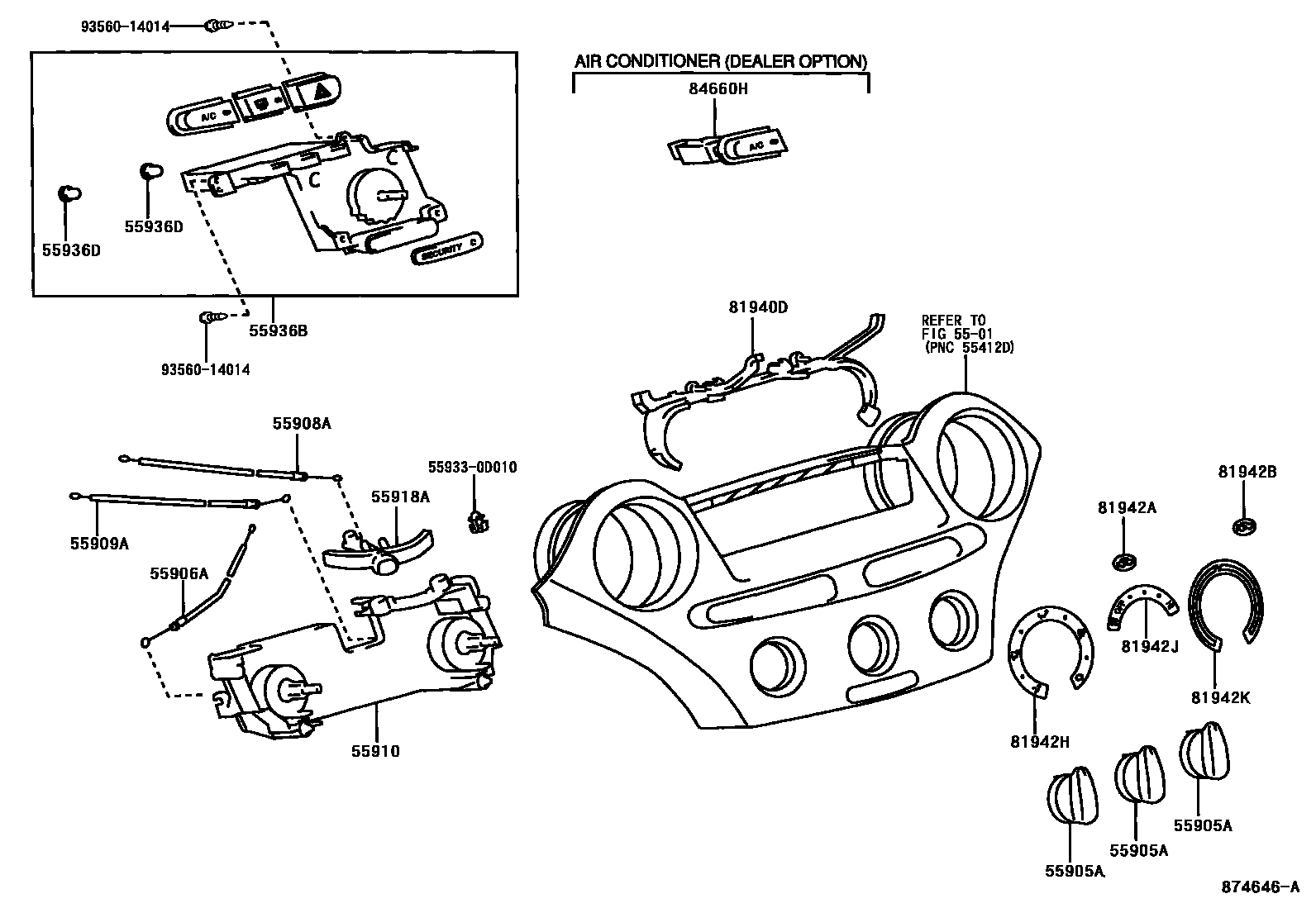

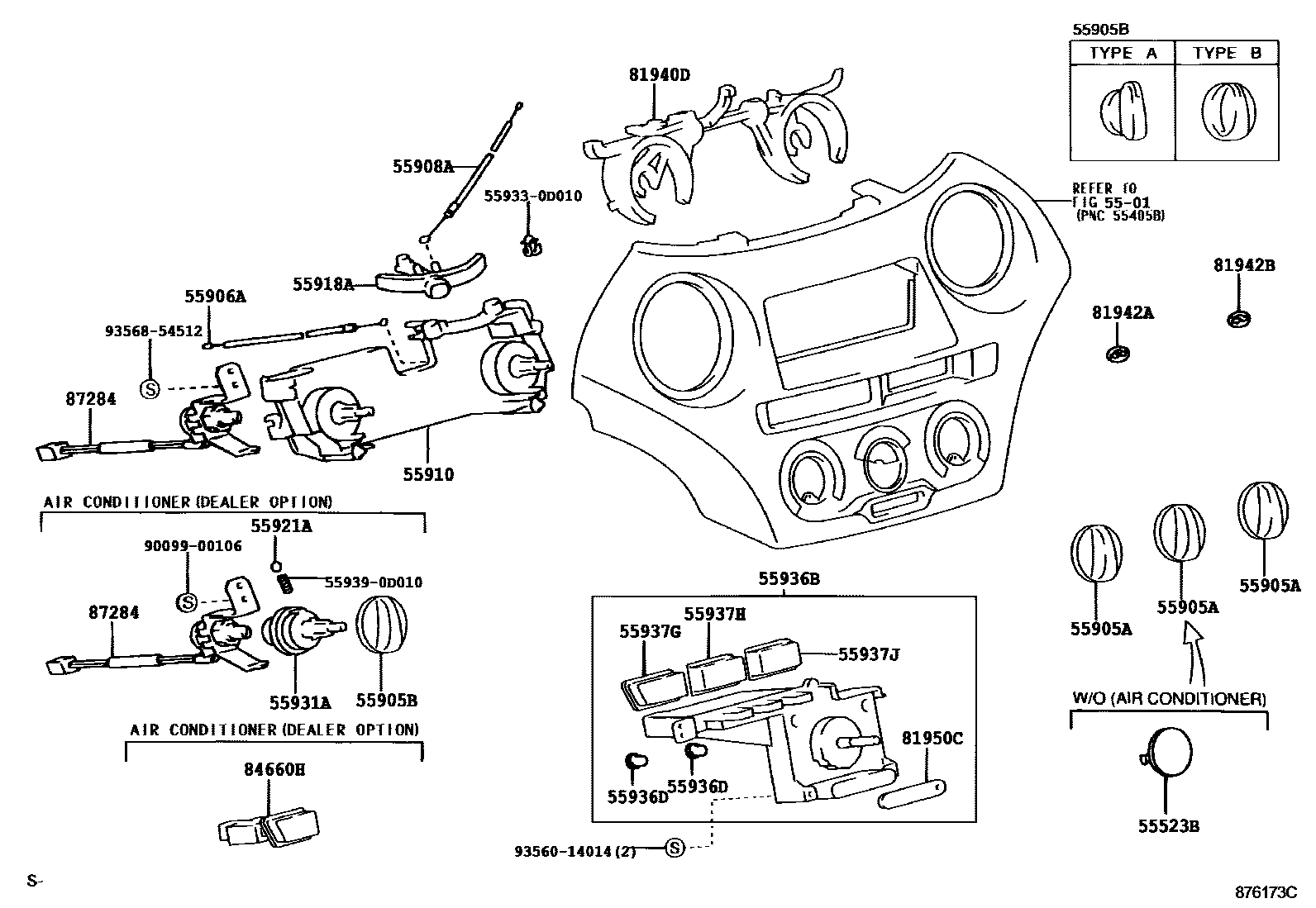

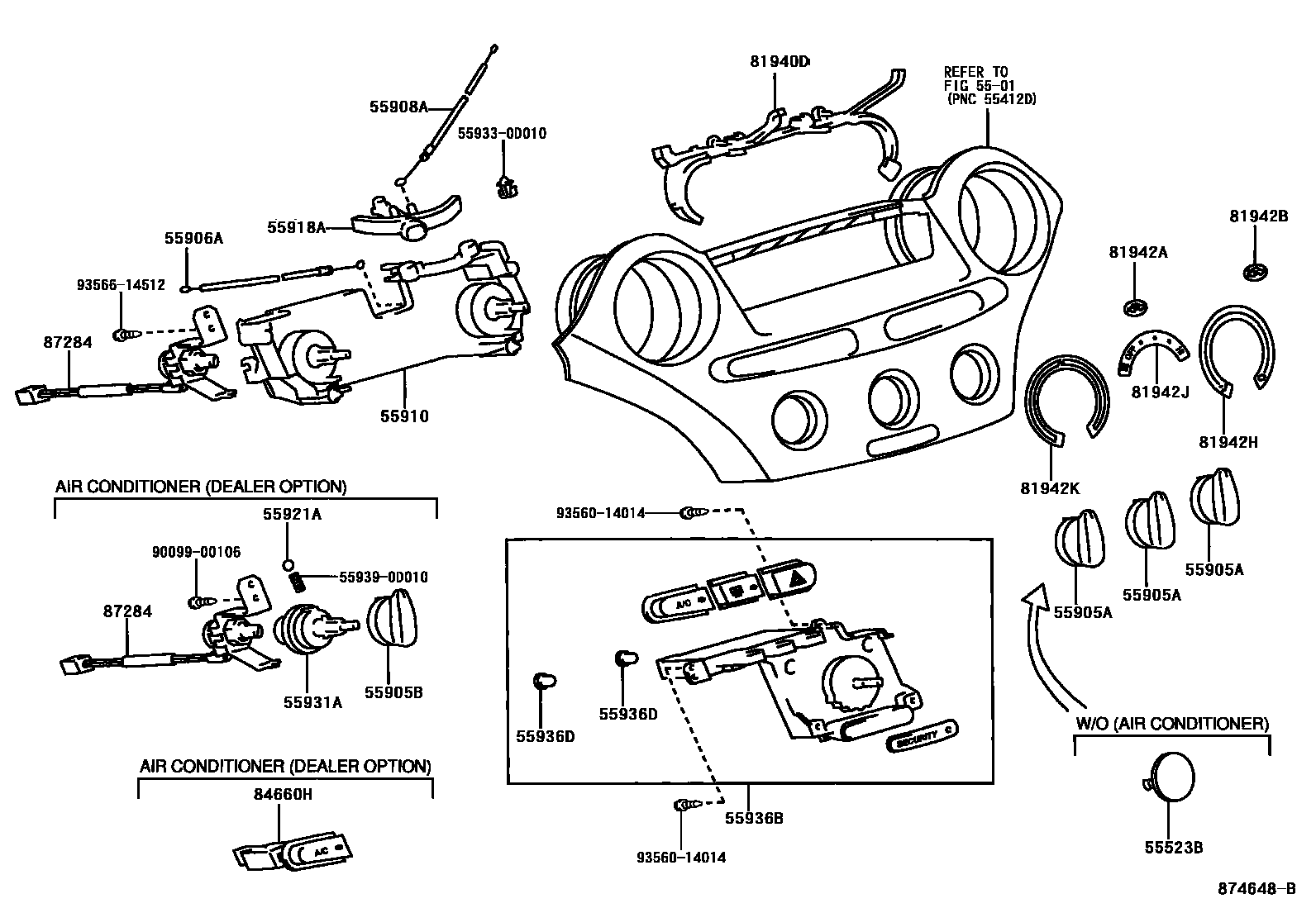

Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 8 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55519 | Heater controller nameplate | 55519-52100 · 55519-52120 |
| 55523B | Heater control opening cover | 55523-0D040 |

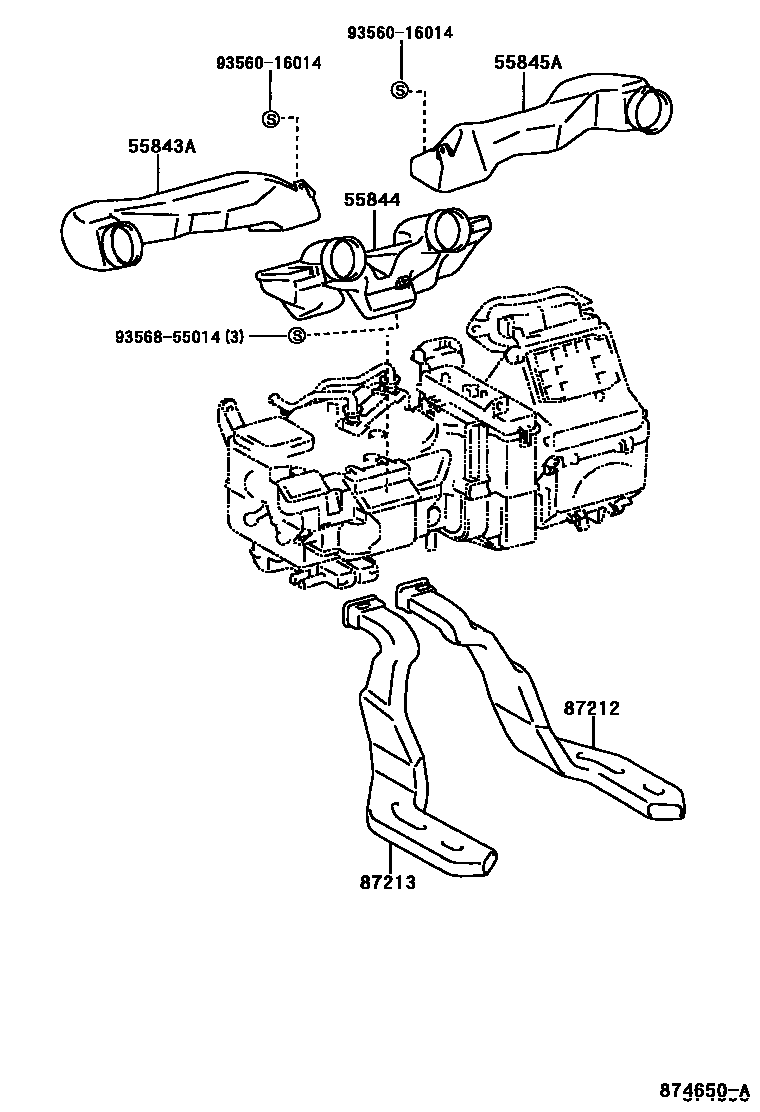

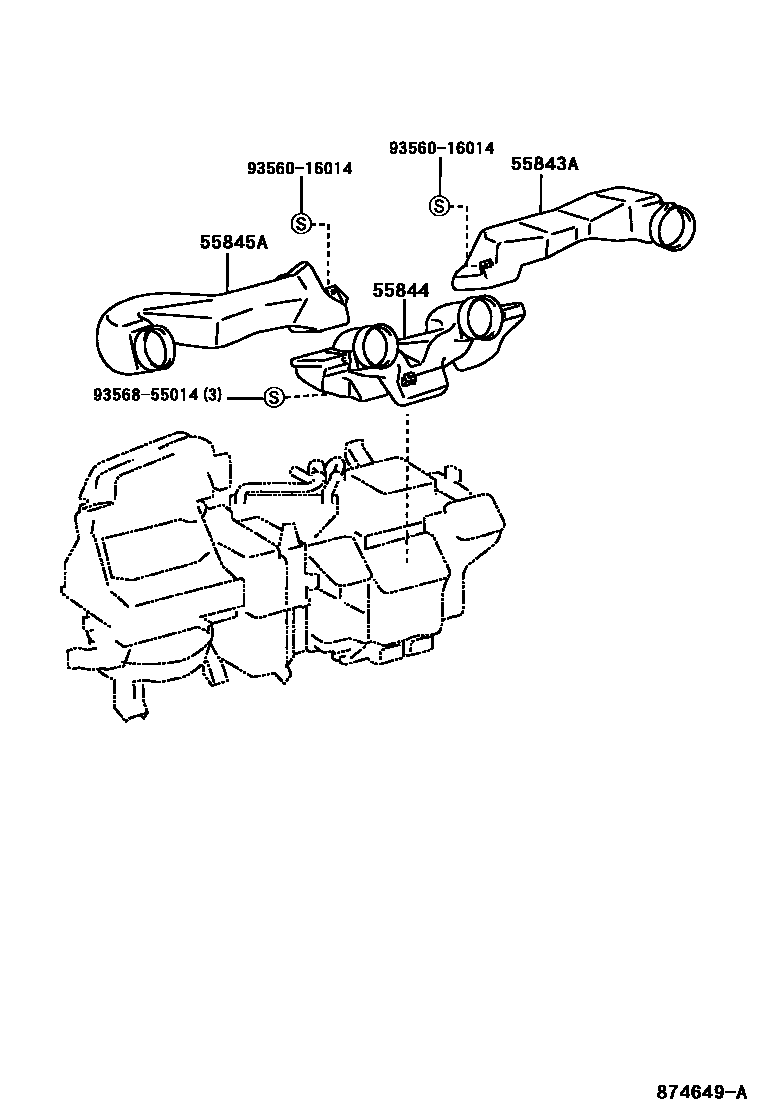

| 55843A | Air duct No. 1 from heater to air register | 55843-0D010 · 55843-0D020 · 55843-0D060 · 55843-0D070 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-0D010 · 55844-0D020 · 55844-0D060 · 55844-0D070 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-0D010 · 55845-0D020 · 55845-0D060 · 55845-0D070 |
| 55905A | Heater control button | 55905-0D010 · 55905-0D060 · 55905-0D070 |
| 55905B | Heater control button 2 | 55905-0D010 · 55905-0D060 · 55905-0D070 |
| 55906A | Defroster damper control cable sub-assembly | 55906-0D010 |
| 55908A | Intake air valve control cable sub-assembly | 55908-0D010 · 55908-0D020 |
| 55909A | Air mix damper control cable sub-assembly | 55909-0D010 · 55909-0D020 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-0D010 · 55910-0D020 · 55910-0D030 · 55910-0D060 |
| 55918A | Intake air door control lever | 55918-0D010 · 55918-0D020 · 55918-0D060 · 55918-0D090 |
| 55921A | Heater Controller Fixing | 55921-0D010 |
| 55931A | Heater control lever shaft | 55931-0D010 |
| 55936B | Central instrument cluster module switch | 84010-0D010 · 84010-0D020 · 84010-0D070 · 84010-0D071 · 84010-0D080 · 84010-0D081 |
| 55936D | Center instrument cluster module switch bulb | 84999-06010 |
| 55937G | No. 4 central instrument cluster module button | 55937-0D010 · 55937-0D040 |
| 55937H | No. 5 central instrument cluster module button | 55937-0D020 |
| 55937J | No. 6 central instrument cluster module button | 55937-0D030 |
| 81940D | Heater controller lampshade assembly | 81940-0D010 · 81940-0D150 |
| 81950C | Central instrument cluster module indicator lamp shade assembly | 81950-0D010 |
| 84660H | Cooler control switch assembly | 84660-0D010 · 84660-52010 |
| 87212 | No. 1 rear air duct | 87212-0D010 |
| 87213 | No. 2 rear air duct | 87213-0D010 |
| 87284 | Variable resistor sub-assembly | 88032-0D010 |
| 87290E | Heater switch assembly | 87290-0D010 |
