Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714

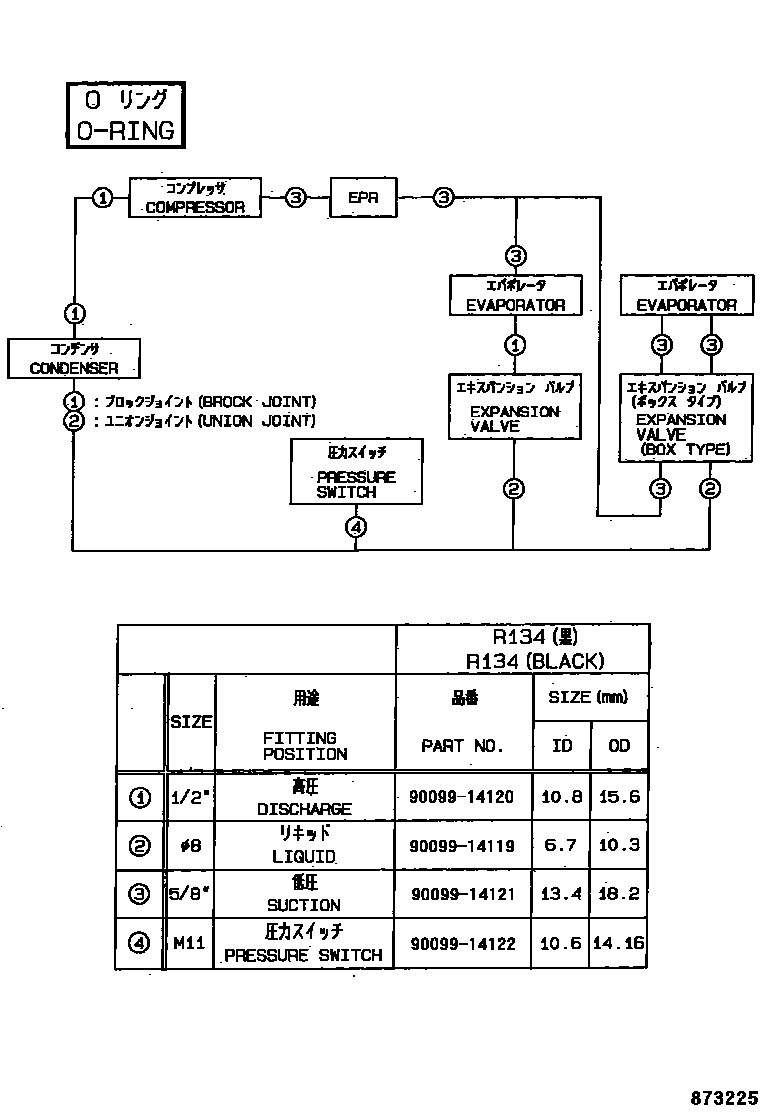

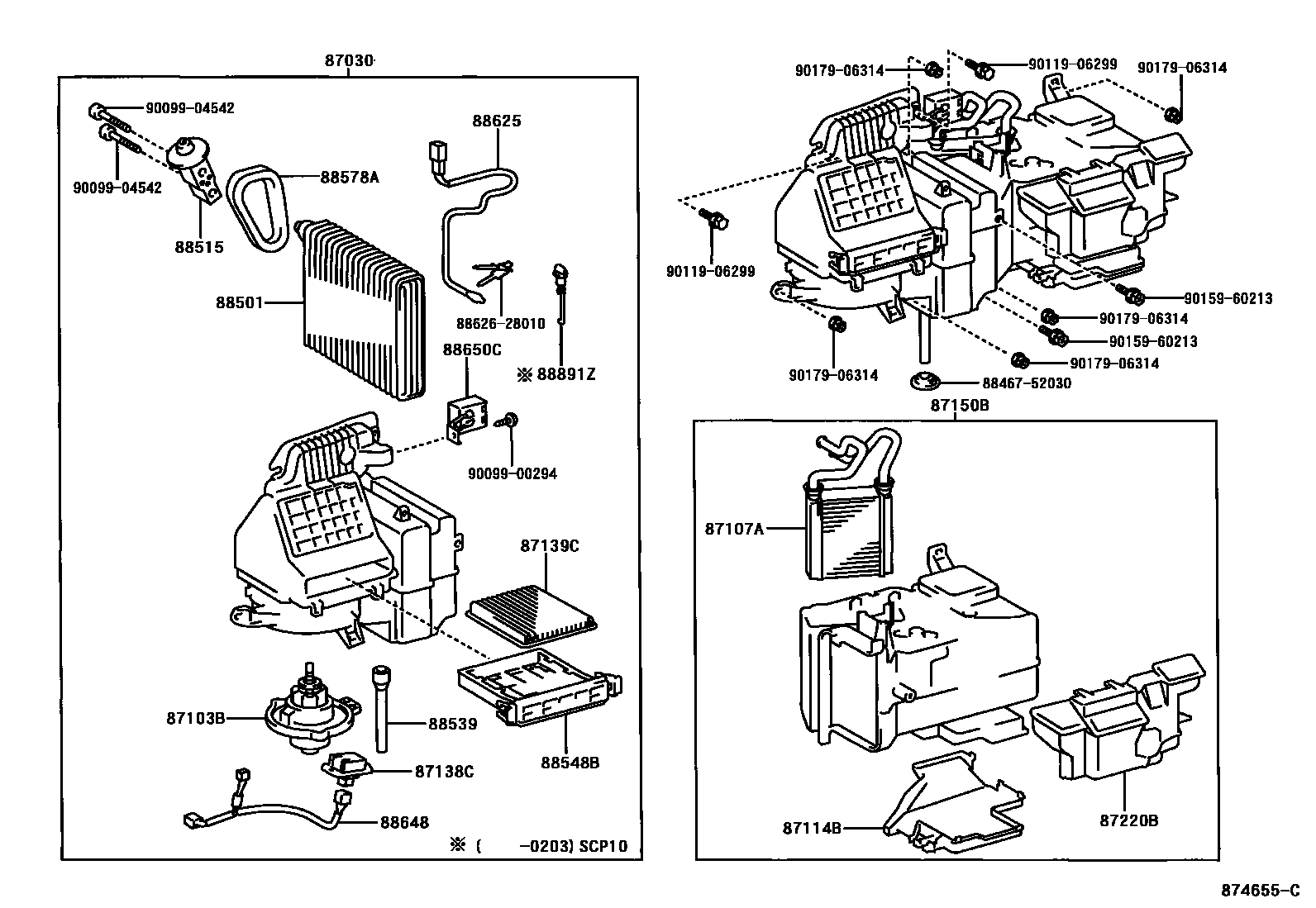

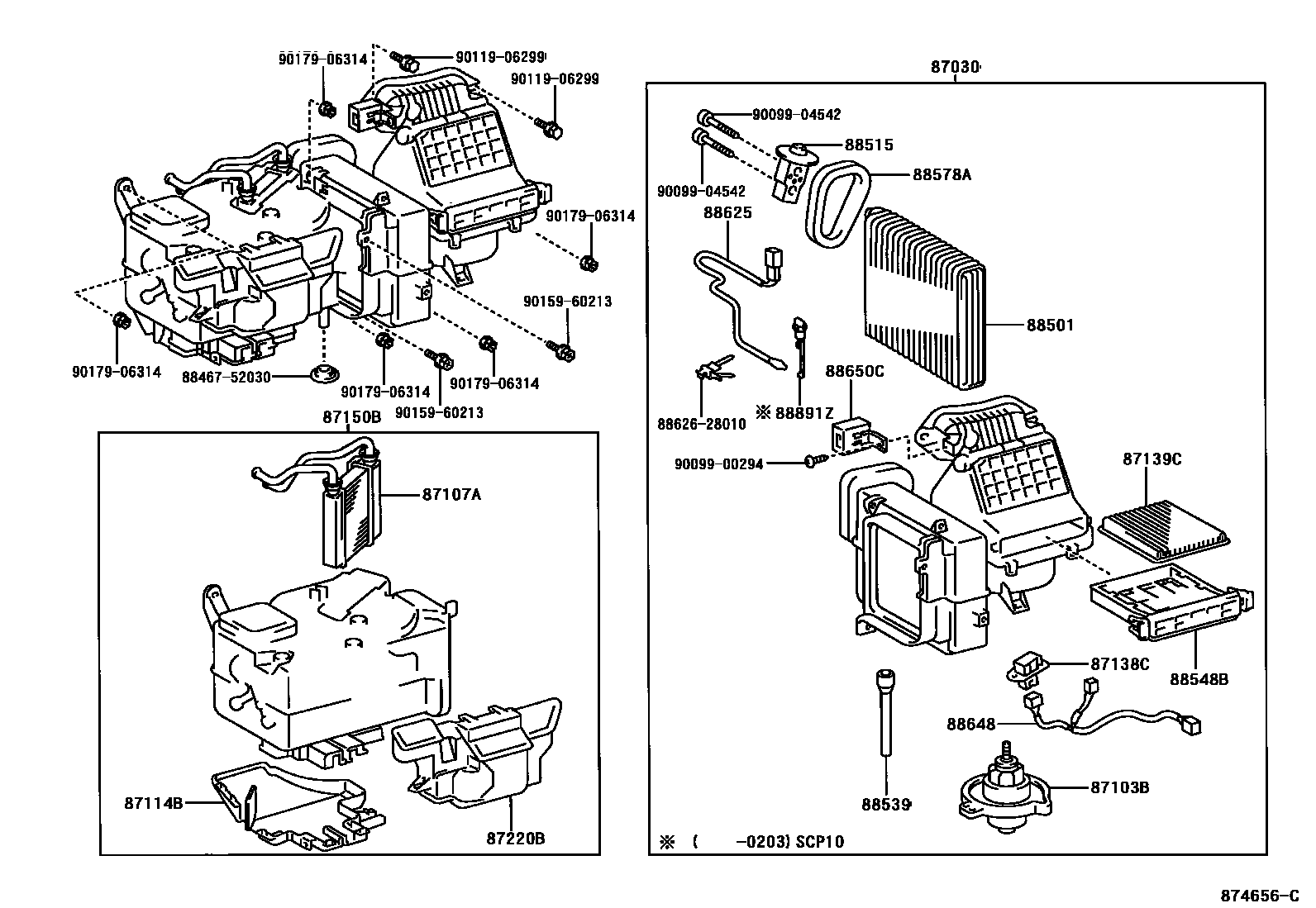

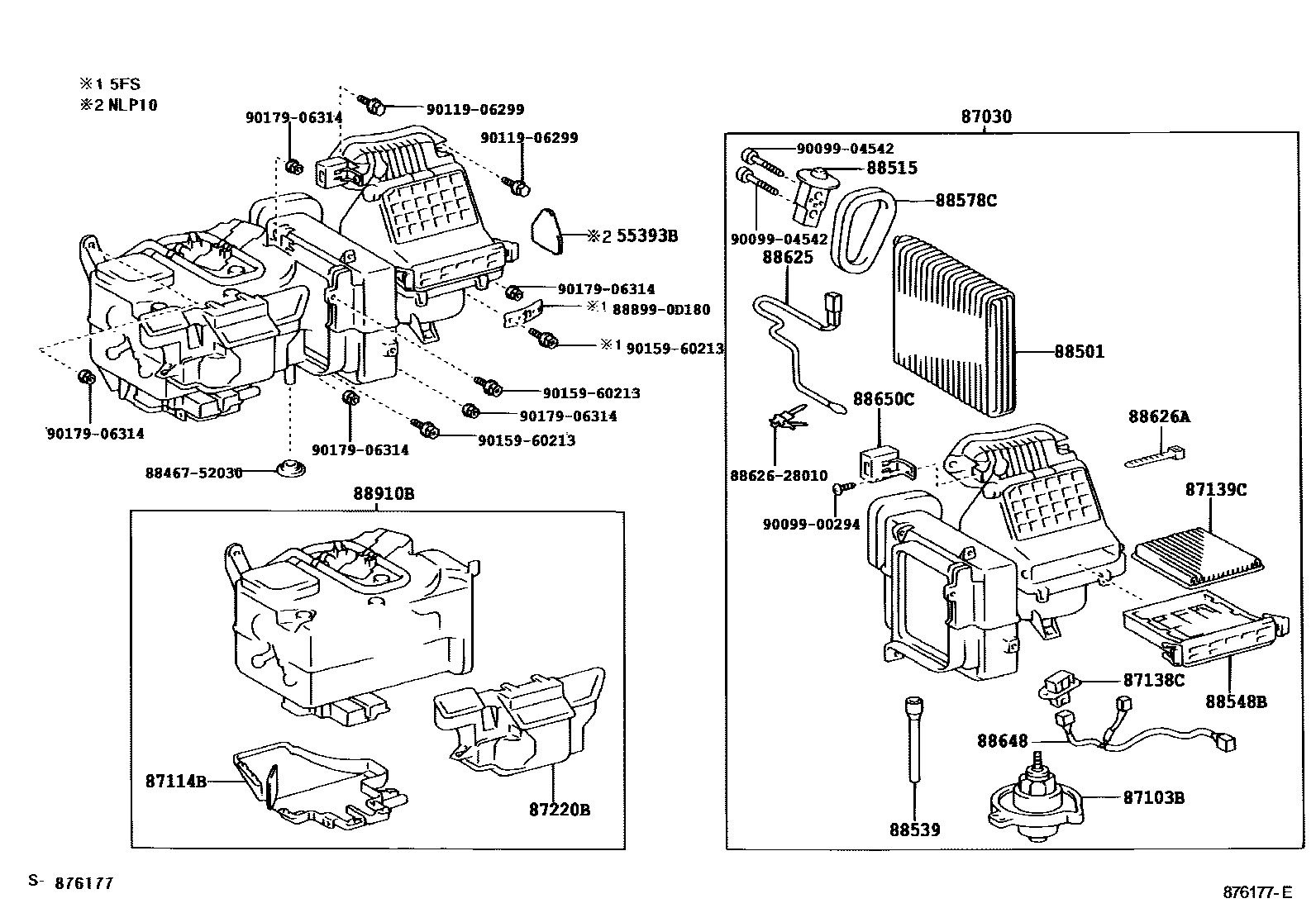

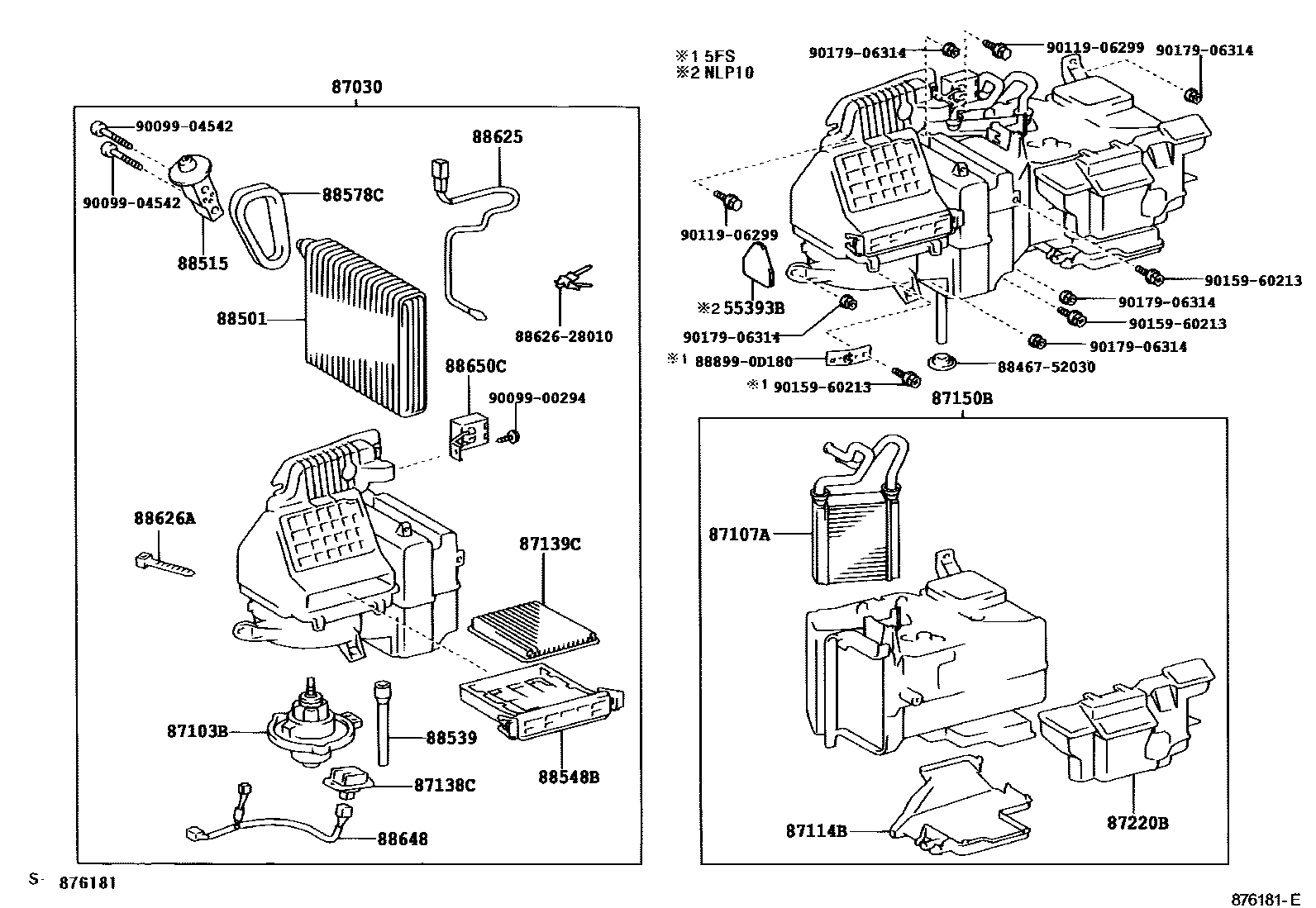

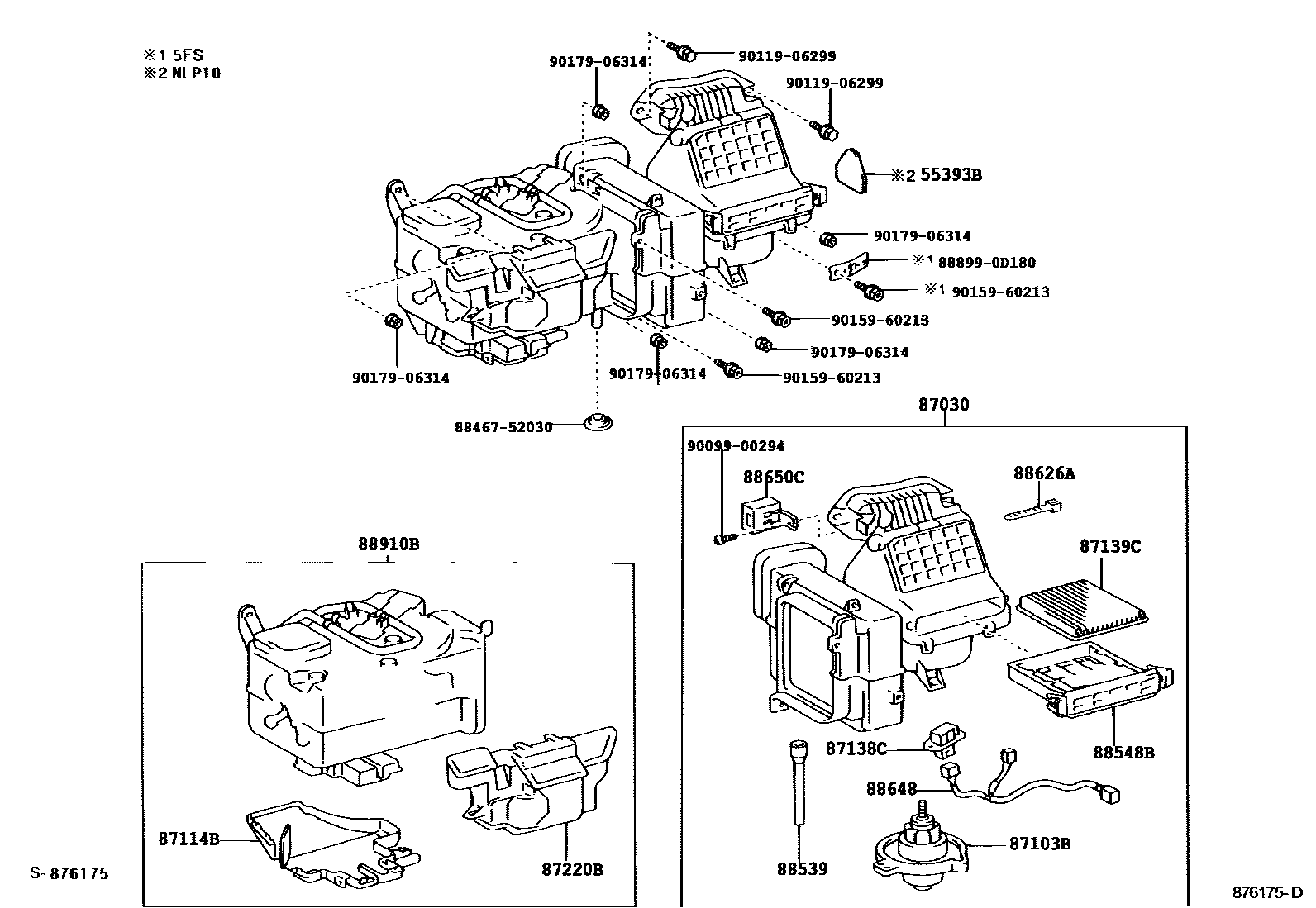

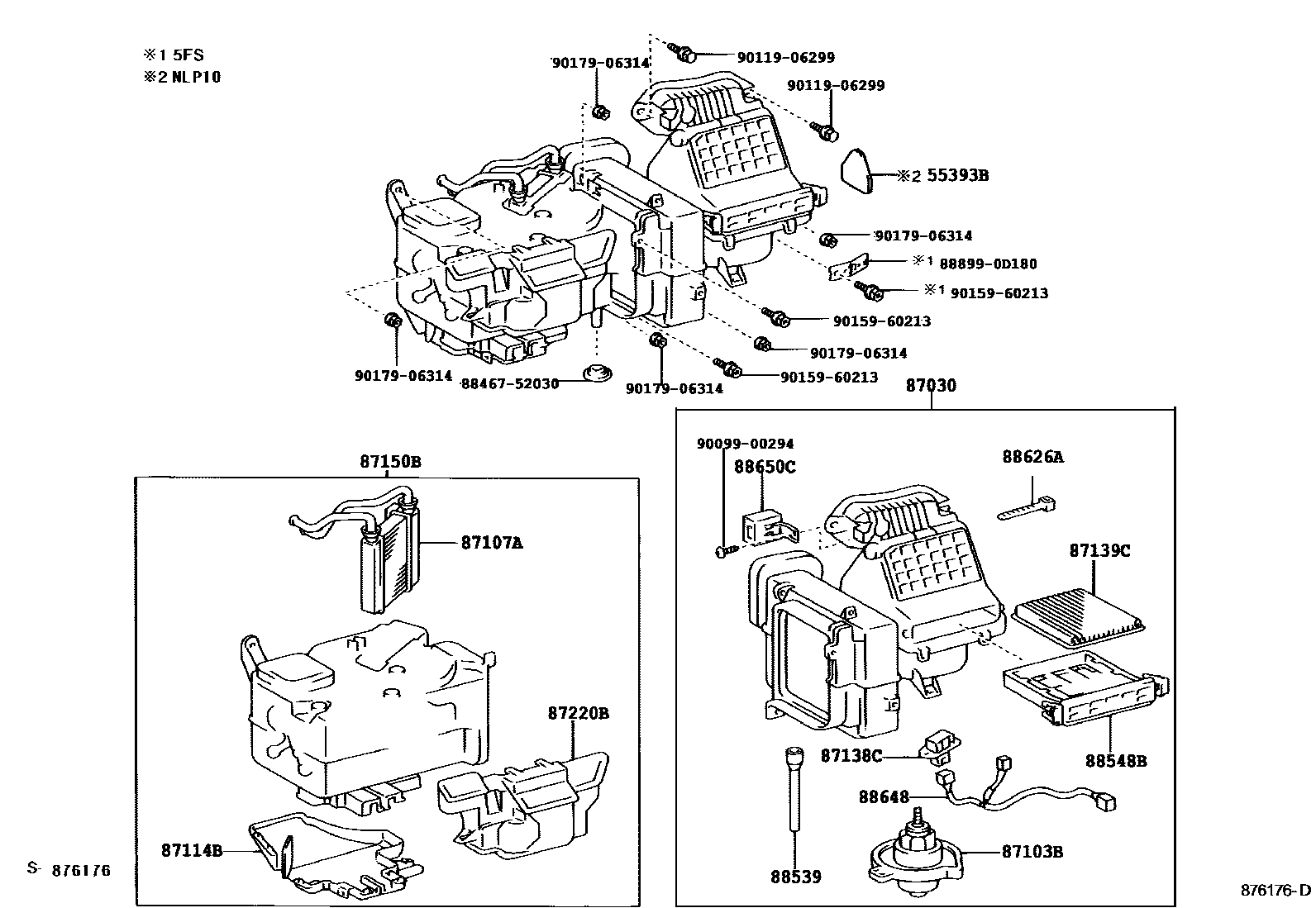

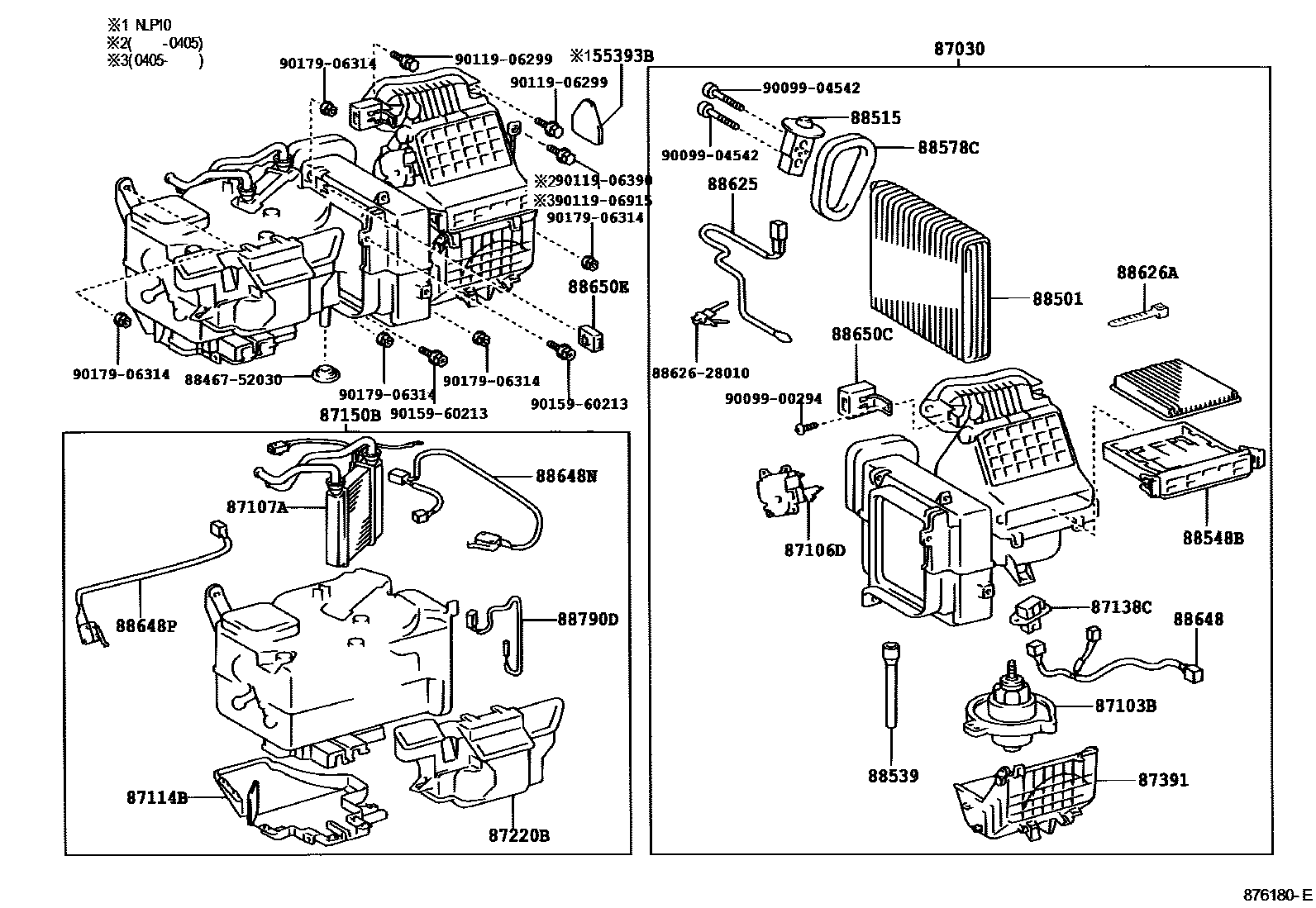

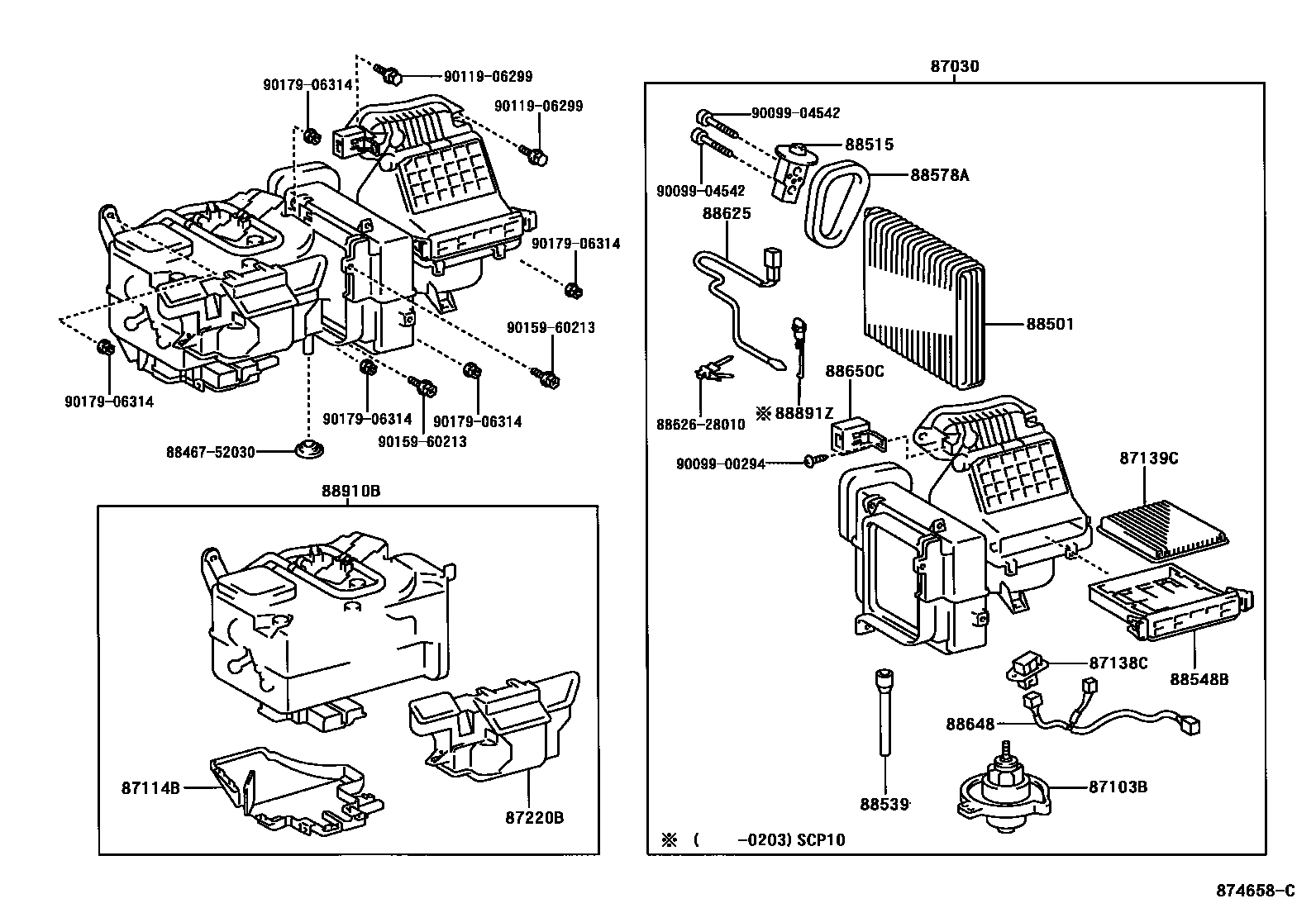

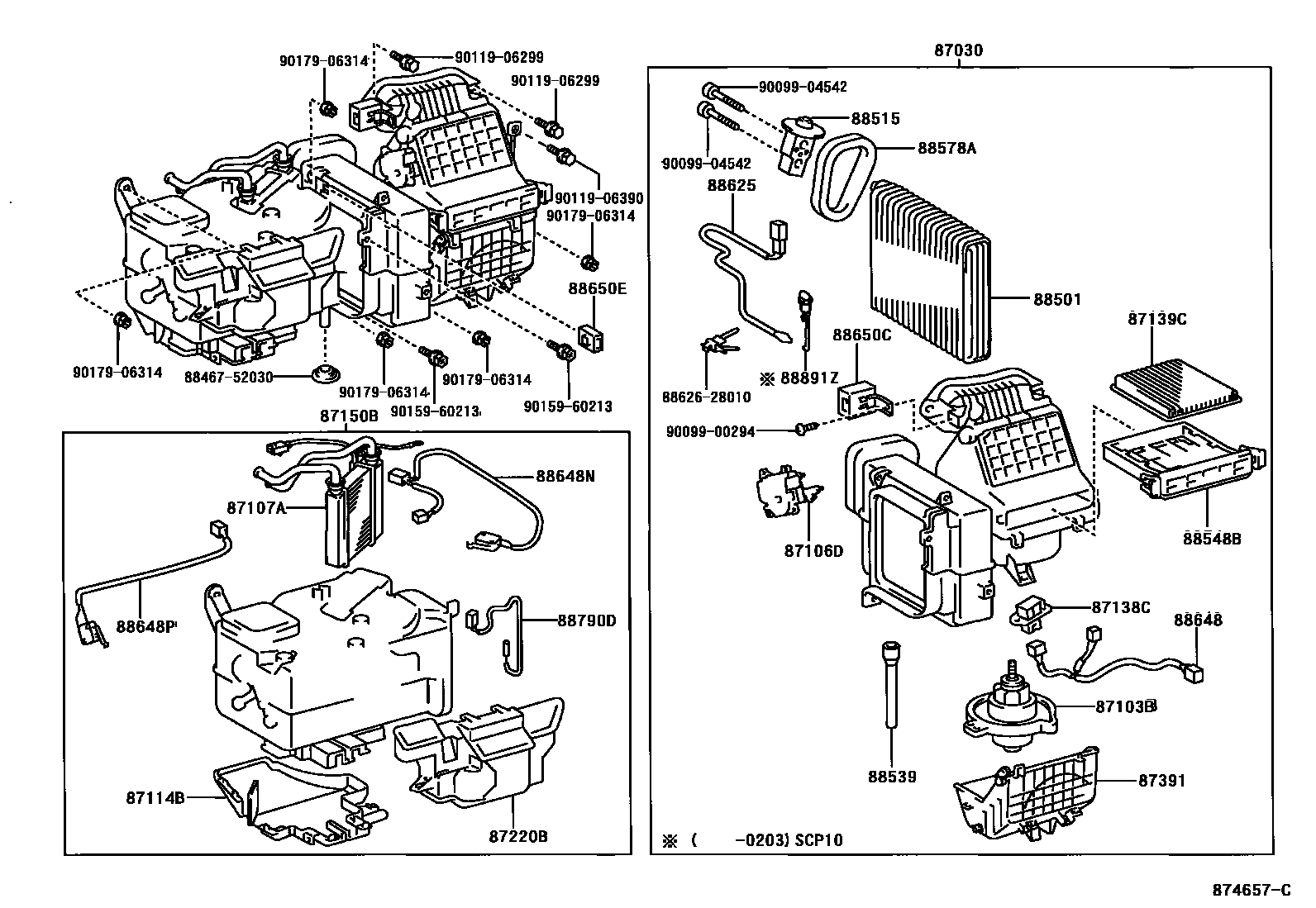

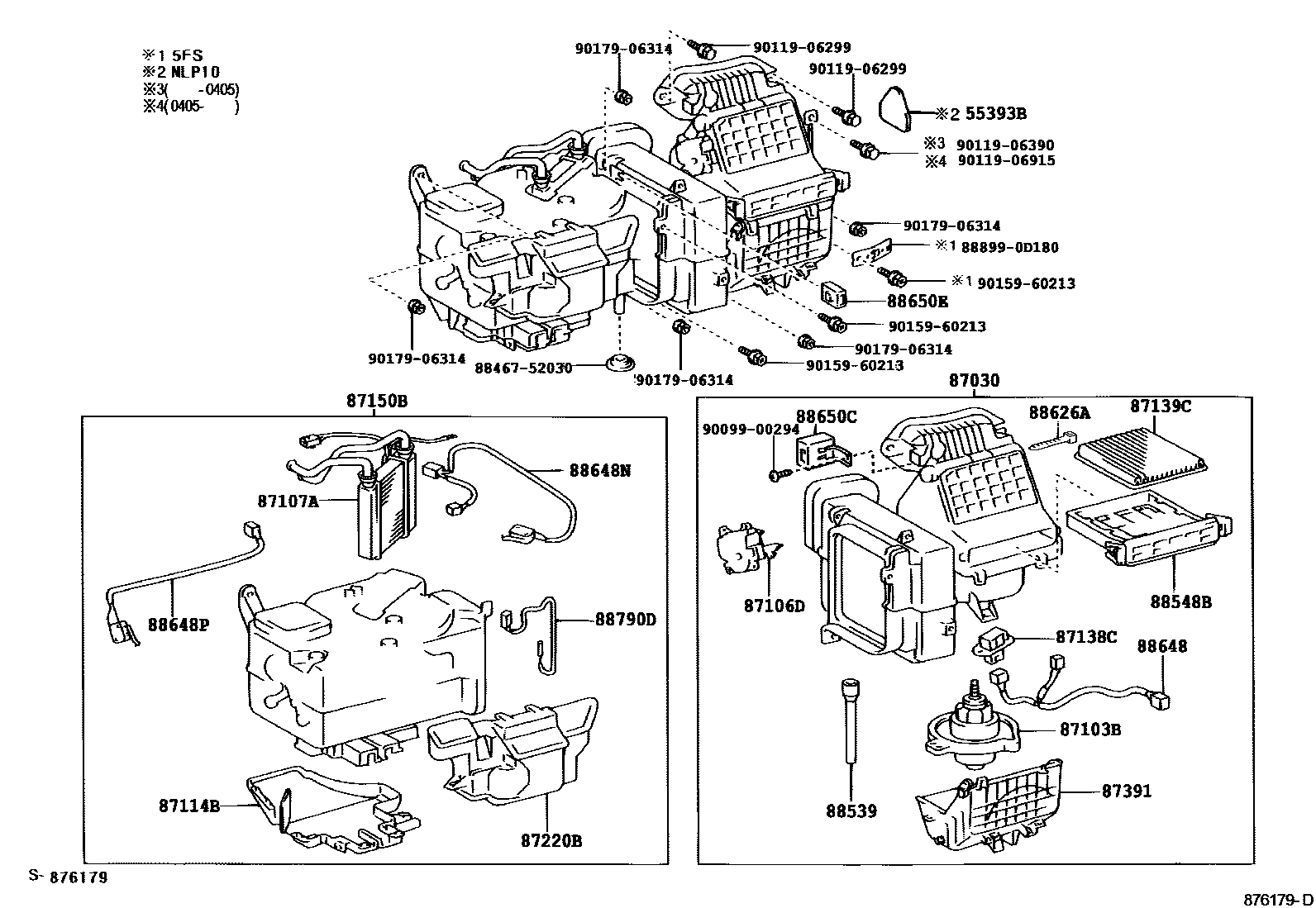

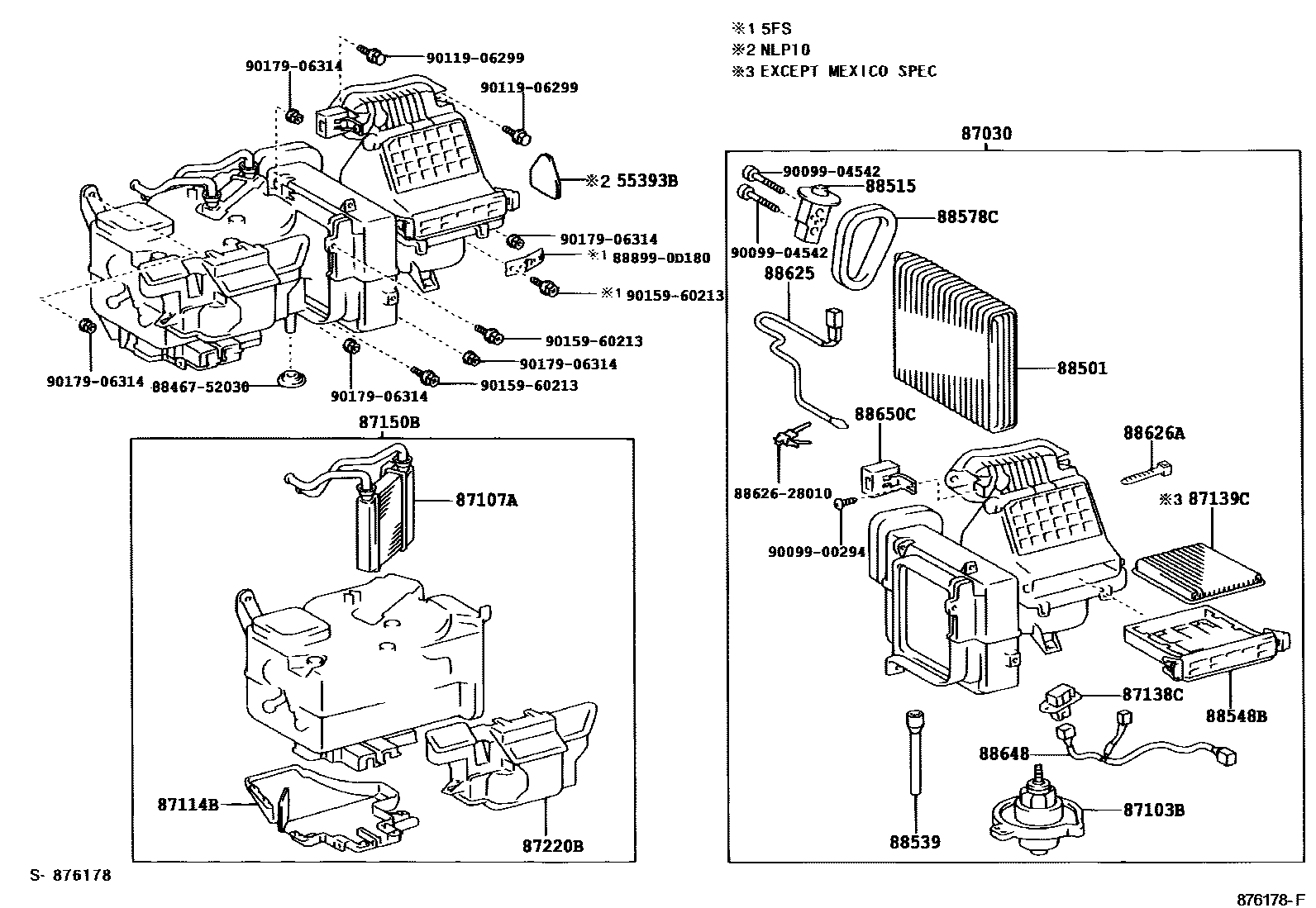

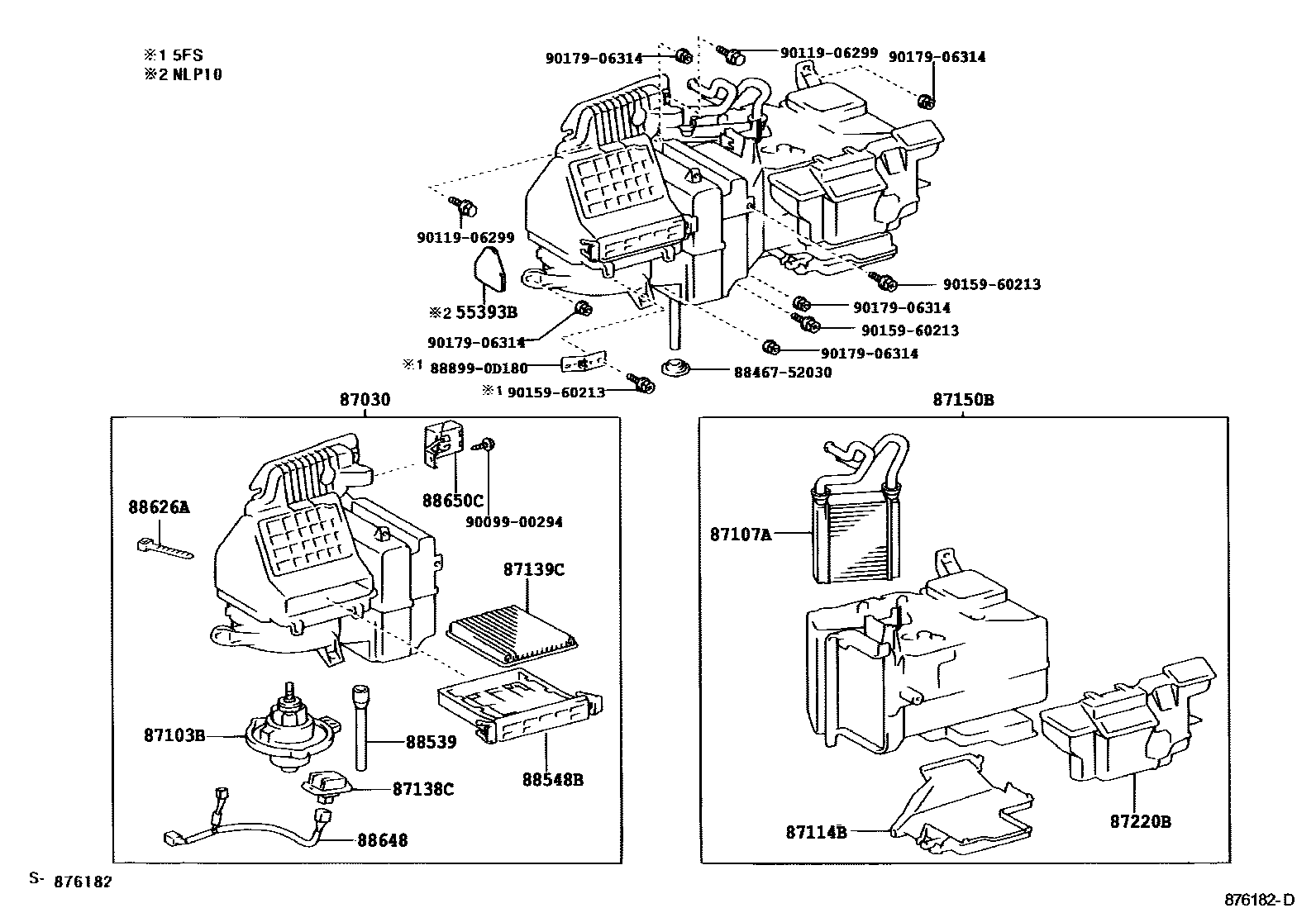

Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 13 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55393B | Air conditioning cooler unit cushion pad | 55393-0D010 |
| 87030 | Air conditioning blower assembly | 87030-0D010 · 87030-0D020 · 87030-0D030 · 87030-0D040 · 87030-0D050 · 87030-0D060 · 87030-0D070 · 87030-0D080 · 87030-0D090 · 87030-0D100 · 87030-0D110 · 87030-0D120 · 87030-0D140 · 87030-0D150 · 87030-0D160 · 87030-0D170 · 87030-0D180 · 87030-0D190 · 87030-0D200 · 87030-0D210 · 87030-0D220 · 87030-0D230 |
| 87103B | Blower motor sub-assembly with fan | 87103-0D010 · 87103-0D020 · 87103-0D030 |
| 87106D | No. 1 damper servo mechanism sub-assembly | 87106-0D010 |
| 87107A | Heater radiator device sub-assembly | 87107-0D010 · 87107-0D020 · 87107-52040 |
| 87114B | heater cover | 87114-0D010 · 87114-0D020 · 87114-0D030 |
| 87138C | Blower resistor | 87138-52010 |
| 87139C | air purification filter | 87139-47010 |
| 87150B | Heater radiator assembly | 87150-0D010 · 87150-0D020 · 87150-0D030 · 87150-0D050 · 87150-0D060 · 87150-0D080 · 87150-0D090 |
| 87220B | Air duct assembly | 87220-0D010 · 87220-0D020 |
| 87391 | Blower motor cover | 87391-0D010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0D010 · 88501-0D020 · 88501-0D080 |
| 88515 | Cooler expansion valve | 88515-52010 · 88515-52020 · 88515-52040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-0D010 · 88539-52010 |
| 88548B | air filter housing | 88548-0D010 |
| 88578A | Cooler stabilized amplifier seal | 88578-0D020 · 88578-52010 · 88578-52020 |
| 88578C | No. 2 cooling unit seal | 88578-0D020 |
| 88625 | Cooler No. 1 Thermistor | 88625-0D010 · 88625-0D070 |
| 88626A | Thermistor mount | 88626-28010 |
| 88648 | No. 1 cooler wiring harness | 88648-0D010 |
| 88648N | No. 2 cooler wiring harness | 88648-0D020 |
| 88648P | Air conditioner No. 1 wiring harness | 88648-0D030 |
| 88650C | Air conditioning amplifier sub-assembly | 88650-0D050 · 88650-0D060 · 88650-0D100 · 88650-0D120 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-0D030 · 88650-0D040 · 88650-0D130 |
| 88790D | Thermistor assembly | 88790-52010 |
| 88891Z | Cooler thermistor bracket | 88891-20240 |
| 88910B | Auxiliary ventilation device assembly | 88910-0D010 |
