Toyota YARIS 后视镜 — Figure 8701

Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 5 PNC and OE references.

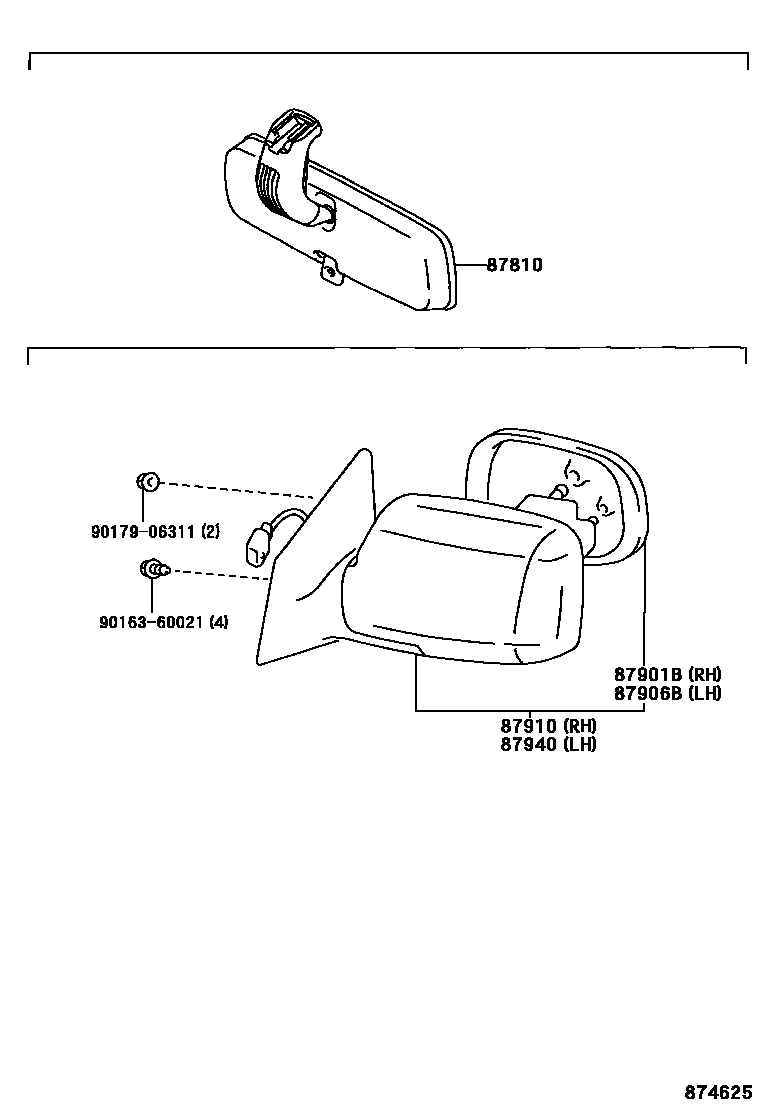

Toyota YARIS 后视镜 EPC diagram — 874625
后视镜 — 874625 (200101 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-0D010 · 87810-0D011
87901BRight exterior rearview mirror sub-assembly87931-0D010 · 87931-0D030
87906BLeft exterior rearview mirror sub-assembly87961-0D010 · 87961-0D030
87910Right exterior rearview mirror assembly87910-0D010 · 87910-0D011 · 87910-0D012 · 87910-0D020 · 87910-0D021 · 87910-0D022 · 87910-0D030 · 87910-0D040 · 87910-0D050 · 87910-0D900 · 87910-0D901 · 87910-0D902 · 87910-0D904 · 87910-0D905 · 87910-0D907 · 87910-0D908 · 87910-0D909 · 87910-0D910 · 87910-0D911 · 87910-0D914 · 87910-0D915 · 87910-0D916 · 87910-0D917 · 87910-0D918
87940Left exterior rearview mirror assembly87940-0D010 · 87940-0D011 · 87940-0D012 · 87940-0D020 · 87940-0D021 · 87940-0D022 · 87940-0D030 · 87940-0D040 · 87940-0D050 · 87940-0D900 · 87940-0D901 · 87940-0D902 · 87940-0D904 · 87940-0D905 · 87940-0D907 · 87940-0D908 · 87940-0D909 · 87940-0D910 · 87940-0D911 · 87940-0D914 · 87940-0D915 · 87940-0D916 · 87940-0D917 · 87940-0D918
