Toyota YARIS 扬声器 — Figure 8602

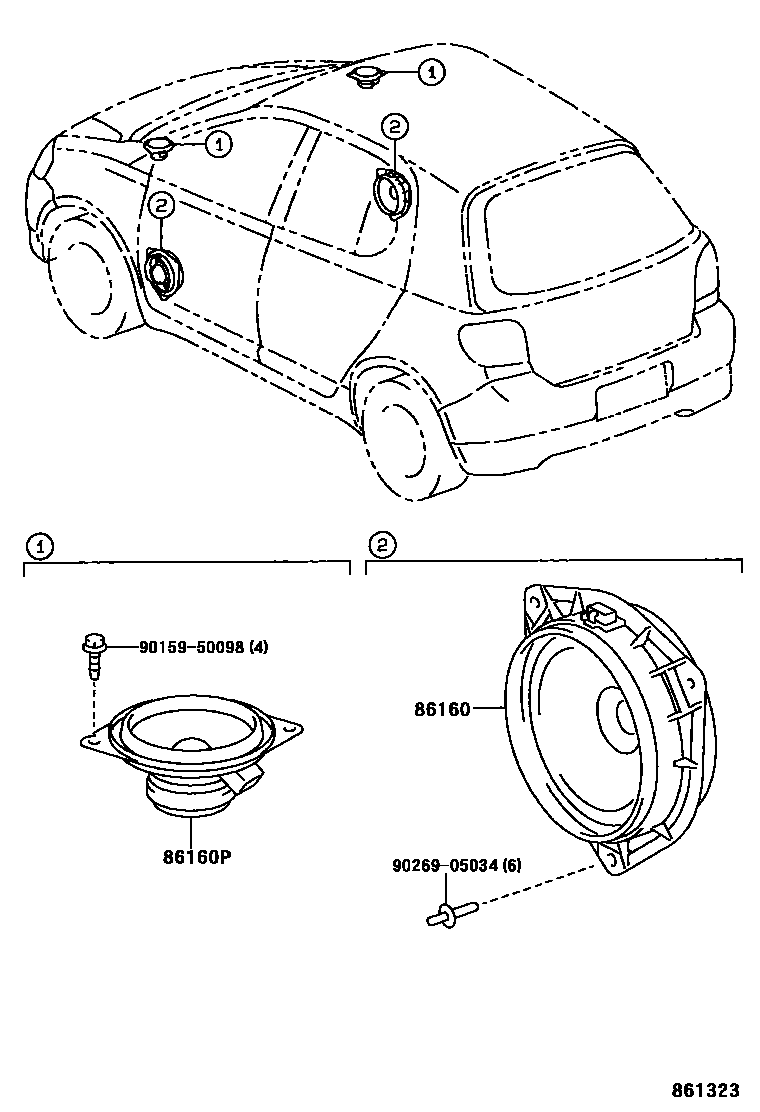

Toyota YARIS EPC diagram 8602, 扬声器, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-0D020 |
| 86160P | No. 2 front speaker assembly | 86160-0D010 |
