Toyota YARIS 挡风玻璃刮水器 — Figure 8501

Toyota YARIS EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 9 PNC and OE references.

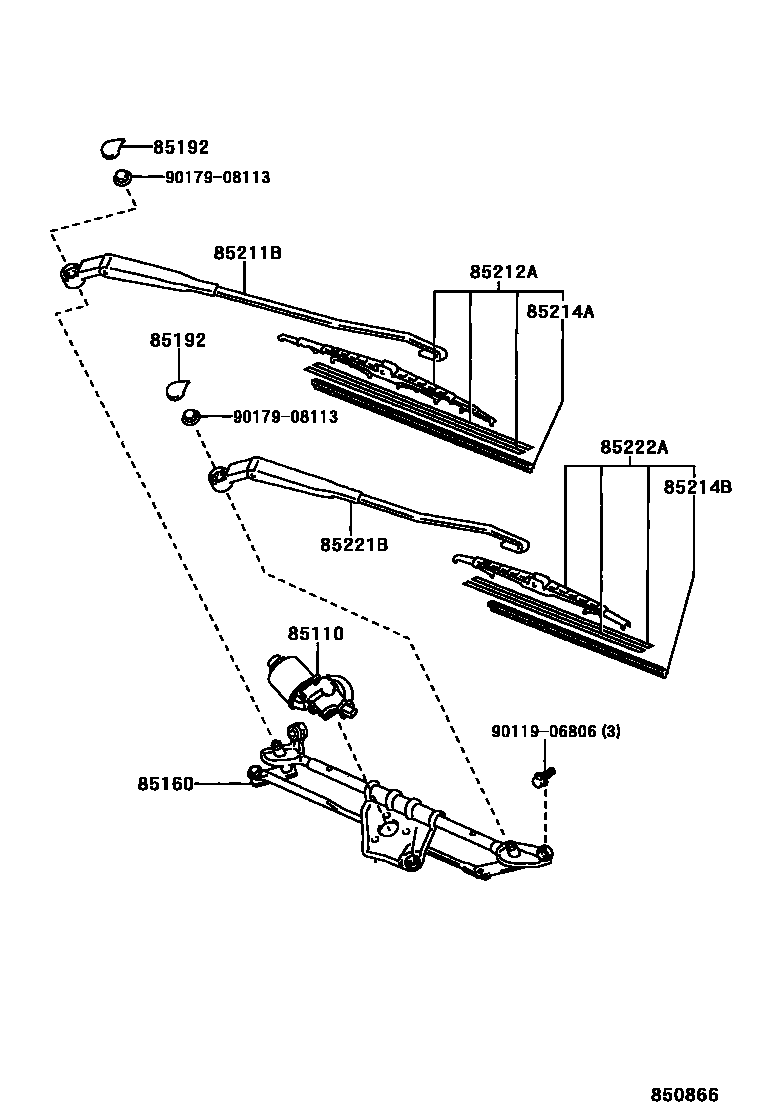

Toyota YARIS 挡风玻璃刮水器 EPC diagram — 850866
挡风玻璃刮水器 — 850866 (200101 – 999999)

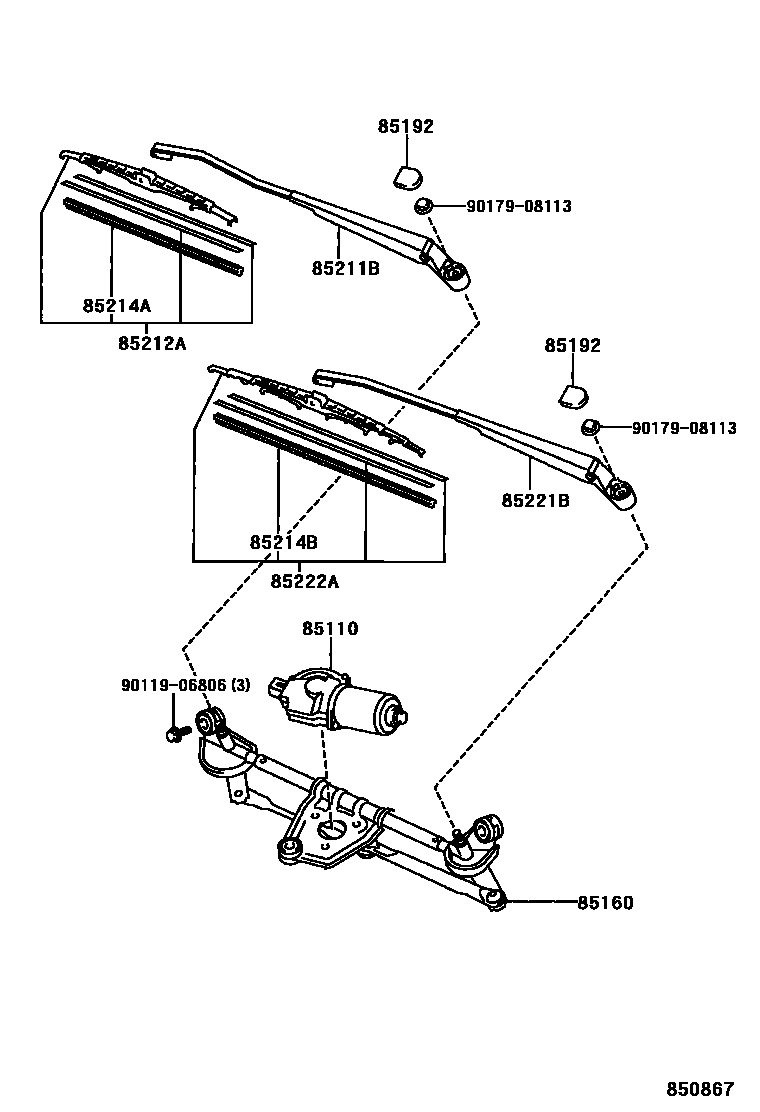

Toyota YARIS 挡风玻璃刮水器 EPC diagram — 850867
挡风玻璃刮水器 — 850867 (200101 – 999999)

PNC and OE references

PNCPart nameOE numbers
85110Windshield wiper motor assembly85110-0D010 · 85110-0D020
85160Windshield wiper connecting rod assembly85150-0D010 · 85150-0D011 · 85150-0D020 · 85150-0D021
85192windshield wiper arm cover85192-12800
85211BRight front wiper arm85211-0D010 · 85211-0D020
85212ARight front wiper blade85212-0D010 · 85222-0D010
85214ARight wiper rubber strip85214-0D010 · 85214-0D020
85214BLeft wiper rubber strip85214-0D010 · 85214-0D020
85221BLeft front wiper arm85221-0D010 · 85221-0D020
85222ALeft front wiper blade85212-0D010 · 85222-0D010
