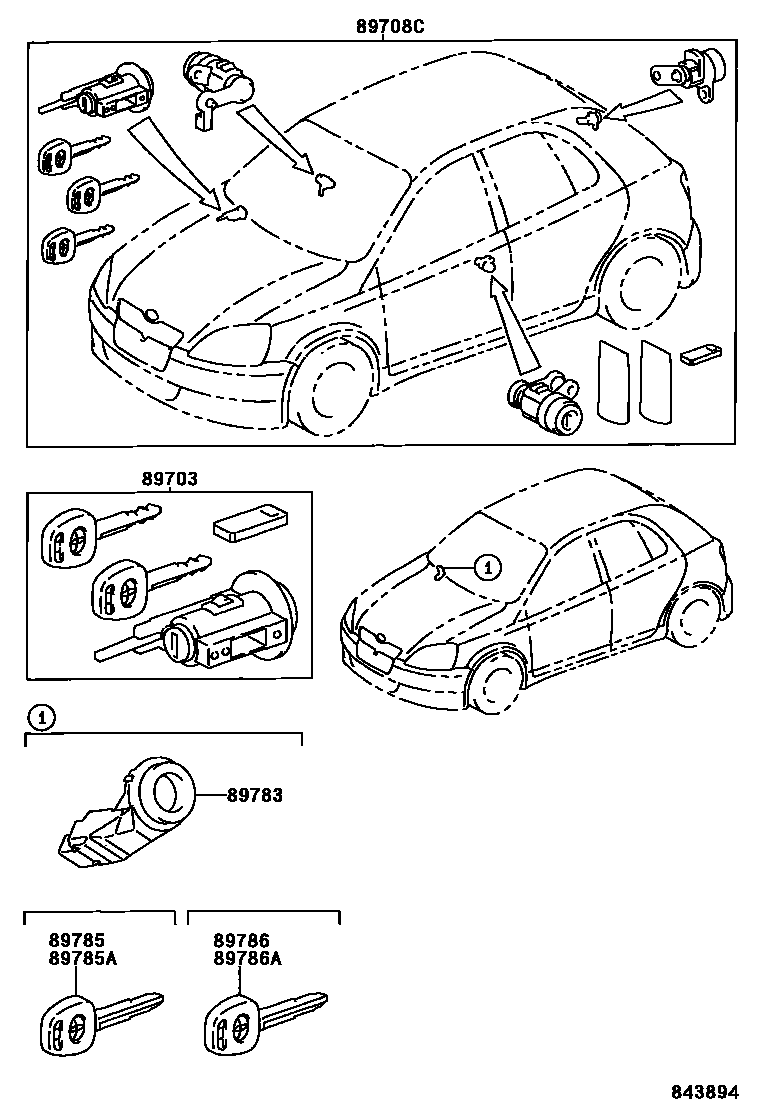

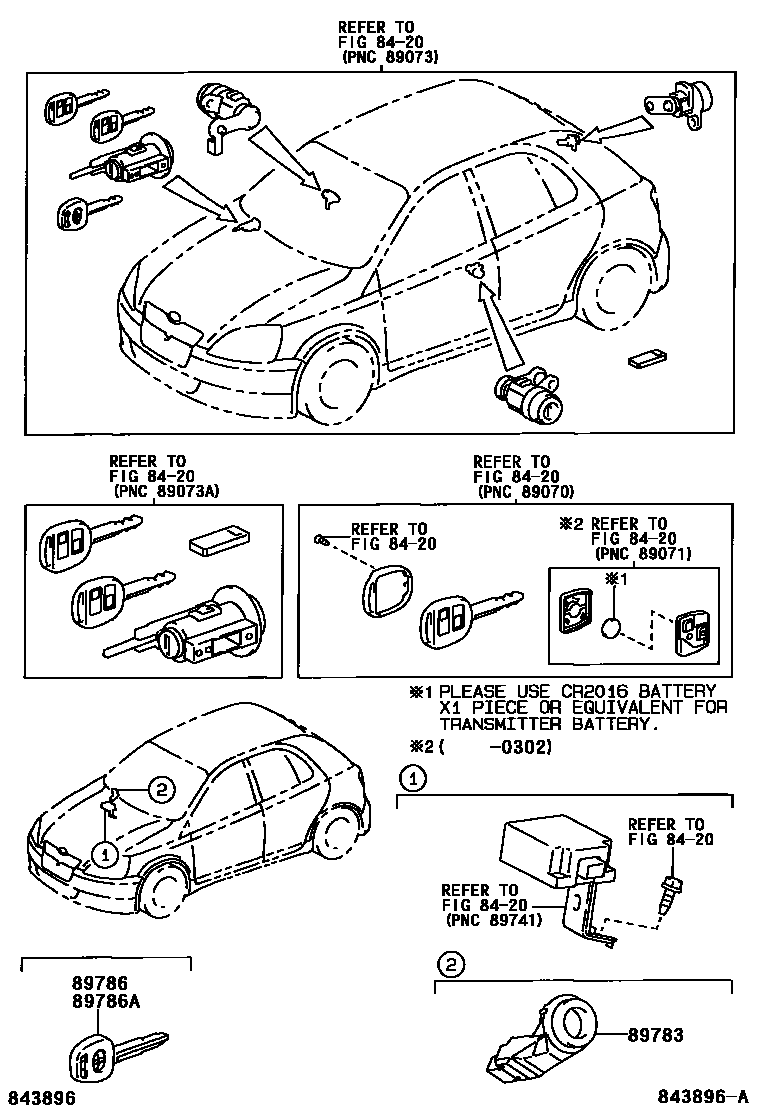

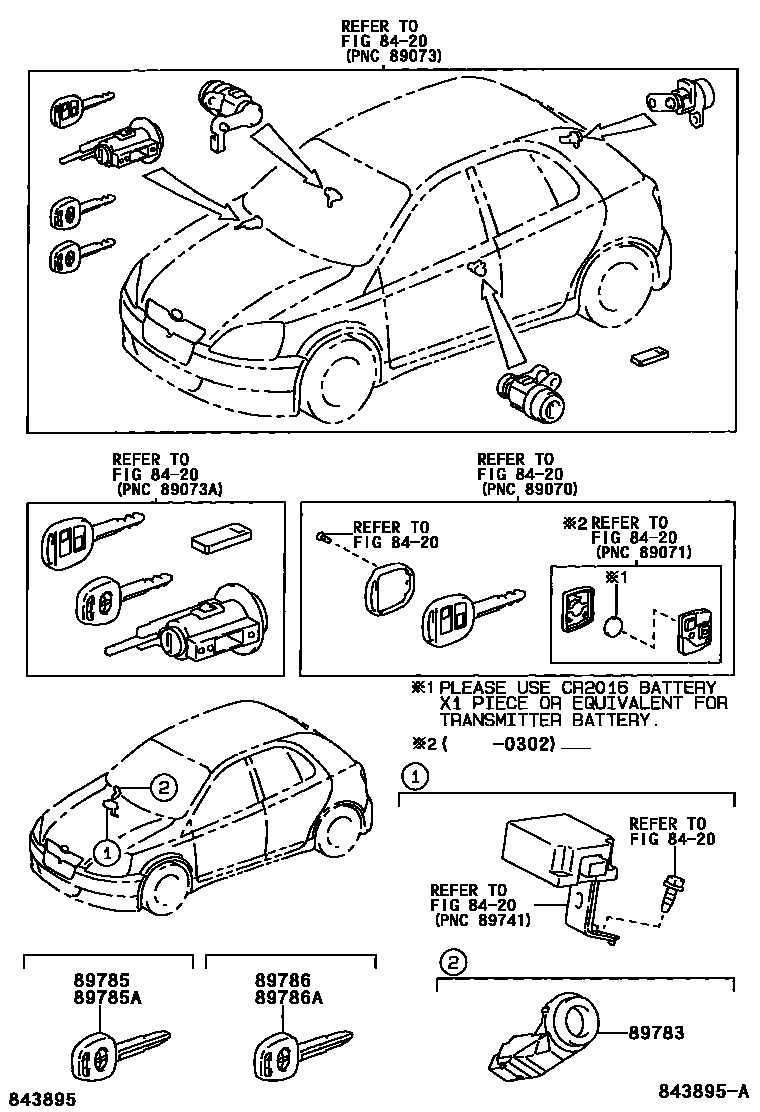

Toyota YARIS 防盗装置 — Figure 8424
Toyota YARIS EPC diagram 8424, 防盗装置, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89703 | Ignition lock cylinder and key assembly with transceiver | 89703-0D010 |
| 89708C | Key lock cylinder assembly with transceiver transmitter | 89708-0D010 |
| 89783 | transceiver key amplifier | 89783-0D010 |
| 89785 | transceiver key master transmitter | 89785-05020 |
| 89785A | Transceiver Internal Tooth Key Master Transmitter | 89785-05030 |
| 89786 | transceiver key secondary transmitter | 89786-05020 |
| 89786A | Transceiver Internal Tooth Key Sub-Transmitter | 89786-05030 |
