Toyota YARIS 空气囊 — Figure 8421

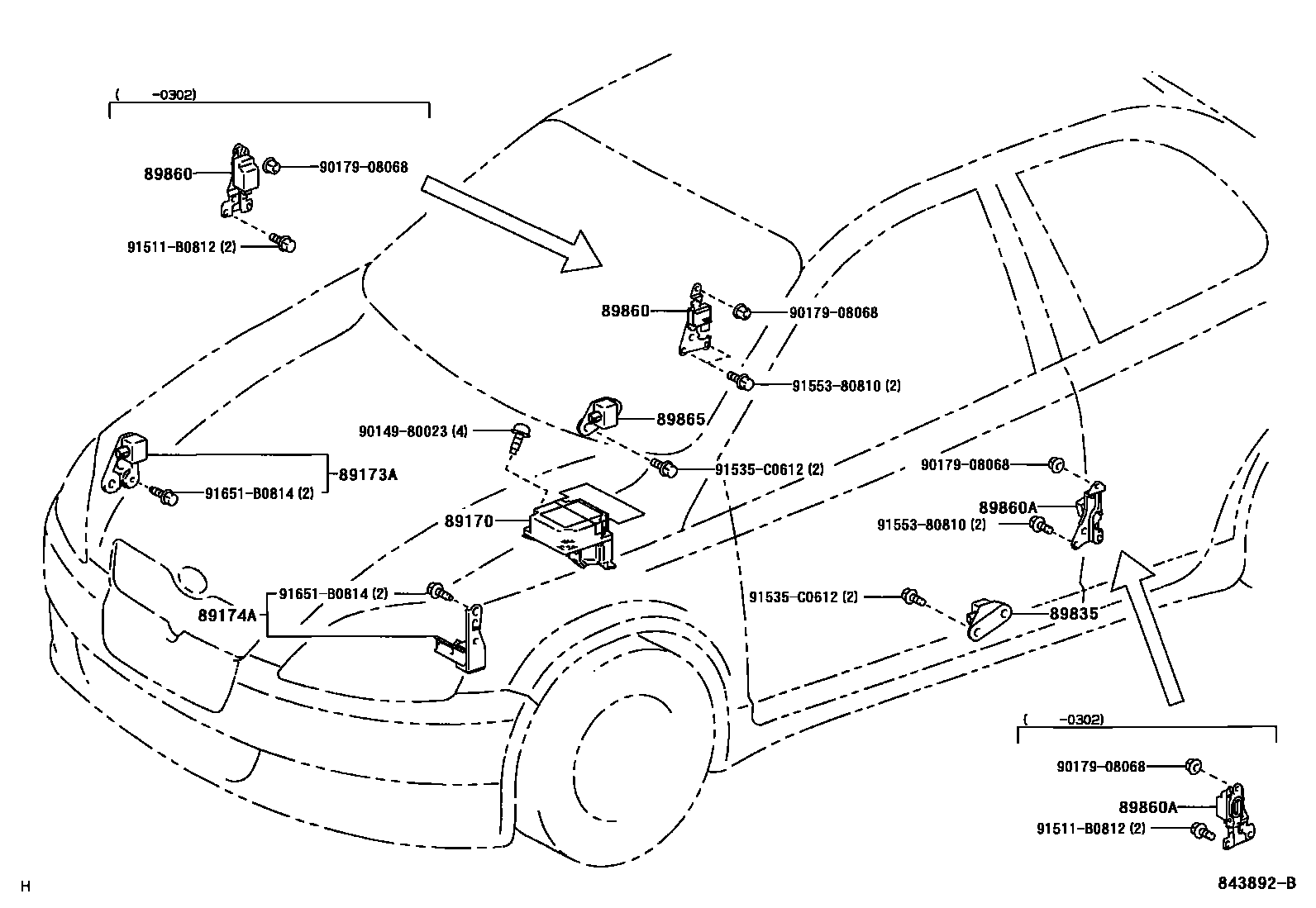

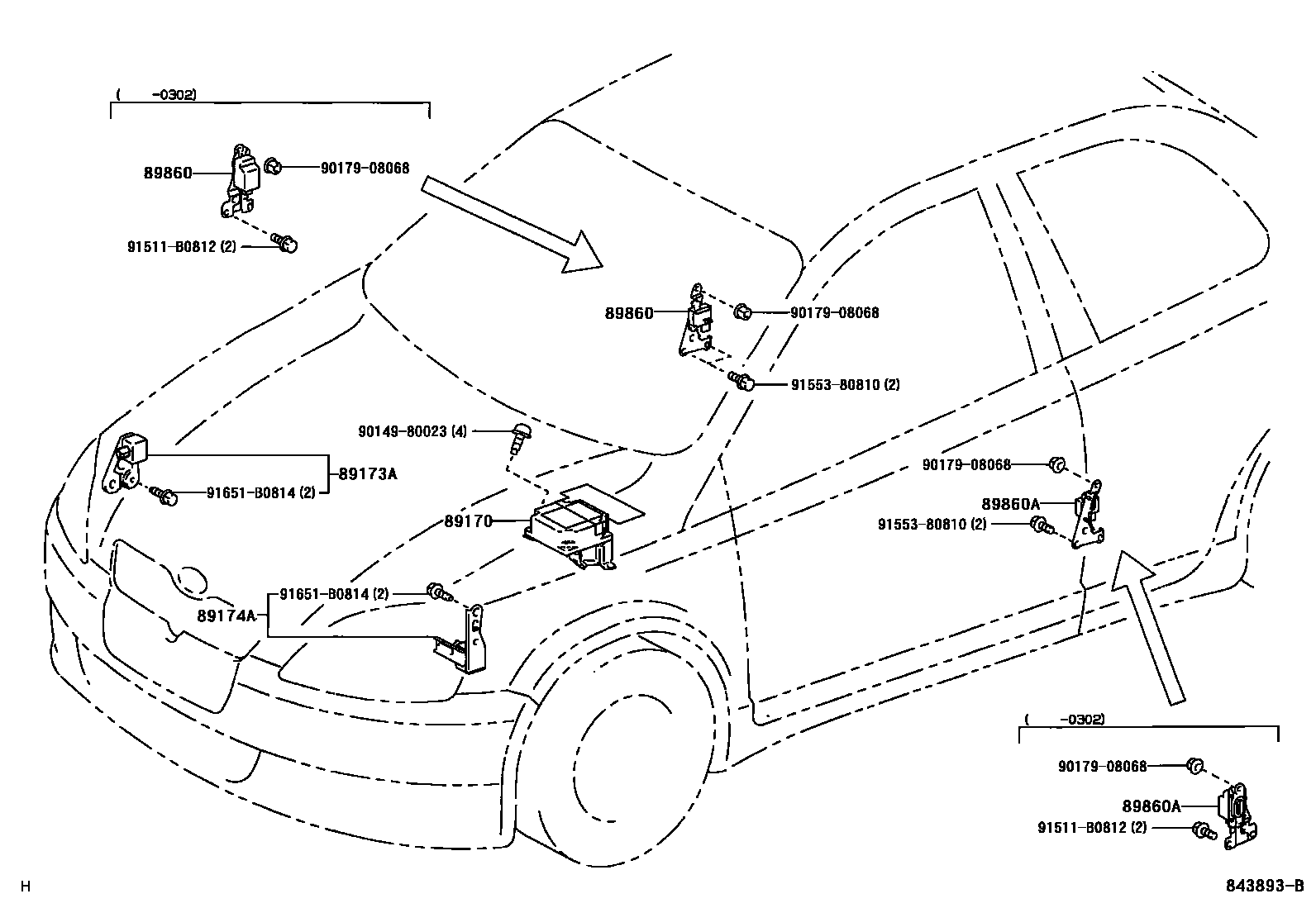

Toyota YARIS EPC diagram 8421, 空气囊, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170 | air bag sensor assembly | 89170-0D010 · 89170-0D020 · 89170-0D030 · 89170-0D040 · 89170-0D070 · 89170-0D080 · 89170-0D090 · 89170-0D100 |
| 89173A | Right front air bag sensor | 89173-59125 · 89173-59135 |
| 89174A | Left front air bag sensor | 89174-59065 · 89174-59075 |
| 89835 | Left door side air bag sensor | 89835-52010 |
| 89860 | Right side airbag sensor assembly | 89860-0D010 · 89860-0D020 · 89860-0D030 · 89860-0D040 |
| 89860A | Left side air bag sensor assembly | 89830-0D010 · 89830-0D020 · 89830-0D030 · 89830-0D040 |
| 89865 | Right door side air bag sensor | 89865-52010 |
