Toyota YARIS ABS 和 VSC — Figure 8414

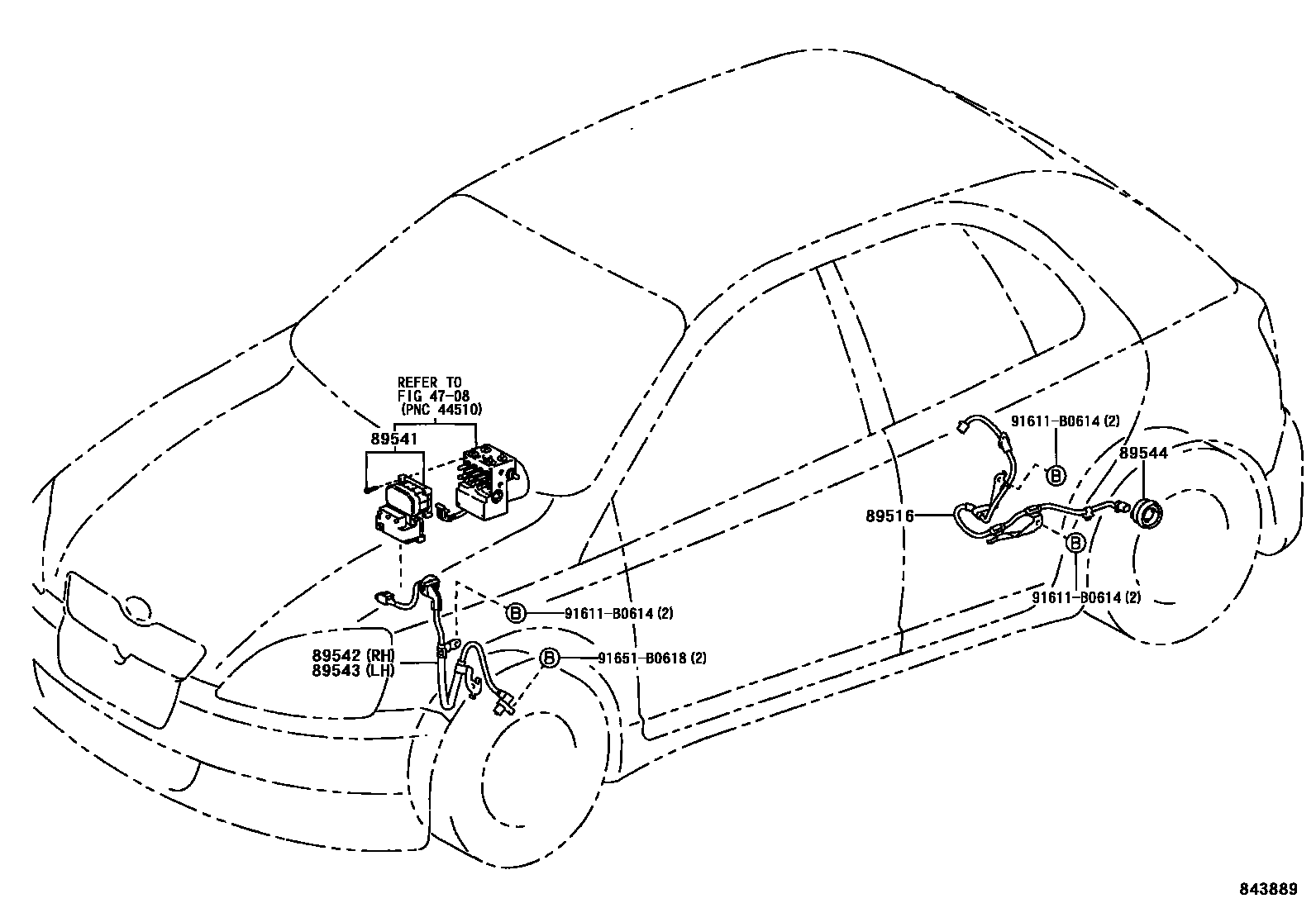

Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89516 | Anti-skid control sensor wiring harness | 89516-0D010 · 89516-0D020 |
| 89541 | Anti-skid control ECU | 89541-09020 · 89541-09021 |
| 89542 | Right front wheel speed sensor | 89542-0D010 |
| 89543 | Left front wheel speed sensor | 89543-0D010 |
| 89544 | Anti-skid control sensor | 89544-52020 · 89544-52030 |
