Toyota YARIS 电子控制柴油机(ECD) — Figure 8405

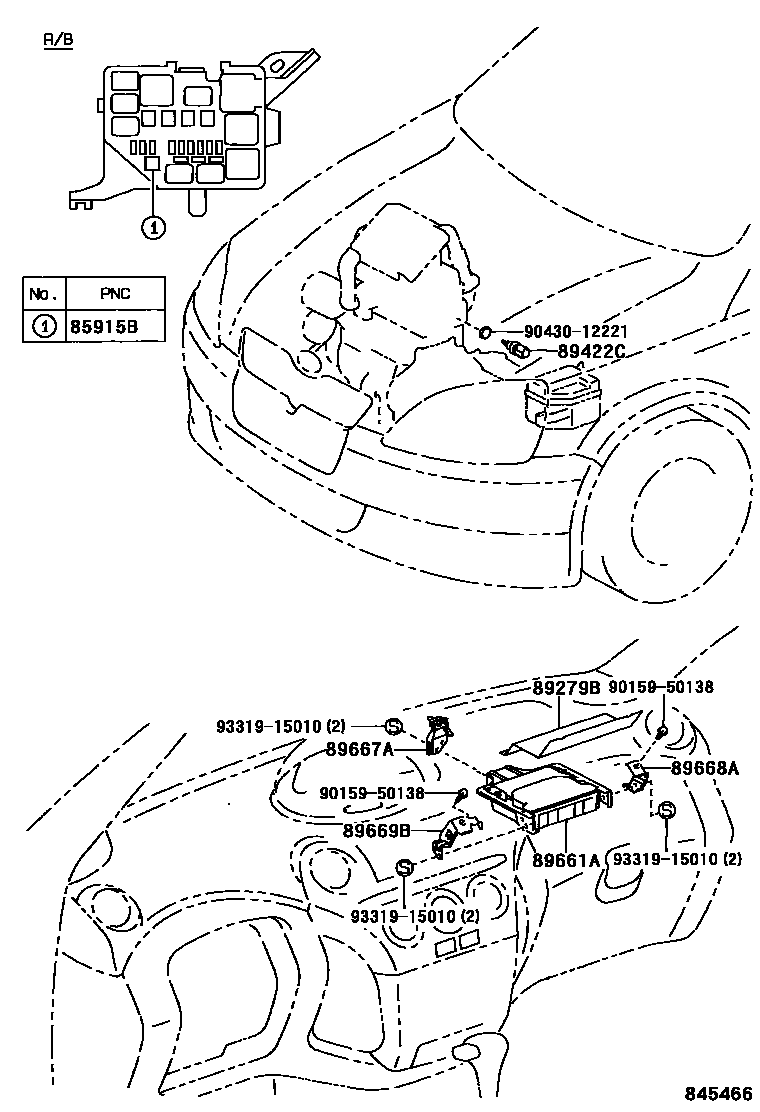

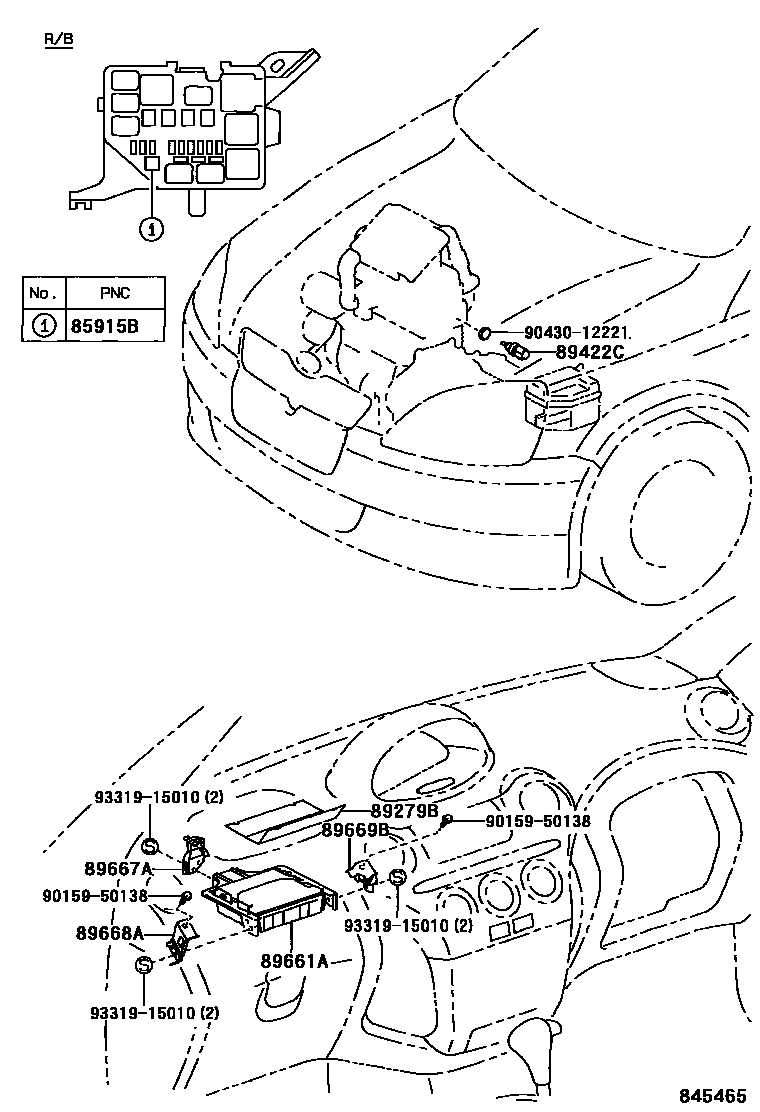

Toyota YARIS EPC diagram 8405, 电子控制柴油机(ECD), with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85915B | Main relay (for diesel turbine) | 90080-87019 |
| 89279B | Diesel engine control ECU cover | 89279-52050 |
| 89422C | Diesel engine water temperature sensor | 89422-35010 |
| 89661A | Engine control ECU | 89661-0D170 · 89661-0D171 |
| 89667A | No. 1 engine control ECU bracket | 89667-52030 |
| 89668A | No. 2 engine control ECU bracket | 89668-52030 · 89668-52050 |
| 89669B | No. 3 engine control ECU bracket | 89669-52030 · 89669-52040 |
