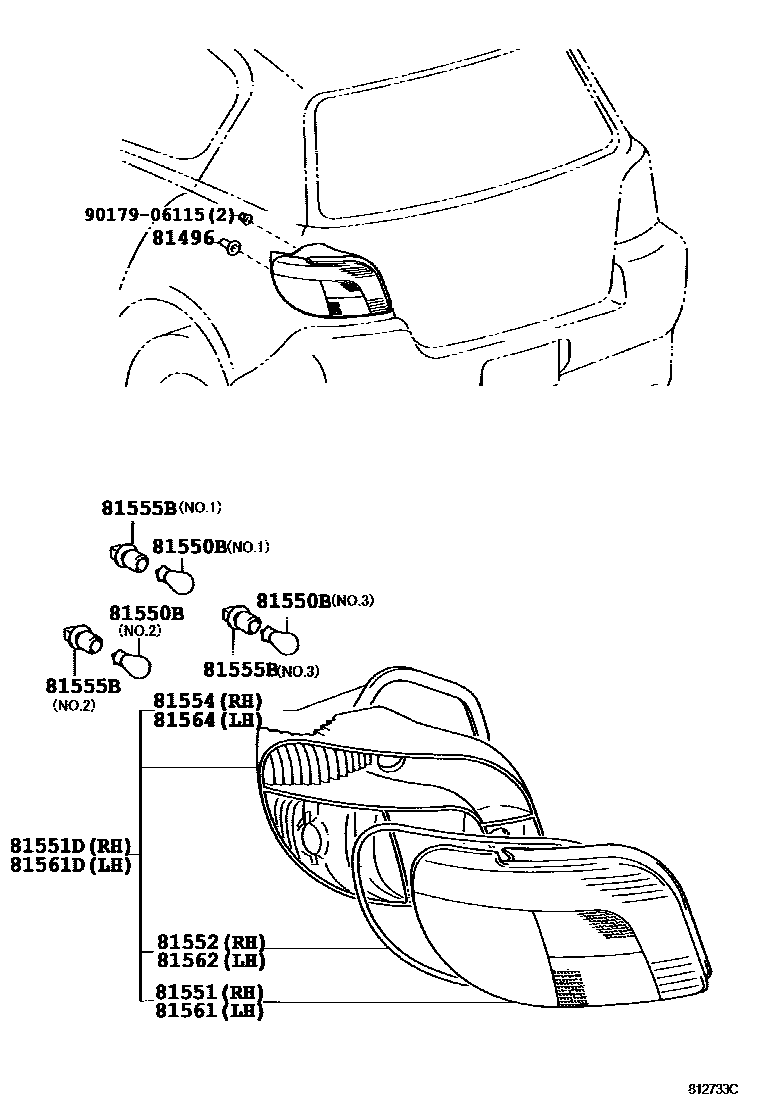

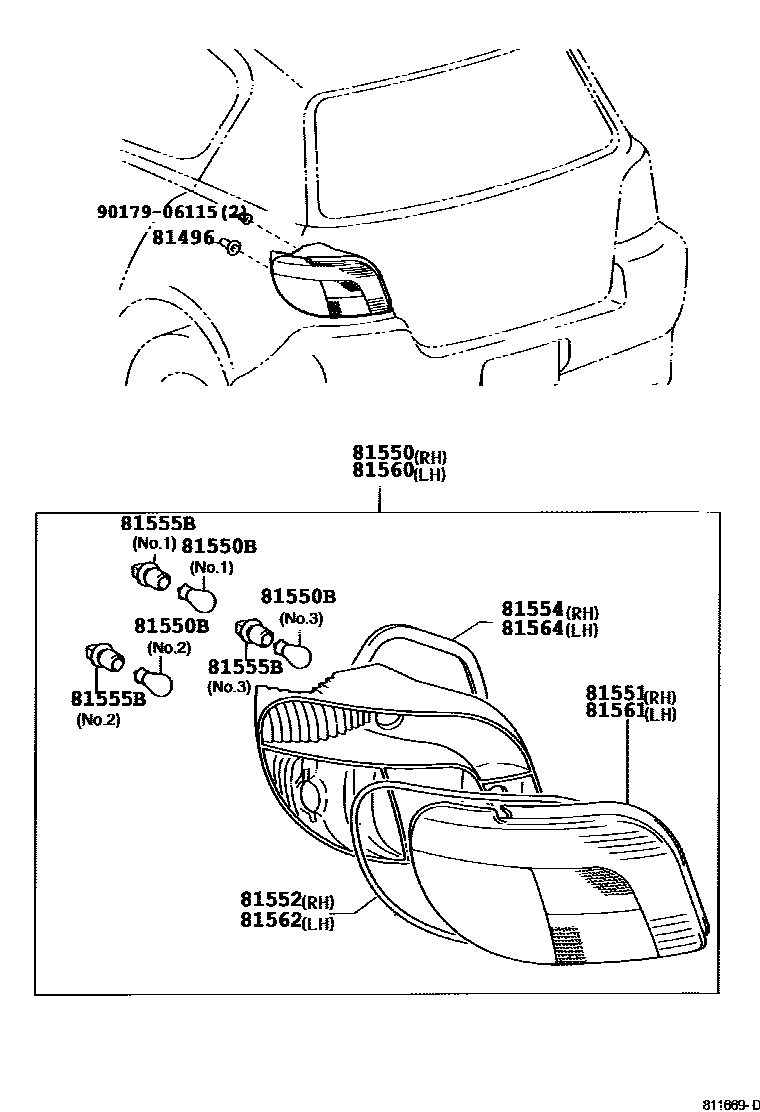

Toyota YARIS 后组合灯 — Figure 8111
Toyota YARIS EPC diagram 8111, 后组合灯, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-0D010 |
| 81550 | Right rear combination light assembly | 81550-0D010 · 81550-0D020 |
| 81550B | Bulb (for rear combination lights) | 90080-81088 · 90080-81089 · 90080-81090 · 90981-WC005 · 90981-WC006 |
| 81551 | Right rear combination lamp shade | 81551-0D010 · 81553-0D070 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-0D070 · 81551-0D080 |
| 81552 | Right rear combination lamp shade gasket | 81552-0D010 |
| 81554 | Right rear combination lamp body gasket | 81554-0D020 · 81554-0D070 |
| 81555B | No. 1 lamp holder plug | 90069-81013 · 90069-81014 · 90069-81015 |
| 81560 | Left rear combination light assembly | 81560-0D010 · 81560-0D020 |
| 81561 | Left rear combination lamp shade | 81561-0D010 · 81563-0D070 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-0D070 · 81561-0D080 |
| 81562 | Left rear combination lamp shade gasket | 81552-0D010 |
| 81564 | Left rear combination lamp body gasket | 81564-0D020 · 81564-0D070 |
