Toyota YARIS Fog Lamp — Figure 8102

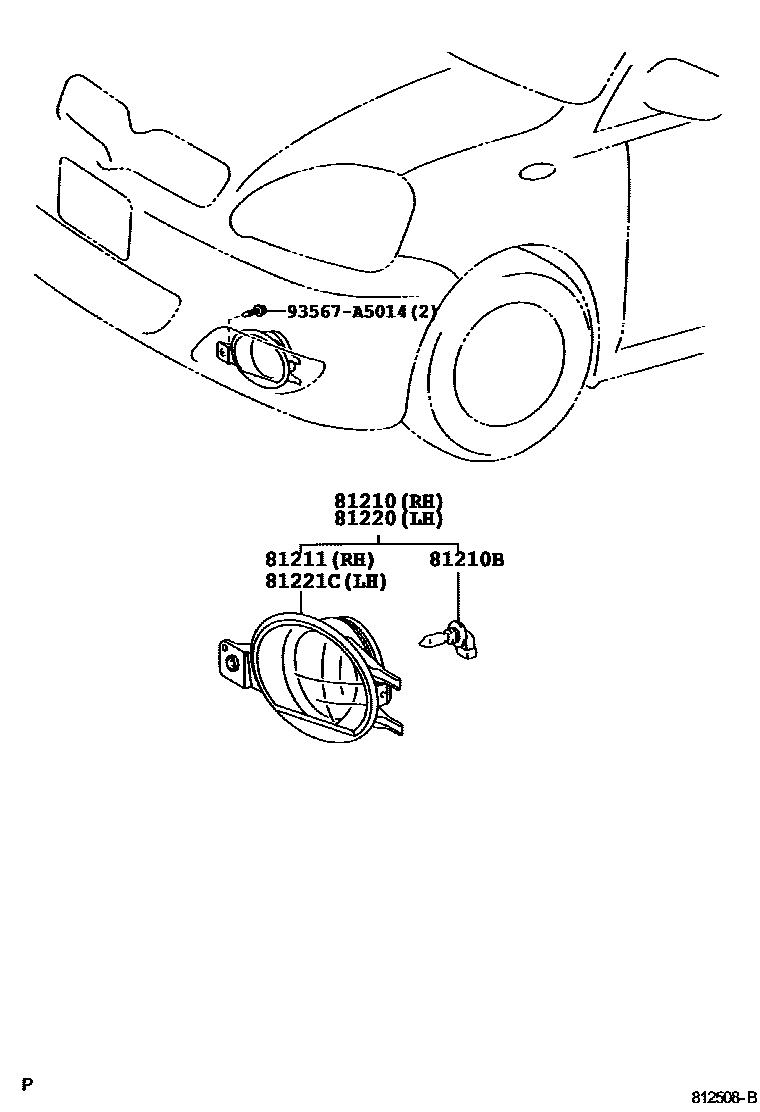

Toyota YARIS EPC diagram 8102, Fog Lamp, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210 | Fog light assembly | 81210-0D020 |
| 81210B | fog light bulb | 90981-13047 · 90981-WD009 |
| 81211 | fog lamp shade | 81211-0D020 |
| 81220 | Left fog light assembly | 81220-0D020 |
| 81221C | Left fog light assembly | 81221-0D020 |
