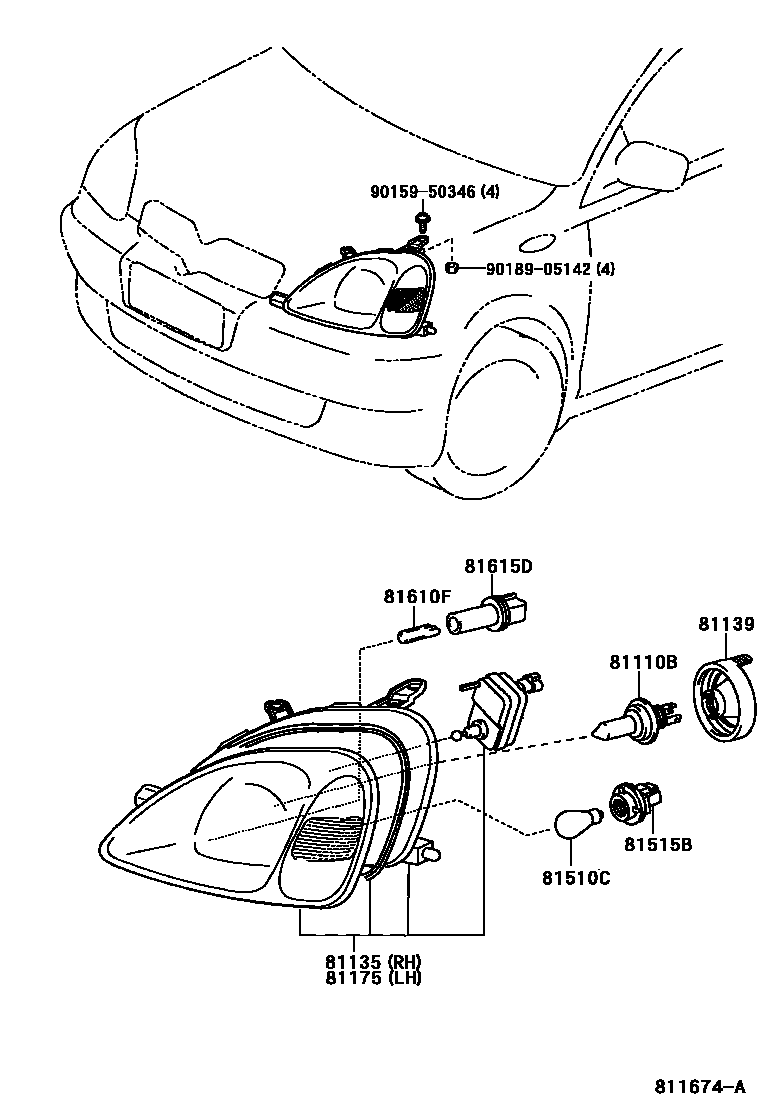

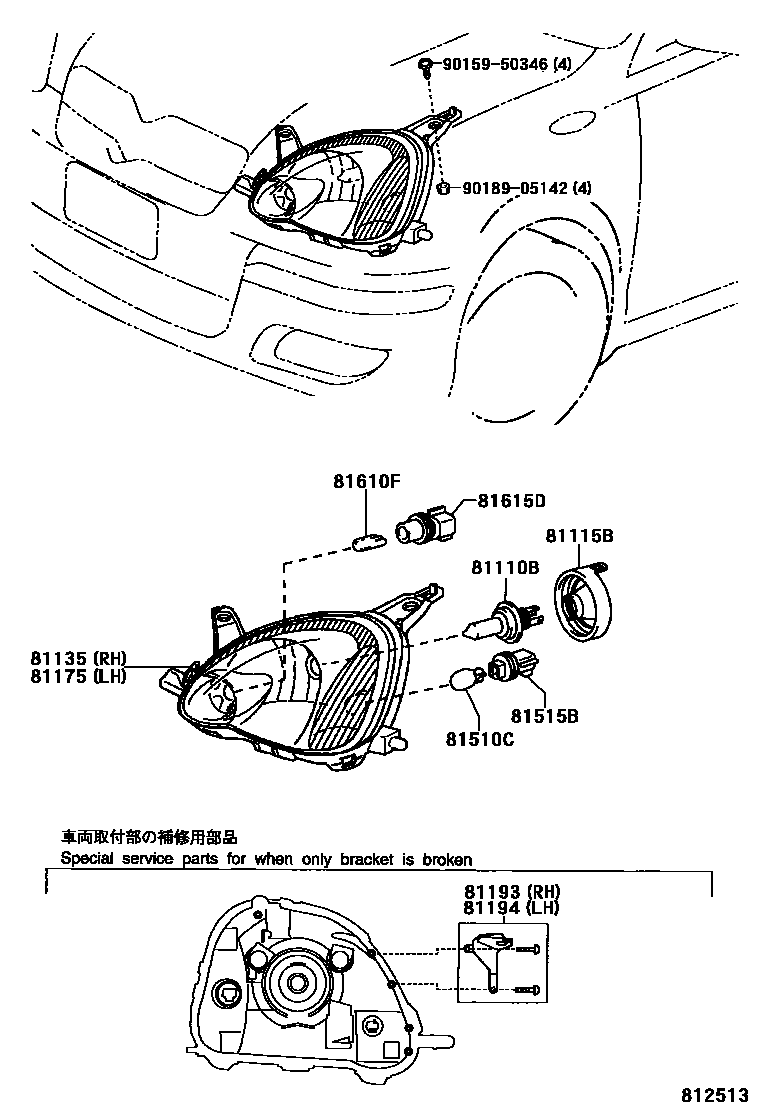

Toyota YARIS Headlamp — Figure 8101
Toyota YARIS EPC diagram 8101, Headlamp, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110B | Bulb (for headlight No. 1) | 90080-81076 · 90080-81077 · 90080-81085 |
| 81115B | No. 1 headlight lamp holder | 81139-0D010 |
| 81135 | Right headlight assembly | 81130-0D010 · 81130-0D011 · 81130-0D020 · 81130-0D021 · 81130-0D080 · 81130-0D090 |
| 81139 | Headlight lamp holder cover | 81139-0D010 |
| 81175 | Left headlight assembly | 81170-0D010 · 81170-0D011 · 81170-0D020 · 81170-0D021 · 81170-0D080 · 81170-0D090 |
| 81193 | Right headlight upper protective ring | 81193-52010 |
| 81194 | Left headlight upper protective ring | 81194-52010 |
| 81510C | Bulb (for front turn signal lamp) | 90080-81046 · 90080-81091 · 90080-81092 · 90080-81093 · 90981-WF003 |
| 81515B | Front turn signal lamp holder | 90069-81011 · 90069-81052 |
| 81610F | Light bulb (for width indicator light) | 90080-81080 · 90981-WB003 |
| 81615D | Width light lamp holder | 90069-81010 · 90069-81051 |
