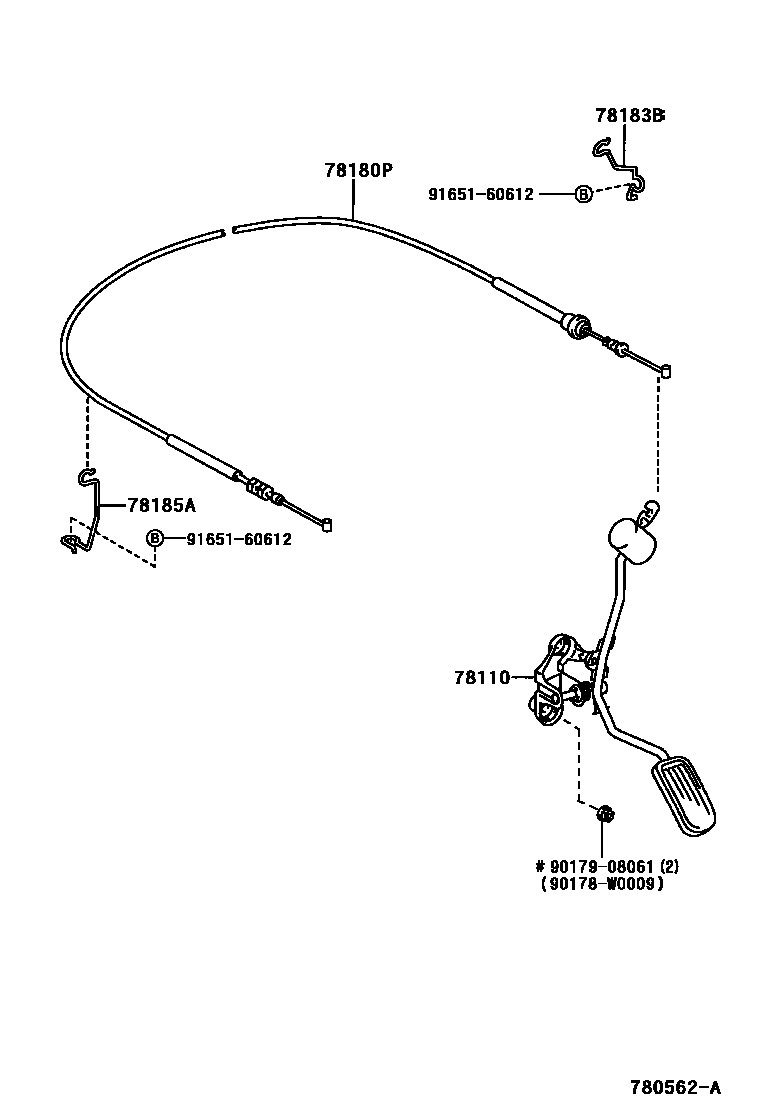

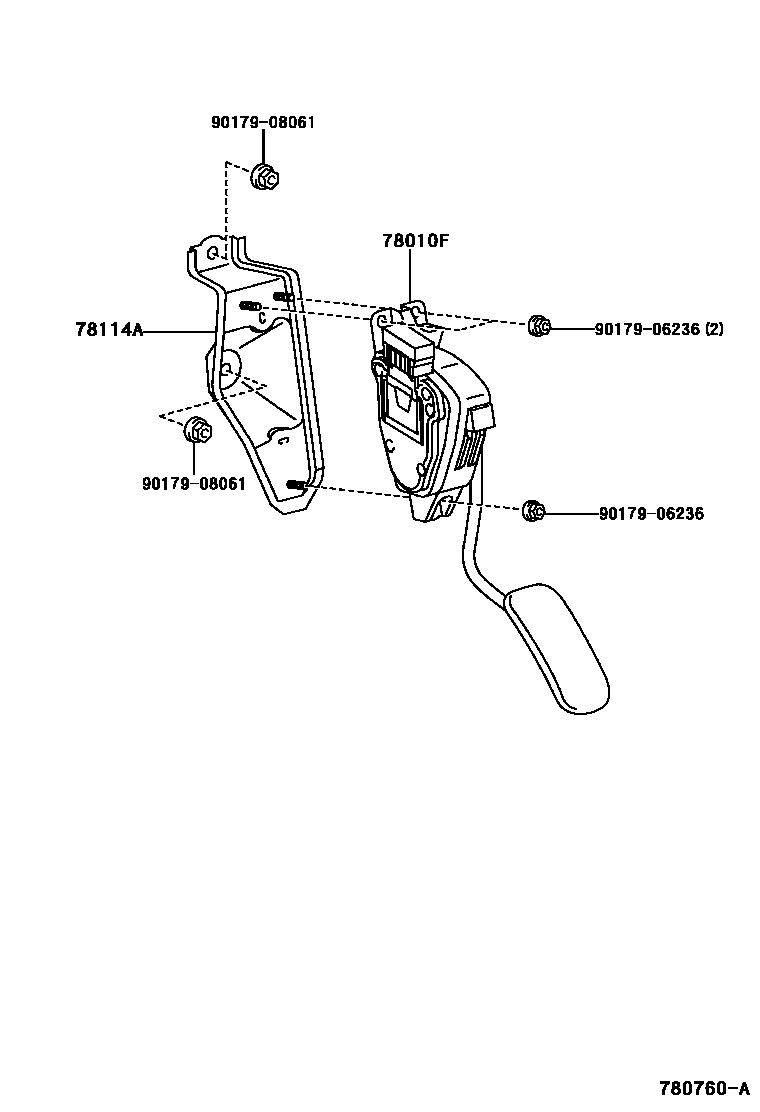

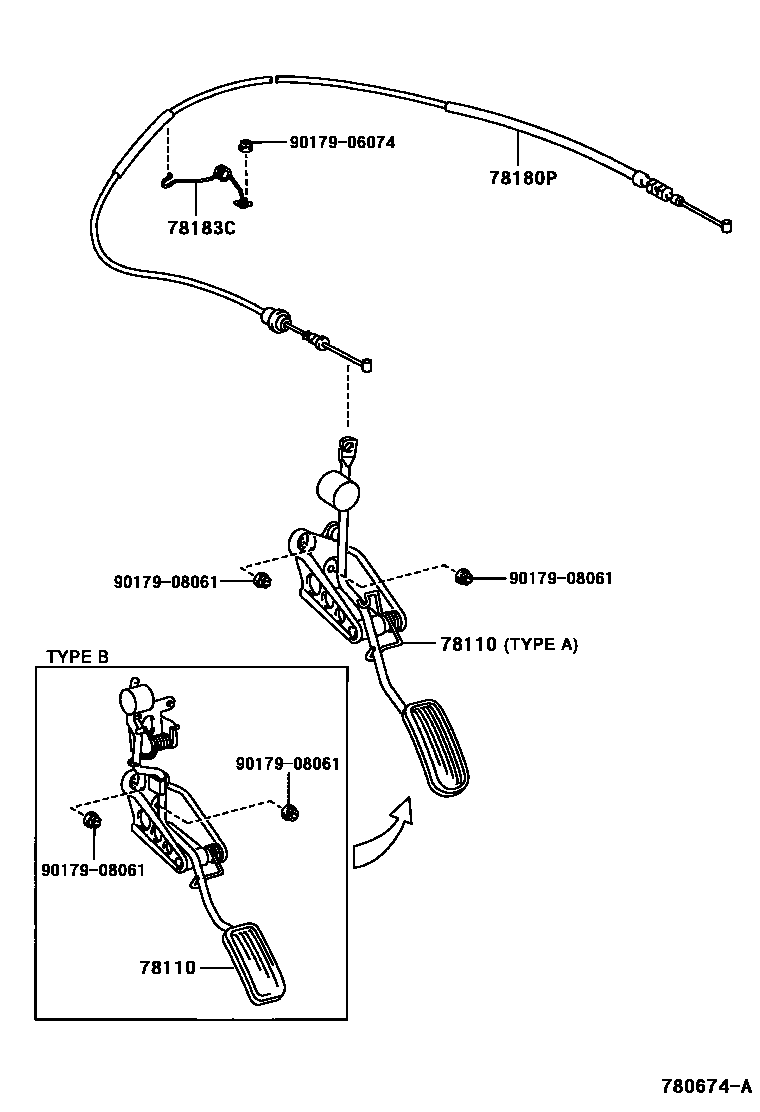

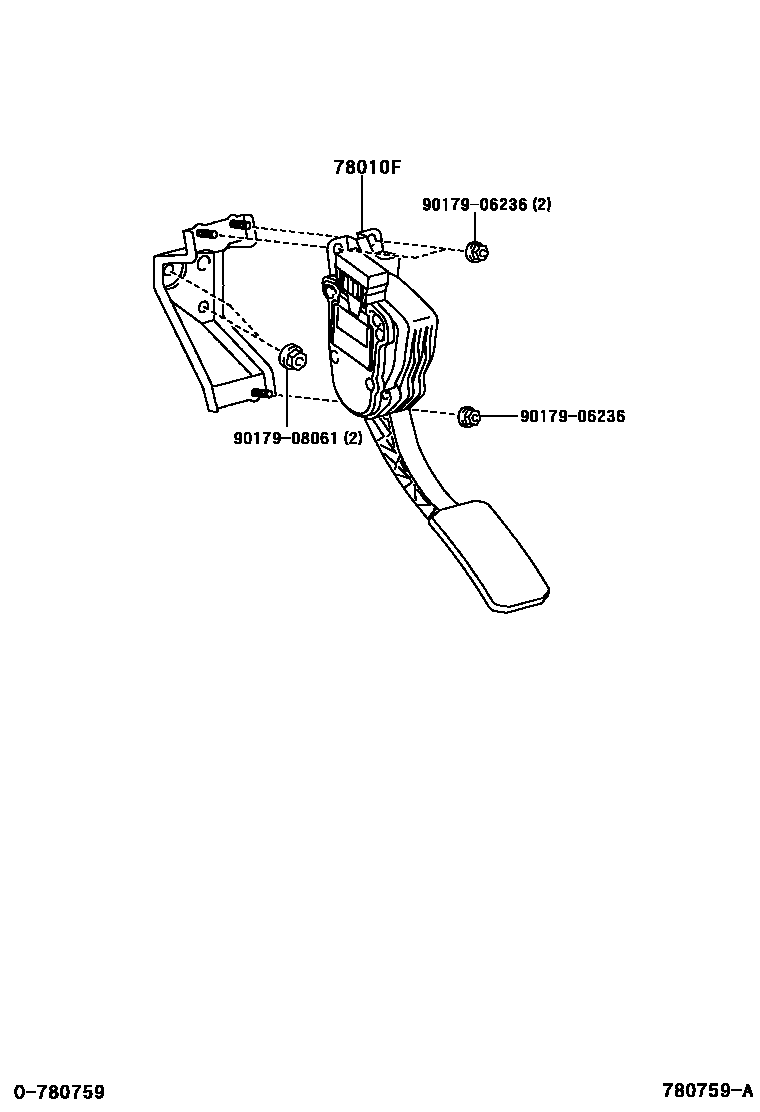

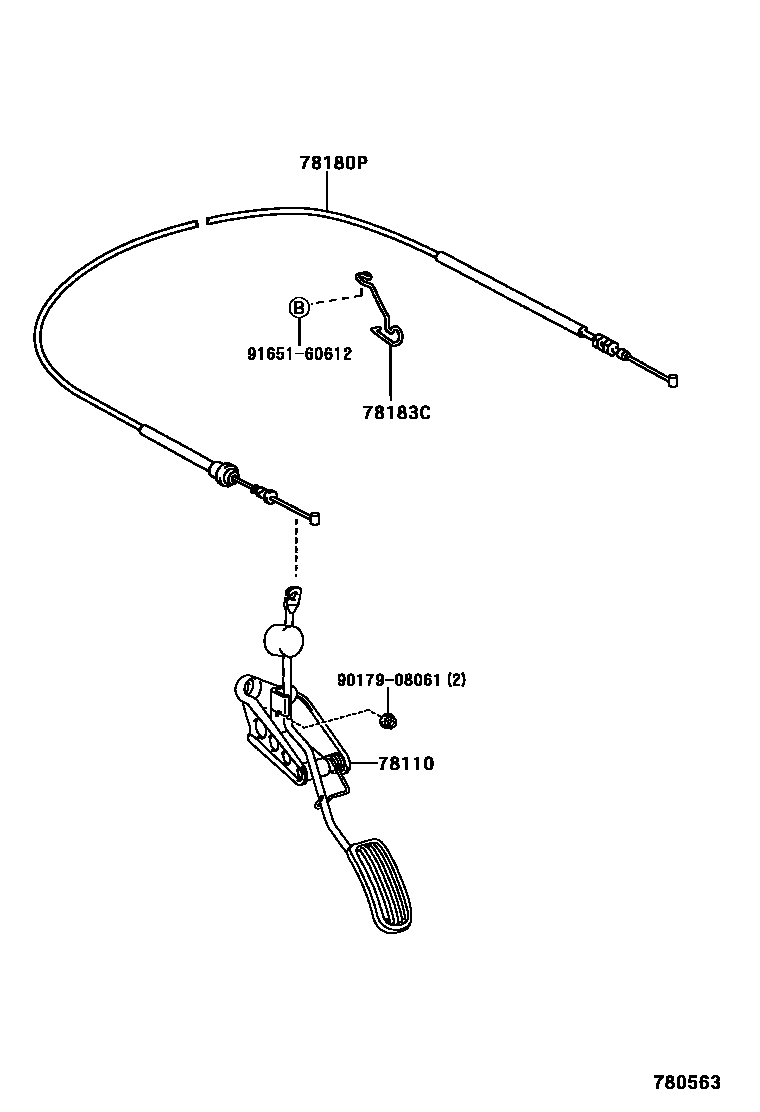

Toyota YARIS accelerator pedal connecting rod — Figure 7801
Toyota YARIS EPC diagram 7801, accelerator pedal connecting rod, with 5 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78010F | Accelerator pedal assembly | 78010-0D010 · 78010-0D020 · 78010-0D030 |
| 78110 | Accelerator pedal lever assembly | 78120-0D010 · 78120-52030 · 78120-52080 |
| 78114A | accelerator pedal bracket | 78114-0D020 |
| 78180P | Accelerator pedal control cable assembly | 78180-0D010 · 78180-0D020 · 78180-0D040 · 78180-0D050 |
| 78183B | Accelerator pedal control cable clip | 78183-52110 |
| 78183C | Accelerator pedal control cable clip | 78183-52090 · 78183-52180 |
| 78185A | No. 2 accelerator pedal control cable clip | 78183-52041 |
