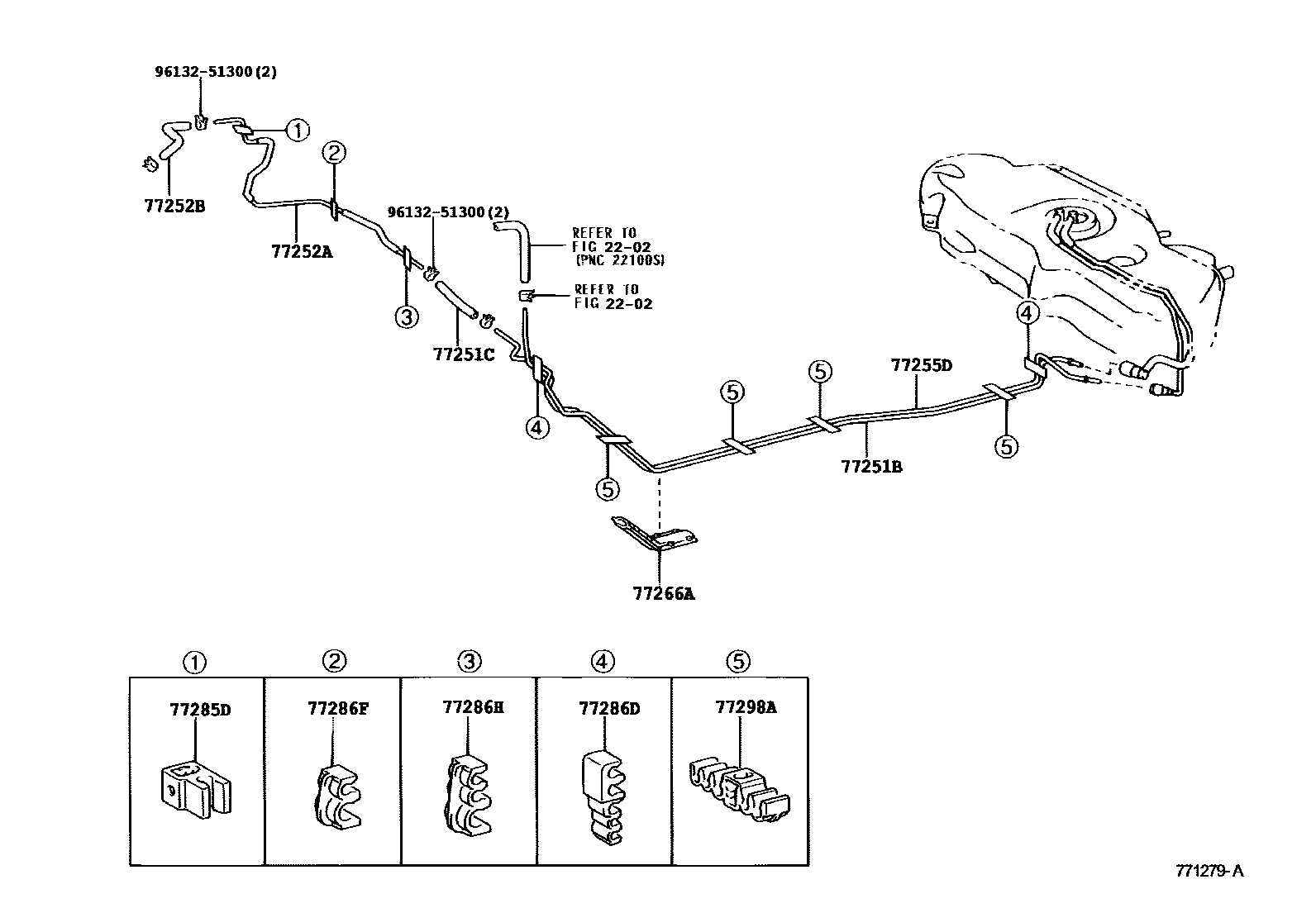

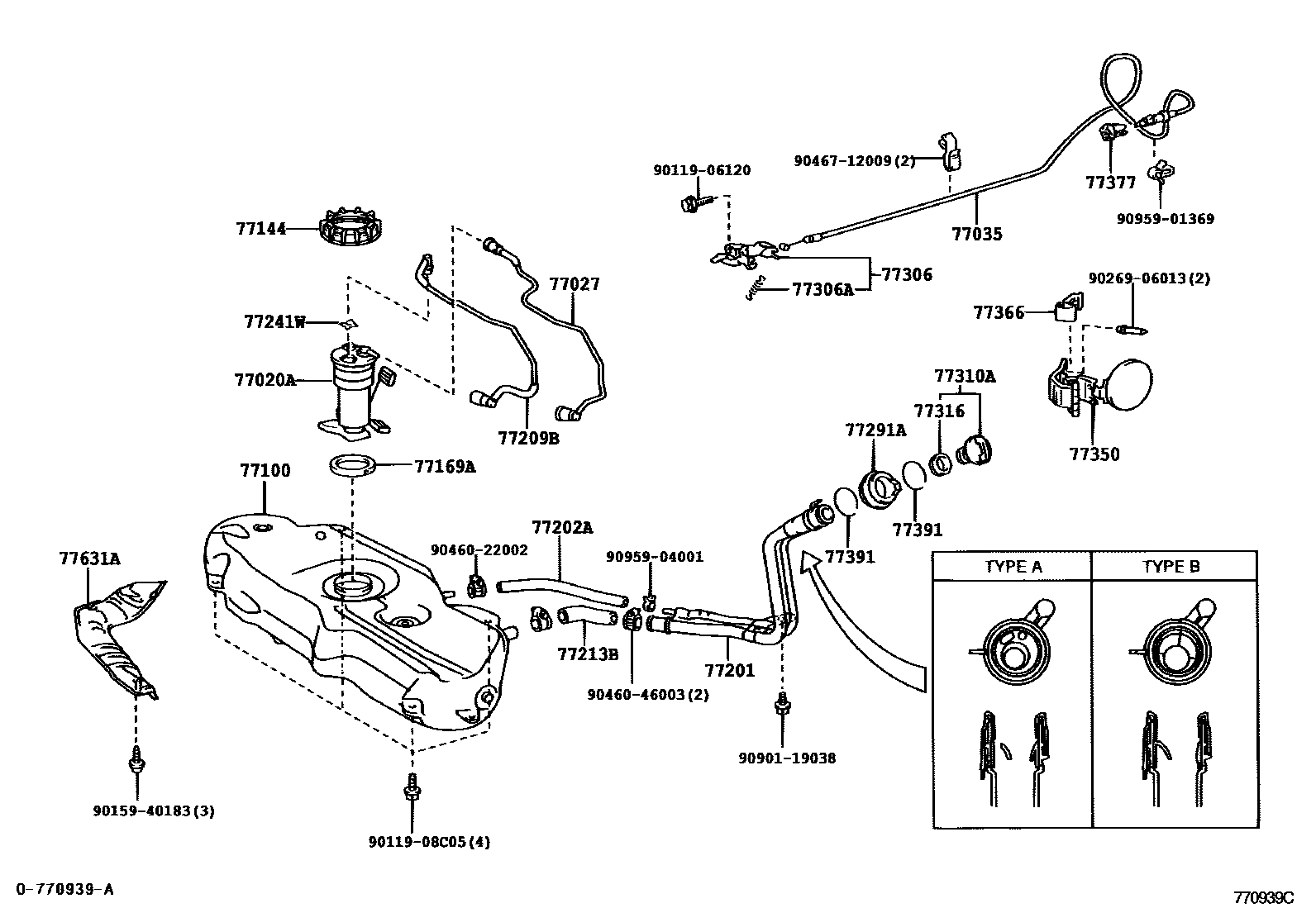

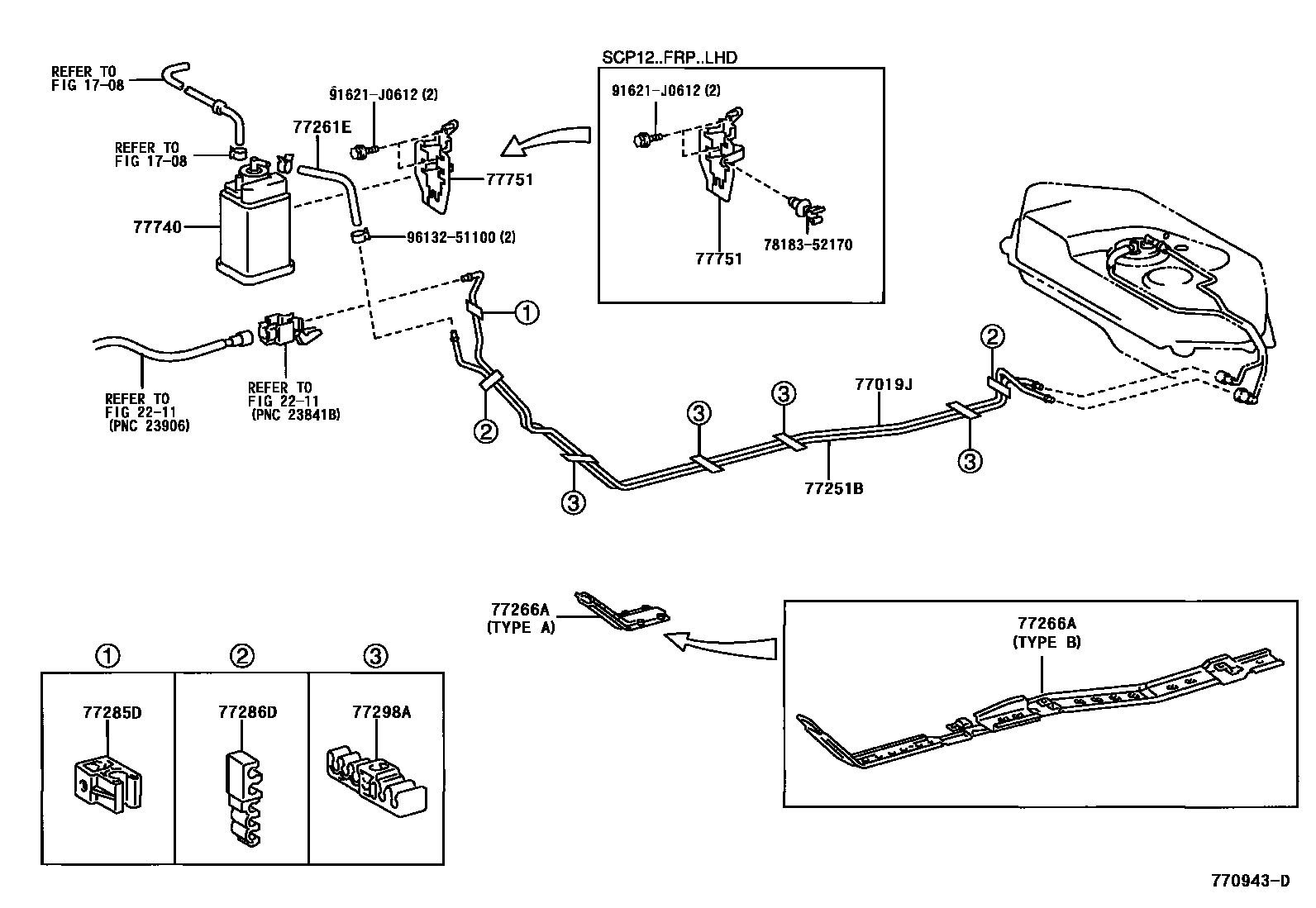

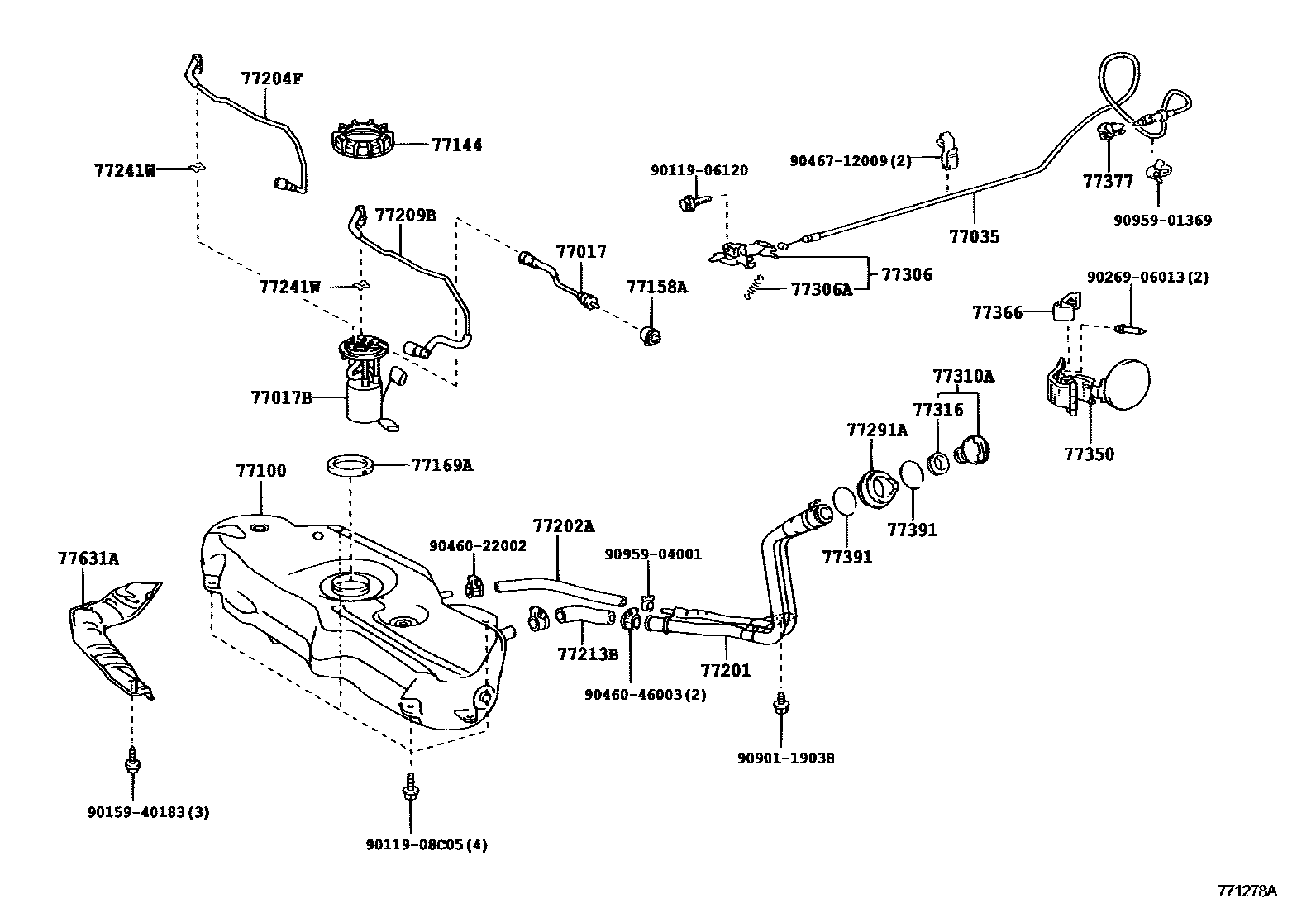

Toyota YARIS 燃油箱和燃油管 — Figure 7701
Toyota YARIS EPC diagram 7701, 燃油箱和燃油管, with 4 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77017 | Fuel and evaporative vent pipe sub-assembly | 77017-0D010 |
| 77017B | Fuel tank vent pipe sub-assembly | 77010-0D010 |
| 77019J | Fuel tank to carbon canister hose sub-assembly | 77261-0D010 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0D010 · 77020-0D020 |
| 77027 | No. 2 fuel evaporation pipe sub-assembly | 77027-0D010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0D010 · 77035-0D020 |
| 77100 | fuel tank assembly | 77001-0D010 · 77001-0D060 |
| 77144 | Fuel pump instrument fixture | 77144-0D010 |
| 77158A | Fuel tank suction pipe bracket | 77158-12030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0D010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-0D010 · 77201-0D020 · 77201-0D060 |
| 77202A | No. 1 fuel hose (for breather pipe) | 77259-0D010 · 95313-13032 |
| 77204F | Fuel tank filling pipe upper bracket sub-assembly | 77204-0D020 |
| 77209B | Fuel pump pipe sub-assembly | 77209-0D010 |
| 77213B | Fuel tank to filler pipe hose | 77213-52050 · 77213-52080 |
| 77241W | Pipe joint clip | 77241-32060 |
| 77251B | main fuel pipe | 77251-0D010 · 77251-0D060 |
| 77252A | No. 2 main fuel pipe | 77252-0D010 · 77252-0D020 · 77252-0D030 |
| 77252B | No. 1 fuel hose (for No. 2 main fuel line) | 77259-52010 |
| 77255D | fuel return pipe | 77255-0D010 |
| 77266A | No. 1 fuel line protection device | 77266-52010 · 77266-52030 |
| 77285D | No. 1 fuel pipe clamp | 77285-52010 |
| 77286D | No. 2 fuel pipe clamp | 77286-52010 |
| 77286F | No. 2 fuel pipe clamp | 77286-52030 |
| 77286H | No. 3 fuel pipe clamp | 77286-10020 · 77286-52040 |
| 77291A | Fuel tank filler pipe cover | 77291-0D010 |
| 77298A | No. 4 fuel pipe clamp | 77298-52010 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-13020 · 77306-13030 |
| 77306A | Fuel filler cap opening lever spring | 90506-09004 |
| 77310A | Fuel tank cap assembly | 77300-28010 · 77300-60010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-52010 |
| 77366 | Fuel filler cap hinge spring | 77366-52010 |
| 77377 | Fuel filler cap lock retainer | 77377-0D010 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77631A | Fuel tank center lower protective shell | 77631-0D010 |
| 77740 | Carbon canister assembly | 77740-0D010 · 77740-0D011 · 77740-0D012 |
| 77751 | Carbon canister base bracket | 77751-52040 · 77751-52050 |
