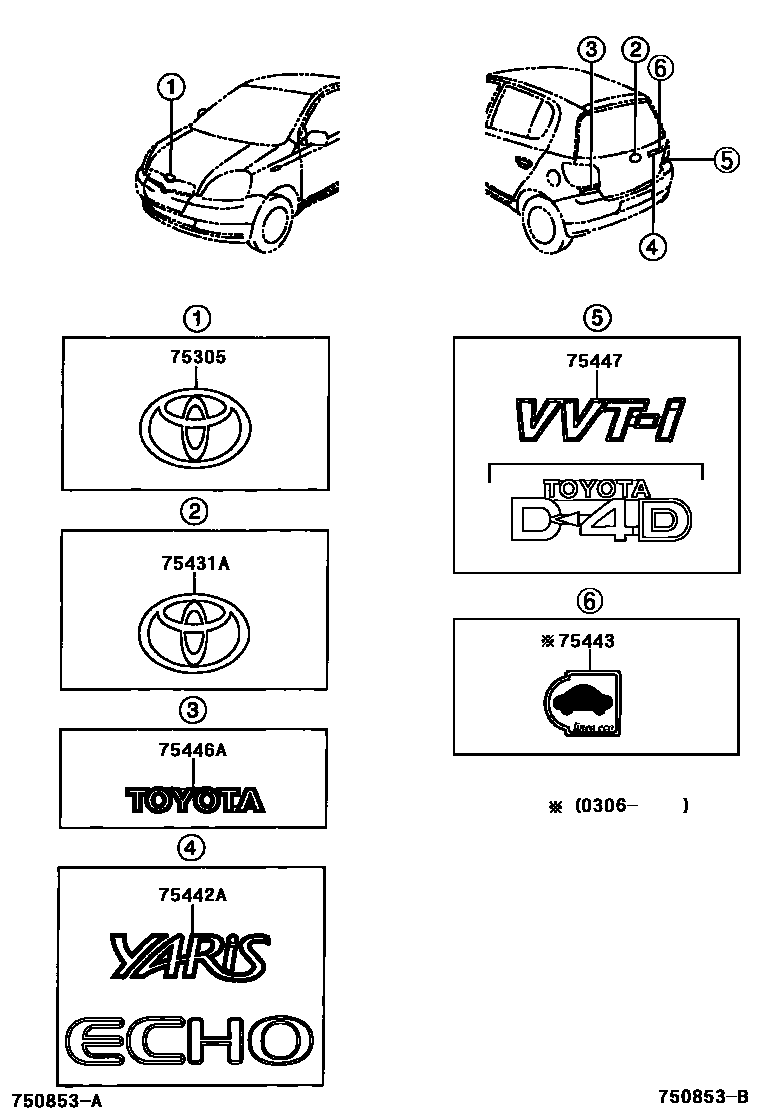

Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75305 | engine cover plate | 75331-0D010 |
| 75431A | No. 1 sign on back door | 75431-0D010 |
| 75442A | No. 2 nameplate on back door | 75442-0D010 · 75442-52030 |
| 75443 | No. 3 nameplate on back door | 75443-52120 |
| 75446A | No. 6 nameplate on back door | 75446-0D010 |
| 75447 | Trunk door No. 7 nameplate | 75447-0D010 · 75447-0D020 |
