Toyota YARIS 警示铭牌(车外和车内) — Figure 7403

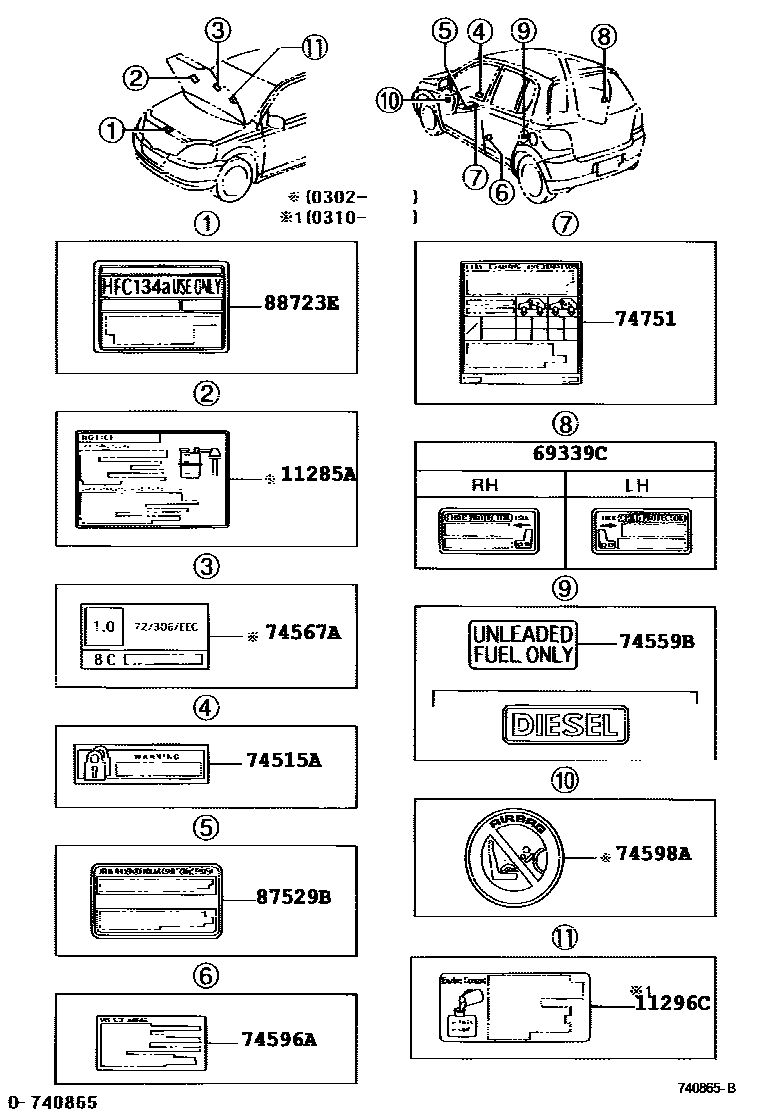

Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-33010 |
| 11296C | Engine maintenance information label | 11296-27020 |
| 69339C | Child Restraint Information Label | 69339-0D010 · 69339-52010 · 69349-0D010 · 69349-52010 |
| 74515A | Anti-theft warning nameplate | 74515-0D010 |
| 74559B | fuel information label | 74559-02010 · 74559-05010 |
| 74567A | E.C.E approval number plate | 74567-20261 |
| 74596A | Side air bag warning label | 74596-12011 |
| 74598A | Passenger air bag warning label | 74598-0D020 |
| 74751 | tire pressure information label | 42661-0D010 · 42661-0D020 · 42661-0D060 · 42661-0D070 · 42661-0D100 · 42661-52162 |
| 87529B | Cabin filter information label | 87529-0D010 |
| 88723E | Cooler maintenance warning label | 88723-0D010 · 88733-0D020 |
