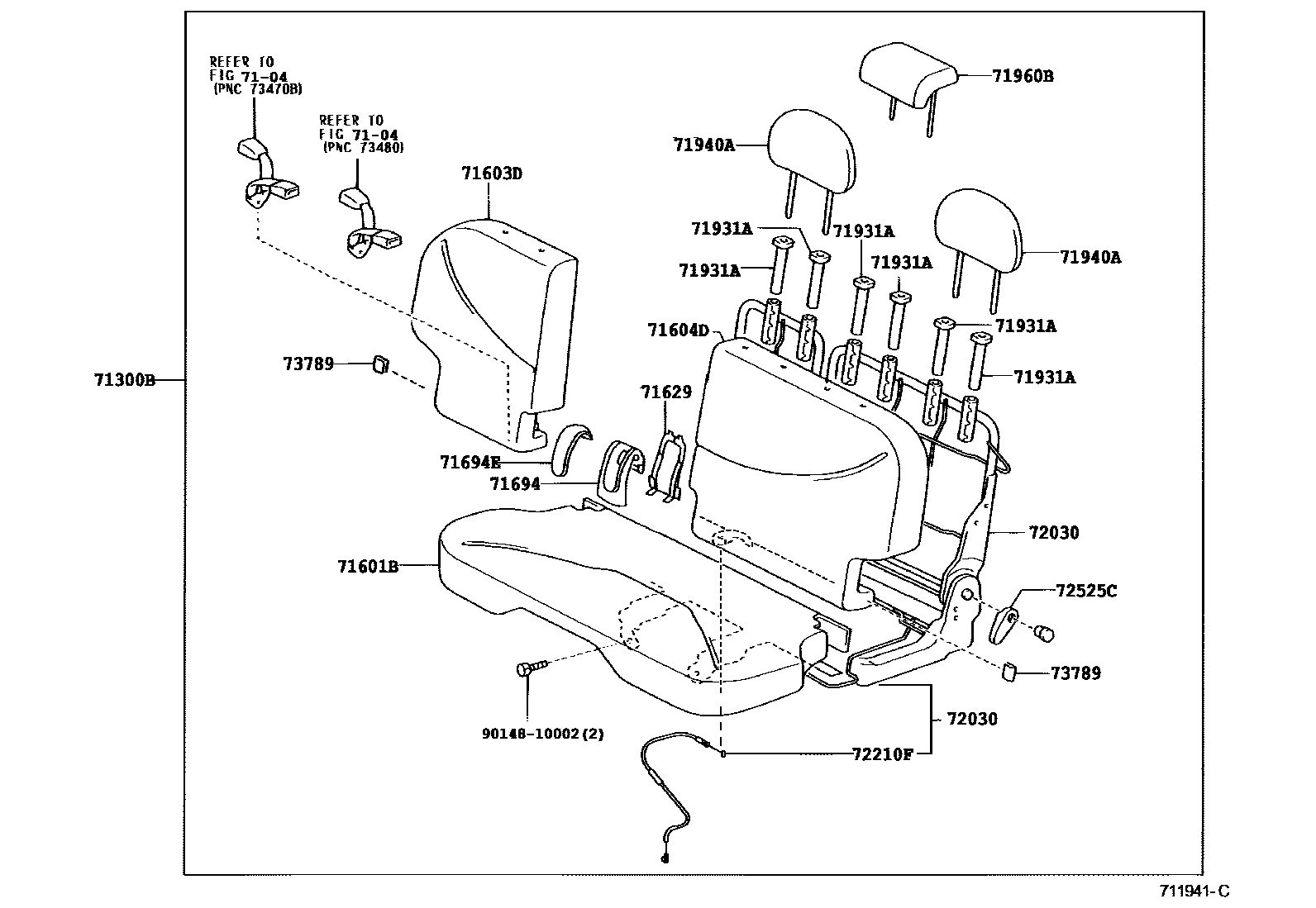

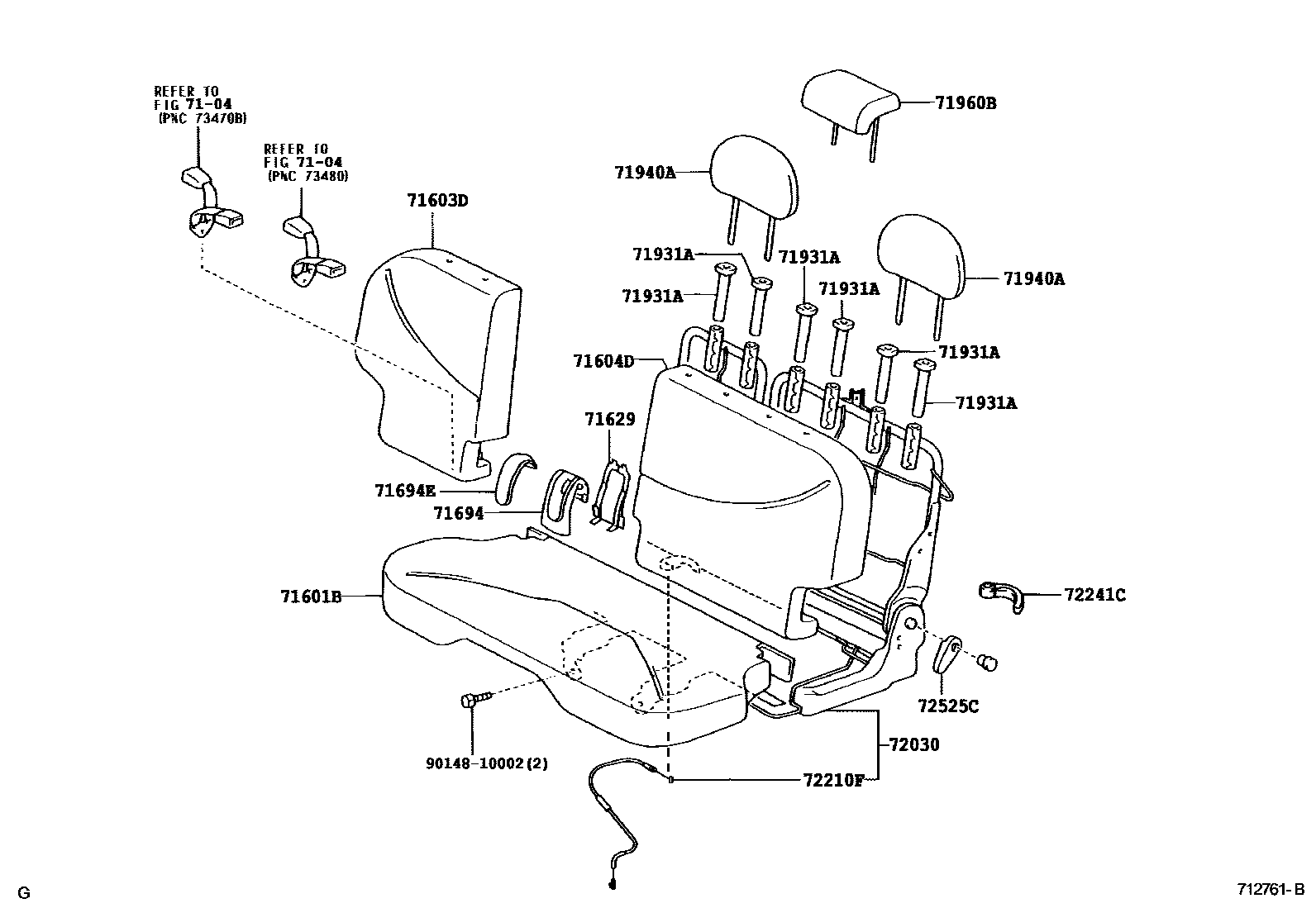

Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102
Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 72030 | Rear No. 1 seat adjuster assembly | 72030-0D010 · 72030-0D020 · 72030-0D030 · 72030-0D070 · 72030-0D100 |
| 72210F | Seat slide rail control cable assembly | 72210-0D010 |
| 72241C | Right seat outer slide rail locking lever | 72241-0D010 |
