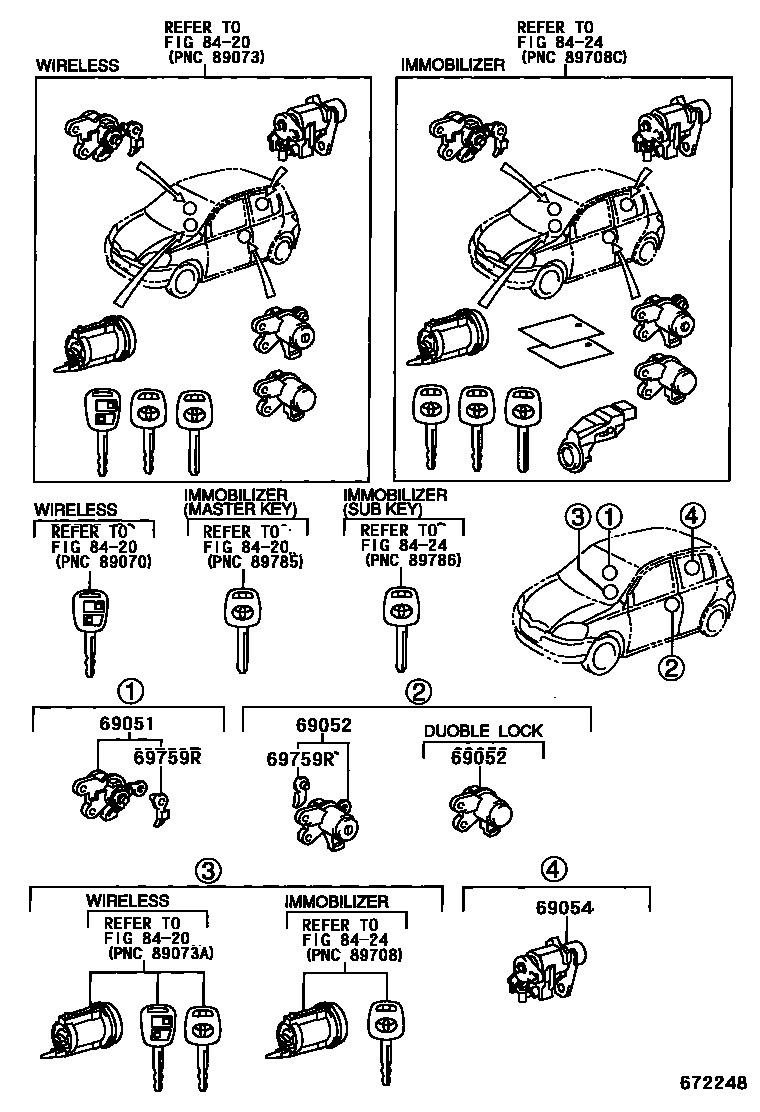

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-0D010 |
| 69052 | Left door lock cylinder and key assembly | 69052-0D010 · 69520-0D020 |
| 69054 | Rear door lock cylinder and key assembly | 69055-0D010 |
| 69759R | Front door lock cylinder buckle | 69759-32090 · 69759-32100 |
