Toyota YARIS 前门锁和车门把手 — Figure 6703

Toyota YARIS EPC diagram 6703, 前门锁和车门把手, with 1 images and 21 PNC and OE references.

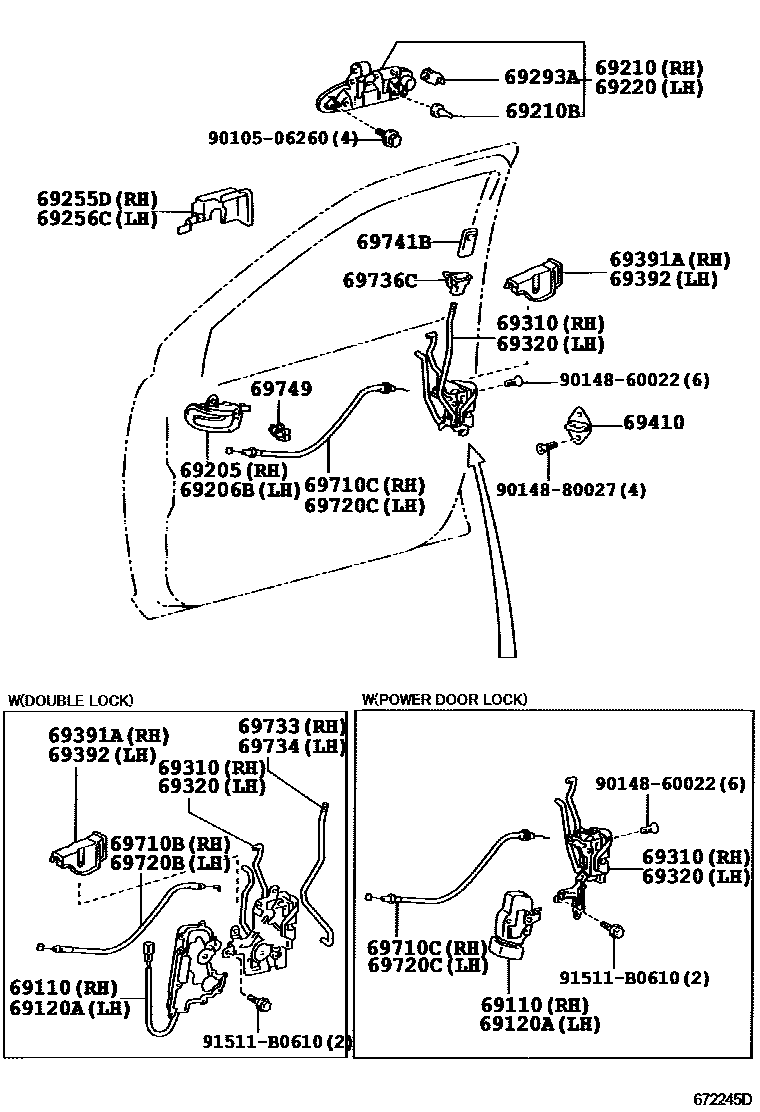

Toyota YARIS 前门锁和车门把手 EPC diagram — 672245D
前门锁和车门把手 — 672245D (200101 – 999999)

PNC and OE references

PNCPart nameOE numbers
69110Right front door lock actuator assembly69110-0D010 · 69110-0D011 · 69110-0D020 · 69110-0D021 · 69110-52030 · 69110-52090
69120ALeft front door lock actuator assembly69120-0D010 · 69120-0D011 · 69120-0D020 · 69120-0D021 · 69120-52070 · 69120-52080
69210Right front door outer handle assembly69210-0D010 · 69210-0D901
69210BCushion pad (for front door outer handle)90080-54028
69220Left front door outer handle assembly69220-0D010 · 69220-0D900
69255DCar door outer handle protector69255-52010 · 69255-52020
69256CLeft door outer handle protector69256-52030 · 69256-52040
69293AFront door outer handle buckle69293-12030 · 69293-12040
69310Right front door lock assembly69310-0D010 · 69310-0D011 · 69310-0D020 · 69310-0D021 · 69310-0D030 · 69310-0D031 · 69310-0D040 · 69310-0D041 · 69310-52170 · 69310-52180
69320Left front door lock assembly69320-0D010 · 69320-0D011 · 69320-0D020 · 69320-0D021 · 69320-0D030 · 69320-0D031 · 69320-0D040 · 69320-0D041 · 69320-52200 · 69320-52210
69391ARight front door lock outer cover69391-0D010 · 69391-52010
69392Left front door lock outer cover69392-0D010 · 69392-52010
69410Front door lock plate assembly69410-0D010
69710BRight front door lock remote control cable assembly69710-52010 · 69710-52020
69710CFront door lock remote control cable assembly69710-0D010 · 69710-0D020
69720BLeft front door lock remote control cable assembly69710-52010 · 69710-52020
69720CFront door lock remote control cable assembly69710-0D010 · 69710-0D020
69733Right front door inner locking link69733-52010 · 69733-52020
69734Left front door inner locking link69734-52010 · 69734-52020
69736CFront door locking link guide block69736-12130
69749Front door lock link clip69749-52010
