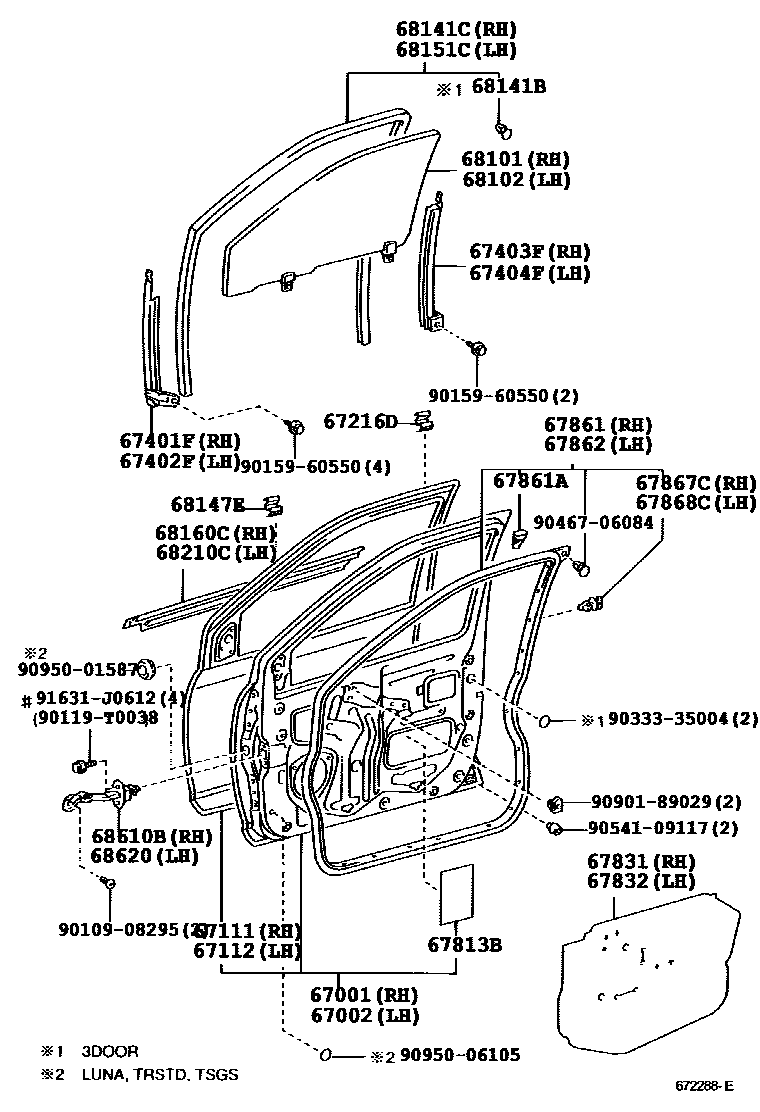

Toyota YARIS 前门板和前门玻璃 — Figure 6701
Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 3 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-0D010 · 67001-0D020 · 67001-0D030 · 67001-0D090 · 67001-0D100 |
| 67002 | Left front door panel sub-assembly | 67002-0D010 · 67002-0D020 · 67002-0D030 · 67002-0D090 · 67002-0D100 |
| 67111 | Outer right front door panel | 67111-0D010 · 67111-0D020 |
| 67112 | Outer left front door panel | 67112-0D010 · 67112-0D020 |
| 67216D | No. 2 front door glass upper stop | 67216-52010 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-52010 · 67401-52011 · 67401-52020 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-52010 · 67402-52011 · 67402-52020 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-52010 · 67403-52050 · 67403-52060 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-52010 · 67404-52080 · 67404-52090 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-0D010 · 67491-0D020 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-0D010 · 67492-0D020 |
| 67601H | Right door trim panel fixing | 67771-35010 |
| 67602A | Left door trim panel fixing | 67771-35010 |
| 67625 | Right front door trim panel bracket | 67625-52010 |
| 67626 | Left front door trim panel bracket | 67625-52010 |
| 67657B | door speaker grille gasket | 67657-0D010 |
| 67813B | door guard seals | 67817-0D050 |
| 67831 | Right front door access hole cover | 67831-0D010 · 67831-0D020 · 67831-0D030 · 67831-0D040 · 67831-0D050 · 67831-0D060 |
| 67832 | Left front door access hole cover | 67831-0D010 · 67831-0D020 · 67831-0D030 · 67831-0D040 · 67832-0D010 · 67832-0D020 |
| 67861 | Right front door seal | 67861-0D010 · 67861-0D020 |
| 67861A | Fixing piece (for front door sealing strip) | 67867-52020 · 67867-52030 |
| 67862 | Left front door seal | 67862-0D010 · 67862-0D020 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 68101 | Right front door glass sub-assembly | 68110-0D010 · 68110-0D020 |
| 68102 | Left front door glass sub-assembly | 68120-0D010 · 68120-0D020 |
| 68141B | Door glass lift chute clip | 90467-06084 |
| 68141C | Right front door glass lift channel | 68141-0D010 · 68141-0D011 · 68141-0D020 · 68141-0D021 |
| 68147E | Front door glass upper stopper | 68147-52010 |
| 68151C | Left front door glass lift channel | 68151-0D010 · 68151-0D011 · 68151-0D020 · 68151-0D021 |
| 68160C | Right front door glass outer sealing strip assembly | 68160-0D010 · 68160-0D011 · 68160-0D020 · 68160-0D021 |
| 68171B | Right front door glass inner sealing strip | 68171-0D010 · 68171-0D011 · 68171-0D020 · 68171-0D021 |
| 68172A | Left front door glass inner sealing strip | 68172-0D010 · 68172-0D011 · 68172-0D020 · 68172-0D021 |
| 68210C | Left front door glass outer sealing strip assembly | 68210-0D010 · 68210-0D011 · 68210-0D020 · 68210-0D021 |
| 68610B | Right front door opening limiter assembly | 68610-0D010 |
| 68620 | Left front door opening limiter assembly | 68610-0D010 |
