Toyota YARIS 底板和底板装饰罩 — Figure 6404

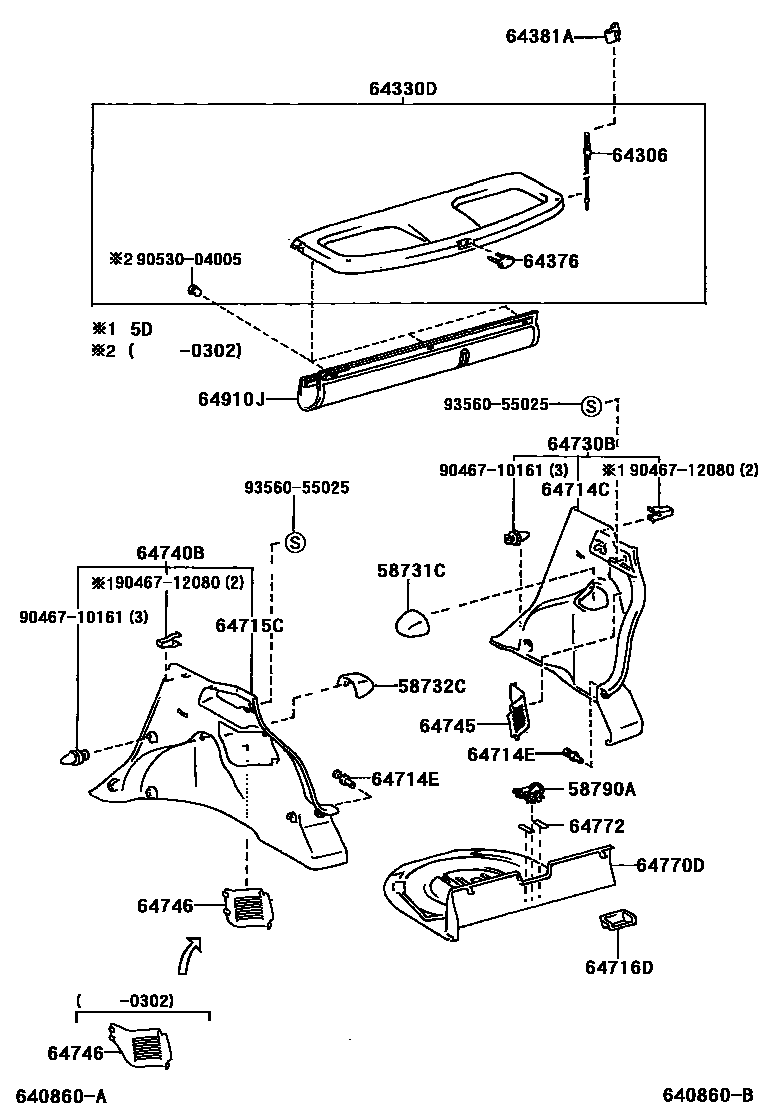

Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58790A | Jack bracket assembly | 58790-52010 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-0D010 · 64306-0D020 |
| 64376 | No. 2 glove box decorative panel spacer | 64376-0D010 |
| 64381A | Glove box decorative panel hanger | 64381-52010 |
| 64716D | Rear floor decorative cover | 64716-0D010 |
| 64770D | Spare tire cover assembly | 64771-0D010 · 64771-0D011 |
| 64772 | Spare tire cover liner | 64772-0D030 · 64772-16100 |
| 64910J | Trunk cover assembly | 64910-52020 |
