Toyota YARIS 天窗板和背窗玻璃 — Figure 6104

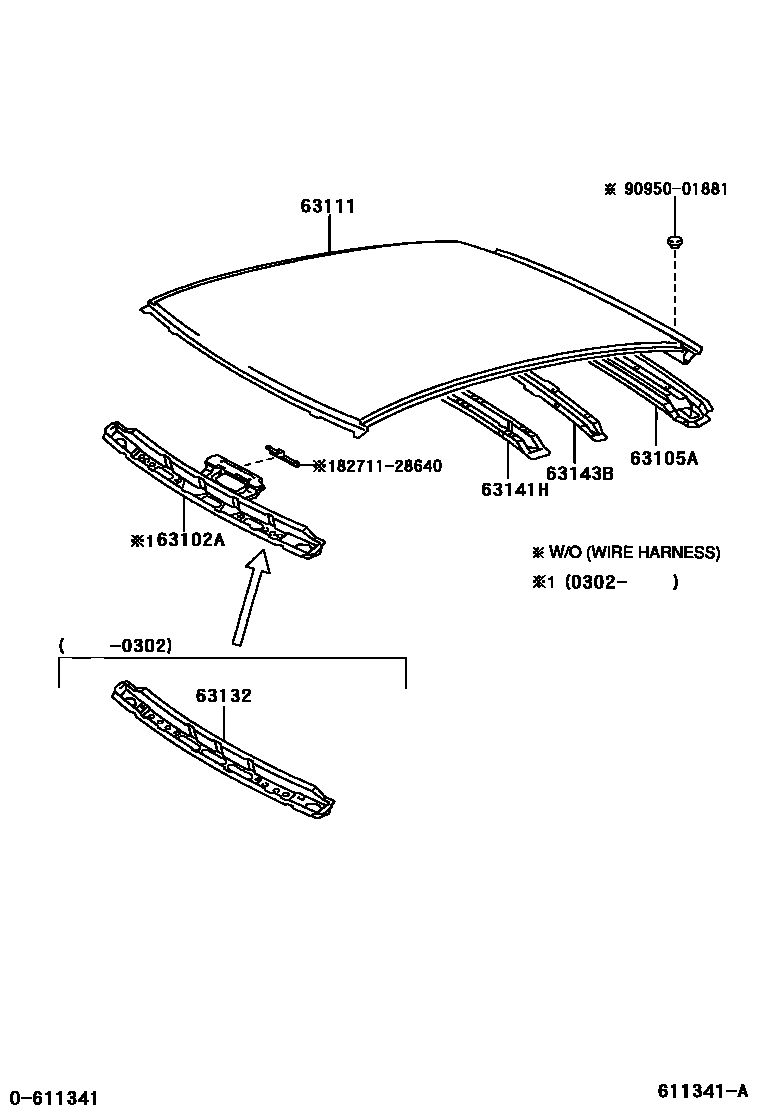

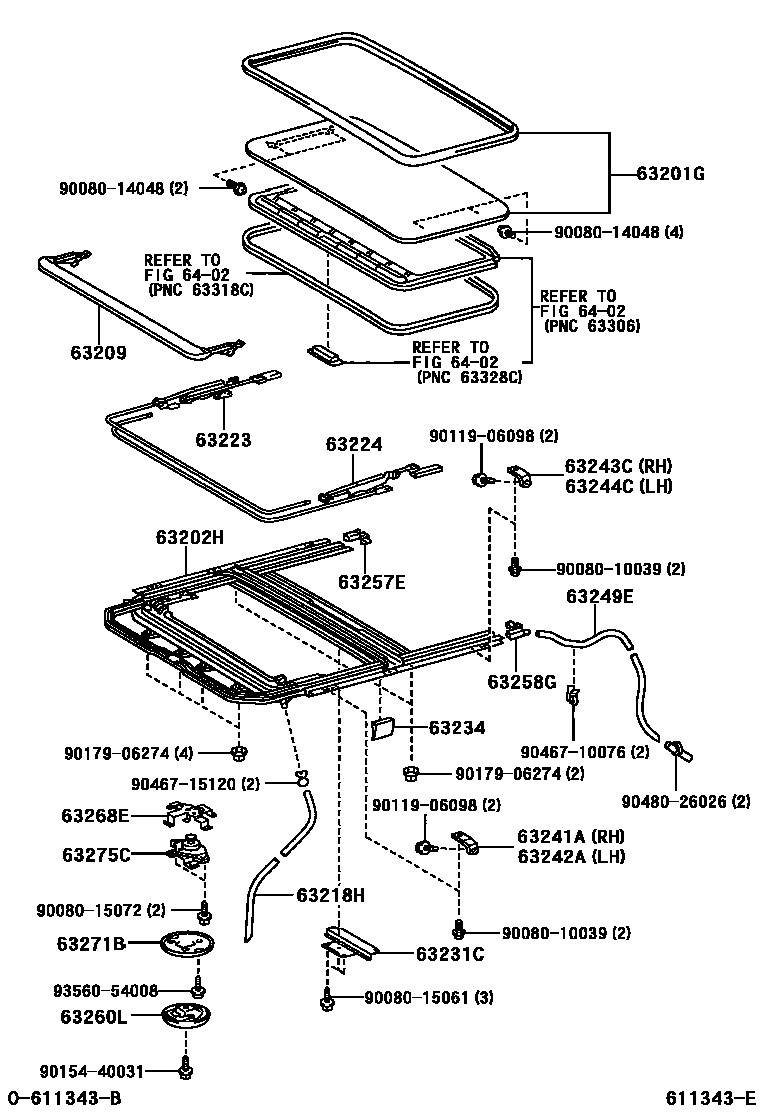

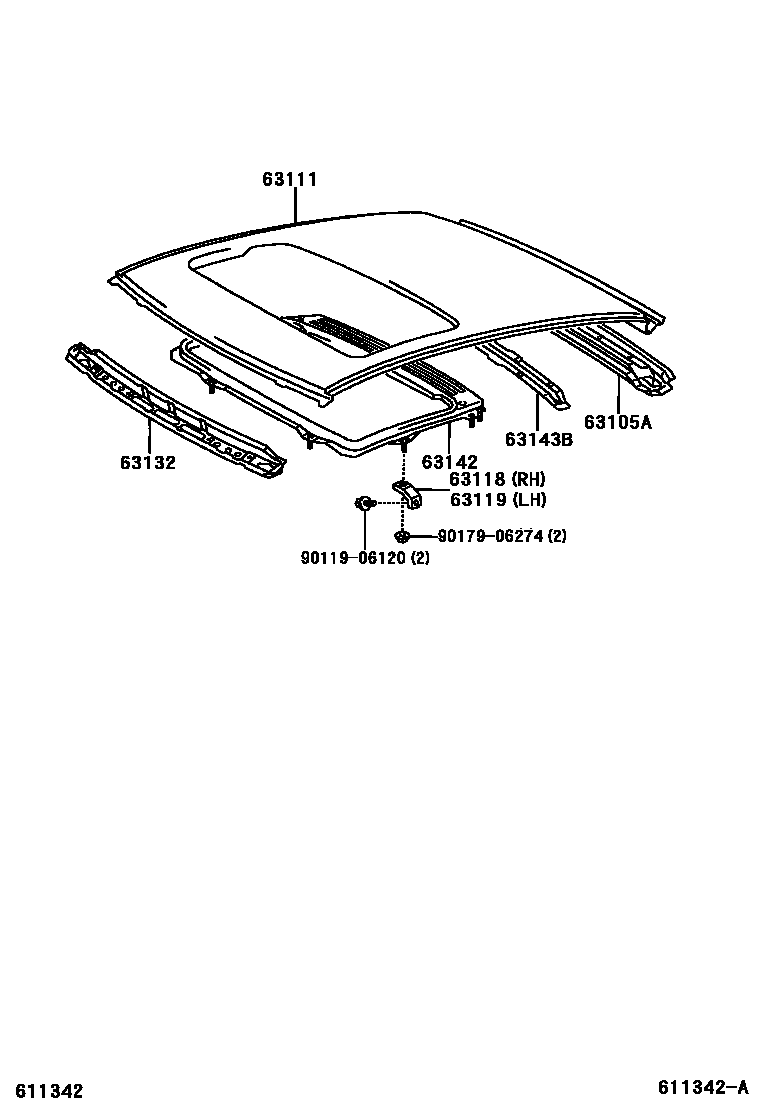

Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-0D010 |
| 63105A | Back door opening frame sub-assembly | 63105-0D010 |
| 63111 | roof panel | 63111-0D010 · 63111-0D020 · 63111-0D060 · 63111-0D070 |
| 63118 | Right roof panel bracket | 63118-52010 |
| 63119 | Left roof panel bracket | 63118-52010 |
| 63132 | Windshield inner roof panel | 63132-0D010 |
| 63141H | Center roof panel reinforcement | 63141-0D010 |
| 63142 | No. 2 roof panel reinforcement | 63142-0D010 |
| 63143B | No. 3 roof panel reinforcement | 63143-0D010 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-0D010 · 63201-0D011 · 63201-0D012 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-0D010 |
| 63209 | Roof deflector sub-assembly | 63209-0D010 |
| 63218H | Sliding skylight drain hose | 63249-0D010 · 63249-0D050 · 63249-0D051 |
| 63223 | Right sliding sunroof transmission cable | 63205-0D010 |
| 63224 | Left sliding sunroof transmission cable | 63206-0D010 |
| 63231C | Interior light bracket | 63231-0D010 |
| 63234 | Sliding sunroof frame protector | 63234-0D010 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-0D010 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63241-0D010 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-0D010 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63243-0D010 |
| 63249E | Sliding skylight drain hose | 63249-0D020 · 63249-0D021 |
| 63257E | Right sliding sunroof guide rail fixing bracket | 63257-0D010 |
| 63258G | Left sliding sunroof duct stringer fixing bracket | 63258-0D010 |
| 63268E | Sliding sunroof lift handle frame bracket | 63268-52030 |
| 63275C | Sliding sunroof drive gearbox | 63275-0D010 |
