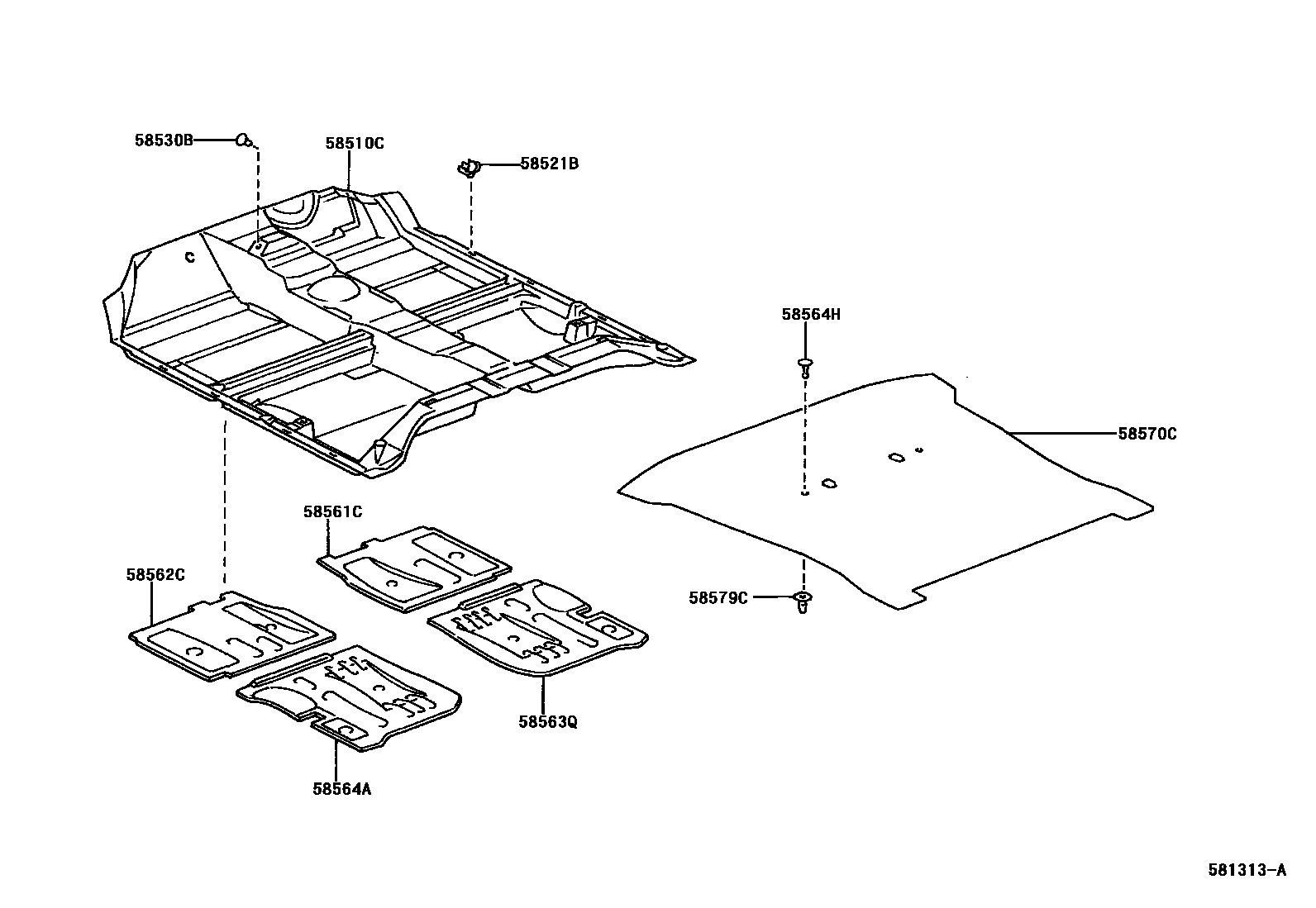

Toyota YARIS 地板垫和地毯 — Figure 5804
Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58521B | carpet hook | 58521-0D010 |
| 58530B | Clip (for front carpet) | 90467-10091 |
| 58561C | Front floor silencer No. 1 | 58561-0D010 · 58561-0D060 |
| 58562C | Front floor silencer No. 2 | 58562-0D010 · 58562-0D060 |
| 58563Q | Front floor silencer No. 3 | 58563-0D010 |
| 58564A | Front floor silencer No. 4 | 58564-0D010 |
| 58579C | Rear carpet fixing clip | 90467-10023 |
