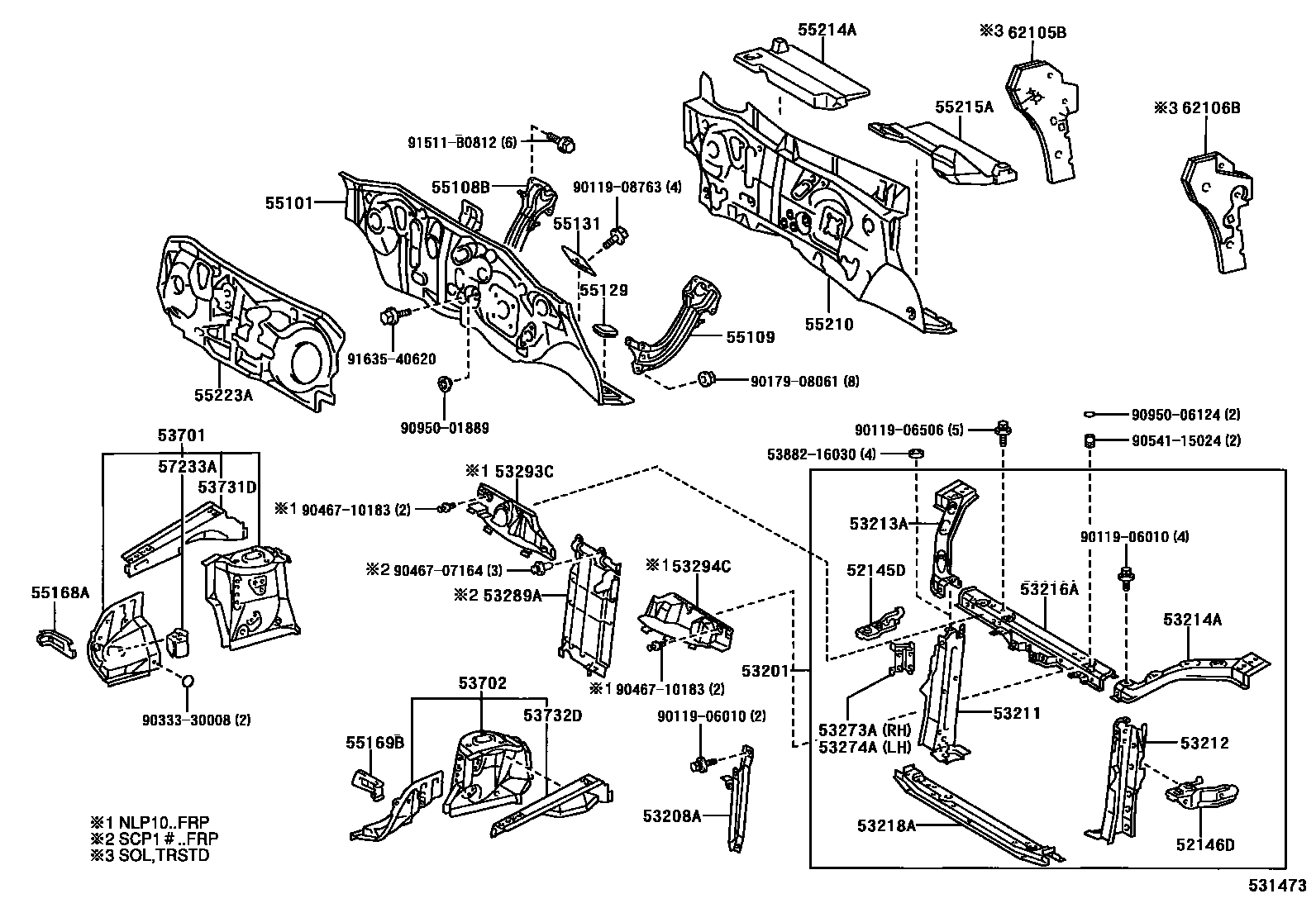

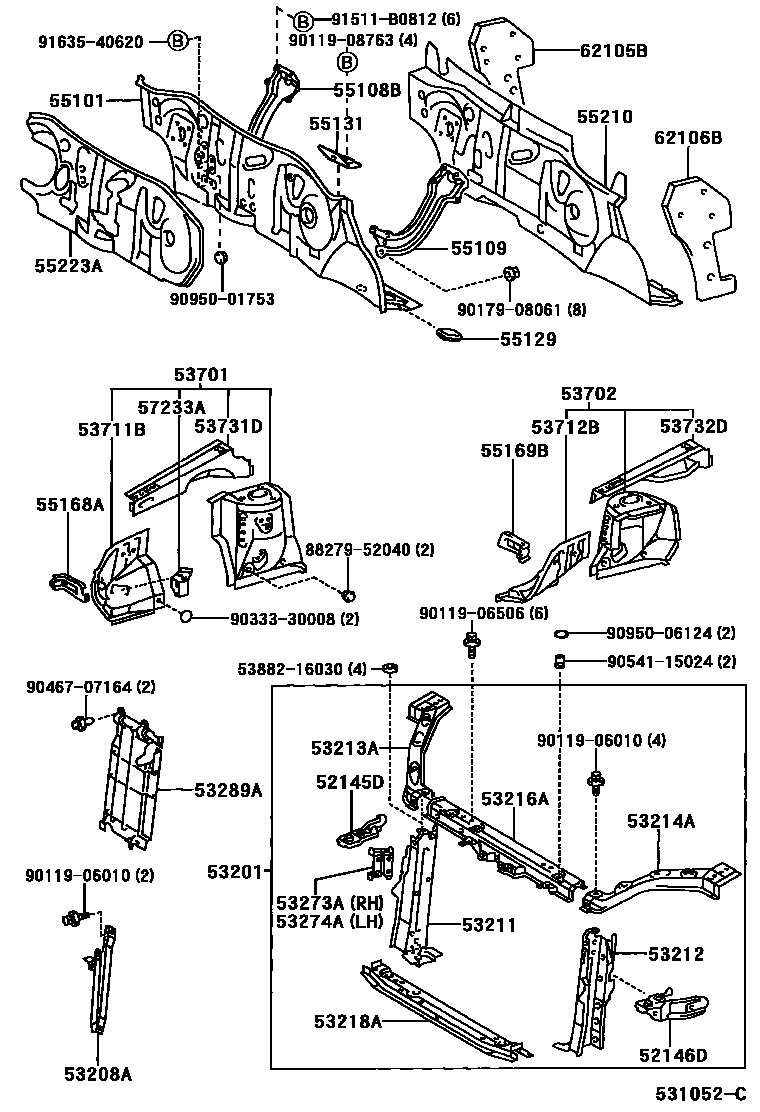

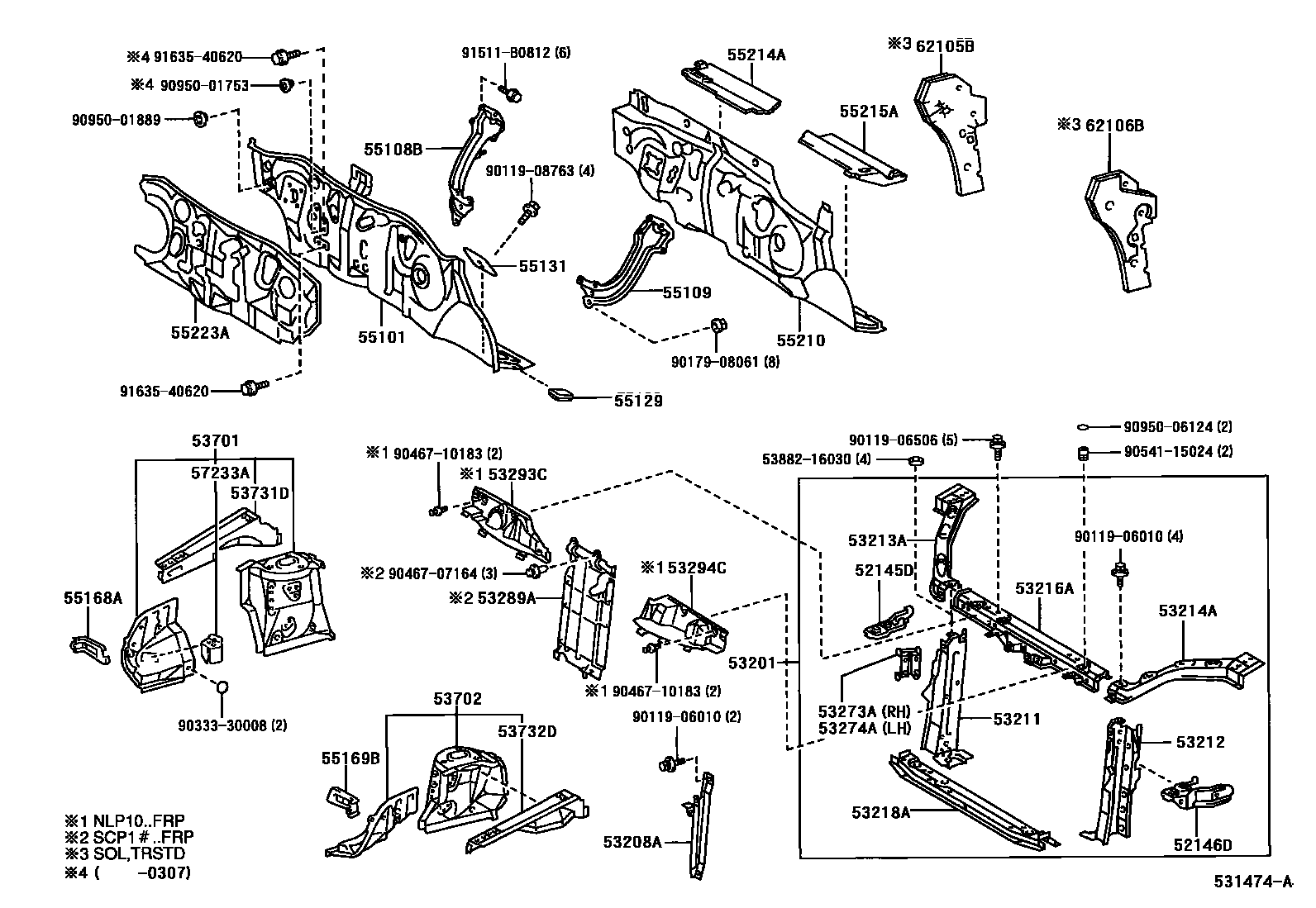

Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304
Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52145D | Front bumper right side mounting bracket | 52145-0D010 |
| 52146D | Front bumper left mounting bracket | 52146-0D010 |
| 53201 | Radiator bracket sub-assembly | 53210-0D010 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-0D010 |
| 53211 | Radiator right side support | 53211-0D010 |
| 53212 | Radiator left support | 53212-0D010 |
| 53213A | Radiator upper right bracket | 53213-0D010 |
| 53214A | Radiator upper left bracket | 53214-0D010 |
| 53216A | Radiator upper bracket | 53216-0D010 |
| 53218A | Radiator lower support | 53218-0D010 |
| 53273A | Radiator right side bracket reinforcement | 53273-0D010 · 53273-52010 |
| 53274A | Radiator left bracket reinforcement | 53273-0D010 · 53273-52010 |
| 53289A | Radiator bracket opening cover | 53289-0D010 |
| 53293C | Radiator right baffle | 53293-0D010 |
| 53294C | Radiator left baffle | 53294-0D010 |
| 53701 | Right front fender fender sub-assembly | 53701-0D900 · 53701-0D901 · 53701-0D902 |
| 53702 | Left front fender fender sub-assembly | 53702-0D900 · 53702-0D901 |
| 53711B | Right front fender front fender | 53711-52010 |
| 53712B | Left front fender front fender | 53712-52010 |
| 53731D | Right front fender to cowl side upper beam | 53731-52010 |
| 53732D | Left front fender to cowl side upper beam | 53732-52010 |
| 55101 | Front apron sub-assembly | 55101-0D010 · 55101-0D020 · 55101-0D050 · 55101-0D060 · 55101-0D070 · 55101-0D180 · 55101-0D181 · 55101-0D190 · 55101-0D191 |
| 55108B | Right side bracket sub-assembly (front wall to frame) | 55108-0D010 · 55108-0D020 |
| 55109 | Left side bracket sub-assembly (front wall to frame) | 55109-0D010 · 55109-0D020 |
| 55129 | Front panel hole cover | 55129-0D010 · 55129-0D020 · 55129-0D080 |
| 55131 | Front apron reinforcement | 55132-52010 · 55132-52020 |
| 55168A | Right front fender mounting bracket | 55168-52010 |
| 55169B | Left front fender mounting bracket | 55169-52010 |
| 55210 | Front wall insulation pad assembly | 55210-0D010 · 55210-0D020 · 55210-0D090 · 55210-0D100 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-0D010 · 55214-0D020 |
| 55215A | No. 3 insulation pad for front wall panel | 55215-0D010 · 55215-0D020 |
| 55223A | Front wall outer heat insulation pad | 55223-0D010 · 55223-0D011 · 55223-0D020 · 55223-0D021 |
| 57233A | Engine right front bracket fixing piece | 57233-52010 · 57233-52011 |
| 62105B | Right front wall side heat insulation pad sub-assembly | 62105-0D040 · 62105-0D041 · 62105-52010 |
| 62106B | Left front wall side heat insulation pad sub-assembly | 62106-0D040 · 62106-0D041 · 62106-52010 |
