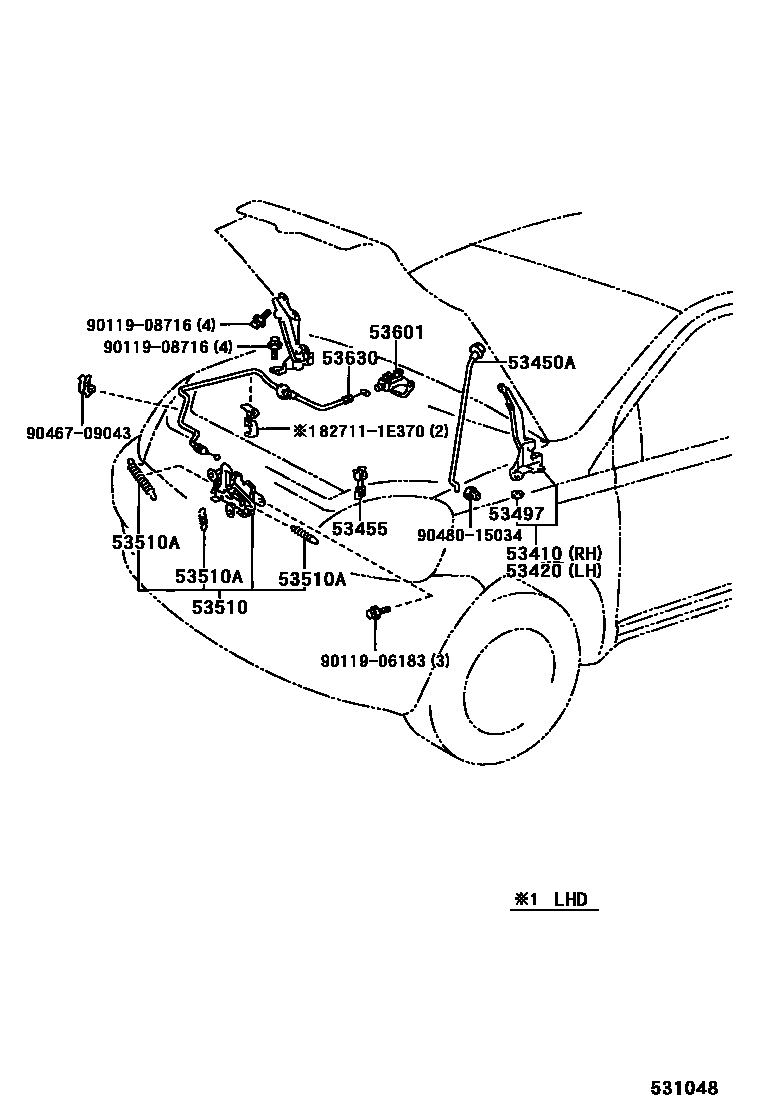

Toyota YARIS 发动机盖锁和铰链 — Figure 5303
Toyota YARIS EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-0D010 |
| 53420 | Engine cover left hinge assembly | 53420-0D010 |
| 53450A | Engine cover left support rod assembly | 53440-52010 · 53440-52100 |
| 53455 | Engine cover support rod clip | 53455-52010 |
| 53497 | No. 1 engine cover hinge gasket | 53497-0D010 |
| 53510 | Engine cover lock assembly | 53510-0D010 · 53510-0D020 · 53510-0D070 · 53510-0D080 |
| 53510A | Tension spring (for hood lock) | 90080-50265 · 90080-50266 · 90080-50267 · 90080-50365 |
| 53630 | Engine hood lock control cable assembly | 53630-0D010 · 53630-0D011 |
