Toyota YARIS Rear Spring & Shock Absorber — Figure 4804

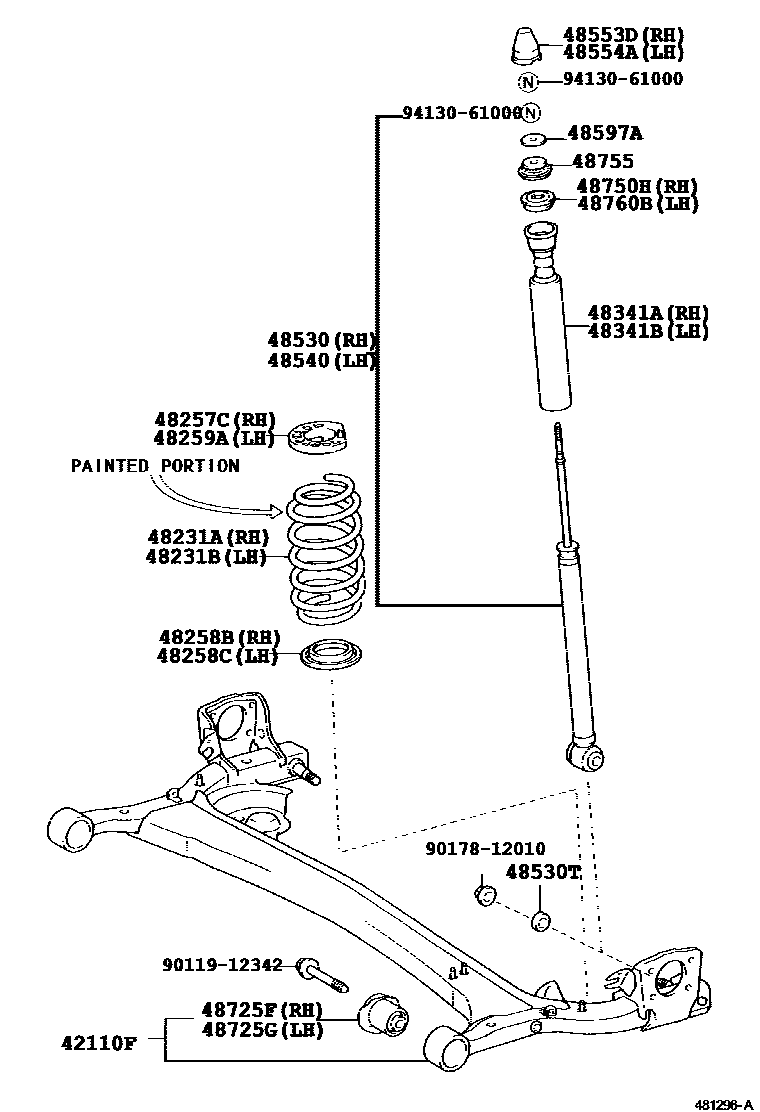

Toyota YARIS EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42110-0D011 · 42110-0D012 · 42110-0D021 · 42110-0D080 · 42110-0D081 · 42110-0D100 · 42110-0D101 · 42110-0D110 |
| 48231A | Right rear coil spring | 48231-0D010 · 48231-0D020 · 48231-0D100 · 48231-0D110 · 48231-0D120 · 48231-0D160 |
| 48231B | Left rear coil spring | 48231-0D010 · 48231-0D020 · 48231-0D100 · 48231-0D110 · 48231-0D120 · 48231-0D160 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-0D010 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-0D010 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-0D010 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-0D010 |
| 48341A | No. 1 right rear spring buffer block | 48341-0D010 |
| 48341B | No. 1 left rear spring buffer block | 48341-0D010 |
| 48530 | Right rear shock absorber assembly | 48530-09390 · 48530-09400 · 48530-09840 · 48530-09850 · 48530-09A02 · 48530-09A03 · 48530-09A04 · 48530-09A05 · 48530-09A06 |
| 48530T | Spacer (for rear shock absorber) | 90560-12065 |
| 48540 | Left rear shock absorber assembly | 48530-09390 · 48530-09400 · 48530-09840 · 48530-09850 · 48530-09A02 · 48530-09A03 · 48530-09A04 · 48530-09A05 · 48530-09A06 |
| 48553D | Right rear shock absorber cover | 48553-52010 |
| 48554A | Left rear shock absorber cover | 48553-52010 |
| 48597A | Rear shock absorber buffer pad | 90201-10320 |
| 48725F | Right rear axle bracket bushing | 48725-0D011 · 48725-0D050 |
| 48725G | Left rear axle bracket bushing | 48725-0D011 · 48725-0D050 |
| 48750H | Right rear suspension support assembly | 48755-0D020 |
| 48755 | rear suspension mount | 48755-0D010 |
| 48760B | Left rear suspension support assembly | 48755-0D020 |
