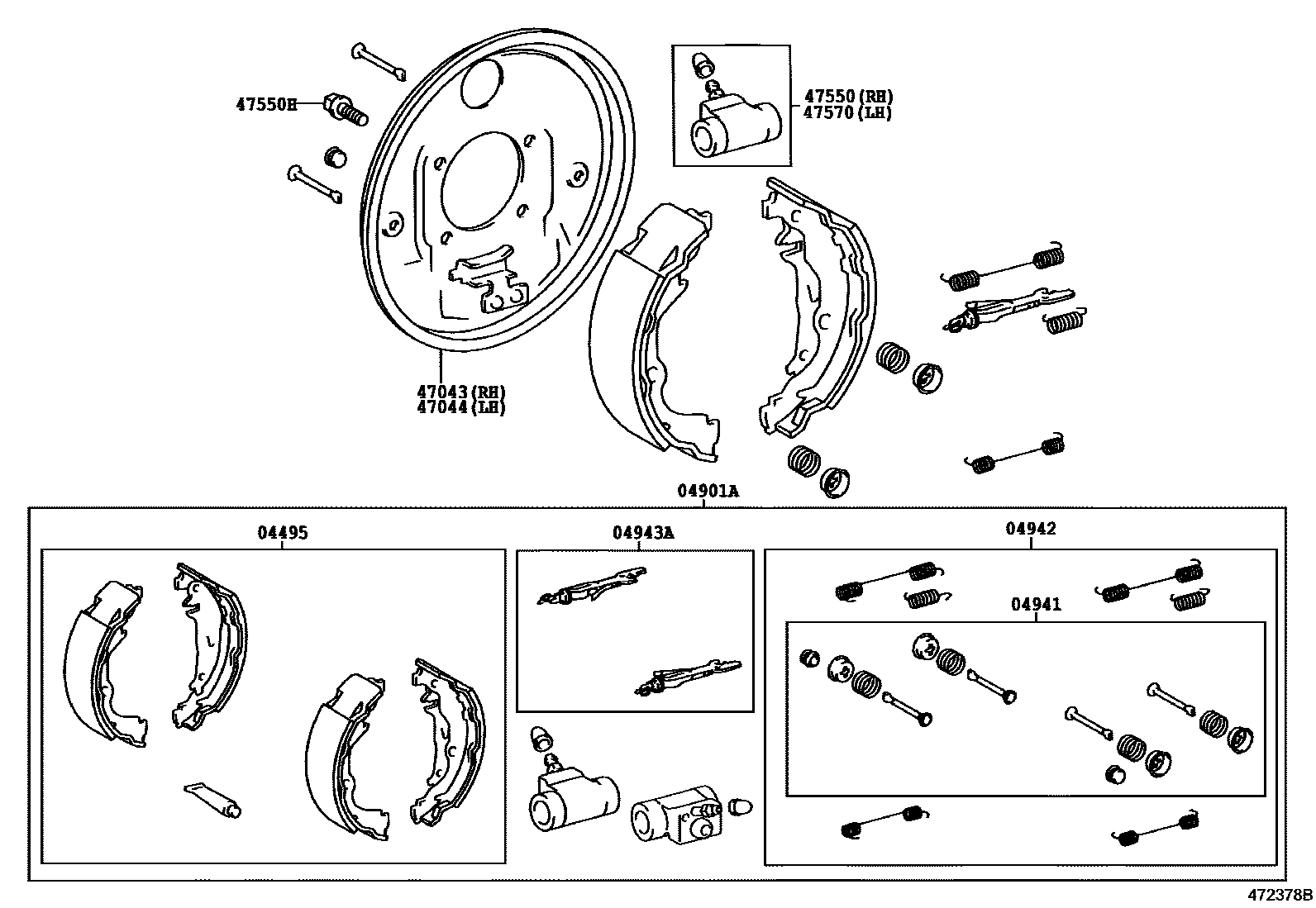

Toyota YARIS 后鼓式制动器分泵和底板 — Figure 4706
Toyota YARIS EPC diagram 4706, 后鼓式制动器分泵和底板, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04495 | Rear brake shoe assembly | 04495-0D020 |
| 04901A | rear brake maintenance kit | 04901-0D010 · 04901-0D011 |
| 04941 | Rear brake shoe limit spring assembly | 04941-0D010 |
| 04942 | Rear brake spring assembly | 04942-0D010 |
| 04943A | Rear brake bracket assembly | 04943-0D010 |
| 47043 | Right rear brake base plate sub-assembly | 47043-0D010 |
| 47044 | Left rear brake base plate sub-assembly | 47044-0D010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-0D010 |
| 47550H | Bolt (for rear wheel cylinder) | 47553-0D010 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47550-0D010 |
