Toyota YARIS 制动助力器和真空管 — Figure 4703

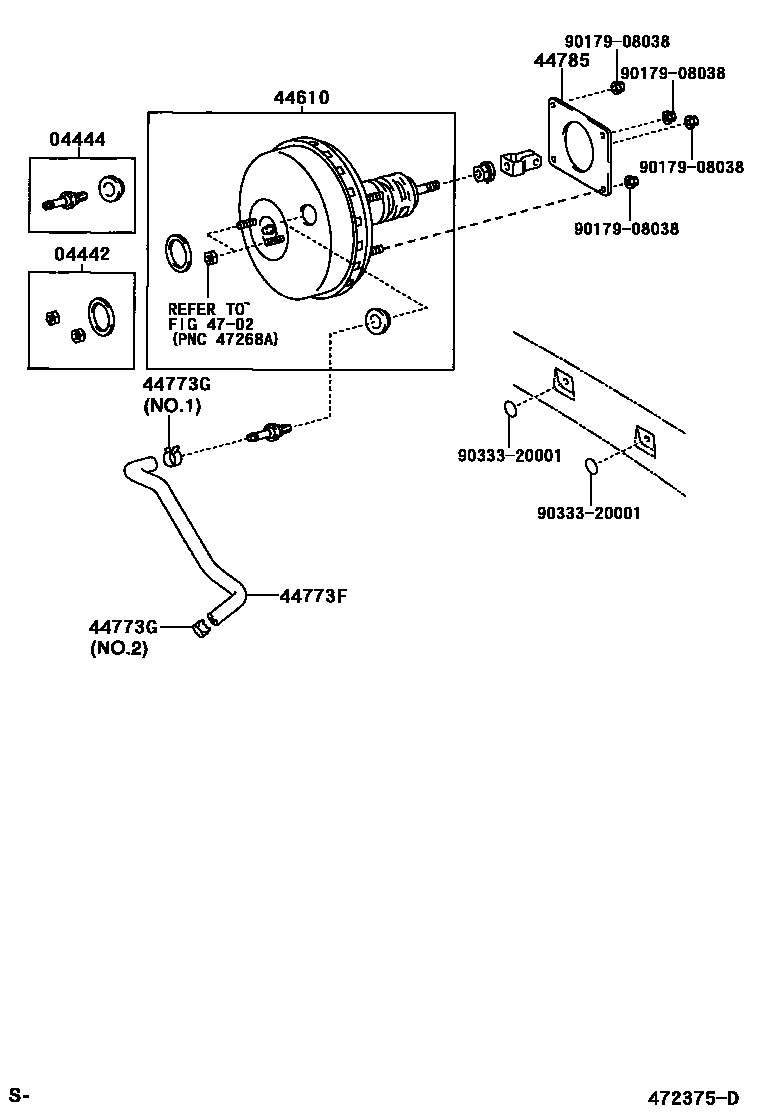

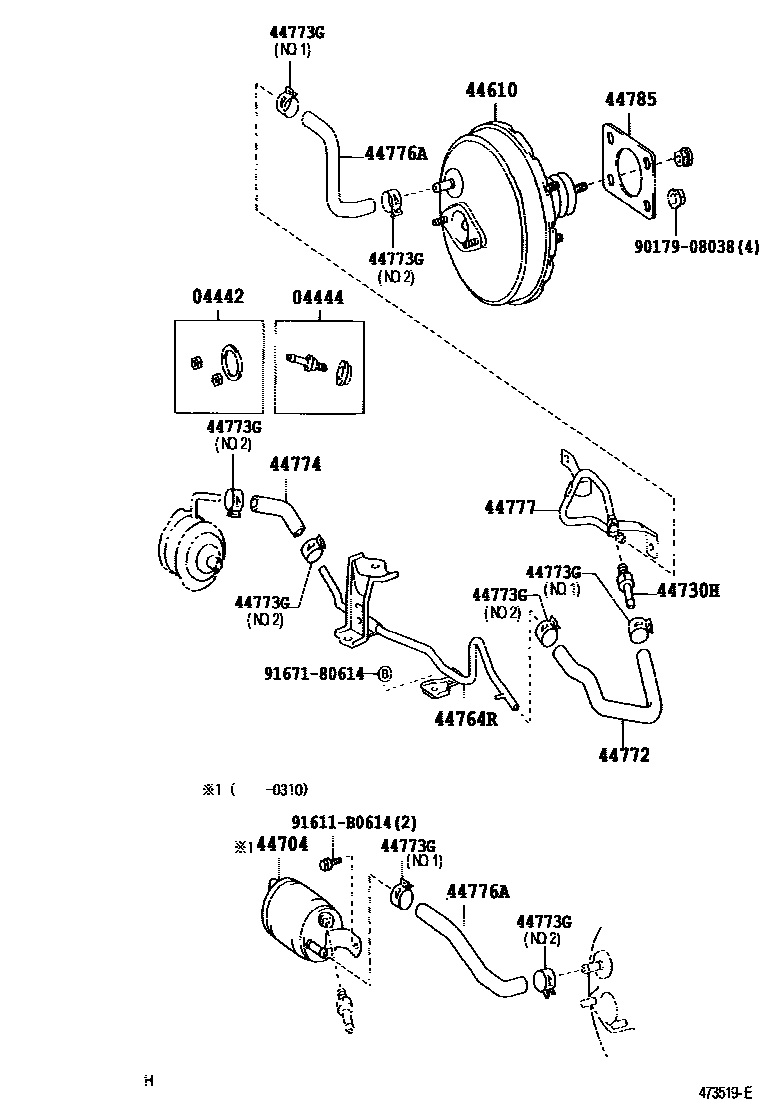

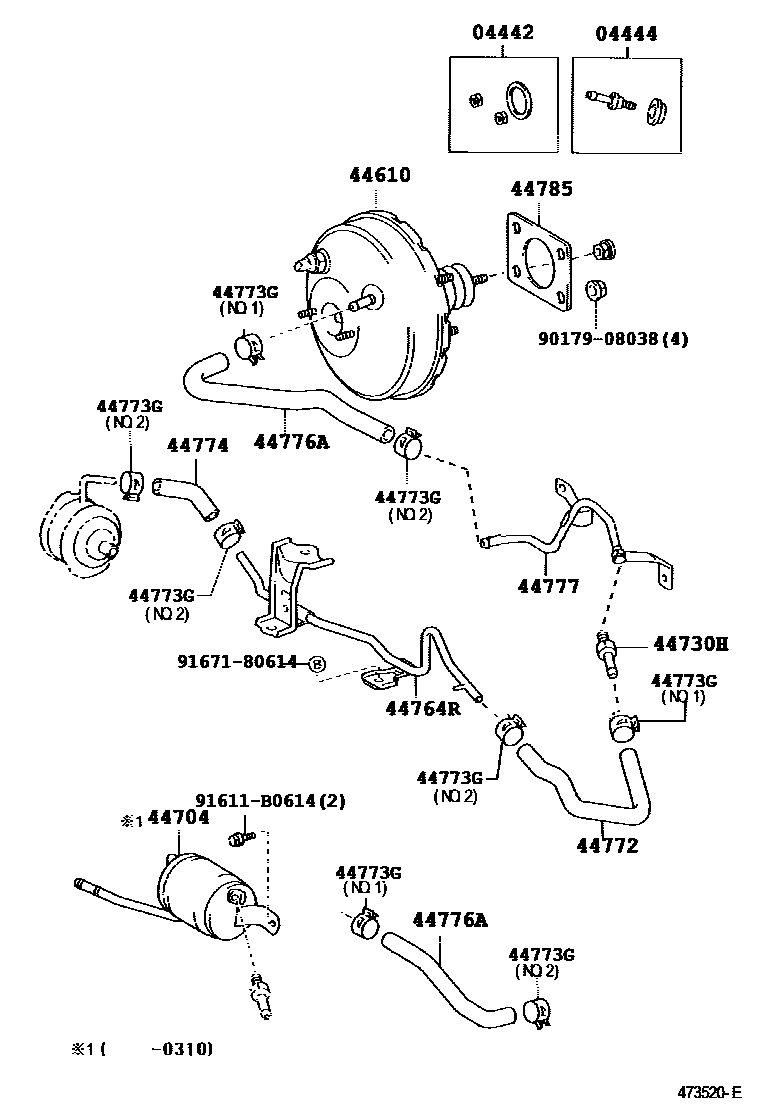

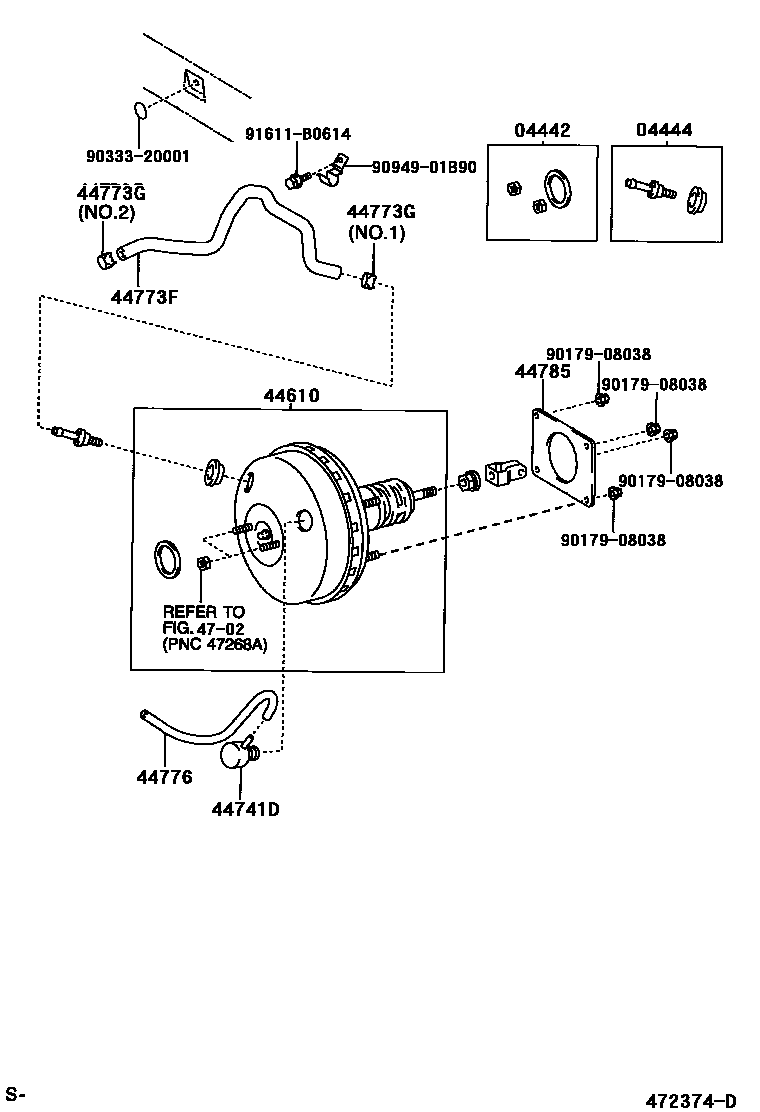

Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04442 | Brake booster mounting kit | 04442-0D010 |
| 04444 | Booster control valve assembly | 04444-0D010 |
| 44610 | brake booster assembly | 44610-09010 · 44610-09020 · 44610-09030 · 44610-09040 · 44610-09090 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-52010 · 44704-52040 |
| 44730H | Vacuum check valve assembly (for vacuum reservoir) | 44730-60050 |
| 44741D | Vacuum one-way valve body | 44741-0D020 |
| 44764R | Tubing (connector to vacuum reservoir) | 44764-52011 |
| 44772 | Hoses (check valve to connector tube) | 44772-52010 |
| 44773F | Hoses (connector to check valve) | 44773-52050 · 44773-52060 · 44773-52090 · 44773-52100 · 44773-52130 · 44773-52140 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16014 · 96133-41500 · 96134-51500 |
| 44774 | Hoses (joints to connector tubes) | 44774-52021 |
| 44776 | brake booster hose | 90999-92002 |
| 44776A | Hoses (vacuum reservoir to brake booster) | 44776-52050 · 44776-52060 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-52020 · 44777-52040 |
| 44785 | brake booster pad | 44785-0D010 · 44785-16020 |
