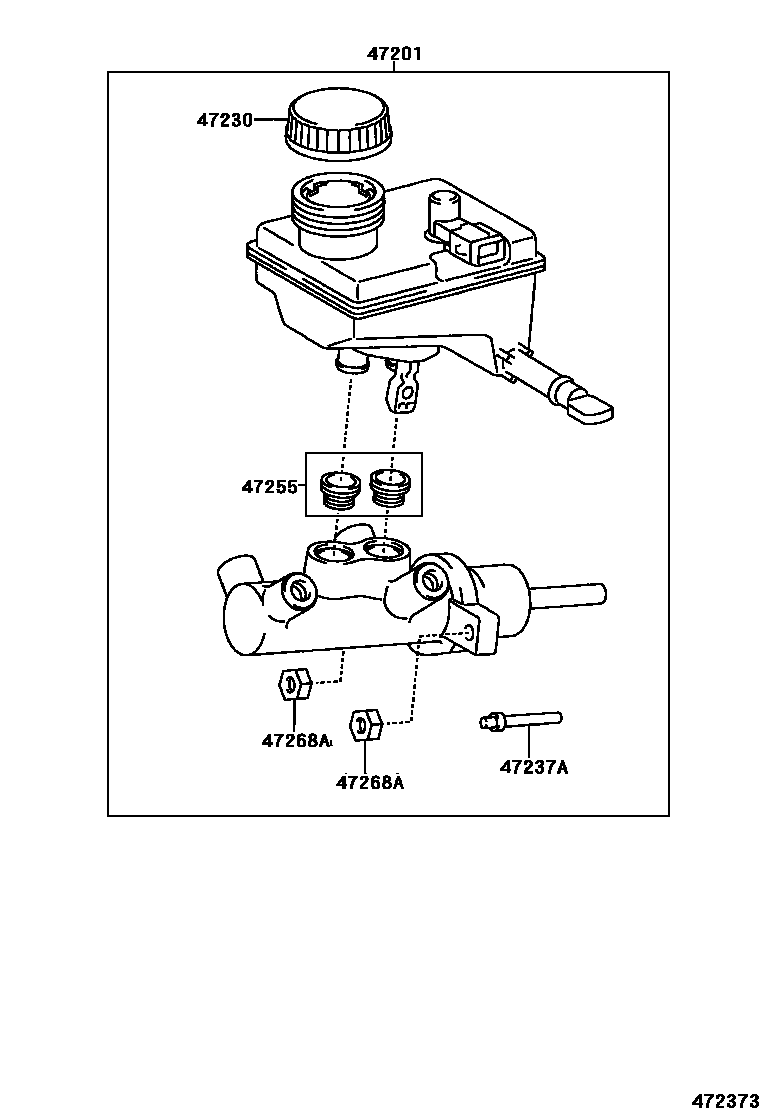

Toyota YARIS 制动总泵 — Figure 4702
Toyota YARIS EPC diagram 4702, 制动总泵, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-09010 · 47201-09020 · 47201-09030 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0D010 |
| 47237A | Brake master cylinder reservoir block | 47237-0D010 |
| 47255 | Master pump reservoir seal | 47255-09010 |
| 47268A | brake master cylinder nut | 47268-0D010 |
