Toyota YARIS Front Drive Shaft — Figure 4302

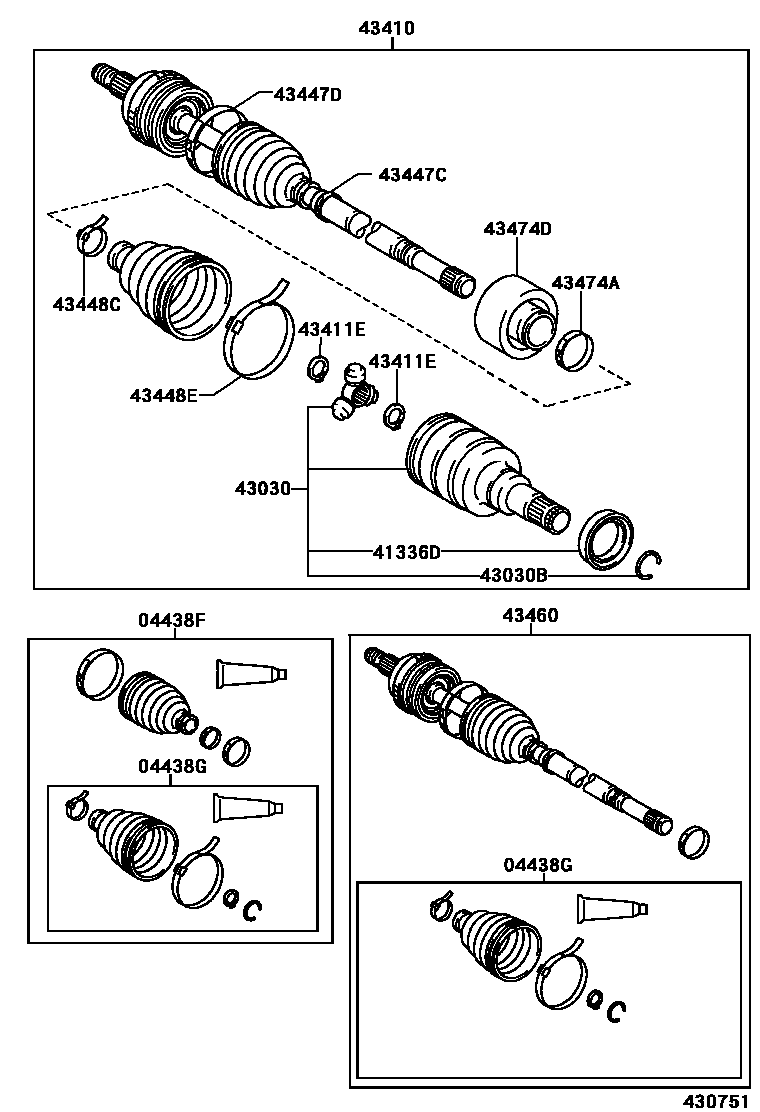

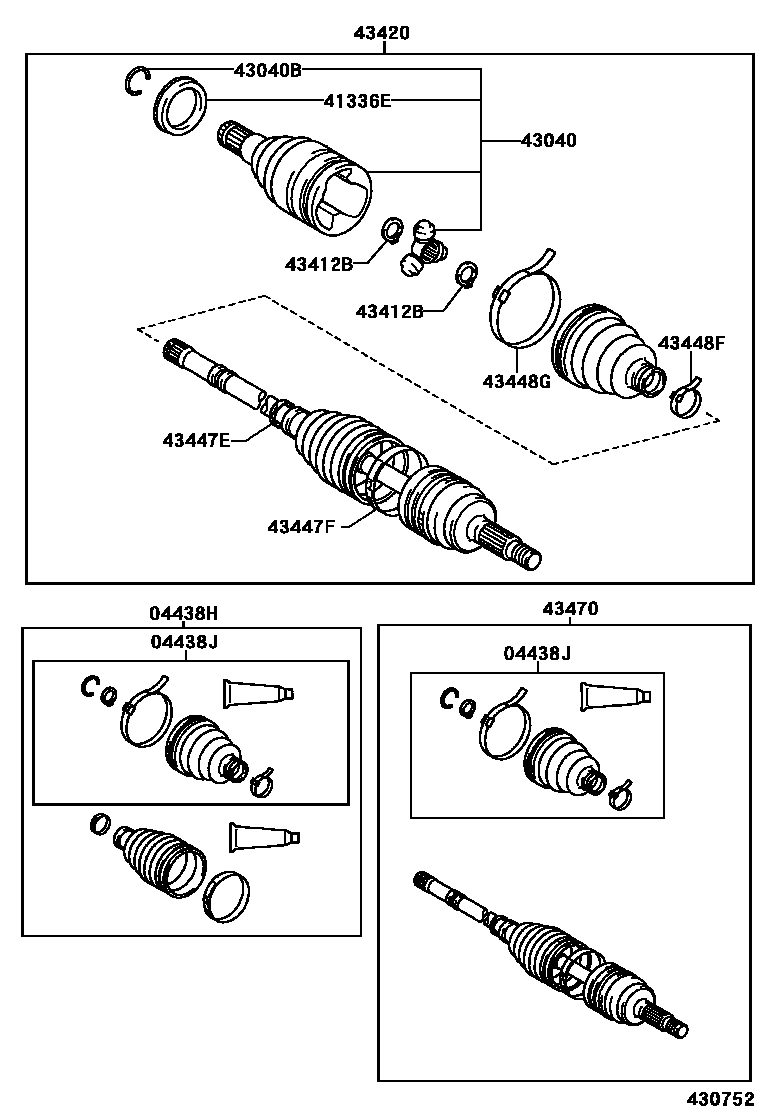

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-0D020 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-0D010 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-0D020 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-0D010 |
| 41336D | Right front driveshaft dust cover | 41336-0D010 · 41336-0D020 |
| 41336E | Left front driveshaft dust cover | 41336-0D010 · 41336-0D020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43403-0D010 · 43403-0D030 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 43425-0D010 |
| 43040 | Left front drive shaft inner universal joint assembly | 43403-0D010 · 43403-0D030 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 43425-0D010 |
| 43410 | Right front driveshaft assembly | 43410-0D010 · 43410-0D020 · 43410-0D070 · 43410-0D080 · 43410-0D150 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-0D020 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-0D020 |
| 43420 | Left front drive shaft assembly | 43420-0D010 · 43420-0D020 · 43420-0D070 · 43420-0D080 · 43420-0D150 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-0D040 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-0D030 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-0D040 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-0D030 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-0D020 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-0D010 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-0D020 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-0D010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09520 · 43460-09530 · 43460-09K10 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09770 · 43470-09780 · 43470-09G70 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-0D020 |
| 43474D | Right front driveshaft shock absorber | 43474-0D010 · 43474-0D030 |
