Toyota YARIS 车轮和车轮盖 — Figure 4103
Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

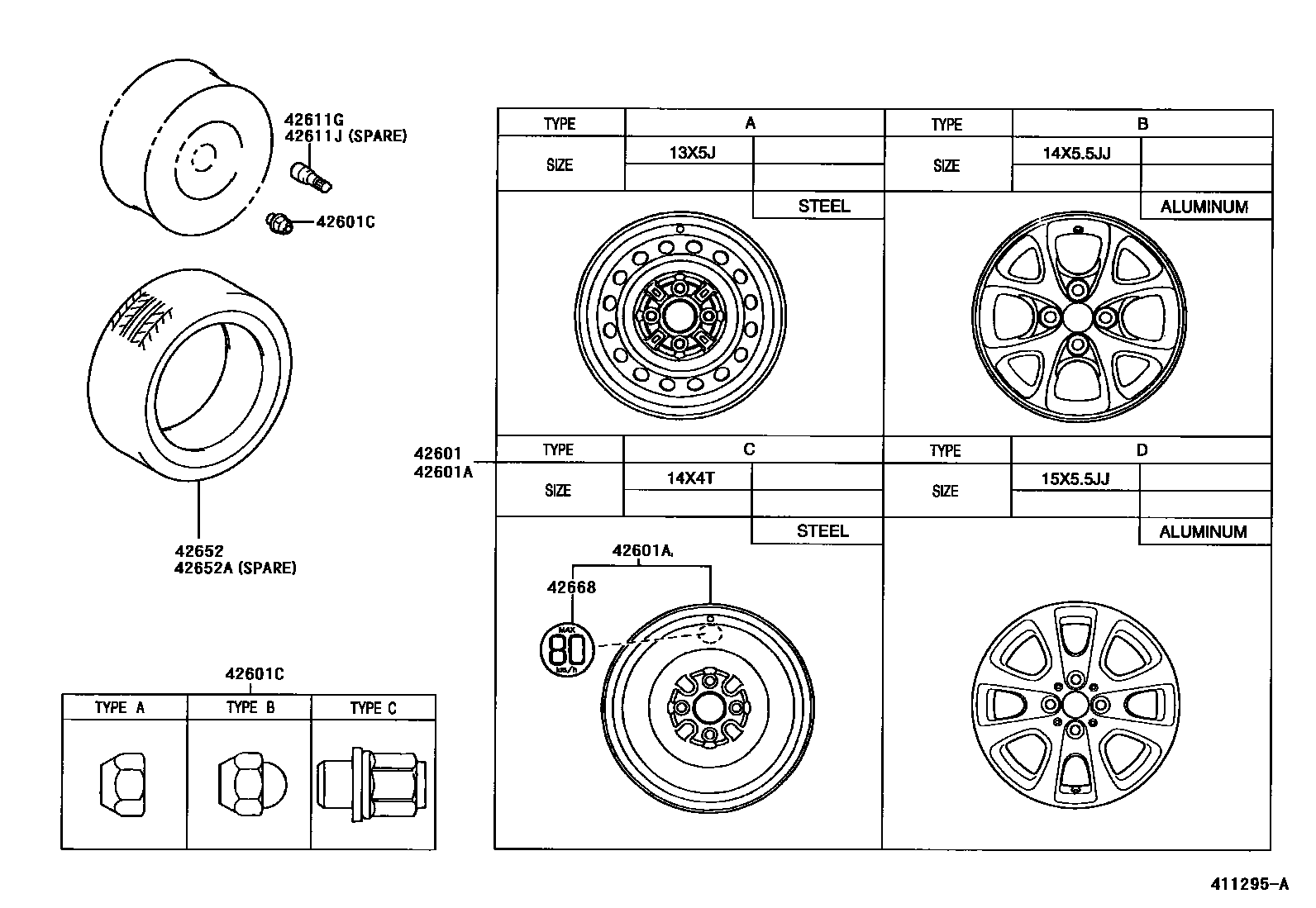

| 42601 | spoke wheel | 42611-0D010 · 42611-0D020 · 42611-0D030 · 42611-0D040 · 42611-0D160 |
| 42601A | Spoke wheel (for spare tire) | 42611-0D050 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 |

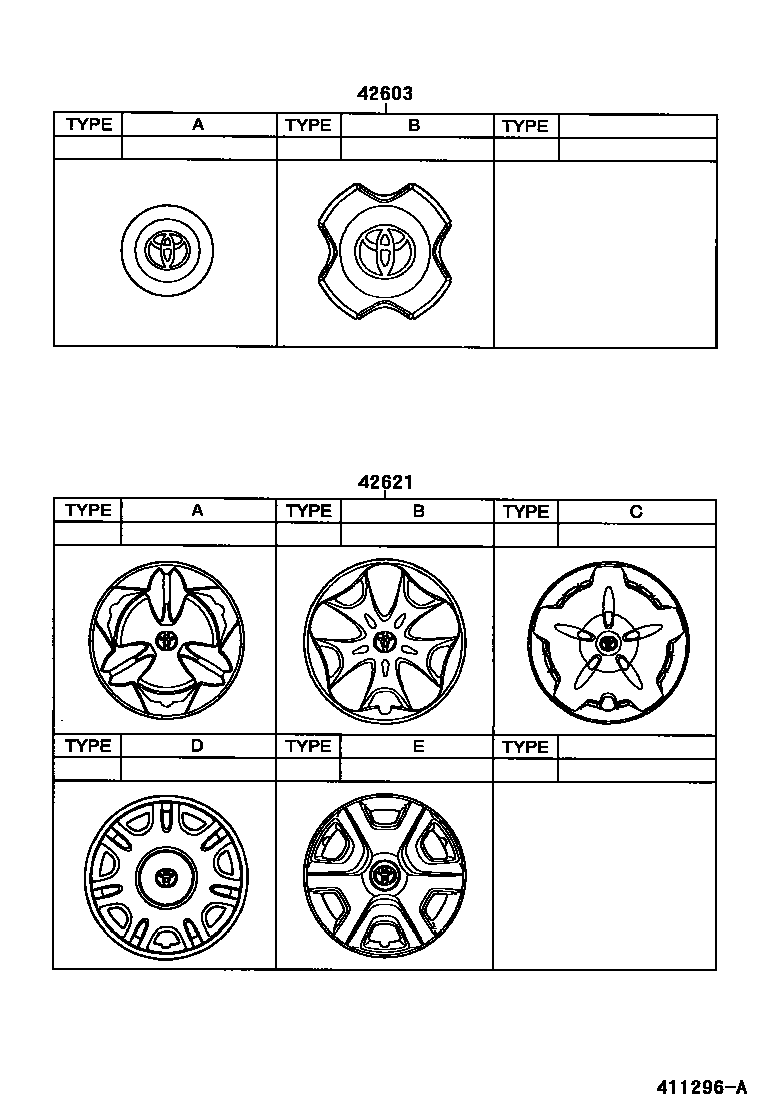

| 42603 | Wheel hub decorative parts sub-assembly | 42603-0D010 · 42638-0D010 |
| 42611G | Valve (for tubeless tires) | 90080-45010 · 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90080-45010 · 90942-05009 |
| 42621 | wheel cover | 42602-0D010 · 42602-0D020 · 42602-0D030 · 42602-0D040 · 42602-0D090 |
| 42652 | tires | 42652-0D010 · 42652-0D011 · 42652-0D020 · 42652-0D021 · 42652-0D030 · 42652-0D031 · 42652-0D040 · 42652-0D041 · 42652-0D060 · 42652-0D061 · 42652-0D070 · 42652-0D080 · 42652-0D081 |
| 42652A | Tire (for Spare Wheel) | 42652-16220 · 42652-52880 · 42652-52890 · 42652-52A00 |
| 42668 | Small spare tire warning label | 42668-0D010 |
