Toyota YARIS 阀体和滤油网(ATM) — Figure 3512

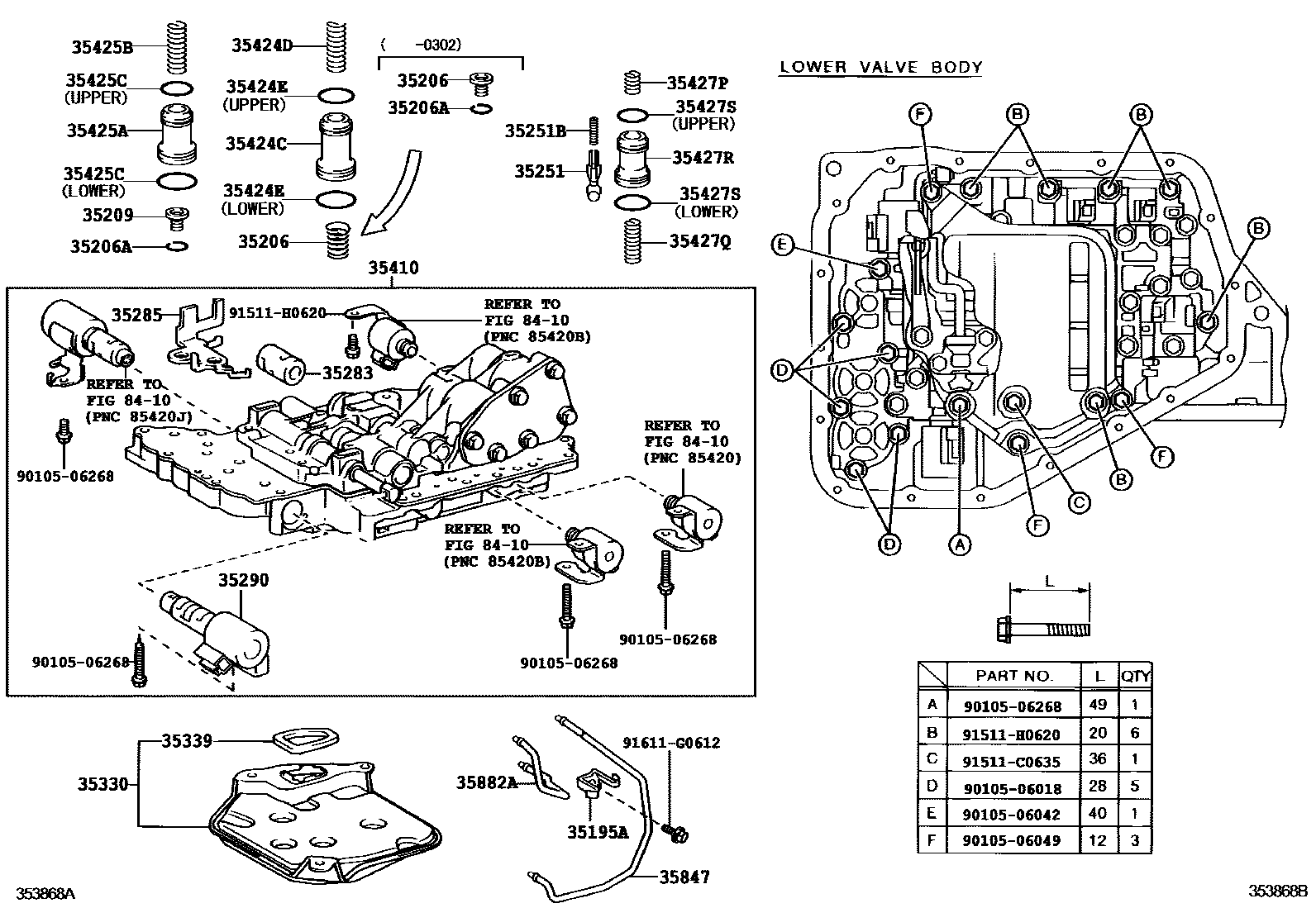

Toyota YARIS EPC diagram 3512, 阀体和滤油网(ATM), with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35195A | No. 1 transmission axle fuel supply pipe clamp | 35195-52010 |
| 35206 | C-1 Accumulator spring sub-assembly | 35206-52010 · 90905-01083 |
| 35206A | Hole snap ring (for C-1 accumulator spring) | 90521-22004 |
| 35209 | C-2 Accumulator spring sub-assembly | 35209-52010 |
| 35251 | Ball check valve body | 35251-30020 |
| 35251B | Compression spring (for ball check valve body) | 90501-03005 |
| 35283 | Lock control solenoid valve sleeve | 35283-52010 |
| 35285 | Solenoid valve lock plate | 35285-52010 |
| 35290 | Pipe pressure control solenoid valve assembly | 35290-52010 |
| 35330 | Valve body oil filter assembly | 35330-52010 |
| 35339 | Oil filter gasket | 35339-52010 |
| 35410 | Transmission valve body assembly | 35410-52030 |
| 35424C | C-1 Accumulator Piston | 35424-52010 |
| 35424D | Compression spring (for C-1 accumulator piston) | 90501-22046 |
| 35424E | O-ring (for C-1 accumulator piston) | 90301-21011 · 90301-29012 |
| 35425A | C-2 Accumulator Piston | 35425-52010 |
| 35425B | Compression spring (for C-2 accumulator piston) | 90501-22042 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-21011 · 90301-29012 |
| 35427P | No. 1 compression spring (for B-1 accumulator piston) | 90501-16165 |
| 35427Q | No. 2 compression spring (for B-1 accumulator piston) | 90501-21029 |
| 35427R | B-1 Accumulator Piston | 35427-52010 |
| 35427S | O-ring (for B-1 accumulator piston) | 90301-19016 · 90301-29012 |
| 35847 | Transmission lubricant supply pipe | 35847-52010 |
| 35882A | Differential gear lubricant oil supply pipe | 35882-52010 |
