Toyota YARIS 变速器壳和油底壳(ATM) — Figure 3503

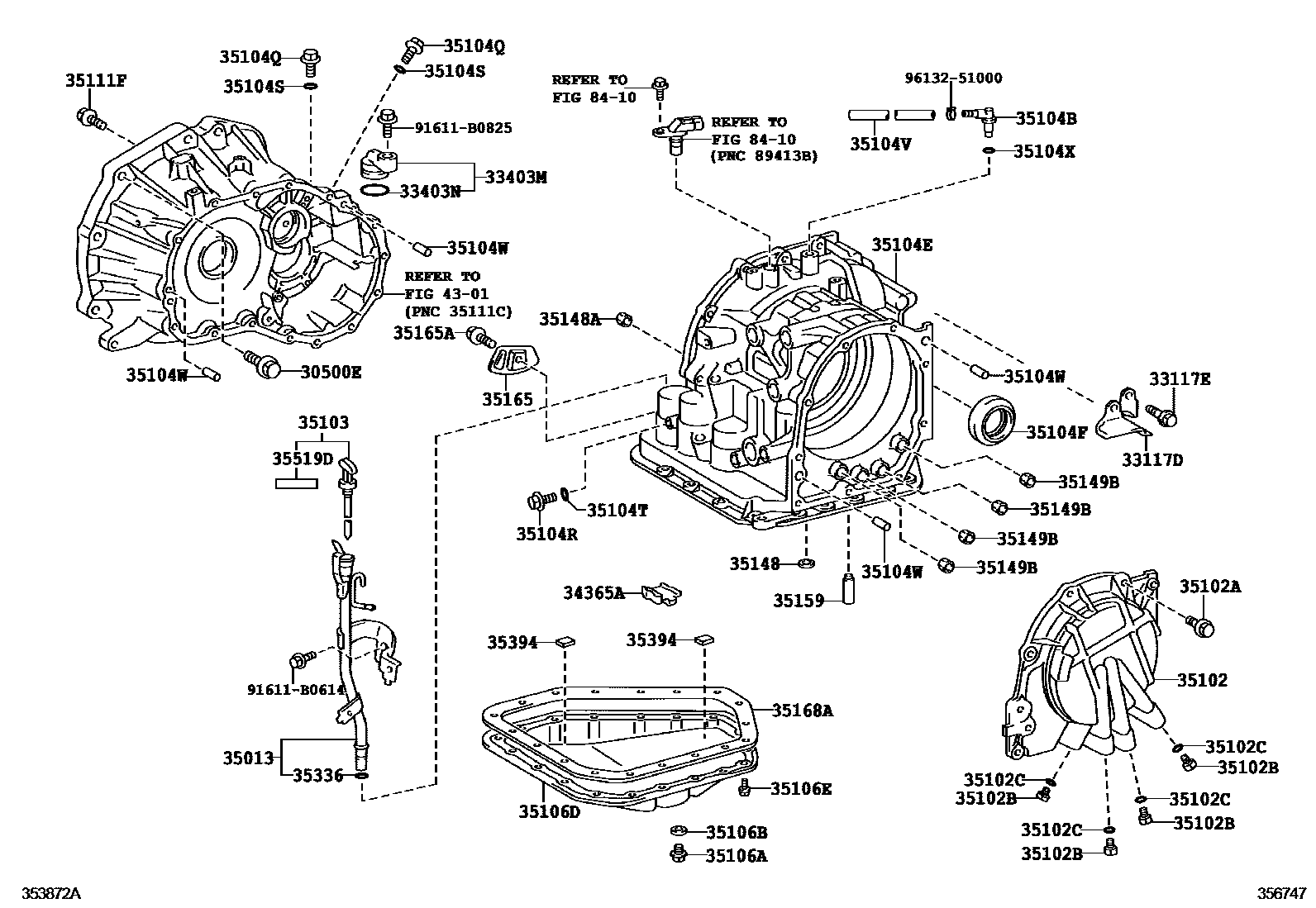

Toyota YARIS EPC diagram 3503, 变速器壳和油底壳(ATM), with 1 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30500E | Bolts (for securing transaxle and engine) | 91619-61245 · 91622-61040 |
| 33117D | automatic transmission guard plate | 33117-52010 |
| 33117E | Bolts (for automatic transmission guard) | 91651-B0820 |
| 33403M | Speedometer driven gear hole cover sub-assembly (ATM) | 33403-35230 |
| 33403N | O-ring (for automatic transmission speedometer driven gear hole cover) | 96711-24030 |
| 34365A | Outer race retainer | 34365-52020 |
| 35013 | Transmission oil pipe sub-assembly | 35013-52050 |
| 35102 | Transmission axle rear cover sub-assembly | 35102-52030 |
| 35102A | Bolts (for fixing the transmission axle rear cover) | 90105-08375 |
| 35102B | Screw plug (for transmission axle rear cover) | 90341-08001 |
| 35102C | O-ring (for transmission axle rear cover screw plug) | 90301-06196 |
| 35103 | Transmission oil level scoring assembly | 35103-52040 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03156 |
| 35104E | Automatic transmission axle housing sub-assembly | 35104-52020 |
| 35104F | Oil seal (for transmission axle housing) | 90311-34026 |
| 35104Q | No. 1 screw plug (for transmission axle housing) | 90341-08001 |
| 35104R | No. 2 screw plug (for transmission axle housing) | 90341-08001 |
| 35104S | O-ring (for transmission axle housing plug No. 1) | 90301-06196 |
| 35104T | O-ring (for transmission axle housing plug No. 2) | 90301-06196 |
| 35104V | Hoses (for breather plug) | 90447-11047 |
| 35104W | Direct sales (for transmission axle housing) | 90250-10034 |
| 35104X | O-ring (for breather plug) | 90301-08015 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-10011 |
| 35106B | Drain plug gasket (ATM) | 35178-30010 |
| 35106D | Automatic transmission axle oil pan sub-assembly | 35106-52030 |
| 35106E | Bolts (for transaxle oil pan) | 90119-06173 |
| 35111F | Bolts (for securing transaxle housing and transaxle housing) | 90105-08071 |
| 35148 | Governor oil supply pipe No. 1 gasket | 35145-60020 · 35148-16010 |
| 35148A | Governor oil supply pipe gasket No. 2 | 35148-12010 |
| 35149B | Transaxle housing second gear brake pad | 35149-12020 |
| 35159 | brake drum gasket | 35159-52010 |
| 35165 | No. 1 gearbox block | 35165-52010 |
| 35165A | Bolt (for gearbox block No. 1) | 90105-06049 |
| 35168A | Automatic transaxle oil pan gasket | 35168-52010 |
| 35336 | O-ring (for transmission filler pipe) | 90301-09173 |
| 35394 | Oil filter magnet (for transmission) | 35394-30011 · 35394-48010 |
| 35519D | Automatic transmission information label | 35519-20030 |
